This functor computes the Transformed Soil Adjusted Vegetation Index (TSAVI) More...

#include <otbVegetationIndicesFunctor.h>

Inheritance diagram for otb::Functor::TSAVI< TInput1, TInput2, TOutput >:

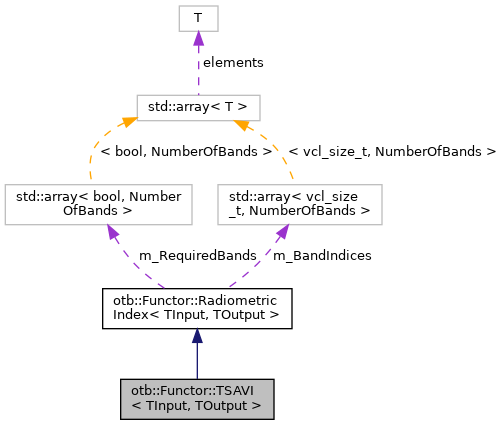

Collaboration diagram for otb::Functor::TSAVI< TInput1, TInput2, TOutput >:

Public Types
typedef itk::VariableLengthVector < TInput1 >	InputVectorType

Public Member Functions
	TSAVI ()
virtual	~TSAVI ()
double	GetA (void) const
unsigned int	GetIndex (BandName::BandName band) const
virtual std::string	GetName () const
unsigned int	GetNIRIndex () const
	Get NIR Index.
unsigned int	GetRedIndex () const
	Get Red Index.
double	GetS (void) const
double	GetX (void) const
bool	operator!= (const RAndNIRIndexBase &) const
TOutput	operator() (const InputVectorType &inputVector) const
TOutput	operator() (const TInput1 &r, const TInput2 &nir) const
bool	operator== (const RAndNIRIndexBase &other) const
void	SetA (const double A)
void	SetIndex (BandName::BandName band, unsigned int channel)
void	SetNIRIndex (unsigned int channel)
	Set NIR Index.
void	SetRedIndex (unsigned int channel)
	Set Red Index.
void	SetS (const double S)
void	SetX (const double X)

Protected Member Functions
TOutput	Evaluate (const TInput1 &r, const TInput2 &nir) const

Protected Attributes
double	m_EpsilonToBeConsideredAsZero

Private Attributes
double	m_A
double	m_S
double	m_X

Detailed Description

template<class TInput1, class TInput2, class TOutput>
class otb::Functor::TSAVI< TInput1, TInput2, TOutput >

This functor computes the Transformed Soil Adjusted Vegetation Index (TSAVI)

[Baret et al. 1989, Baret et Guyot, 1991]

Definition at line 585 of file otbVegetationIndicesFunctor.h.

Member Typedef Documentation

template<class TInput1, class TInput2, class TOutput>

typedef itk::VariableLengthVector<TInput1> otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::InputVectorType

inherited

Vector pixel type used to support both vector images and multiple input images

Definition at line 49 of file otbVegetationIndicesFunctor.h.

Constructor & Destructor Documentation

template<class TInput1 , class TInput2 , class TOutput >

otb::Functor::TSAVI< TInput1, TInput2, TOutput >::TSAVI ( )

inline

Definition at line 595 of file otbVegetationIndicesFunctor.h.

template<class TInput1 , class TInput2 , class TOutput >

virtual otb::Functor::TSAVI< TInput1, TInput2, TOutput >::~TSAVI ( )

inlinevirtual

Definition at line 596 of file otbVegetationIndicesFunctor.h.

Member Function Documentation

template<class TInput1 , class TInput2 , class TOutput >

TOutput otb::Functor::TSAVI< TInput1, TInput2, TOutput >::Evaluate	(	const TInput1 &	r,
		const TInput2 &	nir
	)		const

inlineprotectedvirtual

Implements otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >.

Definition at line 626 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_A, otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::m_EpsilonToBeConsideredAsZero, otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_S, and otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_X.

template<class TInput1 , class TInput2 , class TOutput >

double otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetA ( void ) const

inline

Definition at line 611 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_A.

template<class TInput1, class TInput2, class TOutput>

unsigned int otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::GetIndex ( BandName::BandName band ) const

inlineinherited

Get index, generic method

Definition at line 91 of file otbVegetationIndicesFunctor.h.

template<class TInput1 , class TInput2 , class TOutput >

virtual std::string otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetName ( ) const

inlinevirtual

Return the index name

Implements otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >.

Definition at line 590 of file otbVegetationIndicesFunctor.h.

template<class TInput1, class TInput2, class TOutput>

unsigned int otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::GetNIRIndex ( ) const

inlineinherited

Get NIR Index.

Definition at line 119 of file otbVegetationIndicesFunctor.h.

template<class TInput1, class TInput2, class TOutput>

unsigned int otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::GetRedIndex ( ) const

inlineinherited

Get Red Index.

Definition at line 109 of file otbVegetationIndicesFunctor.h.

template<class TInput1 , class TInput2 , class TOutput >

double otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetS ( void ) const

inline

Definition at line 603 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_S.

template<class TInput1 , class TInput2 , class TOutput >

double otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetX ( void ) const

inline

Definition at line 620 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_X.

template<class TInput1, class TInput2, class TOutput>

bool otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::operator!= ( const RAndNIRIndexBase< TInput1, TInput2, TOutput > & ) const

inlineinherited

Definition at line 52 of file otbVegetationIndicesFunctor.h.

template<class TInput1, class TInput2, class TOutput>

TOutput otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::operator() ( const InputVectorType & inputVector ) const

inlineinherited

Definition at line 63 of file otbVegetationIndicesFunctor.h.

template<class TInput1, class TInput2, class TOutput>

TOutput otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::operator()	(	const TInput1 &	r,
		const TInput2 &	nir
	)		const

inlineinherited

Definition at line 69 of file otbVegetationIndicesFunctor.h.

template<class TInput1, class TInput2, class TOutput>

bool otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::operator== ( const RAndNIRIndexBase< TInput1, TInput2, TOutput > & other ) const

inlineinherited

Definition at line 57 of file otbVegetationIndicesFunctor.h.

template<class TInput1 , class TInput2 , class TOutput >

void otb::Functor::TSAVI< TInput1, TInput2, TOutput >::SetA ( const double A )

inline

Definition at line 607 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_A.

template<class TInput1, class TInput2, class TOutput>

void otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::SetIndex	(	BandName::BandName	band,
		unsigned int	channel
	)

inlineinherited

Set index, generic method

Definition at line 79 of file otbVegetationIndicesFunctor.h.

template<class TInput1, class TInput2, class TOutput>

void otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::SetNIRIndex ( unsigned int channel )

inlineinherited

Set NIR Index.

Definition at line 114 of file otbVegetationIndicesFunctor.h.

Referenced by otb::Functor::RadiometricNonWaterNonVegetationIndexFunctor< TInput >::SetNIRIndex().

template<class TInput1, class TInput2, class TOutput>

void otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::SetRedIndex ( unsigned int channel )

inlineinherited

Set Red Index.

Definition at line 104 of file otbVegetationIndicesFunctor.h.

Referenced by otb::Functor::RadiometricNonWaterNonVegetationIndexFunctor< TInput >::SetRedIndex().

template<class TInput1 , class TInput2 , class TOutput >

void otb::Functor::TSAVI< TInput1, TInput2, TOutput >::SetS ( const double S )

inline

Set/Get S and A parameters

Definition at line 599 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_S.

template<class TInput1 , class TInput2 , class TOutput >

void otb::Functor::TSAVI< TInput1, TInput2, TOutput >::SetX ( const double X )

inline

Set/Get X parameter

Definition at line 616 of file otbVegetationIndicesFunctor.h.

References otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_X.

Member Data Documentation

template<class TInput1 , class TInput2 , class TOutput >

double otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_A

private

A and S parameters

Definition at line 641 of file otbVegetationIndicesFunctor.h.

Referenced by otb::Functor::TSAVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetA(), and otb::Functor::TSAVI< TInput1, TInput2, TOutput >::SetA().

template<class TInput1, class TInput2, class TOutput>

double otb::Functor::RAndNIRIndexBase< TInput1, TInput2, TOutput >::m_EpsilonToBeConsideredAsZero

protectedinherited

Definition at line 131 of file otbVegetationIndicesFunctor.h.

Referenced by otb::Functor::NDVI< double, double, double >::Evaluate(), otb::Functor::RVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::SAVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::TSAVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::MSAVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::GEMI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::IPVI< TInput1, TInput2, TOutput >::Evaluate(), and otb::Functor::LAIFromNDVIFormosat2Functor< TInput1, TInput2, TOutput >::Evaluate().

template<class TInput1 , class TInput2 , class TOutput >

double otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_S

private

Definition at line 642 of file otbVegetationIndicesFunctor.h.

Referenced by otb::Functor::TSAVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetS(), and otb::Functor::TSAVI< TInput1, TInput2, TOutput >::SetS().

template<class TInput1 , class TInput2 , class TOutput >

double otb::Functor::TSAVI< TInput1, TInput2, TOutput >::m_X

private

X parameter

Definition at line 644 of file otbVegetationIndicesFunctor.h.

Referenced by otb::Functor::TSAVI< TInput1, TInput2, TOutput >::Evaluate(), otb::Functor::TSAVI< TInput1, TInput2, TOutput >::GetX(), and otb::Functor::TSAVI< TInput1, TInput2, TOutput >::SetX().

The documentation for this class was generated from the following file:

otbVegetationIndicesFunctor.h
