This class is a LabelMap with additionnal adjacency information. More...

#include <otbLabelMapWithAdjacency.h>

Inheritance diagram for otb::LabelMapWithAdjacency< TLabelObject >:

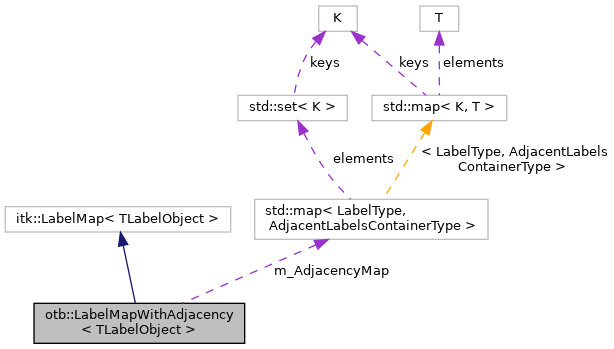

Collaboration diagram for otb::LabelMapWithAdjacency< TLabelObject >:

Public Types
typedef std::map< LabelType, AdjacentLabelsContainerType >	AdjacencyMapType
typedef std::set< LabelType >	AdjacentLabelsContainerType
typedef itk::SmartPointer < const Self >	ConstPointer
typedef itk::WeakPointer < const Self >	ConstWeakPointer
typedef Superclass::DirectionType	DirectionType
typedef Superclass::IndexType	IndexType
typedef IndexType::IndexValueType	IndexValueType
typedef std::map< LabelType, LabelObjectPointerType >	LabelObjectContainerType
typedef LabelObjectType::Pointer	LabelObjectPointerType
typedef TLabelObject	LabelObjectType
typedef std::vector < LabelObjectPointerType >	LabelObjectVectorType
typedef std::pair< LabelType, LabelType >	LabelPairType
typedef std::vector < LabelPairType >	LabelPairVectorType
typedef LabelObjectType::LabelType	LabelType
typedef std::vector< LabelType >	LabelVectorType
typedef Functor::MergeLabelObjectFunctor < TLabelObject >	MergeFunctorType
typedef Superclass::OffsetType	OffsetType
typedef Superclass::OffsetValueType	OffsetValueType
typedef LabelType	PixelType
typedef itk::SmartPointer< Self >	Pointer
typedef Superclass::PointType	PointType
typedef double	PointValueType
typedef Superclass::RegionType	RegionType
typedef LabelMapWithAdjacency	Self
typedef Superclass::SizeType	SizeType
typedef SizeType::SizeValueType	SizeValueType
typedef Superclass::SpacingType	SpacingType
typedef double	SpacingValueType
typedef itk::LabelMap < TLabelObject >	Superclass

Public Member Functions
void	AddAdjacentLabel (LabelType label1, LabelType label2)
void	AddLabelObject (LabelObjectType *labelObject)
unsigned long	AddObserver (const EventObject &event, Command *)
unsigned long	AddObserver (const EventObject &event, Command *) const
virtual void	Allocate ()
void	ClearAdjacentLabels (LabelType label)
void	ClearLabels ()
IndexType	ComputeIndex (OffsetValueType offset) const
OffsetValueType	ComputeOffset (const IndexType &ind) const
virtual void	CopyInformation (const DataObject *data)
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
void	DataHasBeenGenerated ()
virtual void	DebugOff () const
virtual void	DebugOn () const
virtual void	Delete ()
void	DisconnectPipeline ()
const AdjacencyMapType &	GetAdjacencyMap () const
const AdjacentLabelsContainerType &	GetAdjacentLabels (LabelType label) const
virtual LabelType	GetBackgroundValue () const
virtual const RegionType &	GetBufferedRegion () const
Command *	GetCommand (unsigned long tag)
bool	GetDataReleased () const
bool	GetDebug () const
virtual const DirectionType &	GetDirection ()
LabelObjectType *	GetLabelObject (const LabelType &label)
const LabelObjectType *	GetLabelObject (const LabelType &label) const
LabelObjectType *	GetLabelObject (const IndexType &idx) const
const LabelObjectContainerType &	GetLabelObjectContainer () const
LabelObjectContainerType &	GetLabelObjectContainer ()
LabelObjectVectorType	GetLabelObjects () const
LabelVectorType	GetLabels () const
virtual const RegionType &	GetLargestPossibleRegion () const
MetaDataDictionary &	GetMetaDataDictionary (void)
const MetaDataDictionary &	GetMetaDataDictionary (void) const
virtual unsigned long	GetMTime () const
virtual const char *	GetNameOfClass () const
LabelObjectType *	GetNthLabelObject (const unsigned long &pos)
const LabelObjectType *	GetNthLabelObject (const unsigned long &pos) const
virtual unsigned int	GetNumberOfComponentsPerPixel () const
unsigned long	GetNumberOfLabelObjects () const
const OffsetValueType *	GetOffsetTable () const
virtual const PointType &	GetOrigin ()
virtual const unsigned long &	GetPipelineMTime ()
const LabelType &	GetPixel (const IndexType &idx) const
virtual int	GetReferenceCount () const
virtual const bool &	GetReleaseDataFlag ()
virtual const RegionType &	GetRequestedRegion () const
SmartPointerForwardReference < ProcessObject >	GetSource () const
unsigned int	GetSourceOutputIndex () const
virtual const SpacingType &	GetSpacing ()
virtual unsigned long	GetUpdateMTime () const
virtual void	Graft (const DataObject *data)
bool	HasLabel (const LabelType label) const
bool	HasObserver (const EventObject &event) const
virtual void	Initialize ()
void	InvokeEvent (const EventObject &)
void	InvokeEvent (const EventObject &) const
void	MergeLabels (const LabelType &label1, const LabelType &label2)
void	MergeLabels (const LabelPairVectorType &labels)
virtual void	Modified () const
void	Optimize ()
virtual void	PrepareForNewData ()
void	Print (std::ostream &os, Indent indent=0) const
void	PrintLabelObjects (std::ostream &os) const
void	PrintLabelObjects () const
virtual void	PropagateRequestedRegion ()
void	PushLabelObject (LabelObjectType *labelObject)
virtual void	Register () const
void	ReleaseData ()
virtual void	ReleaseDataFlagOff ()
virtual void	ReleaseDataFlagOn ()
void	RemoveAdjacentLabel (LabelType label1, LabelType label2)
void	RemoveAllObservers ()
void	RemoveLabel (const LabelType &label)
void	RemoveLabelObject (LabelObjectType *labelObject)
void	RemoveObserver (unsigned long tag)
virtual bool	RequestedRegionIsOutsideOfTheBufferedRegion ()
virtual void	ResetPipeline ()
void	SetAdjacencyMap (const AdjacencyMapType &amap)
virtual void	SetBackgroundValue (LabelType _arg)
virtual void	SetBufferedRegion (const RegionType &region)
void	SetDebug (bool debugFlag) const
virtual void	SetDirection (const DirectionType direction)
virtual void	SetLargestPossibleRegion (const RegionType &region)
void	SetLine (const IndexType &idx, const unsigned long &length, const LabelType &label)
void	SetMetaDataDictionary (const MetaDataDictionary &rhs)
virtual void	SetNumberOfComponentsPerPixel (unsigned int)
virtual void	SetOrigin (PointType _arg)
virtual void	SetOrigin (const double origin[VImageDimension])
virtual void	SetOrigin (const float origin[VImageDimension])
void	SetPipelineMTime (unsigned long time)
void	SetPixel (const IndexType &idx, const LabelType &label)
virtual void	SetReferenceCount (int)
void	SetRegions (const RegionType &region)
void	SetRegions (const SizeType &size)
void	SetReleaseDataFlag (bool flag)
virtual void	SetRequestedRegion (const RegionType &region)
virtual void	SetRequestedRegion (DataObject *data)
virtual void	SetRequestedRegionToLargestPossibleRegion ()
virtual void	SetSpacing (const SpacingType &spacing)
virtual void	SetSpacing (const double spacing[VImageDimension])
virtual void	SetSpacing (const float spacing[VImageDimension])
bool	ShouldIReleaseData () const
void	TransformContinuousIndexToPhysicalPoint (const ContinuousIndex< TCoordRep, VImageDimension > &index, Point< TCoordRep, VImageDimension > &point) const
void	TransformIndexToPhysicalPoint (const IndexType &index, Point< TCoordRep, VImageDimension > &point) const
void	TransformLocalVectorToPhysicalVector (const FixedArray< TCoordRep, VImageDimension > &inputGradient, FixedArray< TCoordRep, VImageDimension > &outputGradient) const
bool	TransformPhysicalPointToContinuousIndex (const Point< TCoordRep, VImageDimension > &point, ContinuousIndex< TCoordRep, VImageDimension > &index) const
	Get the continuous index from a physical point.
bool	TransformPhysicalPointToIndex (const Point< TCoordRep, VImageDimension > &point, IndexType &index) const
virtual void	UnRegister () const
virtual void	Update ()
virtual void	UpdateOutputData ()
virtual void	UpdateOutputInformation ()
virtual bool	VerifyRequestedRegion ()

Static Public Member Functions
static void	BreakOnError ()
static bool	GetGlobalReleaseDataFlag ()
static bool	GetGlobalWarningDisplay ()
static unsigned int	GetImageDimension ()
static void	GlobalReleaseDataFlagOff ()
static void	GlobalReleaseDataFlagOn ()
static void	GlobalWarningDisplayOff ()
static void	GlobalWarningDisplayOn ()
static Pointer	New ()
static void	SetGlobalReleaseDataFlag (bool val)
static void	SetGlobalWarningDisplay (bool flag)

Static Public Attributes
static const unsigned int	ImageDimension = LabelObjectType::ImageDimension

Protected Types
typedef int	InternalReferenceCountType

Protected Member Functions
	LabelMapWithAdjacency ()
virtual	~LabelMapWithAdjacency ()
virtual void	ComputeIndexToPhysicalPointMatrices ()
void	ComputeOffsetTable ()
virtual void	CopyInformation (itk::DataObject *data)
virtual void	InitializeBufferedRegion (void)
virtual void	PrintHeader (std::ostream &os, Indent indent) const
bool	PrintObservers (std::ostream &os, Indent indent) const
void	PrintSelf (std::ostream &os, itk::Indent indent) const
virtual void	PrintTrailer (std::ostream &os, Indent indent) const
virtual void	PropagateResetPipeline ()

Protected Attributes
DirectionType	m_Direction
DirectionType	m_IndexToPhysicalPoint
PointType	m_Origin
DirectionType	m_PhysicalPointToIndex
InternalReferenceCountType	m_ReferenceCount
SimpleFastMutexLock	m_ReferenceCountLock
SpacingType	m_Spacing

Private Member Functions
	LabelMapWithAdjacency (const Self &)
void	operator= (const Self &)

Private Attributes
AdjacencyMapType	m_AdjacencyMap

Detailed Description

template<class TLabelObject>
class otb::LabelMapWithAdjacency< TLabelObject >

This class is a LabelMap with additionnal adjacency information.

The adjacency information is stored as a map of set of labels, in order to avoid duplicated neighbors.

Definition at line 36 of file otbLabelMapWithAdjacency.h.

Member Typedef Documentation

template<class TLabelObject >

typedef std::map<LabelType, AdjacentLabelsContainerType> otb::LabelMapWithAdjacency< TLabelObject >::AdjacencyMapType

A map containing the set of adjacent labels per label

Definition at line 68 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

typedef std::set<LabelType> otb::LabelMapWithAdjacency< TLabelObject >::AdjacentLabelsContainerType

A set containing adjacent labels

Definition at line 65 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

typedef itk::SmartPointer<const Self> otb::LabelMapWithAdjacency< TLabelObject >::ConstPointer

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 43 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

typedef itk::WeakPointer<const Self> otb::LabelMapWithAdjacency< TLabelObject >::ConstWeakPointer

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 44 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

typedef Superclass::DirectionType itk::LabelMap< TLabelObject >::DirectionType

inherited

Direction typedef support. A matrix of direction cosines.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 105 of file itkLabelMap.h.

template<class TLabelObject>

typedef Superclass::IndexType itk::LabelMap< TLabelObject >::IndexType

inherited

Index typedef support. An index is used to access pixel values.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 96 of file itkLabelMap.h.

typedef IndexType::IndexValueType itk::ImageBase< VImageDimension >::IndexValueType

inherited

Definition at line 110 of file itkImageBase.h.

typedef int itk::LightObject::InternalReferenceCountType

protectedinherited

Define the type of the reference count according to the target. This allows the use of atomic operations

Definition at line 137 of file itkLightObject.h.

template<class TLabelObject>

typedef std::map< LabelType, LabelObjectPointerType > itk::LabelMap< TLabelObject >::LabelObjectContainerType

inherited

the LabelObject container type

Definition at line 89 of file itkLabelMap.h.

template<class TLabelObject>

typedef LabelObjectType::Pointer itk::LabelMap< TLabelObject >::LabelObjectPointerType

inherited

Definition at line 76 of file itkLabelMap.h.

template<class TLabelObject >

typedef TLabelObject otb::LabelMapWithAdjacency< TLabelObject >::LabelObjectType

Typedef of the LabelObject

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 50 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

typedef std::vector< LabelObjectPointerType > itk::LabelMap< TLabelObject >::LabelObjectVectorType

inherited

Definition at line 93 of file itkLabelMap.h.

template<class TLabelObject >

typedef std::pair<LabelType, LabelType> otb::LabelMapWithAdjacency< TLabelObject >::LabelPairType

A pair of labels

Definition at line 74 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

typedef std::vector<LabelPairType> otb::LabelMapWithAdjacency< TLabelObject >::LabelPairVectorType

A vector of pair of labels

Definition at line 77 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

typedef LabelObjectType::LabelType otb::LabelMapWithAdjacency< TLabelObject >::LabelType

Label typedef support.

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 62 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

typedef std::vector< LabelType > itk::LabelMap< TLabelObject >::LabelVectorType

inherited

types used to expose labels only and label objects only

Definition at line 92 of file itkLabelMap.h.

template<class TLabelObject >

typedef Functor::MergeLabelObjectFunctor<TLabelObject> otb::LabelMapWithAdjacency< TLabelObject >::MergeFunctorType

The merging functor

Definition at line 71 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

typedef Superclass::OffsetType itk::LabelMap< TLabelObject >::OffsetType

inherited

Offset typedef support. An offset is used to access pixel values.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 99 of file itkLabelMap.h.

template<class TLabelObject>

typedef Superclass::OffsetValueType itk::LabelMap< TLabelObject >::OffsetValueType

inherited

Offset typedef (relative position between indices)

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 119 of file itkLabelMap.h.

template<class TLabelObject>

typedef LabelType itk::LabelMap< TLabelObject >::PixelType

inherited

Definition at line 86 of file itkLabelMap.h.

template<class TLabelObject >

typedef itk::SmartPointer<Self> otb::LabelMapWithAdjacency< TLabelObject >::Pointer

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 42 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

typedef Superclass::PointType itk::LabelMap< TLabelObject >::PointType

inherited

Origin typedef support. The origin is the geometric coordinates of the index (0,0).

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 116 of file itkLabelMap.h.

typedef double itk::ImageBase< VImageDimension >::PointValueType

inherited

Origin typedef support. The origin is the geometric coordinates of the index (0,0).

Definition at line 133 of file itkImageBase.h.

template<class TLabelObject>

typedef Superclass::RegionType itk::LabelMap< TLabelObject >::RegionType

inherited

Region typedef support. A region is used to specify a subset of an image.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 108 of file itkLabelMap.h.

template<class TLabelObject >

typedef LabelMapWithAdjacency otb::LabelMapWithAdjacency< TLabelObject >::Self

Standard class typedefs

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 40 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

typedef Superclass::SizeType itk::LabelMap< TLabelObject >::SizeType

inherited

Size typedef support. A size is used to define region bounds.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 102 of file itkLabelMap.h.

typedef SizeType::SizeValueType itk::ImageBase< VImageDimension >::SizeValueType

inherited

Definition at line 119 of file itkImageBase.h.

template<class TLabelObject>

typedef Superclass::SpacingType itk::LabelMap< TLabelObject >::SpacingType

inherited

Spacing typedef support. Spacing holds the size of a pixel. The spacing is the geometric distance between image samples.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 112 of file itkLabelMap.h.

typedef double itk::ImageBase< VImageDimension >::SpacingValueType

inherited

Spacing typedef support. Spacing holds the size of a pixel. The spacing is the geometric distance between image samples. ITK only supports positive spacing value: negative values may cause undesirable results.

Definition at line 128 of file itkImageBase.h.

template<class TLabelObject >

typedef itk::LabelMap<TLabelObject> otb::LabelMapWithAdjacency< TLabelObject >::Superclass

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 41 of file otbLabelMapWithAdjacency.h.

Constructor & Destructor Documentation

template<class TLabelObject >

otb::LabelMapWithAdjacency< TLabelObject >::LabelMapWithAdjacency ( )

inlineprotected

Constructor

Definition at line 214 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

virtual otb::LabelMapWithAdjacency< TLabelObject >::~LabelMapWithAdjacency ( )

inlineprotectedvirtual

Destructor

Definition at line 216 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

otb::LabelMapWithAdjacency< TLabelObject >::LabelMapWithAdjacency ( const Self & )

private

Member Function Documentation

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::AddAdjacentLabel	(	LabelType	label1,
		LabelType	label2
	)

inline

Add a given label to the adjacent labels set of another label

Definition at line 91 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::AddLabelObject ( LabelObjectType * labelObject )

inherited

Add a label object to the image. If a label object already has the label, it is overiden.

Definition at line 321 of file itkLabelMap.txx.

References NULL.

unsigned long itk::Object::AddObserver	(	const EventObject &	event,
		Command *	cmd
	)

inherited

Allow people to add/remove/invoke observers (callbacks) to any ITK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and an itk::Command to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. The memory for the Command becomes the responsibility of this object, so don't pass the same instance of a command to two different objects

Definition at line 389 of file itkObject.cxx.

References itk::SubjectImplementation::AddObserver().

Referenced by otb::StreamingImageVirtualWriter< TInputImage >::GenerateData(), itk::ProgressAccumulator::RegisterInternalFilter(), otb::ImageFileWriter< TInputImage >::Update(), and otb::WriterWatcherBase::WriterWatcherBase().

unsigned long itk::Object::AddObserver	(	const EventObject &	event,
		Command *	cmd
	)		const

inherited

Definition at line 401 of file itkObject.cxx.

References itk::SubjectImplementation::AddObserver().

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::Allocate ( )

virtualinherited

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 74 of file itkLabelMap.txx.

void itk::LightObject::BreakOnError ( )

staticinherited

This method is called when itkExceptionMacro executes. It allows the debugger to break on error.

Definition at line 149 of file itkLightObject.cxx.

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::ClearAdjacentLabels ( LabelType label )

inline

Clear the adjacent labels of a given label

Definition at line 106 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::ClearLabels ( )

inherited

Remove all the labels in the image

Definition at line 421 of file itkLabelMap.txx.

IndexType itk::ImageBase< VImageDimension >::ComputeIndex ( OffsetValueType offset ) const

inlineinherited

Compute the index of the pixel at a specified offset from the beginning of the buffered region. Bounds checking is not performed. Thus, the computed index could be outside the BufferedRegion. To ensure a valid index, the parameter "offset" should be between 0 and the number of pixels in the BufferedRegion (the latter can be found using ImageRegion::GetNumberOfPixels()).

Definition at line 329 of file itkImageBase.h.

virtual void itk::ImageBase< VImageDimension >::ComputeIndexToPhysicalPointMatrices ( )

protectedvirtualinherited

Compute helper matrices used to transform Index coordinates to PhysicalPoint coordinates and back. This method is virtual and will be overloaded in derived classes in order to provide backward compatibility behavior in classes that did not used to take image orientation into account.

OffsetValueType itk::ImageBase< VImageDimension >::ComputeOffset ( const IndexType & ind ) const

inlineinherited

Compute an offset from the beginning of the buffer for a pixel at the specified index. The index is not checked as to whether it is inside the current buffer, so the computed offset could conceivably be outside the buffer. If bounds checking is needed, one can call ImageRegion::IsInside(ind) on the BufferedRegion prior to calling ComputeOffset.

Definition at line 293 of file itkImageBase.h.

void itk::ImageBase< VImageDimension >::ComputeOffsetTable ( )

protectedinherited

Calculate the offsets needed to move from one pixel to the next along a row, column, slice, volume, etc. These offsets are based on the size of the BufferedRegion. This should be called after the BufferedRegion is set.

template<class TLabelObject >

virtual void otb::LabelMapWithAdjacency< TLabelObject >::CopyInformation ( itk::DataObject * data )

inlineprotectedvirtual

Re-implement CopyInformation to pass the adjancency graph through

Definition at line 225 of file otbLabelMapWithAdjacency.h.

References otb::LabelMapWithAdjacency< TLabelObject >::m_AdjacencyMap.

virtual void itk::ImageBase< VImageDimension >::CopyInformation ( const DataObject * data )

virtualinherited

Copy information from the specified data set. This method is part of the pipeline execution model. By default, a ProcessObject will copy meta-data from the first input to all of its outputs. See ProcessObject::GenerateOutputInformation(). Each subclass of DataObject is responsible for being able to copy whatever meta-data it needs from from another DataObject. ImageBase has more meta-data than its DataObject. Thus, it must provide its own version of CopyInformation() in order to copy the LargestPossibleRegion from the input parameter.

Reimplemented from itk::DataObject.

template<class TLabelObject >

virtual::itk::LightObject::Pointer otb::LabelMapWithAdjacency< TLabelObject >::CreateAnother ( void ) const

virtual

Create an object from an instance, potentially deferring to a factory. This method allows you to create an instance of an object that is exactly the same type as the referring object. This is useful in cases where an object has been cast back to a base class.

Reimplemented from itk::LabelMap< TLabelObject >.

void itk::DataObject::DataHasBeenGenerated ( )

inherited

Inform the pipeline mechanism that data has been generated. This method is called by ProcessObject::UpdateOutputData() once the process object has finished generating its data. This essentially marks the DataObject as being updated and ready for use.

Definition at line 428 of file itkDataObject.cxx.

void itk::Object::DebugOff ( ) const

virtualinherited

Turn debugging output off.

Definition at line 253 of file itkObject.cxx.

void itk::Object::DebugOn ( ) const

virtualinherited

Turn debugging output on.

Definition at line 242 of file itkObject.cxx.

void itk::LightObject::Delete ( )

virtualinherited

Delete an itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C delete method will not work with reference counting.

Delete a itk object. This method should always be used to delete an object when the new operator was used to create it. Using the C++ delete method will not work with reference counting.

Definition at line 88 of file itkLightObject.cxx.

void itk::DataObject::DisconnectPipeline ( )

inherited

Separate this data object from the pipeline. This routine disconnects a data object from the upstream pipeline. Hence an Update() from downstream will not propagate back past this data object. To completely isolate this data object from the pipeline, the application must remove this data object from any filters which it is connected as the input.

Definition at line 216 of file itkDataObject.cxx.

template<class TLabelObject >

const AdjacencyMapType& otb::LabelMapWithAdjacency< TLabelObject >::GetAdjacencyMap ( ) const

inline

Definition at line 85 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

const AdjacentLabelsContainerType& otb::LabelMapWithAdjacency< TLabelObject >::GetAdjacentLabels ( LabelType label ) const

inline

Get the set of adjacent labels from a given label

Definition at line 124 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

virtual LabelType itk::LabelMap< TLabelObject >::GetBackgroundValue ( ) const

virtualinherited

Set/Get the background label

virtual const RegionType& itk::ImageBase< VImageDimension >::GetBufferedRegion ( void ) const

inlinevirtualinherited

Get the region object that defines the size and starting index of the region of the image currently loaded in memory.

See also:: ImageRegion, SetLargestPossibleRegion(), SetRequestedRegion()

Definition at line 234 of file itkImageBase.h.

Command * itk::Object::GetCommand ( unsigned long tag )

inherited

Get the command associated with the given tag. NOTE: This returns a pointer to a Command, but it is safe to asign this to a Command::Pointer. Since Command inherits from LightObject, at this point in the code, only a pointer or a reference to the Command can be used.

Definition at line 414 of file itkObject.cxx.

References itk::Object::GetCommand(), and NULL.

Referenced by itk::Object::GetCommand().

bool itk::DataObject::GetDataReleased ( ) const

inlineinherited

Get the flag indicating the data has been released.

Definition at line 332 of file itkDataObject.h.

bool itk::Object::GetDebug ( ) const

inherited

Get the value of the debug flag.

Definition at line 264 of file itkObject.cxx.

Referenced by otb::ogr::ImageReference< double >::GetDebug().

virtual const DirectionType& itk::ImageBase< VImageDimension >::GetDirection ( void )

virtualinherited

Get the direction cosines of the image. The direction cosines are vectors that point from one pixel to the next. For ImageBase and Image, the default direction is identity.

bool itk::DataObject::GetGlobalReleaseDataFlag ( )

staticinherited

Definition at line 189 of file itkDataObject.cxx.

bool itk::Object::GetGlobalWarningDisplay ( )

staticinherited

Get the value of the global debug output control flag.

Definition at line 381 of file itkObject.cxx.

static unsigned int itk::ImageBase< VImageDimension >::GetImageDimension ( )

inlinestaticinherited

Image dimension. The dimension of an image is fixed at construction.

Definition at line 145 of file itkImageBase.h.

template<class TLabelObject >

LabelMap< TLabelObject >::LabelObjectType * itk::LabelMap< TLabelObject >::GetLabelObject ( const LabelType & label )

inherited

Return the LabelObject with the label given in parameter. This method thorws an exception if the label doesn't exist in this image, or if the label is the background one.

Definition at line 122 of file itkLabelMap.txx.

template<class TLabelObject >

const LabelMap< TLabelObject >::LabelObjectType * itk::LabelMap< TLabelObject >::GetLabelObject ( const LabelType & label ) const

inherited

Definition at line 143 of file itkLabelMap.txx.

template<class TLabelObject >

LabelMap< TLabelObject >::LabelObjectType * itk::LabelMap< TLabelObject >::GetLabelObject ( const IndexType & idx ) const

inherited

Return the label object at a given index. This method has a worst case complexity of O(L) where L is the number of lines in the image - use it with care.

Definition at line 302 of file itkLabelMap.txx.

template<class TLabelObject >

const LabelMap< TLabelObject >::LabelObjectContainerType & itk::LabelMap< TLabelObject >::GetLabelObjectContainer ( ) const

inherited

Return the label object container

Definition at line 434 of file itkLabelMap.txx.

template<class TLabelObject >

LabelMap< TLabelObject >::LabelObjectContainerType & itk::LabelMap< TLabelObject >::GetLabelObjectContainer ( )

inherited

Definition at line 443 of file itkLabelMap.txx.

template<class TLabelObject >

LabelMap< TLabelObject >::LabelObjectVectorType itk::LabelMap< TLabelObject >::GetLabelObjects ( ) const

inherited

Return the the label objects available in the label map

Definition at line 478 of file itkLabelMap.txx.

template<class TLabelObject >

LabelMap< TLabelObject >::LabelVectorType itk::LabelMap< TLabelObject >::GetLabels ( ) const

inherited

Return the labels of the label objects available in the label map

Definition at line 461 of file itkLabelMap.txx.

virtual const RegionType& itk::ImageBase< VImageDimension >::GetLargestPossibleRegion ( void ) const

inlinevirtualinherited

Get the region object that defines the size and starting index for the largest possible region this image could represent. This is used in determining how much memory would be needed to load an entire dataset. It is also used to determine boundary conditions.

See also:: ImageRegion, GetBufferedRegion(), GetRequestedRegion()

Definition at line 223 of file itkImageBase.h.

MetaDataDictionary & itk::Object::GetMetaDataDictionary ( void )

inherited

Returns:: A reference to this objects MetaDataDictionary.

Warning:: This reference may be changed.

Reimplemented in otb::ImageMetadataInterfaceBase.

Definition at line 532 of file itkObject.cxx.

References NULL.

const MetaDataDictionary & itk::Object::GetMetaDataDictionary ( void ) const

inherited

Returns:: A constant reference to this objects MetaDataDictionary.

Reimplemented in otb::ImageMetadataInterfaceBase.

Definition at line 543 of file itkObject.cxx.

References NULL.

unsigned long itk::Object::GetMTime ( void ) const

virtualinherited

Return this objects modified time.

Return the modification for this object.

Definition at line 286 of file itkObject.cxx.

Referenced by itk::DeformationFieldSource< TOutputImage >::GetMTime(), itk::BoundingBox< TPointIdentifier, VPointDimension, TCoordRep, TPointsContainer >::GetMTime(), itk::InverseDeformationFieldImageFilter< TInputImage, TOutputImage >::GetMTime(), itk::TransformToDeformationFieldSource< TOutputImage, TTransformPrecisionType >::GetMTime(), itk::VectorResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >::GetMTime(), itk::SpatialObject< TDimension >::GetMTime(), itk::ResampleImageFilter< TInputImage, TOutputImage, TInterpolatorPrecisionType >::GetMTime(), itk::SpatialObject< ::itk::GetMeshDimension< TMesh >::PointDimension >::GetObjectMTime(), otb::Function::NoStretchRenderingFunction< TPixel, TRGBPixel, TPixelRepresentationFunction, TTransferFunction >::Initialize(), otb::Function::StandardRenderingFunction< TPixel, TRGBPixel, TPixelRepresentationFunction, TTransferFunction >::Initialize(), itk::VTKImageExportBase::PipelineModifiedCallback(), and itk::ProcessObject::UpdateOutputInformation().

template<class TLabelObject >

virtual const char* otb::LabelMapWithAdjacency< TLabelObject >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from itk::LabelMap< TLabelObject >.

template<class TLabelObject >

LabelMap< TLabelObject >::LabelObjectType * itk::LabelMap< TLabelObject >::GetNthLabelObject ( const unsigned long & pos )

inherited

Return the LabelObject with at the position given in parameter. This method can be useful when the labels are not consecutives, but is quite inefficient. This method thorws an exception if the index doesn't exist in this image.

Definition at line 195 of file itkLabelMap.txx.

template<class TLabelObject >

const LabelMap< TLabelObject >::LabelObjectType * itk::LabelMap< TLabelObject >::GetNthLabelObject ( const unsigned long & pos ) const

inherited

Definition at line 219 of file itkLabelMap.txx.

virtual unsigned int itk::ImageBase< VImageDimension >::GetNumberOfComponentsPerPixel ( ) const

virtualinherited

INTERNAL This method is used internally by filters to copy meta-data from the output to the input. Users should not have a need to use this method.

Filters that override the ProcessObject's GenerateOutputInformation() should generally have the following line if they want to propagate meta- data for both Image and VectorImage

outputImage->SetNumberOfComponentsPerPixel(

inputImage->GetNumberOfComponentsPerPixel() )

See also:: ImageBase, VectorImage

Returns/Sets the number of components in the image. Note that for all images this is 1. Even for Image< RGBPixel< T >, 3 >. This is >= 1 only for time-series images such as itk::VectorImage.

template<class TLabelObject >

unsigned long itk::LabelMap< TLabelObject >::GetNumberOfLabelObjects ( ) const

inherited

Return the numbner of label objects in the image

Definition at line 452 of file itkLabelMap.txx.

const OffsetValueType* itk::ImageBase< VImageDimension >::GetOffsetTable ( void ) const

inlineinherited

Get the offset table. The offset table gives increments for moving from one pixel to next in the current row, column, slice, etc.. This table if of size [VImageDimension+1], because its values are computed progressively as: {1, N1, N1*N2, N1*N2*N3,...,(N1*...*Nn)} Where the values {N1,...,Nn} are the elements of the BufferedRegion::Size array. The last element of the OffsetTable is equivalent to the BufferSize. Having a [VImageDimension+1] size array, simplifies the implementation of some data accessing algorithms. The entries in the offset table are only valid after the BufferedRegion is set.

Definition at line 272 of file itkImageBase.h.

virtual const PointType& itk::ImageBase< VImageDimension >::GetOrigin ( void )

virtualinherited

Get the origin of the image. The origin is the geometric coordinates of the index (0,0). The value returned is a pointer to a double array. For ImageBase and Image, the default origin is 0.

virtual const unsigned long& itk::DataObject::GetPipelineMTime ( )

virtualinherited

Referenced by itk::ProcessObject::UpdateOutputInformation().

template<class TLabelObject >

const LabelMap< TLabelObject >::LabelType & itk::LabelMap< TLabelObject >::GetPixel ( const IndexType & idx ) const

inherited

Return the pixel value at a given index in the image. This method has a worst case complexity of O(L) where L is the number of lines in the image - use it with care.

Definition at line 177 of file itkLabelMap.txx.

virtual int itk::LightObject::GetReferenceCount ( ) const

inlinevirtualinherited

Gets the reference count on this object.

Definition at line 105 of file itkLightObject.h.

virtual const bool& itk::DataObject::GetReleaseDataFlag ( )

virtualinherited

virtual const RegionType& itk::ImageBase< VImageDimension >::GetRequestedRegion ( void ) const

inlinevirtualinherited

Get the region object that defines the size and starting index for the region of the image requested (i.e., the region of the image to be operated on by a filter).

See also:: ImageRegion, SetLargestPossibleRegion(), SetBufferedRegion()

Definition at line 259 of file itkImageBase.h.

SmartPointerForwardReference< ProcessObject > itk::DataObject::GetSource ( void ) const

inherited

Get the process object that generated this data object. If there is no process object, then the data object has been disconnected from the pipeline, or the data object was created manually. (Note: we cannot use the GetObjectMacro() defined in itkMacro because the mutual dependency of DataObject and ProcessObject causes compile problems. Also, a forward reference smart pointer is returned, not a smart pointer, because of the circular dependency between the process and data object.)

GetSource() returns a SmartPointerForwardReference and not a WeakPointer because it is assumed the code calling GetSource() wants to hold a long term reference to the source.

Definition at line 288 of file itkDataObject.cxx.

Referenced by otb::PipelineMemoryPrintCalculator::EvaluateProcessObjectPrintRecursive().

unsigned int itk::DataObject::GetSourceOutputIndex ( ) const

inherited

Which of the source's outputs corresponds to this data object?

Definition at line 296 of file itkDataObject.cxx.

Referenced by itk::MultiResolutionPyramidImageFilter< TInputImage, TOutputImage >::GenerateOutputRequestedRegion().

virtual const SpacingType& itk::ImageBase< VImageDimension >::GetSpacing ( void )

virtualinherited

Get the spacing (size of a pixel) `of the image. The spacing is the geometric distance between image samples. The value returned is a pointer to a double array. For ImageBase and Image, the default data spacing is unity.

unsigned long itk::DataObject::GetUpdateMTime ( ) const

virtualinherited

MTime for the last time this DataObject was generated.

Definition at line 438 of file itkDataObject.cxx.

static void itk::DataObject::GlobalReleaseDataFlagOff ( )

inlinestaticinherited

Definition at line 318 of file itkDataObject.h.

static void itk::DataObject::GlobalReleaseDataFlagOn ( )

inlinestaticinherited

Definition at line 316 of file itkDataObject.h.

static void itk::Object::GlobalWarningDisplayOff ( )

inlinestaticinherited

Definition at line 100 of file itkObject.h.

References itk::Object::SetGlobalWarningDisplay().

Referenced by itk::OutputWindow::DisplayText(), itk::Win32OutputWindow::PromptText(), and itk::Win32OutputWindow::WndProc().

static void itk::Object::GlobalWarningDisplayOn ( )

inlinestaticinherited

Definition at line 98 of file itkObject.h.

References itk::Object::SetGlobalWarningDisplay().

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::Graft ( const DataObject * data )

virtualinherited

Graft the data and information from one image to another. This is a convenience method to setup a second image with all the meta information of another image and use the same pixel container. Note that this method is different than just using two SmartPointers to the same image since separate DataObjects are still maintained. This method is similar to ImageSource::GraftOutput(). The implementation in ImageBase simply calls CopyInformation() and copies the region ivars. Subclasses of ImageBase are responsible for copying the pixel container.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 82 of file itkLabelMap.txx.

template<class TLabelObject >

bool itk::LabelMap< TLabelObject >::HasLabel ( const LabelType label ) const

inherited

Return true is the image contains the label given in parameter and false otherwise. If the label is the background one, true is also returned, so this method may not be a good enough test before calling GetLabelObject().

Definition at line 164 of file itkLabelMap.txx.

bool itk::Object::HasObserver ( const EventObject & event ) const

inherited

Return true if an observer is registered for this event.

Definition at line 467 of file itkObject.cxx.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::Initialize ( void )

virtualinherited

Restore the data object to its initial state. This means releasing memory.

Reimplemented from itk::ImageBase< ::itk::GetImageDimension< TLabelObject >::ImageDimension >.

Definition at line 62 of file itkLabelMap.txx.

virtual void itk::ImageBase< VImageDimension >::InitializeBufferedRegion ( void )

protectedvirtualinherited

Restores the buffered region to it's default state This method does not call Modify because Initialization is called by ReleaseData and can not modify the MTime

See also:: ReleaseData, Initialize, SetBufferedRegion

void itk::Object::InvokeEvent ( const EventObject & event )

inherited

Call Execute on all the Commands observing this event id.

Definition at line 446 of file itkObject.cxx.

Referenced by otb::Wrapper::Application::AddProcess(), itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::IterateThreaderCallback(), and itk::VTKImageExportBase::UpdateDataCallback().

void itk::Object::InvokeEvent ( const EventObject & event ) const

inherited

Call Execute on all the Commands observing this event id. The actions triggered by this call doesn't modify this object.

Definition at line 457 of file itkObject.cxx.

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::MergeLabels	(	const LabelType &	label1,
		const LabelType &	label2
	)

inline

Merge two label objects. The first label will be the one retained

Definition at line 138 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::MergeLabels ( const LabelPairVectorType & labels )

inline

Merge a list of pairs of labels. For each pair, the first label will be the one retained

Definition at line 186 of file otbLabelMapWithAdjacency.h.

void itk::Object::Modified ( void ) const

virtualinherited

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data.

Make sure this object's modified time is greater than all others.

Definition at line 297 of file itkObject.cxx.

template<class TLabelObject >

static Pointer otb::LabelMapWithAdjacency< TLabelObject >::New ( )

static

Method for creation through the object factory.

Reimplemented from itk::LabelMap< TLabelObject >.

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::operator= ( const Self & )

private

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::Optimize ( )

inherited

Optimize the line representation of all the lable objects referenced in the LabelMap

Definition at line 511 of file itkLabelMap.txx.

virtual void itk::DataObject::PrepareForNewData ( )

inlinevirtualinherited

Setup a DataObject to receive new data. This method is called by the pipeline mechanism on each output of filter that needs to execute. The default implementation is to return a DataObject to its initial state. This may involve releasing previously allocated bulk data. Subclasses of DataObject may want to override this method and/or the Initialize() method if they want a different default behavior (for instance a DataObject might want finer control over its bulk data memory management).

Definition at line 385 of file itkDataObject.h.

void itk::LightObject::Print	(	std::ostream &	os,
		Indent	indent = `0`
	)		const

inherited

Cause the object to print itself out.

Avoid DLL boundary problems. This function will be common to all itk objects. It just calls the header/self/trailer virtual print methods, which can be overriden by subclasses (any itk object).

Definition at line 135 of file itkLightObject.cxx.

References itk::Indent::GetNextIndent().

Referenced by itk::operator<<().

void itk::LightObject::PrintHeader	(	std::ostream &	os,
		Indent	indent
	)		const

protectedvirtualinherited

Define a default print header for all objects.

Definition at line 320 of file itkLightObject.cxx.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::PrintLabelObjects ( std::ostream & os ) const

inherited

Print all the objects stored in that collection - a convenient method for prototyping.

Definition at line 495 of file itkLabelMap.txx.

template<class TLabelObject>

void itk::LabelMap< TLabelObject >::PrintLabelObjects ( ) const

inlineinherited

Definition at line 266 of file itkLabelMap.h.

bool itk::Object::PrintObservers	(	std::ostream &	os,
		Indent	indent
	)		const

protectedinherited

Definition at line 478 of file itkObject.cxx.

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

inlineprotectedvirtual

Printself

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 218 of file otbLabelMapWithAdjacency.h.

void itk::LightObject::PrintTrailer	(	std::ostream &	os,
		Indent	indent
	)		const

protectedvirtualinherited

Define a default print trailer for all objects.

Definition at line 331 of file itkLightObject.cxx.

void itk::DataObject::PropagateRequestedRegion ( void )

virtualinherited

Methods to update the pipeline. Called internally by the pipeline mechanism.

Definition at line 379 of file itkDataObject.cxx.

References itk::DataObjectError::SetDataObject(), itk::ExceptionObject::SetDescription(), and itk::ExceptionObject::SetLocation().

void itk::DataObject::PropagateResetPipeline ( )

protectedvirtualinherited

Propagate a call to ResetPipeline(). Called only from ProcessObject.

Definition at line 367 of file itkDataObject.cxx.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::PushLabelObject ( LabelObjectType * labelObject )

inherited

Add a label object to the image. The label of the label object is ignored, and a new label is given to the label object.

Definition at line 333 of file itkLabelMap.txx.

References NULL.

void itk::Object::Register ( ) const

virtualinherited

Increase the reference count (mark as used by another object).

Reimplemented from itk::LightObject.

Definition at line 309 of file itkObject.cxx.

Referenced by itk::ObjectFactoryBase::RegisterFactory().

void itk::DataObject::ReleaseData ( )

inherited

Release data back to system to conserve memory resource. Used during pipeline execution. Releasing this data does not make down-stream data invalid, so it does not modify the MTime of this data object.

Definition at line 197 of file itkDataObject.cxx.

virtual void itk::DataObject::ReleaseDataFlagOff ( )

virtualinherited

virtual void itk::DataObject::ReleaseDataFlagOn ( )

virtualinherited

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::RemoveAdjacentLabel	(	LabelType	label1,
		LabelType	label2
	)

inline

Remove the given adjacent label from the given label

Definition at line 115 of file otbLabelMapWithAdjacency.h.

void itk::Object::RemoveAllObservers ( )

inherited

Remove all observers .

Definition at line 435 of file itkObject.cxx.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::RemoveLabel ( const LabelType & label )

inherited

Remove a label object.

Definition at line 407 of file itkLabelMap.txx.

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::RemoveLabelObject ( LabelObjectType * labelObject )

inherited

Remove a label object.

Definition at line 397 of file itkLabelMap.txx.

References NULL.

void itk::Object::RemoveObserver ( unsigned long tag )

inherited

Remove the observer with this tag value.

Definition at line 425 of file itkObject.cxx.

Referenced by otb::StreamingImageVirtualWriter< TInputImage >::GenerateData(), and otb::ImageFileWriter< TInputImage >::Update().

virtual bool itk::ImageBase< VImageDimension >::RequestedRegionIsOutsideOfTheBufferedRegion ( )

virtualinherited

Determine whether the RequestedRegion is outside of the BufferedRegion. This method returns true if the RequestedRegion is outside the BufferedRegion (true if at least one pixel is outside). This is used by the pipeline mechanism to determine whether a filter needs to re-execute in order to satisfy the current request. If the current RequestedRegion is already inside the BufferedRegion from the previous execution (and the current filter is up to date), then a given filter does not need to re-execute

Reimplemented from itk::DataObject.

void itk::DataObject::ResetPipeline ( )

virtualinherited

Reset the pipeline. If an exception is thrown during an Update(), the pipeline may be in an inconsistent state. This method clears the internal state of the pipeline so Update() can be called.

Definition at line 360 of file itkDataObject.cxx.

template<class TLabelObject >

void otb::LabelMapWithAdjacency< TLabelObject >::SetAdjacencyMap ( const AdjacencyMapType & amap )

inline

Set/Get the adjacency map

Definition at line 80 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject>

virtual void itk::LabelMap< TLabelObject >::SetBackgroundValue ( LabelType _arg )

virtualinherited

virtual void itk::ImageBase< VImageDimension >::SetBufferedRegion ( const RegionType & region )

virtualinherited

Set the region object that defines the size and starting index of the region of the image currently loaded in memory.

See also:: ImageRegion, SetLargestPossibleRegion(), SetRequestedRegion()

void itk::Object::SetDebug ( bool debugFlag ) const

inherited

Set the value of the debug flag. A non-zero value turns debugging on.

Definition at line 275 of file itkObject.cxx.

virtual void itk::ImageBase< VImageDimension >::SetDirection ( const DirectionType direction )

virtualinherited

Set the direction cosines of the image. The direction cosines are vectors that point from one pixel to the next.

One row of the matrix indicates the direction cosines of the unit vector that is parallel to the lines of the image grid corresponding to that dimension. For example, and image with Direction matrix

0.866 0.500 -0.500 0.866

has an image grid were the fastest changing index (dimension[0]) walks over a line that in Physical space is oriented parallel to the vector (0.866,0.5). The second fastest changing index (dimension[1]) walks along a line that in Physical space is oriented parallel to the vector (-0.5,0.866)

The vectors whose direction cosines are stored in the Direction matrix, are expected to be orthogonal to each other, and they are expected to form a right handed coordinate system, but this is not checked nor enforced in the itk::ImageBase.

For details, please see:

http://www.itk.org/Wiki/Proposals:Orientation#Some_notes_on_the_DICOM_convention_and_current_ITK_usage

See also:: GetDirection()

void itk::DataObject::SetGlobalReleaseDataFlag ( bool val )

staticinherited

Turn on/off a flag to control whether every object releases its data after being used by a filter. Being a global flag, it controls the behavior of all DataObjects and ProcessObjects.

Definition at line 177 of file itkDataObject.cxx.

void itk::Object::SetGlobalWarningDisplay ( bool val )

staticinherited

This is a global flag that controls whether any debug, warning or error messages are displayed.

Set the value of the global debug output control flag.

Definition at line 370 of file itkObject.cxx.

Referenced by itk::Object::GlobalWarningDisplayOff(), and itk::Object::GlobalWarningDisplayOn().

virtual void itk::ImageBase< VImageDimension >::SetLargestPossibleRegion ( const RegionType & region )

virtualinherited

Set the region object that defines the size and starting index for the largest possible region this image could represent. This is used in determining how much memory would be needed to load an entire dataset. It is also used to determine boundary conditions.

See also:: ImageRegion, SetBufferedRegion(), SetRequestedRegion()

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::SetLine	(	const IndexType &	idx,
		const unsigned long &	length,
		const LabelType &	label
	)

inherited

Set a full line in the image. If no label object has this label in the image, a new object is created. If a label object already exist with that label, the line is added to it WITHOUT any check - it means that if the label object may contain several time the same pixel after have run that method. This method runs in constant time.

Definition at line 273 of file itkLabelMap.txx.

void itk::Object::SetMetaDataDictionary ( const MetaDataDictionary & rhs )

inherited

Returns:: Set the MetaDataDictionary

Reimplemented in otb::ImageMetadataInterfaceBase.

Definition at line 554 of file itkObject.cxx.

References NULL.

Referenced by otb::VectorImage< TPixel, VImageDimension >::CopyInformation(), and otb::Image< TPixel, VImageDimension >::CopyInformation().

virtual void itk::ImageBase< VImageDimension >::SetNumberOfComponentsPerPixel ( unsigned int )

virtualinherited

virtual void itk::ImageBase< VImageDimension >::SetOrigin ( PointType _arg )

virtualinherited

Set the origin of the image. The origin is the geometric coordinates of the image origin. It is stored internally as double but may be set from float.

See also:: GetOrigin()

virtual void itk::ImageBase< VImageDimension >::SetOrigin ( const double origin[VImageDimension] )

virtualinherited

virtual void itk::ImageBase< VImageDimension >::SetOrigin ( const float origin[VImageDimension] )

virtualinherited

void itk::DataObject::SetPipelineMTime ( unsigned long time )

inlineinherited

The maximum MTime of all upstream filters and data objects. This does not include the MTime of this data object.

Definition at line 370 of file itkDataObject.h.

Referenced by itk::ProcessObject::UpdateOutputInformation().

template<class TLabelObject >

void itk::LabelMap< TLabelObject >::SetPixel	(	const IndexType &	idx,
		const LabelType &	label
	)

inherited

Set the pixel value at a given index in the image. If no label object has this pixel value, a new label object is created. If a label object already exist, the index is added to it. The worst case complexity of this method is O(L) where L is the number of lines in the image. However, the execution time will be quite low if the pixels are set in the image in raster mode.

Definition at line 243 of file itkLabelMap.txx.

void itk::Object::SetReferenceCount ( int ref )

virtualinherited

Sets the reference count (use with care)

If there is a delete method, invoke it.

Reimplemented from itk::LightObject.

Definition at line 347 of file itkObject.cxx.

template<class TLabelObject>

void itk::LabelMap< TLabelObject >::SetRegions ( const RegionType & region )

inlineinherited

Convenience methods to set the LargestPossibleRegion, BufferedRegion and RequestedRegion. Allocate must still be called.

Definition at line 124 of file itkLabelMap.h.

template<class TLabelObject>

void itk::LabelMap< TLabelObject >::SetRegions ( const SizeType & size )

inlineinherited

Definition at line 131 of file itkLabelMap.h.

void itk::DataObject::SetReleaseDataFlag ( bool flag )

inlineinherited

Turn on/off a flag to control whether this object's data is released after being used by a filter.

Definition at line 304 of file itkDataObject.h.

virtual void itk::ImageBase< VImageDimension >::SetRequestedRegion ( const RegionType & region )

virtualinherited

Set the region object that defines the size and starting index for the region of the image requested (i.e., the region of the image to be operated on by a filter). Setting the RequestedRegion does not cause the object to be modified. This method is called internally by the pipeline and therefore bypasses the modified time calculation.

See also:: ImageRegion, SetLargestPossibleRegion(), SetBufferedRegion()

virtual void itk::ImageBase< VImageDimension >::SetRequestedRegion ( DataObject * data )

virtualinherited

Set the requested region from this data object to match the requested region of the data object passed in as a parameter. This method implements the API from DataObject. The data object parameter must be castable to an ImageBase. Setting the RequestedRegion does not cause the object to be modified. This method is called internally by the pipeline and therefore bypasses the modified time calculation.

Reimplemented from itk::DataObject.

virtual void itk::ImageBase< VImageDimension >::SetRequestedRegionToLargestPossibleRegion ( )

virtualinherited

Set the RequestedRegion to the LargestPossibleRegion. This forces a filter to produce all of the output in one execution (i.e. not streaming) on the next call to Update().

Reimplemented from itk::DataObject.

virtual void itk::ImageBase< VImageDimension >::SetSpacing ( const SpacingType & spacing )

virtualinherited

Set the spacing (size of a pixel) of the image. The spacing is the geometric distance between image samples. It is stored internally as double, but may be set from float. These methods also pre-compute the Index to Physical point transforms of the image.

See also:: GetSpacing()

virtual void itk::ImageBase< VImageDimension >::SetSpacing ( const double spacing[VImageDimension] )

virtualinherited

virtual void itk::ImageBase< VImageDimension >::SetSpacing ( const float spacing[VImageDimension] )

virtualinherited

bool itk::DataObject::ShouldIReleaseData ( ) const

inherited

Return flag indicating whether data should be released after use by a filter.

Definition at line 206 of file itkDataObject.cxx.

void itk::ImageBase< VImageDimension >::TransformContinuousIndexToPhysicalPoint	(	const ContinuousIndex< TCoordRep, VImageDimension > &	index,
		Point< TCoordRep, VImageDimension > &	point
	)		const

inlineinherited

Get a physical point (in the space which the origin and spacing infomation comes from) from a continuous index (in the index space)

See also:: Transform

Definition at line 436 of file itkImageBase.h.

void itk::ImageBase< VImageDimension >::TransformIndexToPhysicalPoint	(	const IndexType &	index,
		Point< TCoordRep, VImageDimension > &	point
	)		const

inlineinherited

Get a physical point (in the space which the origin and spacing infomation comes from) from a discrete index (in the index space)

See also:: Transform

Definition at line 467 of file itkImageBase.h.

void itk::ImageBase< VImageDimension >::TransformLocalVectorToPhysicalVector	(	const FixedArray< TCoordRep, VImageDimension > &	inputGradient,
		FixedArray< TCoordRep, VImageDimension > &	outputGradient
	)		const

inlineinherited

Get a physical point (in the space which the origin and spacing infomation comes from) from a discrete index (in the index space)

See also:: Transform Take a vector or covariant vector that has been computed in the coordinate system parallel to the image grid and rotate it by the direction cosines in order to get it in terms of the coordinate system of the image acquisition device. This implementation in the OrientedImage multiply the array (vector or covariant vector) by the matrix of Direction Cosines. The arguments of the method are of type FixedArray to make possible to use this method with both Vector and CovariantVector. The Method is implemented differently in the itk::Image.; Image

Definition at line 501 of file itkImageBase.h.

bool itk::ImageBase< VImageDimension >::TransformPhysicalPointToContinuousIndex	(	const Point< TCoordRep, VImageDimension > &	point,
		ContinuousIndex< TCoordRep, VImageDimension > &	index
	)		const

inlineinherited

Get the continuous index from a physical point.

Returns true if the resulting index is within the image, false otherwise.

See also:: Transform

Definition at line 408 of file itkImageBase.h.

bool itk::ImageBase< VImageDimension >::TransformPhysicalPointToIndex	(	const Point< TCoordRep, VImageDimension > &	point,
		IndexType &	index
	)		const

inlineinherited

Get the index (discrete) of a voxel from a physical point. Floating point index results are rounded to integers if ITK_USE_CENTERED_PIXEL_COORDINATES_CONSISTENTLY is on and truncated otherwise. Returns true if the resulting index is within the image, false otherwise

See also:: Transform

Definition at line 378 of file itkImageBase.h.

void itk::Object::UnRegister ( ) const

virtualinherited

Decrease the reference count (release by another object).

If there is a delete method, invoke it.

Reimplemented from itk::LightObject.

Definition at line 324 of file itkObject.cxx.

Referenced by itk::Object::New(), and itk::ObjectFactoryBase::UnRegisterFactory().

void itk::DataObject::Update ( void )

virtualinherited

Provides opportunity for the data object to insure internal consistency before access. Also causes owning source/filter (if any) to update itself. The Update() method is composed of UpdateOutputInformation(), PropagateRequestedRegion(), and UpdateOutputData(). This method may call methods that throw an InvalidRequestedRegionError exception. This exception will leave the pipeline in an inconsistent state. You will need to call ResetPipeline() on the last ProcessObject in your pipeline in order to restore the pipeline to a state where you can call Update() again.

Definition at line 340 of file itkDataObject.cxx.

Referenced by itk::WatershedImageFilter< TInputImage >::GetBasicSegmentation().

virtual void itk::ImageBase< VImageDimension >::UpdateOutputData ( void )

virtualinherited

Overriden from base class to check if the requested image region has zero pixels.

This is needed so that filters can set an input's requested region to zero, to indicate that it does not need to be updated or executed.

Reimplemented from itk::DataObject.

virtual void itk::ImageBase< VImageDimension >::UpdateOutputInformation ( void )

virtualinherited

Update the information for this DataObject so that it can be used as an output of a ProcessObject. This method is used the pipeline mechanism to propagate information and initialize the meta data associated with a DataObject. This method calls its source's ProcessObject::UpdateOutputInformation() which determines modified times, LargestPossibleRegions, and any extra meta data like spacing, origin, etc.

Reimplemented from itk::DataObject.

virtual bool itk::ImageBase< VImageDimension >::VerifyRequestedRegion ( )

virtualinherited

Verify that the RequestedRegion is within the LargestPossibleRegion. If the RequestedRegion is not within the LargestPossibleRegion, then the filter cannot possible satisfy the request. This method returns true if the request can be satisfied and returns fails if the request cannot. This method is used by PropagateRequestedRegion(). PropagateRequestedRegion() throws a InvalidRequestedRegionError exception is the requested region is not within the LargestPossibleRegion.

Reimplemented from itk::DataObject.

Member Data Documentation

template<class TLabelObject >

const unsigned int otb::LabelMapWithAdjacency< TLabelObject >::ImageDimension = LabelObjectType::ImageDimension

static

Dimension of the image. This constant is used by functions that are templated over image type (as opposed to being templated over pixel type and dimension) when they need compile time access to the dimension of the image.

Reimplemented from itk::LabelMap< TLabelObject >.

Definition at line 59 of file otbLabelMapWithAdjacency.h.

template<class TLabelObject >

AdjacencyMapType otb::LabelMapWithAdjacency< TLabelObject >::m_AdjacencyMap

private

The adjacency map

Definition at line 243 of file otbLabelMapWithAdjacency.h.

Referenced by otb::LabelMapWithAdjacency< TLabelObject >::CopyInformation().

DirectionType itk::ImageBase< VImageDimension >::m_Direction

protectedinherited

Definition at line 638 of file itkImageBase.h.

DirectionType itk::ImageBase< VImageDimension >::m_IndexToPhysicalPoint

protectedinherited

Matrices intended to help with the conversion of Index coordinates to PhysicalPoint coordinates

Definition at line 642 of file itkImageBase.h.

PointType itk::ImageBase< VImageDimension >::m_Origin

protectedinherited

Definition at line 637 of file itkImageBase.h.

DirectionType itk::ImageBase< VImageDimension >::m_PhysicalPointToIndex

protectedinherited

Definition at line 643 of file itkImageBase.h.

InternalReferenceCountType itk::LightObject::m_ReferenceCount

mutableprotectedinherited

Number of uses of this object by other objects.

Definition at line 141 of file itkLightObject.h.

SimpleFastMutexLock itk::LightObject::m_ReferenceCountLock

mutableprotectedinherited

Mutex lock to protect modification to the reference count

Definition at line 144 of file itkLightObject.h.

SpacingType itk::ImageBase< VImageDimension >::m_Spacing

protectedinherited

Origin and spacing of physical coordinates. This variables are protected for efficiency. They are referenced frequently by inner loop calculations.

Definition at line 636 of file itkImageBase.h.

The documentation for this class was generated from the following file:

otbLabelMapWithAdjacency.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

template<class TLabelObject> class otb::LabelMapWithAdjacency< TLabelObject >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class TLabelObject>
class otb::LabelMapWithAdjacency< TLabelObject >
