Image Filters

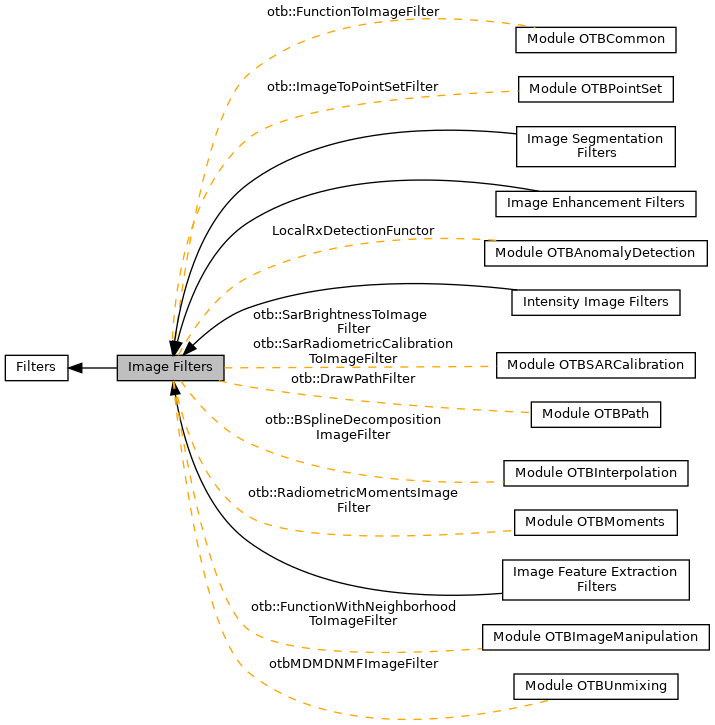

+ Collaboration diagram for Image Filters:

Modules

 Intensity Image Filters

 Image Enhancement Filters

 Image Feature Extraction Filters

 Image Segmentation Filters


Classes

class  otb::AddCarvingPathFilter< TInputImage, TInputPath, TOutputImage >
 This class add pixels given in one path. More...

class  itk::BinaryMaskToNarrowBandPointSetFilter< TInputImage, TOutputMesh >
 Generate a PointSet containing the narrow band around the edges of a input binary image. More...

class  otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >
 This class is an evolution of the itk::BSplineDecompositionImageFilter to handle huge images with this interpolator. For more documentation, please refer to the original class. More...

class  itk::DenseFiniteDifferenceImageFilter< TInputImage, TOutputImage >

class  otb::DrawPathFilter< TInputImage, TInputPath, TOutputImage >
 This class can be used to draw a single path on an image. More...

class  itk::ExtractOrthogonalSwath2DImageFilter< TImage >
 Extracts into rectangular form a "swath" image from the input image along the parametric path. More...

class  otb::FunctionToImageFilter< TInputImage, TOutputImage, TFunction >
 Evaluates a ImageFunction onto a source image. More...

class  otb::FunctionWithNeighborhoodToImageFilter< TInputImage, TOutputImage, TFunction >
 Evaluates a ImageFunction onto a source image. More...

class  itk::GradientAnisotropicDiffusionImageFilter< TInputImage, TOutputImage >

class  itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage, TInternalPixel >
 This class computes a diffusion of the gradient vectors for graylevel or binary edge map derive from the image. It enlarges the capture range of the gradient force and make external force derived from the gradient work effectively in the framework of deformable model. More...

class  itk::ImageAndPathToImageFilter< TInputImage, TInputPath, TOutputImage >
 Base class for filters that take both a path and an image as input and produce a path as output. More...

class  otb::ImageToCarvingPathFilter< TInputImage, TOutputPath >
 This filter find the minimum energy path of an image. More...

class  itk::ImageToImageFilter< TInputImage, TOutputImage >
 Base class for filters that take an image as input and produce an image as output. More...

class  itk::ImageToMeshFilter< TInputImage, TOutputMesh >
 ImageToMeshFilter is the base class for all process objects that output Mesh data and require image data as input. Specifically, this class defines the SetInput() method for defining the input to a filter. More...

class  itk::ImageToParametricSpaceFilter< TInputImage, TOutputMesh >
 Generate a mesh of parametric space from input images. More...

class  otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
 Base class to output PointSet data with image data as input. More...

class  itk::InPlaceImageFilter< TInputImage, TOutputImage >
 Base class for filters that take an image as input and overwrite that image as the output. More...

class  itk::MaskNeighborhoodOperatorImageFilter< TInputImage, TMaskImage, TOutputImage, TOperatorValueType >
 Applies a single NeighborhoodOperator to an image, processing only those pixels that are under a mask. More...

class  itk::NeighborhoodOperatorImageFilter< TInputImage, TOutputImage, TOperatorValueType >
 Applies a single NeighborhoodOperator to an image region. More...

class  itk::NormalizedCorrelationImageFilter< TInputImage, TMaskImage, TOutputImage, TOperatorValueType >
 Computes the normalized correlation of an image and a template. More...

class  otbLocalRxDetectorFilter
 Local-RX detector algorithm with multichannel VectorImage data as input. More...

class  otbLocalRxDetectorNonThreadFilter
 Local-RX detector algorithm with multichannel VectorImage data as input. More...

class  otbMDMDNMFImageFilter
 This filter implements unmixing based non negative matrix factorization (NMF) which finds simultaneously the end members and abundances matrix which product is the closer to the observed data, based on the following works: K. S. F.J. Theis and T. Tanaka, First results on uniqueness of sparse non-negative matrix factorisation. M. G. A. Huck and J. Blanc-Talon, IEEE TGRS, vol. 48, no. 6, pp. 2590-2602, 2010. A. Huck and M. Guillaume, in WHISPERS, 2010, Grenoble. More...

class  otb::RadiometricMomentsImageFilter< TInputImage, TOutputImage >
 Calculate the radiometric moments. More...

class  itk::RecursiveSeparableImageFilter< TInputImage, TOutputImage >
 Base class for recursive convolution with a kernel. More...

class  otb::RemoveCarvingPathFilter< TInputImage, TInputPath, TOutputImage >
 This class remove pixels given in one path. More...

class  otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >
 Evaluates the SarBrightnessFunction onto a source image. More...

class  otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >
 Evaluates the SarRadiometricCalibrationFunction onto a source image. More...

class  itk::SpatialFunctionImageEvaluatorFilter< TSpatialFunction, TInputImage, TOutputImage >
 Evaluates a SpatialFunction onto a source image. More...

class  itk::VectorNeighborhoodOperatorImageFilter< TInputImage, TOutputImage >
 Applies a single scalar NeighborhoodOperator to an itk::Vector image region. More...


Detailed Description

Image filters process input images and produce output images. Inputs are unmodified. The pipeline architecture makes provisions for supporting streaming by using packets of data defined by regions

See Also
PhysicalImage
ImageRegion
