Public Types | Public Member Functions | Static Public Member Functions | Static Public Attributes | Protected Member Functions | Private Member Functions | Private Attributes | List of all members
otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel > Class Template Reference

An AttributesMapLabelObject with an optional class label. More...

#include <otbAttributesMapLabelObjectWithClassLabel.h>

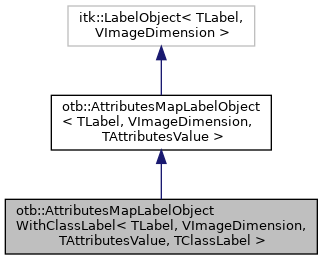

+ Inheritance diagram for otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >:

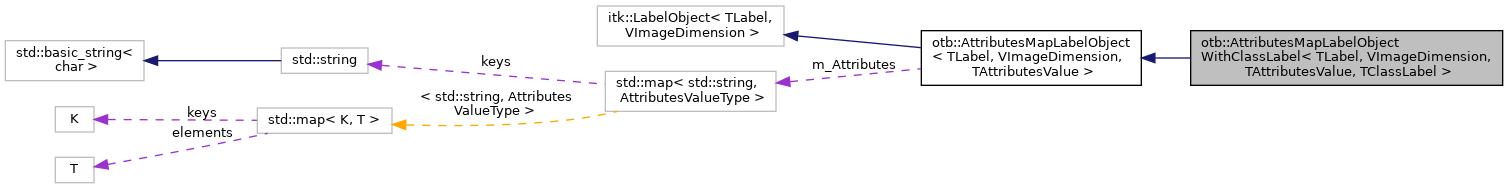

+ Collaboration diagram for otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >:

Public Types

typedef TClassLabel ClassLabelType

typedef itk::SmartPointer
< const Self
ConstPointer

typedef itk::WeakPointer
< const Self
ConstWeakPointer

typedef itk::LabelObject
< TLabel, VImageDimension >
LabelObjectType

typedef itk::SmartPointer< SelfPointer

typedef
AttributesMapLabelObjectWithClassLabel
Self

typedef
AttributesMapLabelObject
< TLabel, VImageDimension,
TAttributesValue >
Superclass

- Public Types inherited from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >
typedef
AttributesMapType::const_iterator
AttributesMapConstIteratorType

typedef AttributesMapType::iterator AttributesMapIteratorType

typedef std::map< std::string,
AttributesValueType
AttributesMapType
 Map container typedefs. More...

typedef TAttributesValue AttributesValueType

typedef itk::SmartPointer
< const Self
ConstPointer

typedef itk::WeakPointer
< const Self
ConstWeakPointer

typedef Superclass::IndexType IndexType

typedef itk::LabelMap< SelfLabelMapType
 Type of a label map using an AttributesMapLabelObject. More...

typedef Superclass::LabelObjectType LabelObjectType

typedef TLabel LabelType
 Template parameters typedef. More...

typedef Superclass::LengthType LengthType

typedef Superclass::LineType LineType

typedef itk::SmartPointer< SelfPointer

typedef PolygonType::Pointer PolygonPointerType

typedef Polygon< double > PolygonType

typedef AttributesMapLabelObject Self

typedef itk::LabelObject
< TLabel, VImageDimension >
Superclass


Public Member Functions

virtual void CopyAttributesFrom (const LabelObjectType *lo)

virtual ::itk::LightObject::Pointer CreateAnother (void) const

const ClassLabelTypeGetClassLabel () const

virtual const char * GetNameOfClass () const

bool HasClassLabel () const

void RemoveClassLabel ()

void SetClassLabel (const ClassLabelType &label)

- Public Member Functions inherited from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >
virtual ::itk::LightObject::Pointer CreateAnother (void) const

AttributesValueType GetAttribute (const char *name) const

std::vector< std::string > GetAvailableAttributes () const

unsigned int GetNumberOfAttributes () const

const PolygonTypeGetPolygon () const

PolygonTypeGetPolygon ()

void SetAttribute (const char *name, AttributesValueType value)

void SetAttribute (const std::string &name, AttributesValueType value)

void SetPolygon (PolygonType *p)

- Public Member Functions inherited from itk::LabelObject< TLabel, VImageDimension >
virtual void CopyAttributesFrom (const Self *src)


Static Public Member Functions

static Pointer New ()

- Static Public Member Functions inherited from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >
static Pointer New ()


Static Public Attributes

static const unsigned int ImageDimension = VImageDimension

- Static Public Attributes inherited from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >
static const unsigned int ImageDimension = VImageDimension


Protected Member Functions

 AttributesMapLabelObjectWithClassLabel ()

virtual ~AttributesMapLabelObjectWithClassLabel ()

void PrintSelf (std::ostream &os, itk::Indent indent) const

- Protected Member Functions inherited from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >
 AttributesMapLabelObject ()

virtual ~AttributesMapLabelObject ()


Private Member Functions

 AttributesMapLabelObjectWithClassLabel (const Self &)

void operator= (const Self &)


Private Attributes

ClassLabelType m_ClassLabel

bool m_HasClassLabel


Detailed Description

template<class TLabel, unsigned int VImageDimension, class TAttributesValue, class TClassLabel>
class otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >

An AttributesMapLabelObject with an optional class label.

The label type is defined by the template parameter TClassLabel and accessible using the ClassLabelType typedef.

The HasClassLabel() method returns true if the LabelObject has a class label and false otherwise.

The SetClassLabel() method set the class label and set the internal flag m_HasClassLabel to true.

The GetClassLabel() method returns the class label or an exception if m_HasClassLabel is set to false.

The RemoveClassLabel() method set m_HasClassLabel to false and the class label value to a default value.

See Also
LabelObject, ShapeLabelObject, StatisticsLabelObject

Definition at line 49 of file otbAttributesMapLabelObjectWithClassLabel.h.

Member Typedef Documentation

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef TClassLabel otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::ClassLabelType

Class label typedef

Definition at line 70 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef itk::SmartPointer<const Self> otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::ConstPointer

Definition at line 58 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef itk::WeakPointer<const Self> otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::ConstWeakPointer

Definition at line 59 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef itk::LabelObject<TLabel, VImageDimension> otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::LabelObjectType

Definition at line 56 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef itk::SmartPointer<Self> otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::Pointer

Definition at line 57 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef AttributesMapLabelObjectWithClassLabel otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::Self

Standard class typedefs

Definition at line 53 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
typedef AttributesMapLabelObject<TLabel, VImageDimension, TAttributesValue> otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::Superclass

Definition at line 55 of file otbAttributesMapLabelObjectWithClassLabel.h.

Constructor & Destructor Documentation

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::AttributesMapLabelObjectWithClassLabel ( )
inlineprotected

Constructor

Definition at line 120 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
virtual otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::~AttributesMapLabelObjectWithClassLabel ( )
inlineprotectedvirtual

Destructor

Definition at line 123 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::AttributesMapLabelObjectWithClassLabel ( const Self )
private

Member Function Documentation

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
virtual void otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::CopyAttributesFrom ( const LabelObjectType lo)
inlinevirtual

This method is overloaded to add the copy of the attributes map.

Reimplemented from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >.

Definition at line 103 of file otbAttributesMapLabelObjectWithClassLabel.h.

References NULL.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
virtual::itk::LightObject::Pointer otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::CreateAnother ( void  ) const
template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
const ClassLabelType& otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::GetClassLabel ( ) const
inline

Get the class label. Throws an exception if no class label is available

Definition at line 81 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
virtual const char* otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::GetNameOfClass ( ) const
virtual

Run-time type information (and related methods).

Reimplemented from otb::AttributesMapLabelObject< TLabel, VImageDimension, TAttributesValue >.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
bool otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::HasClassLabel ( ) const
inline
Returns
true if a class label is available

Definition at line 91 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
static Pointer otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::New ( )
static

Method for creation through the object factory.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
void otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::operator= ( const Self )
private
template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
void otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
inlineprotectedvirtual
template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
void otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::RemoveClassLabel ( )
inline

Invalidate the class label if any

Definition at line 97 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
void otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::SetClassLabel ( const ClassLabelType label)
inline

Set the class label

Definition at line 73 of file otbAttributesMapLabelObjectWithClassLabel.h.

Member Data Documentation

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
const unsigned int otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::ImageDimension = VImageDimension
static

Definition at line 67 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
ClassLabelType otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::m_ClassLabel
private

The class label

Definition at line 144 of file otbAttributesMapLabelObjectWithClassLabel.h.

template<class TLabel , unsigned int VImageDimension, class TAttributesValue , class TClassLabel >
bool otb::AttributesMapLabelObjectWithClassLabel< TLabel, VImageDimension, TAttributesValue, TClassLabel >::m_HasClassLabel
private

Does the LabelObject have a class label ?

Definition at line 147 of file otbAttributesMapLabelObjectWithClassLabel.h.


The documentation for this class was generated from the following file:
