otb::Functor::NDWI2< TInput, TOutput > Class Template Reference

#include <otbWaterIndicesFunctor.h>

+ Inheritance diagram for otb::Functor::NDWI2< TInput, TOutput >:

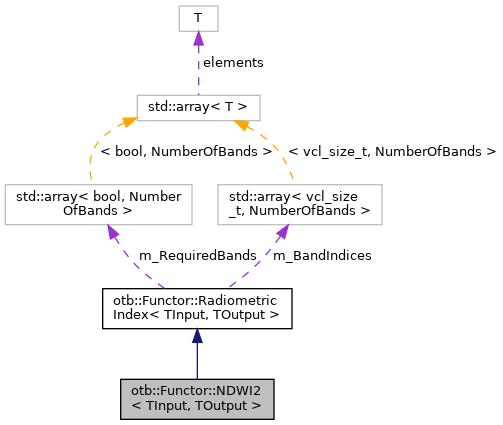

+ Collaboration diagram for otb::Functor::NDWI2< TInput, TOutput >:

Public Member Functions

 NDWI2 ()

TOutput operator() (const itk::VariableLengthVector< TInput > &input) const override

- Public Member Functions inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
 RadiometricIndex (const std::set< BandNameType > &requiredBands)

virtual ~RadiometricIndex ()=default

std::set< BandNameTypeGetRequiredBands () const

void SetBandIndex (BandNameType band, vcl_size_t index)

void SetBandsIndices (const std::map< BandNameType, vcl_size_t > &indicesMap)

vcl_size_t GetBandIndex (BandNameType band) const


Additional Inherited Members

- Public Types inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
using BandNameType = CommonBandNames

using InputType = TInput

using OutputType = TOutput

using PixelType = itk::VariableLengthVector< InputType >

- Static Public Attributes inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
static constexpr double Epsilon = 0.0000001

static constexpr vcl_size_t NumberOfBands = static_cast<vcl_size_t>(BandNameType::MAX)

- Protected Member Functions inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
vcl_size_t UncheckedBandIndex (BandNameType band) const

double Value (BandNameType band, const itk::VariableLengthVector< TInput > &input) const


Detailed Description

template<class TInput, class TOutput>
class otb::Functor::NDWI2< TInput, TOutput >

This functor computes the Normalized Difference Water Index (NDWI2)

[McFeeters, 1996 ]

Definition at line 78 of file otbWaterIndicesFunctor.h.

Constructor & Destructor Documentation

◆ NDWI2()

template<class TInput , class TOutput >
otb::Functor::NDWI2< TInput, TOutput >::NDWI2 ( )
inline

Definition at line 81 of file otbWaterIndicesFunctor.h.

Member Function Documentation

◆ operator()()

template<class TInput , class TOutput >
TOutput otb::Functor::NDWI2< TInput, TOutput >::operator() ( const itk::VariableLengthVector< TInput > &  input) const
inlineoverridevirtual

Astract method which will compute the radiometric indice

Parameters
inputA itk::VariableLengthVector<TInput> holding the pixel values for each band
Returns
The indice value as TOutput (starts at 1 for first band)

Implements otb::Functor::RadiometricIndex< TInput, TOutput >.

Definition at line 85 of file otbWaterIndicesFunctor.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::Value().


The documentation for this class was generated from the following file:
