#include <otbGeometriesToGeometriesFilter.h>

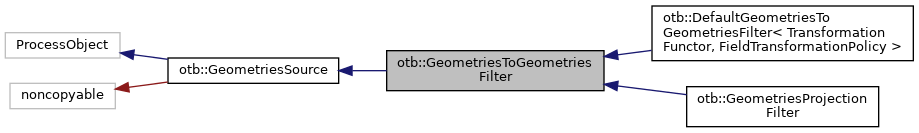

Inheritance diagram for otb::GeometriesToGeometriesFilter:

Collaboration diagram for otb::GeometriesToGeometriesFilter:

Public Types
Standard ITK typedefs
typedef GeometriesToGeometriesFilter	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

I/O typedefs
typedef GeometriesSet	InputGeometriesType

typedef GeometriesSet	OutputGeometriesType

Public Types inherited from otb::GeometriesSource
typedef GeometriesSource	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType

typedef GeometriesSet	OutputGeometriesType

Public Member Functions
Standard ITK macros
virtual const char *	GetNameOfClass () const

Public Member Functions inherited from otb::GeometriesSource
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual OutputGeometriesType *	GetOutput (void)

virtual OutputGeometriesType *	GetOutput (DataObjectPointerArraySizeType idx)

virtual void	SetOutput (OutputGeometriesType *output, DataObjectPointerArraySizeType idx=0)

void	PrepareOutputs () override

Single input GeometriesSet property
virtual void	SetInput (const InputGeometriesType *input)

const InputGeometriesType *	GetInput (void)

	GeometriesToGeometriesFilter ()

	~GeometriesToGeometriesFilter () override

void	GenerateData (void) override

void	Process (OutputGeometriesType &inout)

void	Process (InputGeometriesType const &source, OutputGeometriesType &destination)

Filter specialization hooks.
Filter specialization hooks. These functions are meant to be specialized by the actual filter.
struct	otb::internal::ProcessVisitor

virtual void	DoProcessLayer (ogr::Layer const &source, ogr::Layer &destination) const =0

virtual OGRSpatialReference *	DoDefineNewLayerSpatialReference (ogr::Layer const &source) const

virtual OGRwkbGeometryType	DoDefineNewLayerGeometryType (ogr::Layer const &source) const

virtual std::vector< std::string >	DoDefineNewLayerOptions (ogr::Layer const &source) const

virtual void	DoDefineNewLayerFields (ogr::Layer const &source, ogr::Layer &dest) const =0

virtual void	DoFinalizeInitialization ()

Additional Inherited Members
Static Public Member Functions inherited from otb::GeometriesSource
static Pointer	New ()

Protected Member Functions inherited from otb::GeometriesSource
	GeometriesSource ()

	~GeometriesSource () override

virtual void	DoAllocateOutputs ()

Detailed Description

Root abstract class for all geometry to geometry filters.

Since: OTB v 3.14.0

Definition at line 58 of file otbGeometriesToGeometriesFilter.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> otb::GeometriesToGeometriesFilter::ConstPointer

Definition at line 67 of file otbGeometriesToGeometriesFilter.h.

◆ InputGeometriesType

typedef GeometriesSet otb::GeometriesToGeometriesFilter::InputGeometriesType

Definition at line 72 of file otbGeometriesToGeometriesFilter.h.

◆ OutputGeometriesType

typedef GeometriesSet otb::GeometriesToGeometriesFilter::OutputGeometriesType

Definition at line 73 of file otbGeometriesToGeometriesFilter.h.

◆ Pointer

typedef itk::SmartPointer<Self> otb::GeometriesToGeometriesFilter::Pointer

Definition at line 66 of file otbGeometriesToGeometriesFilter.h.

◆ Self

typedef GeometriesToGeometriesFilter otb::GeometriesToGeometriesFilter::Self

Definition at line 64 of file otbGeometriesToGeometriesFilter.h.

◆ Superclass

typedef itk::ProcessObject otb::GeometriesToGeometriesFilter::Superclass

Definition at line 65 of file otbGeometriesToGeometriesFilter.h.

Constructor & Destructor Documentation

◆ GeometriesToGeometriesFilter()

otb::GeometriesToGeometriesFilter::GeometriesToGeometriesFilter ( )

protected

Default constructor. Does nothing.

◆ ~GeometriesToGeometriesFilter()

otb::GeometriesToGeometriesFilter::~GeometriesToGeometriesFilter ( )

overrideprotected

Destructor. Does nothing.

Member Function Documentation

◆ DoDefineNewLayerFields()

virtual void otb::GeometriesToGeometriesFilter::DoDefineNewLayerFields	(	ogr::Layer const &	source,
		ogr::Layer &	dest
	)		const

privatepure virtual

Hook used to define the fields of the new layer.

Parameters

[in]	source	source `Layer` – for reference
[in,out]	dest	destination `Layer`

Implemented in otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >, and otb::GeometriesProjectionFilter.

◆ DoDefineNewLayerGeometryType()

virtual OGRwkbGeometryType otb::GeometriesToGeometriesFilter::DoDefineNewLayerGeometryType ( ogr::Layer const & source ) const

privatevirtual

Hook used to determine the type of the new layer.

Parameters

[in] source source Layer.

Returns: by default the same type as the one from the source Layer.

◆ DoDefineNewLayerOptions()

virtual std::vector<std::string> otb::GeometriesToGeometriesFilter::DoDefineNewLayerOptions ( ogr::Layer const & source ) const

privatevirtual

Hook used to determine the options for creating a new layer.

Parameters

[in] source source Layer for reference (in case it has relevant information).

Returns: nothing by default.

◆ DoDefineNewLayerSpatialReference()

virtual OGRSpatialReference* otb::GeometriesToGeometriesFilter::DoDefineNewLayerSpatialReference ( ogr::Layer const & source ) const

privatevirtual

Hook used to determine the OGRSpatialReference when creating a new layer.

Parameters

[in] source source Layer for reference (in case it has relevant information).

Returns: a new OGRSpatialReference that the client code shall release with the appropriate OGR function.; 0 by default.

Todo:: Return a unique_ptr<OGRSpatialReference>.

Reimplemented in otb::GeometriesProjectionFilter.

◆ DoFinalizeInitialization()

virtual void otb::GeometriesToGeometriesFilter::DoFinalizeInitialization ( )

inlineprivatevirtual

Hook used to conclude the initialization phase. As ITK doesn't follow a the constructor set the object in a final, and ready to be used, state, this step is required to do that once all filter attributes have been set.

The default implementation does nothing.

Reimplemented in otb::GeometriesProjectionFilter.

Definition at line 181 of file otbGeometriesToGeometriesFilter.h.

◆ DoProcessLayer()

virtual void otb::GeometriesToGeometriesFilter::DoProcessLayer	(	ogr::Layer const &	source,
		ogr::Layer &	destination
	)		const

privatepure virtual

Hook that actually filters an OGR Layer.

Parameters

[in]	source	Input layer
[in,out]	destination	Output layer

Note: When source == destination, it means this is an inplace filter.

Implemented in otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >, and otb::GeometriesProjectionFilter.

◆ GenerateData()

void otb::GeometriesToGeometriesFilter::GenerateData ( void )

overrideprotected

Processes the input to fill the output. This is the main processing function. It either works in-place or by copying the transformed input Feature s into the output.

◆ GetInput()

const InputGeometriesType* otb::GeometriesToGeometriesFilter::GetInput ( void )

Default constructor. Does nothing.

◆ GetNameOfClass()

virtual const char* otb::GeometriesToGeometriesFilter::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from otb::GeometriesSource.

Reimplemented in otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >, and otb::GeometriesProjectionFilter.

◆ Process() [1/2]

void otb::GeometriesToGeometriesFilter::Process	(	InputGeometriesType const &	source,
		OutputGeometriesType &	destination
	)

private

By-copy processing function.

Parameters

[in]	source	the geometries set to transform
[out]	destination	the resulting geometries set.

Precondition: The filter must have been initialized; The destination must be ready to receive a result.

◆ Process() [2/2]

void otb::GeometriesToGeometriesFilter::Process ( OutputGeometriesType & inout )

private

In-place processing function.

Parameters

[in,out] inout the geometries set that'll be modified by the filter.

Precondition: The filter must have been initialized

◆ SetInput()

virtual void otb::GeometriesToGeometriesFilter::SetInput ( const InputGeometriesType * input )

virtual

Default constructor. Does nothing.

Friends And Related Function Documentation

◆ otb::internal::ProcessVisitor

friend struct otb::internal::ProcessVisitor

friend

Hook that actually filters an OGR Layer.

Parameters

[in]	source	Input layer
[in,out]	destination	Output layer

Note: When source == destination, it means this is an inplace filter.

Definition at line 186 of file otbGeometriesToGeometriesFilter.h.

The documentation for this class was generated from the following file:

otbGeometriesToGeometriesFilter.h
