otb::OSMDataToVectorDataGenerator Class Reference

#include <otbOSMDataToVectorDataGenerator.h>

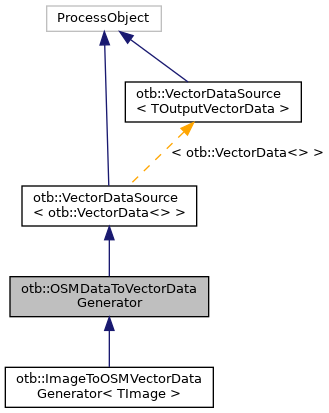

Inheritance diagram for otb::OSMDataToVectorDataGenerator:

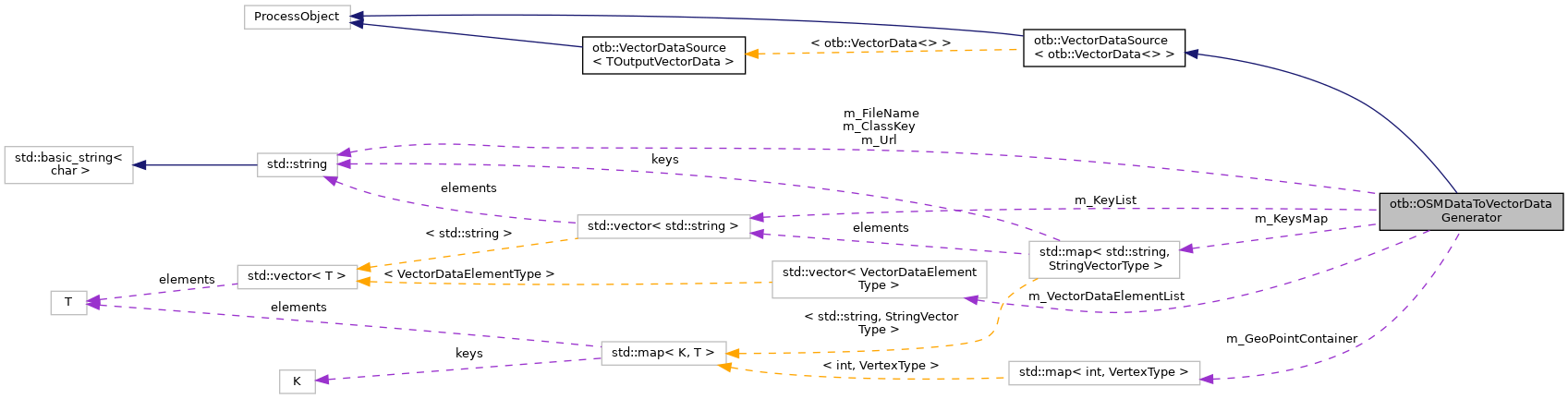

Collaboration diagram for otb::OSMDataToVectorDataGenerator:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef std::map< int, VertexType >	ContainerType
typedef VectorDataType::DataNodeType	DataNodeType
typedef std::pair< std::string, std::string >	ElementPairType
typedef std::map< std::string, StringVectorType >	KeyMapType
typedef DataNodeType::LineType	LineType
typedef itk::SmartPointer< Self >	Pointer
typedef std::vector< VertexType >	PointTypeList
typedef DataNodeType::PolygonType	PolygonType
typedef OSMDataToVectorDataGenerator	Self
typedef std::vector< std::string >	StringVectorType
typedef VectorDataSource< otb::VectorData<> >	Superclass
typedef std::vector< VectorDataElementType >	VectorDataElementListType
typedef std::pair< ElementPairType, PointTypeList >	VectorDataElementType
typedef Superclass::OutputVectorDataType	VectorDataType
typedef LineType::VertexType	VertexType
Public Types inherited from otb::VectorDataSource< otb::VectorData<> >
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType
typedef otb::VectorData<> ::Pointer	OutputVectorDataPointer
typedef otb::VectorData<>	OutputVectorDataType
typedef itk::SmartPointer< Self >	Pointer
typedef VectorDataSource	Self
typedef itk::ProcessObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
Public Member Functions inherited from otb::VectorDataSource< otb::VectorData<> >
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
virtual void	GraftOutput (itk::DataObject *output)
virtual void	GraftNthOutput (unsigned int idx, itk::DataObject *output)
virtual OutputVectorDataType *	GetOutput (void)
virtual OutputVectorDataType *	GetOutput (DataObjectPointerArraySizeType idx)

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from otb::VectorDataSource< otb::VectorData<> >
static Pointer	New ()
double	m_North
double	m_South
double	m_East
double	m_West
std::string	m_Url
bool	m_UseUrl
std::vector< std::string >	m_KeyList
std::string	m_FileName
ContainerType	m_GeoPointContainer
VectorDataElementListType	m_VectorDataElementList
CurlHelper::Pointer	m_Curl
VectorDataType::Pointer	m_OutputVectorData
KeyMapType	m_KeysMap
std::string	m_ClassKey
int	m_ClassKeyValue
virtual void	SetFileName (const char *_arg)
virtual const char *	GetFileName () const
virtual void	SetNorth (double _arg)
virtual void	SetSouth (double _arg)
virtual void	SetEast (double _arg)
virtual void	SetWest (double _arg)
virtual double	GetNorth ()
virtual double	GetSouth ()
virtual double	GetEast ()
virtual double	GetWest ()
virtual std::string	GetClassKey () const
virtual void	SetClassKey (std::string _arg)
virtual int	GetClassKeyValue () const
virtual void	SetClassKeyValue (int _arg)
virtual void	SetUseUrl (bool _arg)
void	AddKey (const std::string &key)
const KeyMapType	GetKeysMap () const
const VectorDataType *	GetVectorDataByName (const std::string &key)
const VectorDataType *	GetVectorDataByName (const std::string &key, const std::string &value)
void	GenerateData () override
void	ParseXmlFile ()
void	ProcessVectorData (const std::string &key, const std::string &value)
bool	IsKeyPresent (const std::string &key)
	OSMDataToVectorDataGenerator ()
	~OSMDataToVectorDataGenerator () override
	OSMDataToVectorDataGenerator (const Self &)=delete
void	operator= (const Self &)=delete
void	AddKeyTypeToMap (const std::string &key, const std::string &value)

Additional Inherited Members
Protected Member Functions inherited from otb::VectorDataSource< otb::VectorData<> >
	VectorDataSource ()
	~VectorDataSource () override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
virtual void	AllocateOutputs ()

Detailed Description

Request OSM Server using the OSM API 0.6 to get the xml file storing the vector elements available.

This class request the OSM server using a bbox. The bbox parameters can be set using the methods Set{North, South, East, West}. Thus, only the vector elements that are within this bbox are returned in the Xml file.

The class parse the XML file for certain keys by default, the class allow adding key to be searched in the XML file. Use AddKey(const std::string& key) to add it to the search list. Here is a link to the OSM wiki where all the keys are listed : http://wiki.openstreetmap.org/wiki/Map_Features.

Adding a field and its integer value is possible through the methods SetClassKey(const std::string&) and SetClassKeyValue() The field is retrieved by GetFieldAsInt(), thus must be int-compatible

Getting output VectorData is possible via two methods :

1: Get all the features of key in a vector data via GetVectorDataByName(const std::string& key) For instance : GetVectorDataByName("highway")

2: Get only the features for a key that match a given value via GetVectorDataByName(const std::string& key, const std::string& value) For instance : GetVectorDataByName("highway", "motorway")

All the keys and their relative values are stored in a map. To get this map use the method GetKeysMap().

Note that if one of the server limits are crossed node/way/relation or area requested, an exception is raised.

Definition at line 78 of file otbOSMDataToVectorDataGenerator.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::OSMDataToVectorDataGenerator::ConstPointer

Definition at line 85 of file otbOSMDataToVectorDataGenerator.h.

ContainerType

typedef std::map<int, VertexType> otb::OSMDataToVectorDataGenerator::ContainerType

Definition at line 94 of file otbOSMDataToVectorDataGenerator.h.

DataNodeType

typedef VectorDataType::DataNodeType otb::OSMDataToVectorDataGenerator::DataNodeType

Definition at line 88 of file otbOSMDataToVectorDataGenerator.h.

ElementPairType

typedef std::pair<std::string, std::string> otb::OSMDataToVectorDataGenerator::ElementPairType

Definition at line 97 of file otbOSMDataToVectorDataGenerator.h.

KeyMapType

typedef std::map<std::string, StringVectorType> otb::OSMDataToVectorDataGenerator::KeyMapType

Definition at line 106 of file otbOSMDataToVectorDataGenerator.h.

LineType

typedef DataNodeType::LineType otb::OSMDataToVectorDataGenerator::LineType

Definition at line 89 of file otbOSMDataToVectorDataGenerator.h.

Pointer

typedef itk::SmartPointer<Self> otb::OSMDataToVectorDataGenerator::Pointer

Definition at line 84 of file otbOSMDataToVectorDataGenerator.h.

PointTypeList

typedef std::vector<VertexType> otb::OSMDataToVectorDataGenerator::PointTypeList

Definition at line 100 of file otbOSMDataToVectorDataGenerator.h.

PolygonType

typedef DataNodeType::PolygonType otb::OSMDataToVectorDataGenerator::PolygonType

Definition at line 90 of file otbOSMDataToVectorDataGenerator.h.

Self

typedef OSMDataToVectorDataGenerator otb::OSMDataToVectorDataGenerator::Self

Standard class typedefs

Definition at line 82 of file otbOSMDataToVectorDataGenerator.h.

StringVectorType

typedef std::vector<std::string> otb::OSMDataToVectorDataGenerator::StringVectorType

Definition at line 105 of file otbOSMDataToVectorDataGenerator.h.

Superclass

typedef VectorDataSource<otb::VectorData<> > otb::OSMDataToVectorDataGenerator::Superclass

Definition at line 83 of file otbOSMDataToVectorDataGenerator.h.

VectorDataElementListType

typedef std::vector<VectorDataElementType> otb::OSMDataToVectorDataGenerator::VectorDataElementListType

Definition at line 102 of file otbOSMDataToVectorDataGenerator.h.

VectorDataElementType

typedef std::pair<ElementPairType, PointTypeList> otb::OSMDataToVectorDataGenerator::VectorDataElementType

Definition at line 101 of file otbOSMDataToVectorDataGenerator.h.

VectorDataType

typedef Superclass::OutputVectorDataType otb::OSMDataToVectorDataGenerator::VectorDataType

Definition at line 87 of file otbOSMDataToVectorDataGenerator.h.

VertexType

typedef LineType::VertexType otb::OSMDataToVectorDataGenerator::VertexType

Definition at line 91 of file otbOSMDataToVectorDataGenerator.h.

Constructor & Destructor Documentation

OSMDataToVectorDataGenerator() [1/2]

otb::OSMDataToVectorDataGenerator::OSMDataToVectorDataGenerator ( )

protected

the url in OSM API format

~OSMDataToVectorDataGenerator()

otb::OSMDataToVectorDataGenerator::~OSMDataToVectorDataGenerator ( )

overrideprotected

the url in OSM API format

OSMDataToVectorDataGenerator() [2/2]

otb::OSMDataToVectorDataGenerator::OSMDataToVectorDataGenerator ( const Self &  )

privatedelete

the url in OSM API format

Member Function Documentation

AddKey()

void otb::OSMDataToVectorDataGenerator::AddKey ( const std::string &  key )

inline

Add a key to search into the list

Definition at line 146 of file otbOSMDataToVectorDataGenerator.h.

AddKeyTypeToMap()

void otb::OSMDataToVectorDataGenerator::AddKeyTypeToMap ( const std::string &  key, const std::string &  value  )

private

the url in OSM API format

CreateAnother()

virtual::itk::LightObject::Pointer otb::OSMDataToVectorDataGenerator::CreateAnother

(

void

)

const

GenerateData()

void otb::OSMDataToVectorDataGenerator::GenerateData ( )

overrideprotected

Generate Data method : launch the process

GetClassKey()

virtual std::string otb::OSMDataToVectorDataGenerator::GetClassKey ( ) const

virtual

Field name containing the class identifier

GetClassKeyValue()

virtual int otb::OSMDataToVectorDataGenerator::GetClassKeyValue ( ) const

virtual

Field name containing the class identifier

GetEast()

virtual double otb::OSMDataToVectorDataGenerator::GetEast ( )

virtual

the url in OSM API format

GetFileName()

virtual const char* otb::OSMDataToVectorDataGenerator::GetFileName ( ) const

virtual

the url in OSM API format

GetKeysMap()

const KeyMapType otb::OSMDataToVectorDataGenerator::GetKeysMap ( ) const

inline

Method to get the map where are stored the keys and their value found when parsing the osm file.

Definition at line 155 of file otbOSMDataToVectorDataGenerator.h.

GetNameOfClass()

virtual const char* otb::OSMDataToVectorDataGenerator::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented in otb::ImageToOSMVectorDataGenerator< TImage >.

GetNorth()

virtual double otb::OSMDataToVectorDataGenerator::GetNorth ( )

virtual

the url in OSM API format

GetSouth()

virtual double otb::OSMDataToVectorDataGenerator::GetSouth ( )

virtual

the url in OSM API format

GetVectorDataByName() [1/2]

const VectorDataType* otb::OSMDataToVectorDataGenerator::GetVectorDataByName

(

const std::string &

key

)

Method to get a VectorData where are stored elements corresponding the key

GetVectorDataByName() [2/2]

const VectorDataType* otb::OSMDataToVectorDataGenerator::GetVectorDataByName	(	const std::string &	key,
		const std::string &	value
	)

Method to get a VectorData where are stored elements corresponding the key and the value

GetWest()

virtual double otb::OSMDataToVectorDataGenerator::GetWest ( )

virtual

the url in OSM API format

IsKeyPresent()

bool otb::OSMDataToVectorDataGenerator::IsKeyPresent ( const std::string &  key )

protected

internal convenient method to search if a key was already added

New()

static Pointer otb::OSMDataToVectorDataGenerator::New ( )

static

Method for creation through the object factory.

operator=()

void otb::OSMDataToVectorDataGenerator::operator= ( const Self &  )

privatedelete

the url in OSM API format

ParseXmlFile()

void otb::OSMDataToVectorDataGenerator::ParseXmlFile ( )

protected

Parse the xml file get from OSM to compose the requested vector data

ProcessVectorData()

void otb::OSMDataToVectorDataGenerator::ProcessVectorData ( const std::string &  key, const std::string &  value  )

protected

Compose the vector data

SetClassKey()

virtual void otb::OSMDataToVectorDataGenerator::SetClassKey ( std::string  _arg )

virtual

the url in OSM API format

SetClassKeyValue()

virtual void otb::OSMDataToVectorDataGenerator::SetClassKeyValue ( int  _arg )

virtual

the url in OSM API format

SetEast()

virtual void otb::OSMDataToVectorDataGenerator::SetEast ( double  _arg )

virtual

the url in OSM API format

SetFileName()

virtual void otb::OSMDataToVectorDataGenerator::SetFileName ( const char *  _arg )

virtual

Set/Get FileName

SetNorth()

virtual void otb::OSMDataToVectorDataGenerator::SetNorth ( double  _arg )

virtual

Macro to Set/GEt the extent

SetSouth()

virtual void otb::OSMDataToVectorDataGenerator::SetSouth ( double  _arg )

virtual

the url in OSM API format

SetUseUrl()

virtual void otb::OSMDataToVectorDataGenerator::SetUseUrl ( bool  _arg )

virtual

the url in OSM API format

SetWest()

virtual void otb::OSMDataToVectorDataGenerator::SetWest ( double  _arg )

virtual

the url in OSM API format

Member Data Documentation

m_ClassKey

std::string otb::OSMDataToVectorDataGenerator::m_ClassKey

private

Class key and its value

Definition at line 229 of file otbOSMDataToVectorDataGenerator.h.

m_ClassKeyValue

int otb::OSMDataToVectorDataGenerator::m_ClassKeyValue

private

the url in OSM API format

Definition at line 230 of file otbOSMDataToVectorDataGenerator.h.

m_Curl

CurlHelper::Pointer otb::OSMDataToVectorDataGenerator::m_Curl

private

Curl object to get the XML file

Definition at line 220 of file otbOSMDataToVectorDataGenerator.h.

m_East

double otb::OSMDataToVectorDataGenerator::m_East

private

the url in OSM API format

Definition at line 204 of file otbOSMDataToVectorDataGenerator.h.

m_FileName

std::string otb::OSMDataToVectorDataGenerator::m_FileName

private

Variable used in to store the result of the parsing

Definition at line 215 of file otbOSMDataToVectorDataGenerator.h.

m_GeoPointContainer

ContainerType otb::OSMDataToVectorDataGenerator::m_GeoPointContainer

private

the url in OSM API format

Definition at line 216 of file otbOSMDataToVectorDataGenerator.h.

m_KeyList

std::vector<std::string> otb::OSMDataToVectorDataGenerator::m_KeyList

private

List to store keys to search

Definition at line 212 of file otbOSMDataToVectorDataGenerator.h.

m_KeysMap

KeyMapType otb::OSMDataToVectorDataGenerator::m_KeysMap

private

container to store the keys and their types found

Definition at line 226 of file otbOSMDataToVectorDataGenerator.h.

m_North

double otb::OSMDataToVectorDataGenerator::m_North

private

the url in OSM API format

Definition at line 202 of file otbOSMDataToVectorDataGenerator.h.

m_OutputVectorData

VectorDataType::Pointer otb::OSMDataToVectorDataGenerator::m_OutputVectorData

private

Output VectorData requested with the method GetVectorDataByName

Definition at line 223 of file otbOSMDataToVectorDataGenerator.h.

m_South

double otb::OSMDataToVectorDataGenerator::m_South

private

the url in OSM API format

Definition at line 203 of file otbOSMDataToVectorDataGenerator.h.

m_Url

std::string otb::OSMDataToVectorDataGenerator::m_Url

private

the url in OSM API format

Definition at line 208 of file otbOSMDataToVectorDataGenerator.h.

m_UseUrl

bool otb::OSMDataToVectorDataGenerator::m_UseUrl

private

the url in OSM API format

Definition at line 209 of file otbOSMDataToVectorDataGenerator.h.

m_VectorDataElementList

VectorDataElementListType otb::OSMDataToVectorDataGenerator::m_VectorDataElementList

private

the url in OSM API format

Definition at line 217 of file otbOSMDataToVectorDataGenerator.h.

m_West

double otb::OSMDataToVectorDataGenerator::m_West

private

the url in OSM API format

Definition at line 205 of file otbOSMDataToVectorDataGenerator.h.

---

The documentation for this class was generated from the following file:

• otbOSMDataToVectorDataGenerator.h
