otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath > Class Template Reference

#include <otbPersistentVectorizationImageFilter.h>

Inheritance diagram for otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >:

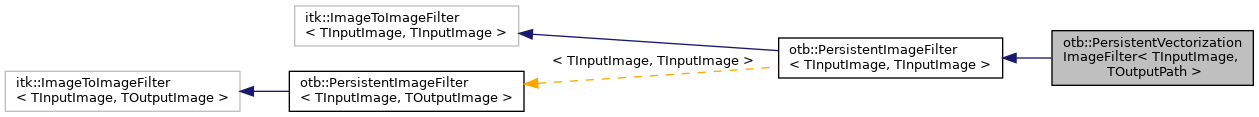

Collaboration diagram for otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef ImageToEdgePathFilterType::Pointer	ImageToEdgePathFilterPointerType
typedef otb::ImageToEdgePathFilter< ImageType, PathType >	ImageToEdgePathFilterType
typedef TInputImage	ImageType
typedef TInputImage::IndexType	IndexType
typedef TInputImage::Pointer	InputImagePointer
typedef TInputImage::InternalPixelType	InternalPixelType
typedef MinMaxFilterType::Pointer	MinMaxFilterPointerType
typedef itk::MinimumMaximumImageFilter< ImageType >	MinMaxFilterType
typedef PathListType::Pointer	PathListPointerType
typedef otb::ObjectList< PathType >	PathListType
typedef PathType::Pointer	PathPointerType
typedef TOutputPath	PathType
typedef TInputImage::PixelType	PixelType
typedef itk::SmartPointer< Self >	Pointer
typedef TInputImage::RegionType	RegionType
typedef PersistentVectorizationImageFilter	Self
typedef TInputImage::SizeType	SizeType
typedef PersistentImageFilter< TInputImage, TInputImage >	Superclass
Public Types inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
typedef itk::SmartPointer< const Self >	ConstPointer
typedef TInputImage	InputImageType
typedef TInputImage	OutputImageType
typedef itk::SmartPointer< Self >	Pointer
typedef PersistentImageFilter	Self
typedef itk::ImageToImageFilter< TInputImage, TInputImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
	itkGetObjectMacro (PathList, PathListType)
void	Reset (void) override
void	Synthetize (void) override
Public Member Functions inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
virtual const char *	GetNameOfClass () const

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
void	GenerateData () override
	PersistentVectorizationImageFilter ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~PersistentVectorizationImageFilter () override
Protected Member Functions inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
	PersistentImageFilter ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~PersistentImageFilter () override

Private Member Functions
void	operator= (const Self &)=delete
	PersistentVectorizationImageFilter (const Self &)=delete

Private Attributes
MinMaxFilterPointerType	m_MinMaxFilter
PathListPointerType	m_PathList

Detailed Description

template<class TInputImage, class TOutputPath>
class otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >

Perform vectorization in a persistent way.

This filter allows vectorizing input labeled image while it is streamed through it. The GetPathList() method allows getting the vectorized boundaries, while the GetOutput() method allows getting the input image itself.

The Reset() method allows clearing the result path list.

See also

PersistentImageFilter

Definition at line 49 of file otbPersistentVectorizationImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInputImage , class TOutputPath >

typedef itk::SmartPointer<const Self> otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::ConstPointer

Definition at line 56 of file otbPersistentVectorizationImageFilter.h.

ImageToEdgePathFilterPointerType

template<class TInputImage , class TOutputPath >

typedef ImageToEdgePathFilterType::Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::ImageToEdgePathFilterPointerType

Definition at line 82 of file otbPersistentVectorizationImageFilter.h.

ImageToEdgePathFilterType

template<class TInputImage , class TOutputPath >

typedef otb::ImageToEdgePathFilter<ImageType, PathType> otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::ImageToEdgePathFilterType

Definition at line 81 of file otbPersistentVectorizationImageFilter.h.

ImageType

template<class TInputImage , class TOutputPath >

typedef TInputImage otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::ImageType

Image related typedefs.

Definition at line 62 of file otbPersistentVectorizationImageFilter.h.

IndexType

template<class TInputImage , class TOutputPath >

typedef TInputImage::IndexType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::IndexType

Definition at line 70 of file otbPersistentVectorizationImageFilter.h.

InputImagePointer

template<class TInputImage , class TOutputPath >

typedef TInputImage::Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::InputImagePointer

Definition at line 67 of file otbPersistentVectorizationImageFilter.h.

InternalPixelType

template<class TInputImage , class TOutputPath >

typedef TInputImage::InternalPixelType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::InternalPixelType

Definition at line 72 of file otbPersistentVectorizationImageFilter.h.

MinMaxFilterPointerType

template<class TInputImage , class TOutputPath >

typedef MinMaxFilterType::Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::MinMaxFilterPointerType

Definition at line 80 of file otbPersistentVectorizationImageFilter.h.

MinMaxFilterType

template<class TInputImage , class TOutputPath >

typedef itk::MinimumMaximumImageFilter<ImageType> otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::MinMaxFilterType

Definition at line 79 of file otbPersistentVectorizationImageFilter.h.

PathListPointerType

template<class TInputImage , class TOutputPath >

typedef PathListType::Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PathListPointerType

Definition at line 77 of file otbPersistentVectorizationImageFilter.h.

PathListType

template<class TInputImage , class TOutputPath >

typedef otb::ObjectList<PathType> otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PathListType

Definition at line 76 of file otbPersistentVectorizationImageFilter.h.

PathPointerType

template<class TInputImage , class TOutputPath >

typedef PathType::Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PathPointerType

Definition at line 78 of file otbPersistentVectorizationImageFilter.h.

PathType

template<class TInputImage , class TOutputPath >

typedef TOutputPath otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PathType

Definition at line 75 of file otbPersistentVectorizationImageFilter.h.

PixelType

template<class TInputImage , class TOutputPath >

typedef TInputImage::PixelType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PixelType

Definition at line 71 of file otbPersistentVectorizationImageFilter.h.

Pointer

template<class TInputImage , class TOutputPath >

typedef itk::SmartPointer<Self> otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::Pointer

Definition at line 55 of file otbPersistentVectorizationImageFilter.h.

RegionType

template<class TInputImage , class TOutputPath >

typedef TInputImage::RegionType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::RegionType

Definition at line 68 of file otbPersistentVectorizationImageFilter.h.

Self

template<class TInputImage , class TOutputPath >

typedef PersistentVectorizationImageFilter otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::Self

Standard Self typedef

Definition at line 53 of file otbPersistentVectorizationImageFilter.h.

SizeType

template<class TInputImage , class TOutputPath >

typedef TInputImage::SizeType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::SizeType

Definition at line 69 of file otbPersistentVectorizationImageFilter.h.

Superclass

template<class TInputImage , class TOutputPath >

typedef PersistentImageFilter<TInputImage, TInputImage> otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::Superclass

Definition at line 54 of file otbPersistentVectorizationImageFilter.h.

Constructor & Destructor Documentation

PersistentVectorizationImageFilter() [1/2]

template<class TInputImage , class TOutputPath >

otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PersistentVectorizationImageFilter

protected

Definition at line 33 of file otbPersistentVectorizationImageFilter.hxx.

~PersistentVectorizationImageFilter()

template<class TInputImage , class TOutputPath >

otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::~PersistentVectorizationImageFilter ( )

inlineoverrideprotected

Definition at line 91 of file otbPersistentVectorizationImageFilter.h.

PersistentVectorizationImageFilter() [2/2]

template<class TInputImage , class TOutputPath >

otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PersistentVectorizationImageFilter ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

template<class TInputImage , class TOutputPath >

virtual::itk::LightObject::Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::CreateAnother

(

void

)

const

GenerateData()

template<class TInputImage , class TOutputPath >

void otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::GenerateData

overrideprotected

Definition at line 51 of file otbPersistentVectorizationImageFilter.hxx.

GetNameOfClass()

template<class TInputImage , class TOutputPath >

virtual const char* otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::GetNameOfClass ( ) const

virtual

Runtime information support.

itkGetObjectMacro()

template<class TInputImage , class TOutputPath >

otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::itkGetObjectMacro	(	PathList	,
		PathListType
	)

New()

template<class TInputImage , class TOutputPath >

static Pointer otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::New ( )

static

Method for creation through the object factory.

operator=()

template<class TInputImage , class TOutputPath >

void otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::operator= ( const Self &  )

privatedelete

PrintSelf()

template<class TInputImage , class TOutputPath >

void otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

Definition at line 70 of file otbPersistentVectorizationImageFilter.hxx.

Reset()

template<class TInputImage , class TOutputPath >

void otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::Reset ( void  )

overridevirtual

Reset the persistent data of the filter.

Implements otb::PersistentImageFilter< TInputImage, TInputImage >.

Definition at line 40 of file otbPersistentVectorizationImageFilter.hxx.

Synthetize()

template<class TInputImage , class TOutputPath >

void otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::Synthetize ( void  )

overridevirtual

Synthesize the persistent data of the filter.

Implements otb::PersistentImageFilter< TInputImage, TInputImage >.

Definition at line 46 of file otbPersistentVectorizationImageFilter.hxx.

Member Data Documentation

m_MinMaxFilter

template<class TInputImage , class TOutputPath >

MinMaxFilterPointerType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::m_MinMaxFilter

private

Definition at line 102 of file otbPersistentVectorizationImageFilter.h.

m_PathList

template<class TInputImage , class TOutputPath >

PathListPointerType otb::PersistentVectorizationImageFilter< TInputImage, TOutputPath >::m_PathList

private

Definition at line 105 of file otbPersistentVectorizationImageFilter.h.

---

The documentation for this class was generated from the following files:

• otbPersistentVectorizationImageFilter.h
• otbPersistentVectorizationImageFilter.hxx
