This class shows the percentage progress execution of the pipeline filtering process. More...

#include <otbStandardOneLineFilterWatcher.h>

Inheritance diagram for otb::StandardOneLineFilterWatcher:

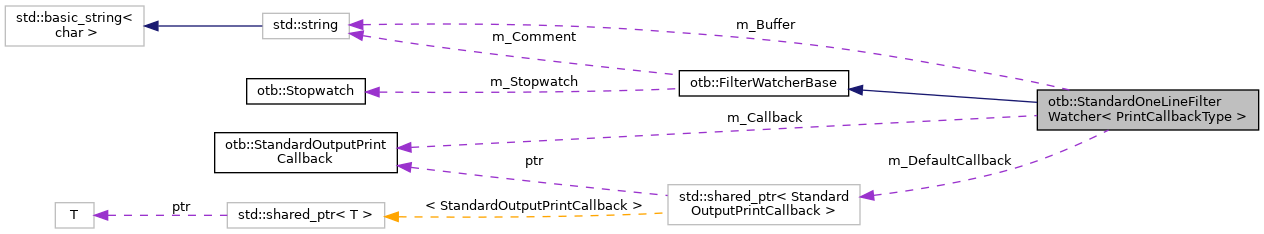

Collaboration diagram for otb::StandardOneLineFilterWatcher:

Public Member Functions
	StandardOneLineFilterWatcher (itk::ProcessObject process, const char comment="")
	StandardOneLineFilterWatcher (itk::ProcessObject *process, const std::string &comment="")
	StandardOneLineFilterWatcher ()
	StandardOneLineFilterWatcher (const StandardOneLineFilterWatcher &)
std::string	GetComment ()
const char *	GetNameOfClass ()
itk::ProcessObject *	GetProcess ()
const int &	GetStars () const
itk::TimeProbe &	GetTimeProbe ()
void	operator= (const StandardOneLineFilterWatcher &)
void	SetStars (int count)

Protected Types
typedef itk::SimpleMemberCommand < FilterWatcherBase >	CommandType

Protected Member Functions
virtual void	EndFilter ()
virtual void	EndFilterCallback ()
virtual void	ShowProgress ()
virtual void	ShowProgressCallback ()
virtual void	StartFilter ()
virtual void	StartFilterCallback ()

Protected Attributes
std::string	m_Comment
bool	m_Ended
CommandType::Pointer	m_EndFilterCommand
unsigned long	m_EndTag
itk::ProcessObject::Pointer	m_Process
CommandType::Pointer	m_ProgressFilterCommand
unsigned long	m_ProgressTag
bool	m_Started
CommandType::Pointer	m_StartFilterCommand
unsigned long	m_StartTag
itk::TimeProbe	m_TimeProbe

Private Attributes
int	m_CurrentNbStars
int	m_StarsCount

Detailed Description

This class shows the percentage progress execution of the pipeline filtering process.

This class is based on Observer design patter Abstract class ProcessObject is the subject Event are observers

Usage example:

    typedef itk::BinaryThresholdImageFilter<ImageType> FilterType;
    FilterType::Pointer thresholdFilter = FilterType::New();

    StandardOneLineFilterWatcher watcher(thresholdFilter, "Threshold");

See also:: itk::SimpleFilterWatcher; otb::fltkFilterWatcher

Definition at line 49 of file otbStandardOneLineFilterWatcher.h.

Member Typedef Documentation

typedef itk::SimpleMemberCommand<FilterWatcherBase> otb::FilterWatcherBase::CommandType

protectedinherited

Internal type

Definition at line 133 of file otbFilterWatcherBase.h.

Constructor & Destructor Documentation

otb::StandardOneLineFilterWatcher::StandardOneLineFilterWatcher	(	itk::ProcessObject *	process,
		const char *	comment = `""`
	)

Constructor. Takes a ProcessObject to monitor and an optional comment string that is prepended to each event message.

Definition at line 27 of file otbStandardOneLineFilterWatcher.cxx.

otb::StandardOneLineFilterWatcher::StandardOneLineFilterWatcher	(	itk::ProcessObject *	process,
		const std::string &	comment = `""`
	)

Definition at line 36 of file otbStandardOneLineFilterWatcher.cxx.

otb::StandardOneLineFilterWatcher::StandardOneLineFilterWatcher ( )

inline

Default constructor

Definition at line 62 of file otbStandardOneLineFilterWatcher.h.

otb::StandardOneLineFilterWatcher::StandardOneLineFilterWatcher ( const StandardOneLineFilterWatcher & watch )

Copy constructor

Definition at line 44 of file otbStandardOneLineFilterWatcher.cxx.

References m_StarsCount.

Member Function Documentation

void otb::StandardOneLineFilterWatcher::EndFilter ( )

protectedvirtual

Callback method to show the EndEvent

Implements otb::FilterWatcherBase.

Definition at line 109 of file otbStandardOneLineFilterWatcher.cxx.

virtual void otb::FilterWatcherBase::EndFilterCallback ( )

inlineprotectedvirtualinherited

Callback method to show the EndEvent

Definition at line 105 of file otbFilterWatcherBase.h.

References otb::FilterWatcherBase::EndFilter(), and otb::FilterWatcherBase::m_Ended.

Referenced by otb::FilterWatcherBase::FilterWatcherBase(), and otb::FilterWatcherBase::operator=().

std::string otb::FilterWatcherBase::GetComment ( )

inlineinherited

Get the comment for the watcher.

Definition at line 75 of file otbFilterWatcherBase.h.

References otb::FilterWatcherBase::m_Comment.

const char* otb::FilterWatcherBase::GetNameOfClass ( )

inlineinherited

Definition at line 62 of file otbFilterWatcherBase.h.

References itk::SmartPointer< TObjectType >::GetPointer(), and otb::FilterWatcherBase::m_Process.

itk::ProcessObject* otb::FilterWatcherBase::GetProcess ( )

inlineinherited

Methods to access member data Get a pointer to the process object being watched.

Definition at line 69 of file otbFilterWatcherBase.h.

References itk::SmartPointer< TObjectType >::GetPointer(), and otb::FilterWatcherBase::m_Process.

const int& otb::StandardOneLineFilterWatcher::GetStars ( ) const

inline

Definition at line 75 of file otbStandardOneLineFilterWatcher.h.

References m_StarsCount.

itk::TimeProbe& otb::FilterWatcherBase::GetTimeProbe ( )

inlineinherited

Get a reference to the TimeProbe

Definition at line 81 of file otbFilterWatcherBase.h.

References otb::FilterWatcherBase::m_TimeProbe.

void otb::StandardOneLineFilterWatcher::operator= ( const StandardOneLineFilterWatcher & watch )

operator=

Definition at line 52 of file otbStandardOneLineFilterWatcher.cxx.

References m_StarsCount, and otb::FilterWatcherBase::operator=().

void otb::StandardOneLineFilterWatcher::SetStars ( int count )

inline

Get/Set number of stars

Definition at line 71 of file otbStandardOneLineFilterWatcher.h.

References m_StarsCount.

void otb::StandardOneLineFilterWatcher::ShowProgress ( )

protectedvirtual

Callback method to show the ProgressEvent

Implements otb::FilterWatcherBase.

Definition at line 61 of file otbStandardOneLineFilterWatcher.cxx.

References itk::blanks.

virtual void otb::FilterWatcherBase::ShowProgressCallback ( )

inlineprotectedvirtualinherited

Callback method to show the ProgressEvent

Definition at line 89 of file otbFilterWatcherBase.h.

References otb::FilterWatcherBase::ShowProgress().

Referenced by otb::FilterWatcherBase::FilterWatcherBase(), and otb::FilterWatcherBase::operator=().

void otb::StandardOneLineFilterWatcher::StartFilter ( )

protectedvirtual

Callback method to show the StartEvent

Implements otb::FilterWatcherBase.

Definition at line 102 of file otbStandardOneLineFilterWatcher.cxx.

virtual void otb::FilterWatcherBase::StartFilterCallback ( )

inlineprotectedvirtualinherited

Callback method to show the StartEvent

Definition at line 95 of file otbFilterWatcherBase.h.

References otb::FilterWatcherBase::m_Started, and otb::FilterWatcherBase::StartFilter().

Referenced by otb::FilterWatcherBase::FilterWatcherBase(), and otb::FilterWatcherBase::operator=().

Member Data Documentation

std::string otb::FilterWatcherBase::m_Comment

protectedinherited

Associated comment

Definition at line 127 of file otbFilterWatcherBase.h.

Referenced by otb::FilterWatcherBase::FilterWatcherBase(), otb::FilterWatcherBase::GetComment(), and otb::FilterWatcherBase::operator=().

int otb::StandardOneLineFilterWatcher::m_CurrentNbStars

private

Definition at line 96 of file otbStandardOneLineFilterWatcher.h.

bool otb::FilterWatcherBase::m_Ended

protectedinherited

Some filters (for ex. persistents) invoke the EndEvent several times Work around this by remembering if it was called or not

Definition at line 159 of file otbFilterWatcherBase.h.

Referenced by otb::FilterWatcherBase::EndFilterCallback().

CommandType::Pointer otb::FilterWatcherBase::m_EndFilterCommand

protectedinherited

End filter callback

Definition at line 139 of file otbFilterWatcherBase.h.

unsigned long otb::FilterWatcherBase::m_EndTag

protectedinherited

End observer

Definition at line 148 of file otbFilterWatcherBase.h.

itk::ProcessObject::Pointer otb::FilterWatcherBase::m_Process

protectedinherited

Abstract process object

Definition at line 130 of file otbFilterWatcherBase.h.

Referenced by otb::FilterWatcherBase::FilterWatcherBase(), otb::FilterWatcherBase::GetNameOfClass(), otb::FilterWatcherBase::GetProcess(), and otb::FilterWatcherBase::operator=().

CommandType::Pointer otb::FilterWatcherBase::m_ProgressFilterCommand

protectedinherited

Progress filter callback

Definition at line 142 of file otbFilterWatcherBase.h.

unsigned long otb::FilterWatcherBase::m_ProgressTag

protectedinherited

Progress observer

Definition at line 151 of file otbFilterWatcherBase.h.

int otb::StandardOneLineFilterWatcher::m_StarsCount

private

Stars coutning

Definition at line 94 of file otbStandardOneLineFilterWatcher.h.

Referenced by GetStars(), operator=(), SetStars(), and StandardOneLineFilterWatcher().

bool otb::FilterWatcherBase::m_Started

protectedinherited

Some filters (for ex. persistents) invoke the StartEvent several times Work around this by remembering if it was called or not

Definition at line 155 of file otbFilterWatcherBase.h.

Referenced by otb::FilterWatcherBase::StartFilterCallback().

CommandType::Pointer otb::FilterWatcherBase::m_StartFilterCommand

protectedinherited

Start filter callback

Definition at line 136 of file otbFilterWatcherBase.h.

unsigned long otb::FilterWatcherBase::m_StartTag

protectedinherited

Start oberserver

Definition at line 145 of file otbFilterWatcherBase.h.

itk::TimeProbe otb::FilterWatcherBase::m_TimeProbe

protectedinherited

Computing time

Definition at line 124 of file otbFilterWatcherBase.h.

Referenced by otb::FilterWatcherBase::FilterWatcherBase(), otb::FilterWatcherBase::GetTimeProbe(), and otb::FilterWatcherBase::operator=().

The documentation for this class was generated from the following files:
