This class shows the percentage progress execution of the pipeline filtering process. More...

#include <otbStandardWriterWatcher.h>

Inheritance diagram for otb::StandardWriterWatcher:

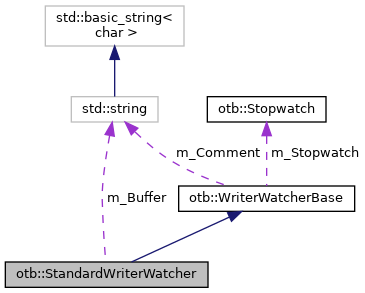

Collaboration diagram for otb::StandardWriterWatcher:

Public Member Functions
	StandardWriterWatcher (itk::ProcessObject process, const char comment="")
	StandardWriterWatcher (itk::ProcessObject process, itk::ProcessObject source, const char *comment="")
	StandardWriterWatcher (itk::ProcessObject *process, const std::string &comment="")
	StandardWriterWatcher (itk::ProcessObject process, itk::ProcessObject source, const std::string &comment="")
	StandardWriterWatcher ()
	StandardWriterWatcher (const StandardWriterWatcher &)
std::string	GetComment () const
const char *	GetNameOfClass ()
itk::ProcessObject *	GetProcess ()
const unsigned int &	GetStars () const
itk::TimeProbe &	GetTimeProbe ()
void	operator= (const StandardWriterWatcher &)
void	SetStars (int count)

Protected Types
typedef itk::SimpleMemberCommand < WriterWatcherBase >	CommandType

Protected Member Functions
virtual void	EndFilter ()
virtual void	EndWriter ()
virtual void	ShowFilterProgress ()
virtual void	ShowProgress ()
virtual void	ShowWriterProgress ()
virtual void	StartFilter ()
virtual void	StartWriter ()

Protected Attributes
std::string	m_Comment
CommandType::Pointer	m_EndFilterCommand
unsigned long	m_EndFilterTag
CommandType::Pointer	m_EndWriterCommand
unsigned long	m_EndWriterTag
itk::ProcessObject::Pointer	m_Process
CommandType::Pointer	m_ProgressFilterCommand
unsigned long	m_ProgressFilterTag
CommandType::Pointer	m_ProgressWriterCommand
unsigned long	m_ProgressWriterTag
itk::ProcessObject::Pointer	m_SourceProcess
CommandType::Pointer	m_StartFilterCommand
unsigned long	m_StartFilterTag
CommandType::Pointer	m_StartWriterCommand
unsigned long	m_StartWriterTag
itk::TimeProbe	m_TimeProbe

Private Attributes
unsigned int	m_StarsCount

Detailed Description

This class shows the percentage progress execution of the pipeline filtering process.

This class is based on Observer design pattern Abstract class ProcessObject is the subject Event are observers

Usage example:

    typedef itk::BinaryThresholdImageWriter<ImageType> WriterType;
    WriterType::Pointer thresholdWriter = WriterType::New();

    StandardWriterWatcher watcher(thresholdWriter, "Threshold");

See also:: itk::SimpleWriterWatcher; otb::fltkWriterWatcher

Definition at line 49 of file otbStandardWriterWatcher.h.

Member Typedef Documentation

typedef itk::SimpleMemberCommand<WriterWatcherBase> otb::WriterWatcherBase::CommandType

protectedinherited

Internal type

Definition at line 126 of file otbWriterWatcherBase.h.

Constructor & Destructor Documentation

otb::StandardWriterWatcher::StandardWriterWatcher	(	itk::ProcessObject *	process,
		const char *	comment = `""`
	)

Constructor. Takes a ProcessObject to monitor and an optional comment string that is prepended to each event message.

Definition at line 27 of file otbStandardWriterWatcher.cxx.

otb::StandardWriterWatcher::StandardWriterWatcher	(	itk::ProcessObject *	process,
		itk::ProcessObject *	source,
		const char *	comment = `""`
	)

Definition at line 35 of file otbStandardWriterWatcher.cxx.

otb::StandardWriterWatcher::StandardWriterWatcher	(	itk::ProcessObject *	process,
		const std::string &	comment = `""`
	)

Definition at line 43 of file otbStandardWriterWatcher.cxx.

otb::StandardWriterWatcher::StandardWriterWatcher	(	itk::ProcessObject *	process,
		itk::ProcessObject *	source,
		const std::string &	comment = `""`
	)

Definition at line 51 of file otbStandardWriterWatcher.cxx.

otb::StandardWriterWatcher::StandardWriterWatcher ( )

inline

Default constructor

Definition at line 66 of file otbStandardWriterWatcher.h.

otb::StandardWriterWatcher::StandardWriterWatcher ( const StandardWriterWatcher & watch )

Copy constructor

Definition at line 59 of file otbStandardWriterWatcher.cxx.

References m_StarsCount.

Member Function Documentation

virtual void otb::StandardWriterWatcher::EndFilter ( )

inlineprotectedvirtual

Callback method to show the EndEvent

Implements otb::WriterWatcherBase.

Definition at line 102 of file otbStandardWriterWatcher.h.

void otb::StandardWriterWatcher::EndWriter ( )

protectedvirtual

Callback method to show the EndEvent

Implements otb::WriterWatcherBase.

Definition at line 158 of file otbStandardWriterWatcher.cxx.

std::string otb::WriterWatcherBase::GetComment ( ) const

inlineinherited

Get the comment for the watcher.

Definition at line 82 of file otbWriterWatcherBase.h.

References otb::WriterWatcherBase::m_Comment.

const char* otb::WriterWatcherBase::GetNameOfClass ( )

inlineinherited

Definition at line 69 of file otbWriterWatcherBase.h.

References itk::SmartPointer< TObjectType >::GetPointer(), and otb::WriterWatcherBase::m_Process.

itk::ProcessObject* otb::WriterWatcherBase::GetProcess ( )

inlineinherited

Methods to access member data Get a pointer to the process object being watched.

Definition at line 76 of file otbWriterWatcherBase.h.

References itk::SmartPointer< TObjectType >::GetPointer(), and otb::WriterWatcherBase::m_Process.

const unsigned int& otb::StandardWriterWatcher::GetStars ( ) const

inline

Definition at line 79 of file otbStandardWriterWatcher.h.

References m_StarsCount.

itk::TimeProbe& otb::WriterWatcherBase::GetTimeProbe ( )

inlineinherited

Get a reference to the TimeProbe

Definition at line 88 of file otbWriterWatcherBase.h.

References otb::WriterWatcherBase::m_TimeProbe.

void otb::StandardWriterWatcher::operator= ( const StandardWriterWatcher & watch )

operator=

Definition at line 67 of file otbStandardWriterWatcher.cxx.

References m_StarsCount, and otb::WriterWatcherBase::operator=().

void otb::StandardWriterWatcher::SetStars ( int count )

inline

Get/Set number of stars

Definition at line 75 of file otbStandardWriterWatcher.h.

References m_StarsCount.

void otb::StandardWriterWatcher::ShowFilterProgress ( )

protectedvirtual

Callback method to show the ProgressEvent

Implements otb::WriterWatcherBase.

Definition at line 83 of file otbStandardWriterWatcher.cxx.

void otb::StandardWriterWatcher::ShowProgress ( )

protectedvirtual

This is the method invoked by ShowFilterProgress() and ShowWriterProgress()

Definition at line 90 of file otbStandardWriterWatcher.cxx.

References itk::blanks.

void otb::StandardWriterWatcher::ShowWriterProgress ( )

protectedvirtual

Callback method to show the ProgressEvent

Implements otb::WriterWatcherBase.

Definition at line 76 of file otbStandardWriterWatcher.cxx.

virtual void otb::StandardWriterWatcher::StartFilter ( )

inlineprotectedvirtual

Callback method to show the StartEvent

Implements otb::WriterWatcherBase.

Definition at line 99 of file otbStandardWriterWatcher.h.

void otb::StandardWriterWatcher::StartWriter ( )

protectedvirtual

Callback method to show the StartEvent

Implements otb::WriterWatcherBase.

Definition at line 147 of file otbStandardWriterWatcher.cxx.

Member Data Documentation

std::string otb::WriterWatcherBase::m_Comment

protectedinherited

Associated comment

Definition at line 117 of file otbWriterWatcherBase.h.

Referenced by otb::WriterWatcherBase::GetComment(), otb::WriterWatcherBase::operator=(), and otb::WriterWatcherBase::WriterWatcherBase().

CommandType::Pointer otb::WriterWatcherBase::m_EndFilterCommand

protectedinherited

End writer callback

Definition at line 141 of file otbWriterWatcherBase.h.

unsigned long otb::WriterWatcherBase::m_EndFilterTag

protectedinherited

End observer

Definition at line 159 of file otbWriterWatcherBase.h.

CommandType::Pointer otb::WriterWatcherBase::m_EndWriterCommand

protectedinherited

End writer callback

Definition at line 132 of file otbWriterWatcherBase.h.

unsigned long otb::WriterWatcherBase::m_EndWriterTag

protectedinherited

End observer

Definition at line 150 of file otbWriterWatcherBase.h.

itk::ProcessObject::Pointer otb::WriterWatcherBase::m_Process

protectedinherited

Abstract process object

Definition at line 120 of file otbWriterWatcherBase.h.

Referenced by otb::WriterWatcherBase::GetNameOfClass(), otb::WriterWatcherBase::GetProcess(), otb::WriterWatcherBase::operator=(), and otb::WriterWatcherBase::WriterWatcherBase().

CommandType::Pointer otb::WriterWatcherBase::m_ProgressFilterCommand

protectedinherited

Progress writer callback

Definition at line 144 of file otbWriterWatcherBase.h.

unsigned long otb::WriterWatcherBase::m_ProgressFilterTag

protectedinherited

Progress observer

Definition at line 162 of file otbWriterWatcherBase.h.

CommandType::Pointer otb::WriterWatcherBase::m_ProgressWriterCommand

protectedinherited

Progress writer callback

Definition at line 135 of file otbWriterWatcherBase.h.

unsigned long otb::WriterWatcherBase::m_ProgressWriterTag

protectedinherited

Progress observer

Definition at line 153 of file otbWriterWatcherBase.h.

itk::ProcessObject::Pointer otb::WriterWatcherBase::m_SourceProcess

protectedinherited

Second abstract process object representing the source

Definition at line 123 of file otbWriterWatcherBase.h.

Referenced by otb::WriterWatcherBase::operator=(), and otb::WriterWatcherBase::WriterWatcherBase().

unsigned int otb::StandardWriterWatcher::m_StarsCount

private

Stars coutning

Definition at line 110 of file otbStandardWriterWatcher.h.

Referenced by GetStars(), operator=(), SetStars(), and StandardWriterWatcher().

CommandType::Pointer otb::WriterWatcherBase::m_StartFilterCommand

protectedinherited

Start filter callback

Definition at line 138 of file otbWriterWatcherBase.h.

unsigned long otb::WriterWatcherBase::m_StartFilterTag

protectedinherited

Start oberserver

Definition at line 156 of file otbWriterWatcherBase.h.

CommandType::Pointer otb::WriterWatcherBase::m_StartWriterCommand

protectedinherited

Start writer callback

Definition at line 129 of file otbWriterWatcherBase.h.

unsigned long otb::WriterWatcherBase::m_StartWriterTag

protectedinherited

Start oberserver

Definition at line 147 of file otbWriterWatcherBase.h.

itk::TimeProbe otb::WriterWatcherBase::m_TimeProbe

protectedinherited

Computing time

Definition at line 114 of file otbWriterWatcherBase.h.

Referenced by otb::WriterWatcherBase::GetTimeProbe(), otb::WriterWatcherBase::operator=(), and otb::WriterWatcherBase::WriterWatcherBase().

The documentation for this class was generated from the following files:
