Orfeo Toolbox  4.2
Public Types | Public Member Functions | Public Attributes | Static Public Attributes | Protected Types | Protected Member Functions | Protected Attributes | List of all members
otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator > Class Template Reference

Specific implementation of scale part of wavelet transformator. More...

#include <otbWaveletLowPassOperator.h>

+ Inheritance diagram for otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >:

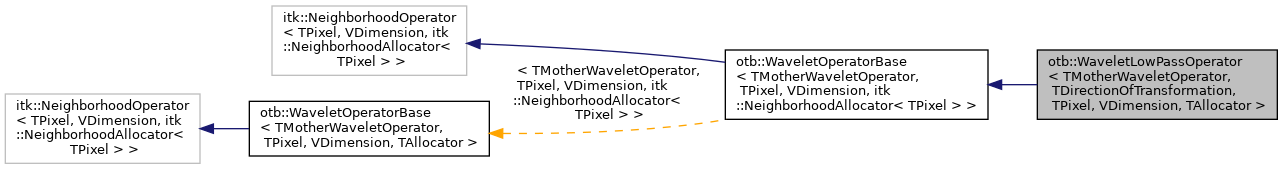

+ Collaboration diagram for otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >:

Public Types

typedef TAllocator AllocatorType

typedef
AllocatorType::const_iterator
ConstIterator

typedef unsigned int DimensionValueType

typedef AllocatorType::iterator Iterator

typedef Wavelet::Wavelet MotherWaveletOperatorEnumType

typedef SizeValueType NeighborIndexType

typedef Offset< VDimension > OffsetType

typedef NumericTraits< TPixel >
::RealType
PixelRealType

typedef WaveletLowPassOperator Self

typedef Superclass::SizeType SizeType

typedef SizeType::SizeValueType SizeValueType

typedef SliceIterator< TPixel,
Self
SliceIteratorType

typedef WaveletOperatorBase
< TMotherWaveletOperator,
TPixel, VDimension, TAllocator >
Superclass


Public Member Functions

Iterator Begin ()

ConstIterator Begin () const

virtual void CreateDirectional ()

virtual void CreateToRadius (const SizeType &)

virtual void CreateToRadius (const SizeValueType)

Iterator End ()

ConstIterator End () const

virtual void FlipAxes ()

AllocatorTypeGetBufferReference ()

const AllocatorTypeGetBufferReference () const

NeighborIndexType GetCenterNeighborhoodIndex () const

TPixel GetCenterValue () const

unsigned long GetDirection () const

TPixel & GetElement (NeighborIndexType i)

virtual const char * GetNameOfClass () const

virtual NeighborIndexType GetNeighborhoodIndex (const OffsetType &) const

OffsetType GetOffset (NeighborIndexType i) const

const SizeType GetRadius () const

SizeValueType GetRadius (DimensionValueType n) const

SizeValueType GetSize (DimensionValueType n) const

SizeType GetSize () const

std::slice GetSlice (unsigned int) const

OffsetValueType GetStride (DimensionValueType axis) const

unsigned int GetUpSampleFactor () const

virtual const char * GetWaveletName () const

bool operator!= (const Self &other) const

bool operator== (const Self &other) const

TPixel & operator[] (NeighborIndexType i)

const TPixel & operator[] (NeighborIndexType i) const

TPixel & operator[] (const OffsetType &o)

const TPixel & operator[] (const OffsetType &o) const

void Print (std::ostream &os) const

void ScaleCoefficients (PixelRealType)

void SetDirection (const unsigned long &direction)

void SetRadius (const SizeType &)

void SetRadius (const SizeValueType *rad)

void SetRadius (const SizeValueType)

void SetUpSampleFactor (unsigned int upSampleFactor)

NeighborIndexType Size () const


Public Attributes

typedef::itk::Size< VDimension > RadiusType


Static Public Attributes

static const
Wavelet::WaveletDirection
DirectionOfTransformation = TDirectionOfTransformation

static const
MotherWaveletOperatorEnumType
MotherWaveletOperator = TMotherWaveletOperator

static const unsigned int NeighborhoodDimension = VDimension


Protected Types

typedef
Superclass::CoefficientVector
CoefficientVector

typedef Superclass::PixelType PixelType

typedef
WaveletGeneratorType::Pointer
WaveletGeneratorPointerType

typedef WaveletGenerator
< TMotherWaveletOperator >
WaveletGeneratorType


Protected Member Functions

virtual void Allocate (NeighborIndexType i)

virtual void ComputeNeighborhoodOffsetTable ()

virtual void ComputeNeighborhoodStrideTable ()

void Fill (const CoefficientVector &coeff)

virtual void FillCenteredDirectional (const CoefficientVector &)

CoefficientVector GenerateCoefficients ()

void GenerateInverseHighPassFilterFromLowPassFilter (CoefficientVector &coeff)

void GenerateInverseLowPassFilterFromHighPassFilter (CoefficientVector &coeff)

void InitializeToZero ()

virtual void PrintSelf (std::ostream &os, itk::Indent i) const

void ReduceFilterLength (CoefficientVector &coeff)

void RevertFilter (CoefficientVector &coeff)

void SetSize ()

void UpSamplingCoefficients (CoefficientVector &coeff)


Protected Attributes

unsigned int m_UpSampleFactor

WaveletGeneratorPointerType m_WaveletGenerator


Detailed Description

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel, unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
class otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >

Specific implementation of scale part of wavelet transformator.

This class implements the generic construction of the low pass filter in a wavelet transformation.

See Also
WaveletOperatorBase
WaveletGenerator

Definition at line 41 of file otbWaveletLowPassOperator.h.

Member Typedef Documentation

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef TAllocator itk::Neighborhood< TPixel, VDimension, TAllocator >::AllocatorType
inherited

External support for allocator type.

Definition at line 62 of file itkNeighborhood.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef Superclass::CoefficientVector otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::CoefficientVector
protected

Typedef support for coefficient vector type. Necessary to work around compiler bug on VC++.

Definition at line 68 of file otbWaveletLowPassOperator.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef AllocatorType::const_iterator itk::Neighborhood< TPixel, VDimension, TAllocator >::ConstIterator
inherited

Definition at line 74 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef unsigned int itk::Neighborhood< TPixel, VDimension, TAllocator >::DimensionValueType
inherited

Type used to refer to space dimensions

Definition at line 90 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef AllocatorType::iterator itk::Neighborhood< TPixel, VDimension, TAllocator >::Iterator
inherited

Iterator typedef support. Note the naming is intentional, i.e., AllocatorType::iterator and AllocatorType::const_iterator, because the allocator may be a vnl object or other type, which uses this form.

Definition at line 73 of file itkNeighborhood.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef Wavelet::Wavelet otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::MotherWaveletOperatorEnumType
inherited

Definition at line 81 of file otbWaveletOperatorBase.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef SizeValueType itk::Neighborhood< TPixel, VDimension, TAllocator >::NeighborIndexType
inherited

Type used to refer to the elements of the pixel list that are part of the neighborhood.

Definition at line 94 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef Offset< VDimension > itk::Neighborhood< TPixel, VDimension, TAllocator >::OffsetType
inherited

Offset type used to reference neighbor locations

Definition at line 84 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef NumericTraits< TPixel >::RealType itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::PixelRealType
inherited

Definition at line 138 of file itkNeighborhoodOperator.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef Superclass::PixelType otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::PixelType
protected

Definition at line 69 of file otbWaveletLowPassOperator.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef WaveletLowPassOperator otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::Self

Standard typedefs

Definition at line 47 of file otbWaveletLowPassOperator.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef Superclass::SizeType otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::SizeType

Definition at line 51 of file otbWaveletLowPassOperator.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef SizeType::SizeValueType itk::Neighborhood< TPixel, VDimension, TAllocator >::SizeValueType
inherited

Definition at line 78 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef SliceIterator< TPixel, Self > itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::SliceIteratorType
inherited

Slice iterator typedef support

Definition at line 81 of file itkNeighborhoodOperator.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef WaveletOperatorBase<TMotherWaveletOperator, TPixel, VDimension, TAllocator> otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::Superclass

Definition at line 49 of file otbWaveletLowPassOperator.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef WaveletGeneratorType::Pointer otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::WaveletGeneratorPointerType
protectedinherited

Definition at line 140 of file otbWaveletOperatorBase.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
typedef WaveletGenerator<TMotherWaveletOperator> otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::WaveletGeneratorType
protectedinherited

Definition at line 139 of file otbWaveletOperatorBase.h.

Member Function Documentation

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
virtual void itk::Neighborhood< TPixel, VDimension, TAllocator >::Allocate ( NeighborIndexType  i)
inlineprotectedvirtualinherited

Allocates the neighborhood's memory buffer.

Definition at line 244 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
Iterator itk::Neighborhood< TPixel, VDimension, TAllocator >::Begin ( void  )
inlineinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
ConstIterator itk::Neighborhood< TPixel, VDimension, TAllocator >::Begin ( void  ) const
inlineinherited

Definition at line 164 of file itkNeighborhood.h.

template<typename TPixel , unsigned int VDimension, typename TContainer >
void itk::Neighborhood< TPixel, VDimension, TContainer >::ComputeNeighborhoodOffsetTable ( )
protectedvirtualinherited

Fills entries into the offset lookup table. Called once on initialization.

Definition at line 48 of file itkNeighborhood.hxx.

template<typename TPixel , unsigned int VDimension, typename TContainer >
void itk::Neighborhood< TPixel, VDimension, TContainer >::ComputeNeighborhoodStrideTable ( )
protectedvirtualinherited

Computes the entries for the stride table

Definition at line 29 of file itkNeighborhood.hxx.

template<typename TPixel , unsigned int VDimension, typename TAllocator >
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::CreateDirectional ( )
virtualinherited
template<typename TPixel , unsigned int VDimension, typename TAllocator >
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::CreateToRadius ( const SizeType sz)
virtualinherited

Creates the operator with a specified radius. The spatial location of the coefficients within the operator is defined by the subclass implementation of the Fill method.

See Also
CreateDirectional
Fill

Definition at line 85 of file itkNeighborhoodOperator.hxx.

Referenced by itk::SobelOperator< MovedGradientPixelType, itkGetStaticConstMacro(MovedImageDimension) >::CreateDirectional().

template<typename TPixel , unsigned int VDimension, typename TAllocator >
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::CreateToRadius ( const SizeValueType  sz)
virtualinherited

Creates the operator with a specified radius ("square", same length on each side). The spatial location of the coefficients within the operator is defined by the subclass implementation of the Fill method.

See Also
CreateDirectional
Fill

Definition at line 97 of file itkNeighborhoodOperator.hxx.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
Iterator itk::Neighborhood< TPixel, VDimension, TAllocator >::End ( void  )
inlineinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
ConstIterator itk::Neighborhood< TPixel, VDimension, TAllocator >::End ( void  ) const
inlineinherited

Definition at line 162 of file itkNeighborhood.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::Fill ( const CoefficientVector coeff)
inlineprotectedvirtualinherited

Arranges coefficients spatially in the memory buffer.

Implements itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >.

Definition at line 186 of file otbWaveletOperatorBase.h.

template<typename TPixel , unsigned int VDimension, typename TAllocator >
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::FillCenteredDirectional ( const CoefficientVector coeff)
protectedvirtualinherited

A pre-defined Fill function that can be called by a subclass Fill function to center coefficients along the axis specified by the SetDirection method. Useful for creating directional operators, or centering coefficients in an N-dimensional neighborhood.

Definition at line 111 of file itkNeighborhoodOperator.hxx.

References itk::SliceIterator< TPixel, TContainer >::Begin(), and itk::SliceIterator< TPixel, TContainer >::End().

Referenced by itk::ForwardDifferenceOperator< TPixel, VDimension, TAllocator >::Fill(), itk::DerivativeOperator< PixelType, itkGetStaticConstMacro(ImageDimension) >::Fill(), and itk::GaussianOperator< ScalarType, Superclass::Dimension >::Fill().

template<typename TPixel , unsigned int VDimension, typename TAllocator >
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::FlipAxes ( )
virtualinherited

Reverses the direction of all axes of the operator by reversing the order of the coefficients.

Definition at line 40 of file itkNeighborhoodOperator.hxx.

Referenced by itk::DerivativeImageFilter< TInputImage, TOutputImage >::GenerateData(), and itk::GradientImageFilter< TInputImage, TOperatorValueType, TOutputValueType, TOutputImageType >::ThreadedGenerateData().

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
CoefficientVector otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::GenerateCoefficients ( )
inlineprotectedvirtual

Set operator coefficients.

Implements itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >.

Definition at line 74 of file otbWaveletLowPassOperator.h.

References otb::Wavelet::FORWARD, and otb::Wavelet::INVERSE.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator >
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::GenerateInverseHighPassFilterFromLowPassFilter ( CoefficientVector coeff)
protectedinherited

Performs the definition of high pass filter in an orthogonal framework It follows conjugate quadrature filter (CQF) of the chapter 5 of "Ten Lecture on Wavelets", of Ingrid Daubechies, Society for Industrial and Applied Mathematics, 1992.

It defines filter coefficients as $ G(z) = z H(-z^{-1}) $. According to Daubechies'notation, it concerns the synthesis (Inverse) part of the filter banc.

Definition at line 96 of file otbWaveletOperatorBase.txx.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator >
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::GenerateInverseLowPassFilterFromHighPassFilter ( CoefficientVector coeff)
protectedinherited

Performs the definition of low pass filter in the reconstruction step of the conjugate quadrature filter (CQF) framework.

It defines filter coefficients as $ {\tilde H}(z) = G(-z) $.

Definition at line 125 of file otbWaveletOperatorBase.txx.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
AllocatorType& itk::Neighborhood< TPixel, VDimension, TAllocator >::GetBufferReference ( )
inlineinherited

Returns a reference to the data buffer structure.

Definition at line 208 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
const AllocatorType& itk::Neighborhood< TPixel, VDimension, TAllocator >::GetBufferReference ( ) const
inlineinherited

Definition at line 210 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
NeighborIndexType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetCenterNeighborhoodIndex ( ) const
inlineinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
TPixel itk::Neighborhood< TPixel, VDimension, TAllocator >::GetCenterValue ( ) const
inlineinherited

Returns the element at the center of the neighborhood.

Definition at line 180 of file itkNeighborhood.h.

Referenced by itk::MRFImageFilter< TInputImage, TClassifiedImage >::DoNeighborhoodOperation().

template<typename TPixel, unsigned int VDimension, typename TAllocator = NeighborhoodAllocator< TPixel >>
unsigned long itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::GetDirection ( ) const
inlineinherited

Returns the direction (dimension number) of a directional operator.

Definition at line 105 of file itkNeighborhoodOperator.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
TPixel& itk::Neighborhood< TPixel, VDimension, TAllocator >::GetElement ( NeighborIndexType  i)
inlineinherited

Definition at line 176 of file itkNeighborhood.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
virtual const char* otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::GetNameOfClass ( ) const
virtual
template<typename TPixel , unsigned int VDimension, typename TContainer >
Neighborhood< TPixel, VDimension, TContainer >::NeighborIndexType itk::Neighborhood< TPixel, VDimension, TContainer >::GetNeighborhoodIndex ( const OffsetType o) const
virtualinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
OffsetType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetOffset ( NeighborIndexType  i) const
inlineinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
const SizeType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetRadius ( ) const
inlineinherited

Returns the radius of the neighborhood.

Definition at line 134 of file itkNeighborhood.h.

Referenced by itk::FlatStructuringElement< VDimension >::Annulus(), otb::ImageToSURFKeyPointSetFilter< TInputImage, TOutputPointSet >::AssignOrientation(), itk::FlatStructuringElement< VDimension >::Ball(), itk::VectorAnisotropicDiffusionFunction< TImage >::CalculateAverageGradientMagnitudeSquared(), otb::ImageToSURFKeyPointSetFilter< TInputImage, TOutputPointSet >::ComputeDescriptor(), otb::NCCRegistrationFunction< TFixedImage, TMovingImage, TDisplacementField >::ComputeUpdate(), itk::ConstShapedNeighborhoodIterator< TImage, TBoundaryCondition >::CreateActiveListFromNeighborhood(), itk::GradientMagnitudeImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion(), itk::LaplacianSharpeningImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion(), itk::LaplacianImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion(), itk::SobelEdgeDetectionImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion(), itk::GradientImageFilter< TInputImage, TOperatorValueType, TOutputValueType, TOutputImageType >::GenerateInputRequestedRegion(), itk::DerivativeImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion(), itk::DiscreteGaussianImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion(), itk::GradientMagnitudeImageFilter< TInputImage, TOutputImage >::ThreadedGenerateData(), and itk::GradientImageFilter< TInputImage, TOperatorValueType, TOutputValueType, TOutputImageType >::ThreadedGenerateData().

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
SizeValueType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetRadius ( DimensionValueType  n) const
inlineinherited

Returns the radius of the neighborhood along a specified dimension.

Definition at line 139 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
SizeValueType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetSize ( DimensionValueType  n) const
inlineinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
SizeType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetSize ( void  ) const
inlineinherited

Returns the size (total length of sides) of the neighborhood.

Definition at line 148 of file itkNeighborhood.h.

template<typename TPixel , unsigned int VDimension, typename TContainer >
std::slice itk::Neighborhood< TPixel, VDimension, TContainer >::GetSlice ( unsigned int  d) const
inherited

Definition at line 140 of file itkNeighborhood.hxx.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
OffsetValueType itk::Neighborhood< TPixel, VDimension, TAllocator >::GetStride ( DimensionValueType  axis) const
inlineinherited

Returns the stride length for the specified dimension. Stride length is the number of pixels between adjacent pixels along the given dimension.

Definition at line 154 of file itkNeighborhood.h.

Referenced by itk::CannyEdgeDetectionImageFilter< TInputImage, TOutputImage >::CannyEdgeDetectionImageFilter(), itk::LevelSetFunctionWithRefitTerm< TImageType, TSparseImageType >::ComputeCurvature(), itk::SparseFieldFourthOrderLevelSetImageFilter< TInputImage, TOutputImage >::ComputeCurvatureFromSparseImageNeighborhood(), itk::MinMaxCurvatureFlowFunction< TImage >::ComputeThreshold(), itk::CurvatureFlowFunction< TImage >::ComputeUpdate(), itk::CurvatureNDAnisotropicDiffusionFunction< TImage >::CurvatureNDAnisotropicDiffusionFunction(), itk::GPUGradientNDAnisotropicDiffusionFunction< TImage >::GPUGradientNDAnisotropicDiffusionFunction(), itk::GradientNDAnisotropicDiffusionFunction< TImage >::GradientNDAnisotropicDiffusionFunction(), itk::LevelSetFunction< TImageType >::Initialize(), itk::ImplicitManifoldNormalVectorFilter< TInputImage, TSparseOutputImage >::InitializeNormalBandNode(), itk::PeriodicBoundaryCondition< TInputImage, TOutputImage >::operator()(), itk::ZeroFluxNeumannBoundaryCondition< TInputImage, TOutputImage >::operator()(), itk::NormalVectorDiffusionFunction< TSparseImageType >::PrecomputeSparseUpdate(), itk::VectorCurvatureNDAnisotropicDiffusionFunction< TImage >::VectorCurvatureNDAnisotropicDiffusionFunction(), and itk::VectorGradientNDAnisotropicDiffusionFunction< TImage >::VectorGradientNDAnisotropicDiffusionFunction().

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
unsigned int otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::GetUpSampleFactor ( ) const
inlineinherited

Get the level of up sampling of the filter

Definition at line 112 of file otbWaveletOperatorBase.h.

Referenced by otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::operator=().

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
virtual const char* otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::GetWaveletName ( ) const
inlinevirtualinherited

Get the name of the wavelet when necessary

Definition at line 128 of file otbWaveletOperatorBase.h.

template<typename TPixel, unsigned int VDimension, typename TAllocator = NeighborhoodAllocator< TPixel >>
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::InitializeToZero ( )
inlineprotectedinherited

Initializes all the coefficients in the neighborhood to zero values

Definition at line 165 of file itkNeighborhoodOperator.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
bool itk::Neighborhood< TPixel, VDimension, TAllocator >::operator!= ( const Self other) const
inlineinherited

Not Equal operator.

Definition at line 126 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
bool itk::Neighborhood< TPixel, VDimension, TAllocator >::operator== ( const Self other) const
inlineinherited

Comparison operator.

Definition at line 118 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
TPixel& itk::Neighborhood< TPixel, VDimension, TAllocator >::operator[] ( NeighborIndexType  i)
inlineinherited

Pass-through data access methods to the buffer.

Definition at line 172 of file itkNeighborhood.h.

Referenced by itk::NeighborhoodOperator< TPixel, TDimension, TAllocator >::InitializeToZero().

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
const TPixel& itk::Neighborhood< TPixel, VDimension, TAllocator >::operator[] ( NeighborIndexType  i) const
inlineinherited

Definition at line 174 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
TPixel& itk::Neighborhood< TPixel, VDimension, TAllocator >::operator[] ( const OffsetType o)
inlineinherited

Get pixel value by offset

Definition at line 214 of file itkNeighborhood.h.

Referenced by itk::Neighborhood< char, TImage::ImageDimension >::operator[]().

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
const TPixel& itk::Neighborhood< TPixel, VDimension, TAllocator >::operator[] ( const OffsetType o) const
inlineinherited
template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
void itk::Neighborhood< TPixel, VDimension, TAllocator >::Print ( std::ostream &  os) const
inlineinherited

Standard itk object method.

Definition at line 204 of file itkNeighborhood.h.

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
virtual void otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::PrintSelf ( std::ostream &  os,
itk::Indent  i
) const
inlineprotectedvirtual

Prints some debugging information

Reimplemented from otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >.

Definition at line 58 of file otbWaveletLowPassOperator.h.

References itk::Indent::GetNextIndent().

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator >
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::ReduceFilterLength ( CoefficientVector coeff)
protectedinherited

Reduce extra zeros on filters

Definition at line 155 of file otbWaveletOperatorBase.txx.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator >
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::RevertFilter ( CoefficientVector coeff)
protectedinherited

Performs filter reversion, ie. $ H(z^{-1}) $.

Definition at line 76 of file otbWaveletOperatorBase.txx.

template<typename TPixel , unsigned int VDimension, typename TAllocator >
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::ScaleCoefficients ( PixelRealType  s)
inherited
template<typename TPixel, unsigned int VDimension, typename TAllocator = NeighborhoodAllocator< TPixel >>
void itk::NeighborhoodOperator< TPixel, VDimension, TAllocator >::SetDirection ( const unsigned long &  direction)
inlineinherited
template<typename TPixel , unsigned int VDimension, typename TContainer >
void itk::Neighborhood< TPixel, VDimension, TContainer >::SetRadius ( const SizeType r)
inherited

Sets the radius for the neighborhood, calculates size from the radius, and allocates storage.

Definition at line 91 of file itkNeighborhood.hxx.

Referenced by itk::BinaryMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::AnalyzeKernel(), itk::FlatStructuringElement< VDimension >::Annulus(), itk::FlatStructuringElement< VDimension >::Ball(), itk::BinaryCrossStructuringElement< TPixel, VDimension, TAllocator >::BinaryCrossStructuringElement(), itk::FlatStructuringElement< VDimension >::Box(), itk::CannyEdgeDetectionImageFilter< TInputImage, TOutputImage >::CannyEdgeDetectionImageFilter(), itk::MaskFeaturePointSelectionFilter< TImage, TMask, TFeatures >::ComputeConnectivityOffsets(), itk::FlatStructuringElement< VDimension >::Cross(), itk::CurvatureNDAnisotropicDiffusionFunction< TImage >::CurvatureNDAnisotropicDiffusionFunction(), itk::ConstNeighborhoodIterator< TImage, TBoundaryCondition >::GetNeighborhood(), itk::GPUGradientNDAnisotropicDiffusionFunction< TImage >::GPUGradientNDAnisotropicDiffusionFunction(), itk::GradientNDAnisotropicDiffusionFunction< TImage >::GradientNDAnisotropicDiffusionFunction(), itk::LevelSetFunction< TImageType >::Initialize(), itk::GaussianDerivativeImageFunction< TInputImage, TOutput >::RecomputeContinuousGaussianKernel(), itk::GaussianBlurImageFunction< TInputImage, TOutput >::RecomputeContinuousGaussianKernel(), itk::GaussianDerivativeImageFunction< TInputImage, TOutput >::RecomputeGaussianKernel(), otb::ScalarImageToHigherOrderTexturesFilter< TInpuImage, TOutputImage >::ScalarImageToHigherOrderTexturesFilter(), itk::Statistics::ScalarImageToRunLengthFeaturesFilter< TImageType, THistogramFrequencyContainer >::ScalarImageToRunLengthFeaturesFilter(), itk::Statistics::ScalarImageToTextureFeaturesFilter< TImageType, THistogramFrequencyContainer >::ScalarImageToTextureFeaturesFilter(), itk::Neighborhood< char, TImage::ImageDimension >::SetRadius(), itk::VectorCurvatureNDAnisotropicDiffusionFunction< TImage >::VectorCurvatureNDAnisotropicDiffusionFunction(), and itk::VectorGradientNDAnisotropicDiffusionFunction< TImage >::VectorGradientNDAnisotropicDiffusionFunction().

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
void itk::Neighborhood< TPixel, VDimension, TAllocator >::SetRadius ( const SizeValueType rad)
inlineinherited

Sets the radius for the neighborhood. Overloaded to support an unsigned long array.

Definition at line 189 of file itkNeighborhood.h.

template<typename TPixel , unsigned int VDimension, typename TContainer >
void itk::Neighborhood< TPixel, VDimension, TContainer >::SetRadius ( const SizeValueType  s)
inherited

Overloads SetRadius to allow a single long integer argument that is used as the radius of all the dimensions of the Neighborhood (resulting in a "square" neighborhood).

Definition at line 77 of file itkNeighborhood.hxx.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
void itk::Neighborhood< TPixel, VDimension, TAllocator >::SetSize ( )
inlineprotectedinherited

Sets the length along each dimension.

Definition at line 235 of file itkNeighborhood.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::SetUpSampleFactor ( unsigned int  upSampleFactor)
inlineinherited

Set the level of up sampling of the filter

Definition at line 120 of file otbWaveletOperatorBase.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
NeighborIndexType itk::Neighborhood< TPixel, VDimension, TAllocator >::Size ( void  ) const
inlineinherited

More STL-style support.

Definition at line 168 of file itkNeighborhood.h.

Referenced by itk::BinaryMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::AnalyzeKernel(), otb::ImageToSURFKeyPointSetFilter< TInputImage, TOutputPointSet >::AssignOrientation(), itk::CannyEdgeDetectionImageFilter< TInputImage, TOutputImage >::CannyEdgeDetectionImageFilter(), itk::MaskFeaturePointSelectionFilter< TImage, TMask, TFeatures >::ComputeConnectivityOffsets(), itk::LevelSetFunctionWithRefitTerm< TImageType, TSparseImageType >::ComputeCurvature(), itk::SparseFieldFourthOrderLevelSetImageFilter< TInputImage, TOutputImage >::ComputeCurvatureFromSparseImageNeighborhood(), otb::ImageToSURFKeyPointSetFilter< TInputImage, TOutputPointSet >::ComputeDescriptor(), itk::MinMaxCurvatureFlowFunction< TImage >::ComputeThreshold(), itk::CurvatureFlowFunction< TImage >::ComputeUpdate(), itk::CurvatureNDAnisotropicDiffusionFunction< TImage >::CurvatureNDAnisotropicDiffusionFunction(), otb::GenericInterpolateImageFunction< TInputImage, TFunction, TBoundaryCondition, TCoordRep >::FillWeightOffsetTable(), itk::Neighborhood< char, TImage::ImageDimension >::GetCenterNeighborhoodIndex(), itk::Neighborhood< char, TImage::ImageDimension >::GetCenterValue(), otb::MRFEnergy< TInput1, TInput2 >::GetValue(), otb::MRFEnergy< TInput2, TInput2 >::GetValue(), itk::GPUGradientNDAnisotropicDiffusionFunction< TImage >::GPUGradientNDAnisotropicDiffusionFunction(), itk::GradientNDAnisotropicDiffusionFunction< TImage >::GradientNDAnisotropicDiffusionFunction(), itk::LevelSetFunction< TImageType >::Initialize(), itk::SparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::InitializeActiveLayerValues(), itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::InitializeActiveLayerValues(), itk::ImplicitManifoldNormalVectorFilter< TInputImage, TSparseOutputImage >::InitializeNormalBandNode(), itk::ANTSNeighborhoodCorrelationImageToImageMetricv4GetValueAndDerivativeThreader< TDomainPartitioner, TImageToImageMetric, TNeighborhoodCorrelationMetric >::InitializeScanning(), itk::NeighborhoodOperator< TPixel, TDimension, TAllocator >::InitializeToZero(), otb::ImageToSURFKeyPointSetFilter< TInputImage, TOutputPointSet >::IsLocalExtremum(), otb::ImageToSURFKeyPointSetFilter< TInputImage, TOutputPointSet >::IsLocalExtremumAround(), otb::Functor::SSDBlockMatching< TInputImage, TOutputMetricImage >::operator()(), itk::NeighborhoodInnerProduct< ImageType >::operator()(), itk::VectorNeighborhoodInnerProduct< ImageType >::operator()(), otb::Functor::SSDDivMeanBlockMatching< TInputImage, TOutputMetricImage >::operator()(), otb::Functor::NCCBlockMatching< TInputImage, TOutputMetricImage >::operator()(), otb::Functor::LPBlockMatching< TInputImage, TOutputMetricImage >::operator()(), itk::NormalVectorDiffusionFunction< TSparseImageType >::PrecomputeSparseUpdate(), itk::WindowedSincInterpolateImageFunction< TInputImage, VRadius, TWindowFunction, TBoundaryCondition, TCoordRep >::SetInputImage(), itk::GradientMagnitudeImageFilter< TInputImage, TOutputImage >::ThreadedGenerateData(), itk::GradientImageFilter< TInputImage, TOperatorValueType, TOutputValueType, TOutputImageType >::ThreadedGenerateData(), itk::VectorCurvatureNDAnisotropicDiffusionFunction< TImage >::VectorCurvatureNDAnisotropicDiffusionFunction(), and itk::VectorGradientNDAnisotropicDiffusionFunction< TImage >::VectorGradientNDAnisotropicDiffusionFunction().

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator >
void otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::UpSamplingCoefficients ( CoefficientVector coeff)
protectedinherited

Perform the "a-trou" algorithm for shift-invariant transformation. It transforms the filter $ H(z) $ into $ H(z^2) $.

Definition at line 53 of file otbWaveletOperatorBase.txx.

Member Data Documentation

template<Wavelet::Wavelet TMotherWaveletOperator, Wavelet::WaveletDirection TDirectionOfTransformation, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
const Wavelet::WaveletDirection otb::WaveletLowPassOperator< TMotherWaveletOperator, TDirectionOfTransformation, TPixel, VDimension, TAllocator >::DirectionOfTransformation = TDirectionOfTransformation
static

Definition at line 54 of file otbWaveletLowPassOperator.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
unsigned int otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::m_UpSampleFactor
protectedinherited

Definition at line 268 of file otbWaveletOperatorBase.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
WaveletGeneratorPointerType otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::m_WaveletGenerator
protectedinherited

Definition at line 269 of file otbWaveletOperatorBase.h.

template<Wavelet::Wavelet TMotherWaveletOperator, class TPixel , unsigned int VDimension, class TAllocator = itk::NeighborhoodAllocator<TPixel>>
const MotherWaveletOperatorEnumType otb::WaveletOperatorBase< TMotherWaveletOperator, TPixel, VDimension, TAllocator >::MotherWaveletOperator = TMotherWaveletOperator
staticinherited

Definition at line 82 of file otbWaveletOperatorBase.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
const unsigned int itk::Neighborhood< TPixel, VDimension, TAllocator >::NeighborhoodDimension = VDimension
staticinherited

External support for dimensionality.

Definition at line 65 of file itkNeighborhood.h.

template<typename TPixel, unsigned int VDimension = 2, typename TAllocator = NeighborhoodAllocator< TPixel >>
typedef::itk::Size< VDimension > itk::Neighborhood< TPixel, VDimension, TAllocator >::RadiusType
inherited

Radius typedef support.

Definition at line 81 of file itkNeighborhood.h.


The documentation for this class was generated from the following file:

Generated at Sat Aug 30 2014 19:23:57 for Orfeo Toolbox with doxygen 1.8.3.1
