otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep > Class Template Reference

Use the windowed sinc function to interpolate. More...

#include <otbWindowedSincInterpolateImageFunctionBase.h>

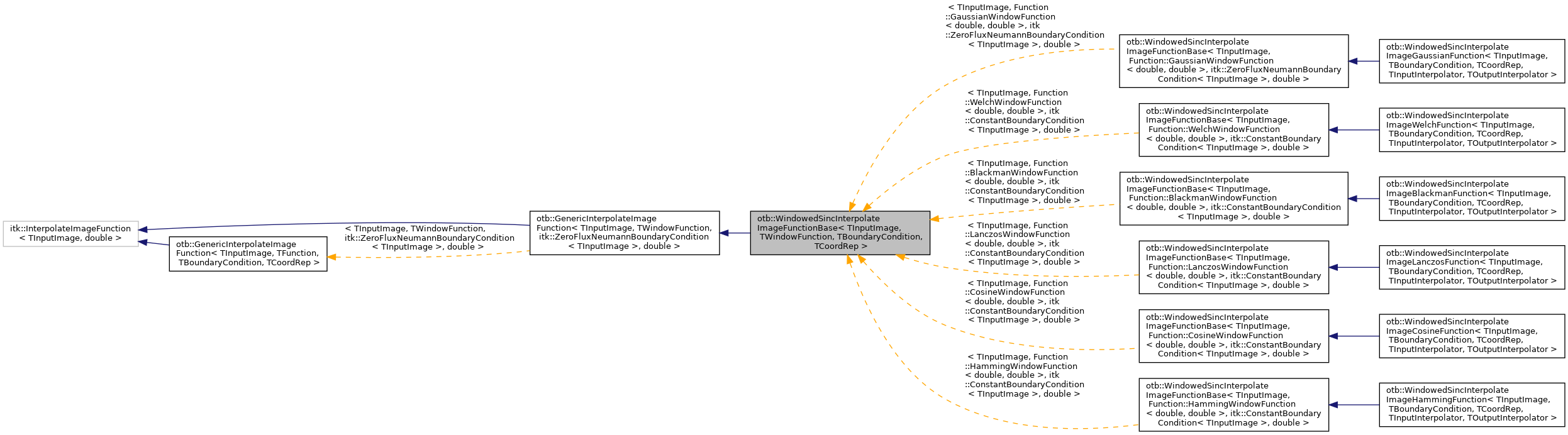

+ Inheritance diagram for otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >:

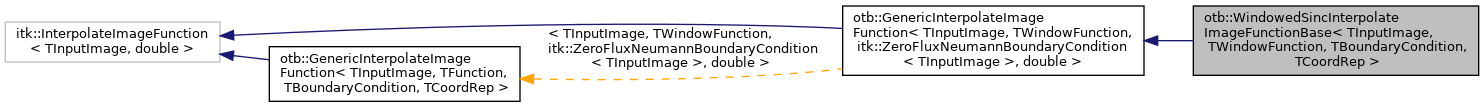

+ Collaboration diagram for otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >:

Public Types

typedef itk::SmartPointer
< const Self
ConstPointer

typedef
Superclass::ContinuousIndexType
ContinuousIndexType

typedef Superclass::FunctionType FunctionType

typedef Superclass::IndexType IndexType

typedef Superclass::InputImageType InputImageType

typedef Superclass::IteratorType IteratorType

typedef Superclass::OutputType OutputType

typedef itk::SmartPointer< SelfPointer

typedef Superclass::RealType RealType

typedef
WindowedSincInterpolateImageFunctionBase
Self

typedef Superclass::SizeType SizeType

typedef
GenericInterpolateImageFunction
< TInputImage, TWindowFunction,
TBoundaryCondition, TCoordRep >
Superclass

typedef std::vector< double > VectorType

- Public Types inherited from otb::GenericInterpolateImageFunction< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >
typedef itk::SmartPointer
< const Self
ConstPointer

typedef
Superclass::ContinuousIndexType
ContinuousIndexType

typedef TWindowFunction FunctionType

typedef Superclass::IndexType IndexType

typedef Superclass::InputImageType InputImageType

typedef
itk::ConstNeighborhoodIterator
< InputImageType,
TBoundaryCondition >
IteratorType

typedef Superclass::OutputType OutputType

typedef itk::SmartPointer< SelfPointer

typedef Superclass::RealType RealType

typedef
GenericInterpolateImageFunction
Self

typedef InputImageType::SizeType SizeType

typedef
itk::InterpolateImageFunction
< TInputImage, TCoordRep >
Superclass

- Public Types inherited from itk::ImageFunction< TInputImage, NumericTraits< TInputImage::PixelType >::RealType, TCoordRep >
typedef SmartPointer< const SelfConstPointer

typedef SmartPointer< const SelfConstPointer

typedef ContinuousIndex
< TCoordRep,
itkGetStaticConstMacro(ImageDimension) >
ContinuousIndexType

typedef TCoordRep CoordRepType

typedef InputImageType::IndexType IndexType

typedef
InputImageType::IndexValueType
IndexValueType

typedef
InputImageType::ConstPointer
InputImageConstPointer

typedef TInputImage InputImageType

typedef InputImageType::PixelType InputPixelType

typedef Point< TCoordRep,
TInputImage::ImageDimension >
InputType

typedef NumericTraits
< TInputImage::PixelType >
::RealType
OutputType

typedef NumericTraits
< TInputImage::PixelType >
::RealType
OutputType

typedef SmartPointer< SelfPointer

typedef SmartPointer< SelfPointer

typedef Point< TCoordRep,
itkGetStaticConstMacro(ImageDimension) >
PointType

typedef FunctionBase Self

typedef ImageFunction Self

typedef Object Superclass

typedef FunctionBase< Point
< TCoordRep,
itkGetStaticConstMacro(ImageDimension) >
, NumericTraits
< TInputImage::PixelType >
::RealType >
Superclass


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

- Public Member Functions inherited from otb::GenericInterpolateImageFunction< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >
virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual OutputType EvaluateAtContinuousIndex (const ContinuousIndexType &index) const

virtual FunctionTypeGetFunction (void)

virtual bool GetNormalizeWeight ()

virtual unsigned int GetRadius () const

virtual void Initialize ()

virtual void SetNormalizeWeight (bool _arg)

virtual void SetRadius (unsigned int rad)

- Public Member Functions inherited from itk::ImageFunction< TInputImage, NumericTraits< TInputImage::PixelType >::RealType, TCoordRep >
void ConvertContinuousIndexToNearestIndex (const ContinuousIndexType &cindex, IndexType &index) const

void ConvertPointToContinuousIndex (const PointType &point, ContinuousIndexType &cindex) const

void ConvertPointToNearestIndex (const PointType &point, IndexType &index) const

virtual NumericTraits
< TInputImage::PixelType >
::RealType
Evaluate (const PointType &point) const =0

virtual OutputType Evaluate (const InputType &input) const =0

virtual NumericTraits
< TInputImage::PixelType >
::RealType
EvaluateAtIndex (const IndexType &index) const =0

virtual const ContinuousIndexTypeGetEndContinuousIndex () const

virtual const IndexTypeGetEndIndex () const

const InputImageTypeGetInputImage () const

virtual const ContinuousIndexTypeGetStartContinuousIndex () const

virtual const IndexTypeGetStartIndex () const

virtual bool IsInsideBuffer (const IndexType &index) const

virtual bool IsInsideBuffer (const PointType &point) const

virtual bool IsInsideBuffer (const ContinuousIndexType &index) const

virtual void SetInputImage (const InputImageType *ptr)

- Public Member Functions inherited from itk::FunctionBase< Point< TCoordRep, TInputImage::ImageDimension >, NumericTraits< TInputImage::PixelType >::RealType >
virtual OutputType Evaluate (const InputType &input) const =0


Static Public Member Functions

static Pointer New ()

- Static Public Member Functions inherited from otb::GenericInterpolateImageFunction< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >
static Pointer New ()


Static Public Attributes

static const unsigned int ImageDimension = Superclass::ImageDimension

- Static Public Attributes inherited from otb::GenericInterpolateImageFunction< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >
static const unsigned int ImageDimension

- Static Public Attributes inherited from itk::ImageFunction< TInputImage, NumericTraits< TInputImage::PixelType >::RealType, TCoordRep >
static const unsigned int ImageDimension


Protected Member Functions

 WindowedSincInterpolateImageFunctionBase ()

virtual ~WindowedSincInterpolateImageFunctionBase ()

virtual void PrintSelf (std::ostream &os, itk::Indent indent) const

- Protected Member Functions inherited from otb::GenericInterpolateImageFunction< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >
 GenericInterpolateImageFunction ()

virtual ~GenericInterpolateImageFunction ()

virtual void FillWeightOffsetTable ()

virtual void InitializeTables ()

virtual void Modified (void)

virtual void ResetOffsetTable ()

- Protected Member Functions inherited from itk::ImageFunction< TInputImage, NumericTraits< TInputImage::PixelType >::RealType, TCoordRep >
 ImageFunction ()

 ~FunctionBase ()

 ~ImageFunction ()

 FunctionBase ()

void PrintSelf (std::ostream &os, Indent indent) const


Private Member Functions

 WindowedSincInterpolateImageFunctionBase (const Self &)

void operator= (const Self &)


Additional Inherited Members

- Protected Attributes inherited from itk::ImageFunction< TInputImage, NumericTraits< TInputImage::PixelType >::RealType, TCoordRep >
ContinuousIndexType m_EndContinuousIndex

IndexType m_EndIndex

InputImageConstPointer m_Image

ContinuousIndexType m_StartContinuousIndex

IndexType m_StartIndex


Detailed Description

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
class otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >

Use the windowed sinc function to interpolate.

THEORY

This function is intended to provide an interpolation function that has minimum aliasing artifacts, in contrast to linear interpolation. According to sampling theory, the infinite-support sinc filter, whose Fourier transform is the box filter, is optimal for resampling a function. In practice, the infinite support sinc filter is approximated using a limited support 'windowed' sinc filter. Most of those functions are inspired of the itk::WindowedSincInterpolateImageFunction source code.

This function is based on the following publication:
Erik H. W. Meijering, Wiro J. Niessen, Josien P. W. Pluim, Max A. Viergever: Quantitative Comparison of Sinc-Approximating Kernels for Medical Image Interpolation. MICCAI 1999, pp. 210-217
In this work, several 'windows' are estimated. In two dimensions, the interpolation at a position (x, y) is given by the following expression:

\[ I(x, y) = \sum_{i = \lfloor x \rfloor + 1 - m}^{\lfloor x \rfloor + m} \sum_{j = \lfloor y \rfloor + 1 - m}^{\lfloor y \rfloor + m} I_{i, j} K(x-i) K(y-j), \]

where m is the 'radius' of the window, (3, 4 are reasonable numbers), and K(t) is the kernel function, composed of the sinc function and one of several possible window functions:

\[ K(t) = w(t) \textrm{sinc}(t) = w(t) \frac{\sin(\pi t)}{\pi t} \]

Several window functions are provided here in the itk::Function namespace. The conclusions of the referenced paper suggest to use the Welch, Cosine, Kaiser, and Lanczos windows for m = 4, 5. These are based on error in rotating medical images w.r.t. the linear interpolation method. In some cases the results achieve a 20-fold improvement in accuracy.
USING THIS FILTER

Use this filter the way you would use any ImageInterpolationFunction, so for instance, you can plug it into the ResampleImageFilter class. In order to initialize the filter you must choose several template parameters.

The first (TInputImage) is the image type, that's standard.
The second (TWindowFunction) is the window function object, which you can choose from about five different functions defined in this header. The default is the Hamming window, which is commonly used but not optimal according to the cited paper.
The third (TBoundaryCondition) is the boundary condition class used to determine the values of pixels that fall off the image boundary. This class has the same meaning here as in the NeighborhoodItetator classes.
The fouth (TCoordRep) is again standard for interpolating functions, and should be float or double.
CAVEATS

There are a few improvements that an enthusiasting ITK developer could make to this filter. One issue is with the way that the kernel is applied. The computational expense comes from two sources: computing the kernel weights K(t) and multiplying the pixels in the window by the kernel weights. The first is done more or less efficiently in \( 2 m d \) operations (where d is the dimensionality of the image). The second can be done better. Presently, each pixel \( I(i, j, k) \) is multiplied by the weights \( K(x-i), K(y-j), K(z-k) \) and added to the running total. This results in \( d (2m)^d \) multiplication operations. However, by keeping intermediate sums, it would be possible to do the operation in \( O ( (2m)^d ) \) operations. This would require some creative coding. In addition, in the case when one of the coordinates is integer, the computation could be reduced by an order of magnitude.

See Also
GenericInterpolatorImageFunctionBase
LinearInterpolateImageFunctionBase ResampleImageFilter
Function::HammingWindowFunction
Function::CosineWindowFunction
Function::WelchWindowFunction
Function::LanczosWindowFunction
Function::BlackmanWindowFunction

Definition at line 136 of file otbWindowedSincInterpolateImageFunctionBase.h.

Member Typedef Documentation

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef itk::SmartPointer<const Self> otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::ConstPointer
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::ContinuousIndexType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::ContinuousIndexType
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::FunctionType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::FunctionType
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::IndexType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::IndexType

Superclass typedef inheritance.

Definition at line 163 of file otbWindowedSincInterpolateImageFunctionBase.h.

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::InputImageType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::InputImageType

Input and output images typedef definition.

Definition at line 153 of file otbWindowedSincInterpolateImageFunctionBase.h.

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::IteratorType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::IteratorType
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::OutputType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::OutputType
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef itk::SmartPointer<Self> otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::Pointer
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::RealType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::RealType
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef WindowedSincInterpolateImageFunctionBase otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::Self

Standard class typedefs.

Definition at line 144 of file otbWindowedSincInterpolateImageFunctionBase.h.

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef Superclass::SizeType otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::SizeType
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef GenericInterpolateImageFunction<TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep> otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::Superclass
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
typedef std::vector<double> otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::VectorType

Constructor & Destructor Documentation

template<class TInputImage , class TWindowFunction , class TBoundaryCondition , class TCoordRep >
otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::WindowedSincInterpolateImageFunctionBase ( )
protected

Compute a resampled profil according to the window size.

Constructor

Definition at line 28 of file otbWindowedSincInterpolateImageFunctionBase.txx.

template<class TInputImage , class TWindowFunction , class TBoundaryCondition , class TCoordRep >
otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::~WindowedSincInterpolateImageFunctionBase ( )
protectedvirtual

Destructor

Definition at line 35 of file otbWindowedSincInterpolateImageFunctionBase.txx.

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::WindowedSincInterpolateImageFunctionBase ( const Self )
private

Member Function Documentation

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
virtual::itk::LightObject::Pointer otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::CreateAnother ( void  ) const
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
virtual const char* otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::GetNameOfClass ( ) const
virtual
template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
static Pointer otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::New ( )
static

Method for creation through the object factory.

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
void otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::operator= ( const Self )
private
template<class TInputImage , class TWindowFunction , class TBoundaryCondition , class TCoordRep >
void otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
protectedvirtual

Member Data Documentation

template<class TInputImage, class TWindowFunction, class TBoundaryCondition = itk::ZeroFluxNeumannBoundaryCondition<TInputImage>, class TCoordRep = double>
const unsigned int otb::WindowedSincInterpolateImageFunctionBase< TInputImage, TWindowFunction, TBoundaryCondition, TCoordRep >::ImageDimension = Superclass::ImageDimension
static

Dimension underlying input image.

Definition at line 160 of file otbWindowedSincInterpolateImageFunctionBase.h.


The documentation for this class was generated from the following files:
