Orfeo Toolbox  4.2
Modules | Classes
Image Functions

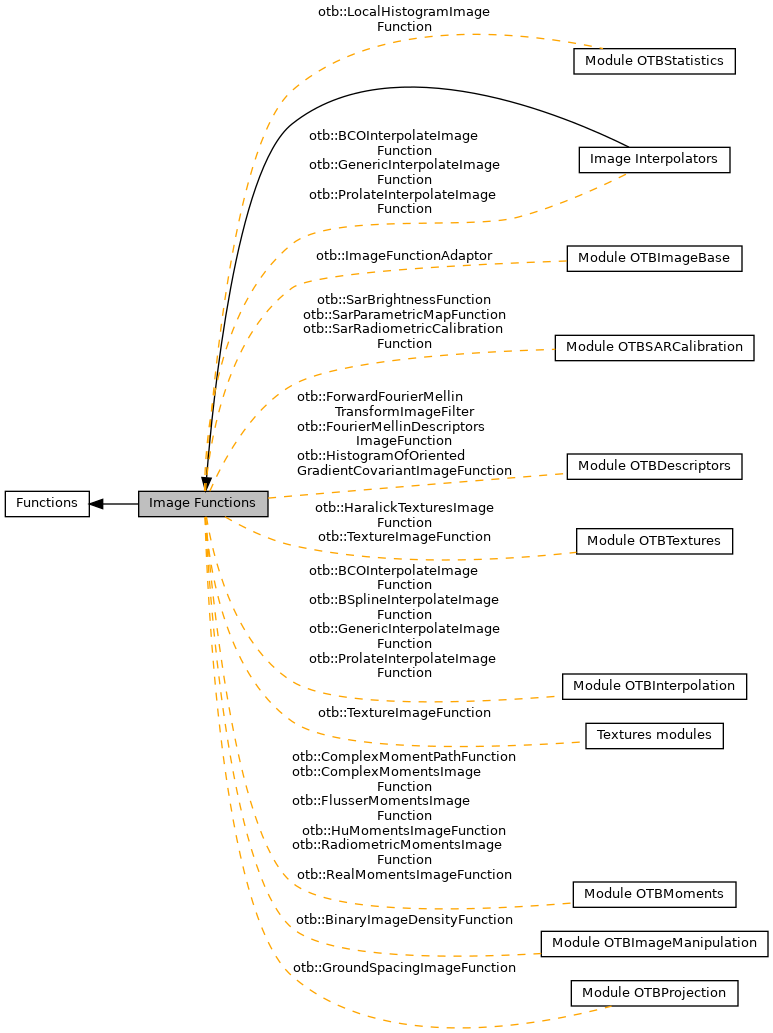

+ Collaboration diagram for Image Functions:

Modules

 Image Interpolators


Classes

class  otb::BCOInterpolateImageFunction< TInputImage, TCoordRep >
 Interpolate an image at specified positions using bicubic interpolation. More...

class  otb::BinaryImageDensityFunction< TInputImage, TCoordRep >
 Calculate the density pixel of in the neighborhood of a pixel. More...

class  itk::BinaryThresholdImageFunction< TInputImage, TCoordRep >
 Returns true is the value of an image lies within a range of thresholds This ImageFunction returns true (or false) if the pixel value lies within (outside) a lower and upper threshold value. The threshold range can be set with the ThresholdBelow, ThresholdBetween or ThresholdAbove methods. The input image is set via method SetInputImage(). More...

class  otb::BSplineInterpolateImageFunction< TImageType, TCoordRep, TCoefficientType >
 This class is an evolution of the itk::BSplineInterpolateImageFunction to handle huge images with this interpolator. For more documentation, please refer to the original class. More...

class  itk::BSplineResampleImageFunction< TImageType, TCoordRep >
 Resample image intensity from a BSpline coefficient image. More...

class  itk::CentralDifferenceImageFunction< TInputImage, TCoordRep, TOutputType >
 Calculate the derivative by central differencing. More...

class  otb::ComplexMomentPathFunction< TInputPath, TOutput, TPrecision >
 Calculate the complex moment value over a path. More...

class  otb::ComplexMomentsImageFunction< TInputImage, TCoordRep >
 Calculate the complex moment values in the specified neighborhood. More...

class  itk::CovarianceImageFunction< TInputImage, TCoordRep >
 Calculate the covariance matrix in the neighborhood of a pixel in a Vector image. More...

class  itk::ExtrapolateImageFunction< TInputImage, TCoordRep >
 Base class for all image extrapolaters. More...

class  otb::FlusserMomentsImageFunction< TInputImage, TCoordRep >
 Calculate the Flusser's invariant parameters. More...

class  otb::ForwardFourierMellinTransformImageFilter< TPixel, TInterpol, Dimension >
 Calculate the Fourier-Mellin transform over an image. More...

class  otb::FourierMellinDescriptorsImageFunction< TInputImage, TCoordRep >
 Calculate the Fourier-Mellin descriptors in the specified neighborhood. More...

class  otb::GenericInterpolateImageFunction< TInputImage, TFunction, TBoundaryCondition, TCoordRep >
 Generic interpolation of an otb::Image. More...

class  otb::GroundSpacingImageFunction< TInputImage, TCoordRep >
 Calculate the approximate ground spacing in X and Y directions. More...

class  otb::HaralickTexturesImageFunction< TInputImage, TCoordRep >
 Compute the 8 Haralick texture indices on the neighborhood of the point. More...

class  otb::HistogramOfOrientedGradientCovariantImageFunction< TInputImage, TOutputPrecision, TCoordRep >
 Calculate the centered HOG features. More...

class  otb::HuMomentsImageFunction< TInputImage, TCoordRep >
 Calculate the Hu's invariant parameters. More...

class  itk::ImageFunction< TInputImage, TOutput, TCoordRep >
 Evaluates a function of an image at specified position. More...

class  otb::ImageFunctionAdaptor< TInternalImageFunctionType, TOutputPrecision >
 Adapt the output of the internal image function to be a itk::VariableLengthVector. More...

class  itk::InterpolateImageFunction< TInputImage, TCoordRep >
 Base class for all image interpolaters. More...

class  itk::LinearInterpolateImageFunction< TInputImage, TCoordRep >
 Linearly interpolate an image at specified positions. More...

class  otb::LocalHistogramImageFunction< TInputImage, TCoordRep >
 Calculate a local histogram over a specified circular neighborhood. More...

class  itk::MahalanobisDistanceThresholdImageFunction< TInputImage, TCoordRep >
 Returns true if the pixel value of a vector image has a Mahalanobis distance below the value specified by the threshold. More...

class  itk::MeanImageFunction< TInputImage, TCoordRep >
 Calculate the mean value in the neighborhood of a pixel. More...

class  itk::MedianImageFunction< TInputImage, TCoordRep >
 Calculate the median value in the neighborhood of a pixel. More...

class  itk::NearestNeighborExtrapolateImageFunction< TInputImage, TCoordRep >
 Nearest neighbor extrapolation of a scalar image. More...

class  itk::NearestNeighborInterpolateImageFunction< TInputImage, TCoordRep >
 Nearest neighbor interpolation of a scalar image. More...

class  itk::NeighborhoodBinaryThresholdImageFunction< TInputImage, TCoordRep >
 Determine whether all the pixels in the specified neighborhood meet a threshold criteria. More...

class  itk::PCAShapeSignedDistanceFunction< TCoordRep, VSpaceDimension, TImage >
 Compute the signed distance from a N-dimensional PCA Shape. More...

class  otb::ProlateInterpolateImageFunction< TInputImage, TBoundaryCondition, TCoordRep, TInputInterpolator, TOutputInterpolator >
 Prolate interpolation of an otb::image. More...

class  otb::RadiometricMomentsImageFunction< TInputImage, TCoordRep >
 Calculate the radiometric moments. More...

class  itk::RayCastInterpolateImageFunction< TInputImage, TCoordRep >
 Projective interpolation of an image at specified positions. More...

class  otb::RealMomentsImageFunction< TInputImage, TCoordRep >
 Calculate the moment values in the specified neighborhood. More...

class  otb::SarBrightnessFunction< TInputImage, TCoordRep >
 Calculate the backscatter for the given pixel. More...

class  otb::SarParametricMapFunction< TInputImage, TCoordRep >
 Evaluates a parametric bidimensionnal polynomial model from a PointSet. More...

class  otb::SarRadiometricCalibrationFunction< TInputImage, TCoordRep >
 Calculate the backscatter for the given pixel. More...

class  itk::ScatterMatrixImageFunction< TInputImage, TCoordRep >
 Calculate the scatter matrix in the neighborhood of a pixel in a Vector image. More...

class  itk::ShapeSignedDistanceFunction< TCoordRep, VSpaceDimension >
 Base class for functions which evaluates the signed distance from a shape. More...

class  itk::SphereSignedDistanceFunction< TCoordRep, VSpaceDimension >
 Compute the signed distance from a N-dimensional sphere. More...

class  itk::SumOfSquaresImageFunction< TInputImage, TCoordRep >
 Calculate the sum of squares in the neighborhood of a pixel. More...

class  otb::TextureImageFunction< TInputImage, TFunctor, TCoordRep >
 Calculate a texture over an image. More...

class  itk::VarianceImageFunction< TInputImage, TCoordRep >
 Calculate the variance in the neighborhood of a pixel. More...

class  itk::VectorInterpolateImageFunction< TInputImage, TCoordRep >
 Base class for all vector image interpolaters. More...

class  itk::VectorLinearInterpolateImageFunction< TInputImage, TCoordRep >
 Linearly interpolate a vector image at specified positions. More...

class  itk::VectorLinearInterpolateNearestNeighborExtrapolateImageFunction< TInputImage, TCoordRep >
 Linearly interpolate or NN extrapolate a vector image at specified positions. More...

class  itk::VectorMeanImageFunction< TInputImage, TCoordRep >
 Calculate the mean value in the neighborhood of a pixel in a Vector image. More...

class  itk::VectorNearestNeighborInterpolateImageFunction< TInputImage, TCoordRep >
 Nearest neighbor interpolate a vector image at specified positions. More...

class  itk::WindowedSincInterpolateImageFunction< TInputImage, VRadius, TWindowFunction, TBoundaryCondition, TCoordRep >
 Use the windowed sinc function to interpolate. More...


Detailed Description

Image functions compute single values using data from a previously specified Image. A value can be computed at an image index, continuous index or point.

See Also
Index
ImageFunction
