OTB  6.7.0
Orfeo Toolbox
Public Types | Public Member Functions | Protected Member Functions | Private Member Functions | List of all members
otb::OpticalImageMetadataInterface Class Referenceabstract

#include <otbOpticalImageMetadataInterface.h>

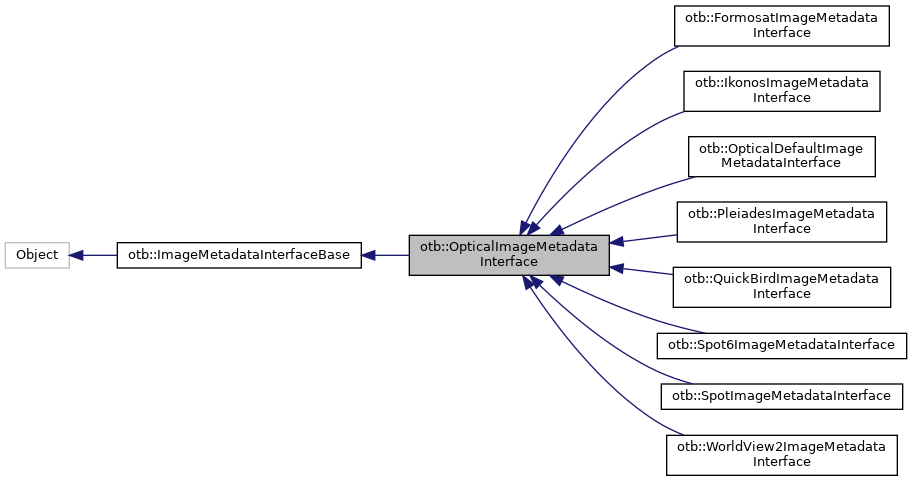

+ Inheritance diagram for otb::OpticalImageMetadataInterface:

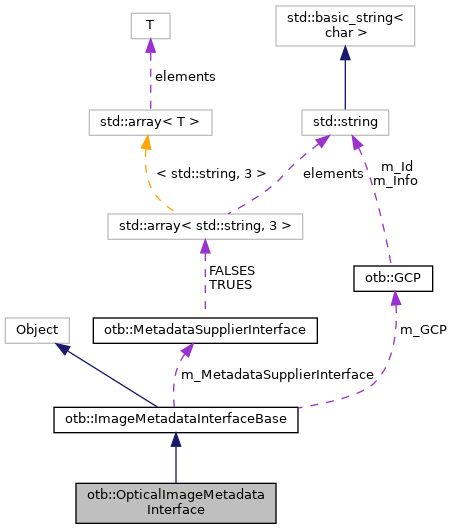

+ Collaboration diagram for otb::OpticalImageMetadataInterface:

Public Types

typedef itk::SmartPointer
< const Self
ConstPointer

typedef FilterFunctionValues FilterFunctionValuesType

typedef
Superclass::ImageKeywordlistType
ImageKeywordlistType

typedef Superclass::ImageType ImageType

typedef otb::ObjectList
< FilterFunctionValuesType
InternalWavelengthSpectralBandVectorType

typedef
Superclass::MetaDataDictionaryType
MetaDataDictionaryType

typedef itk::SmartPointer< SelfPointer

typedef
OpticalImageMetadataInterface
Self

typedef ImageMetadataInterfaceBase Superclass

typedef
Superclass::VariableLengthVectorType
VariableLengthVectorType

typedef Superclass::VectorType VectorType

typedef
InternalWavelengthSpectralBandVectorType::Pointer
WavelengthSpectralBandVectorType

- Public Types inherited from otb::ImageMetadataInterfaceBase
typedef itk::SmartPointer
< const Self
ConstPointer

typedef ImageKeywordlist ImageKeywordlistType

typedef itk::ImageBase< 2 > ImageType

typedef itk::MetaDataDictionary MetaDataDictionaryType

typedef itk::SmartPointer< SelfPointer

typedef ImageMetadataInterfaceBase Self

typedef std::vector< std::string > StringVectorType

typedef itk::Object Superclass

typedef std::vector< unsigned int > UIntVectorType

typedef unsigned int UnsignedIntType

typedef
MetaDataKey::VariableLengthVectorType
VariableLengthVectorType

typedef MetaDataKey::VectorType VectorType

- Public Types inherited from itk::Object
typedef SmartPointer< const SelfConstPointer

typedef SmartPointer< SelfPointer

typedef Object Self

typedef LightObject Superclass

- Public Types inherited from itk::LightObject
typedef SmartPointer< const SelfConstPointer

typedef SmartPointer< SelfPointer

typedef LightObject Self


Public Member Functions

virtual unsigned int BandIndexToWavelengthPosition (unsigned int i) const

std::vector< std::string > GetEnhancedBandNames () const override=0

virtual VariableLengthVectorType GetFirstWavelengths () const =0

virtual VariableLengthVectorType GetLastWavelengths () const =0

virtual const char * GetNameOfClass () const

virtual VariableLengthVectorType GetPhysicalBias () const =0

virtual VariableLengthVectorType GetPhysicalGain () const =0

virtual double GetSatAzimuth () const =0

virtual double GetSatElevation () const =0

virtual VariableLengthVectorType GetSolarIrradiance () const =0

double GetSunAzimuth () const

double GetSunElevation () const

- Public Member Functions inherited from otb::ImageMetadataInterfaceBase
virtual bool CanRead () const =0

virtual UIntVectorType GetDefaultDisplay () const =0

double GetGCPCol (unsigned int GCPnum) const

UnsignedIntType GetGCPCount () const

std::string GetGCPId (unsigned int GCPnum) const

std::string GetGCPInfo (unsigned int GCPnum) const

double GetGCPRow (unsigned int GCPnum) const

OTB_GCPGetGCPs (unsigned int GCPnum)

double GetGCPX (unsigned int GCPnum) const

double GetGCPY (unsigned int GCPnum) const

double GetGCPZ (unsigned int GCPnum) const

VectorType GetGeoTransform () const

ImageKeywordlistType GetImageKeywordlist ()

const ImageKeywordlistType GetImageKeywordlist () const

VectorType GetLowerLeftCorner () const

VectorType GetLowerRightCorner () const

const MetaDataDictionaryTypeGetMetaDataDictionary () const

bool GetNoDataFlags (std::vector< bool > &flags, std::vector< double > &values) const

std::string GetProjectionRef () const

std::string const GetSensorID () const

bool GetSensorID (std::string &sensorId) const

VectorType GetUpperLeftCorner () const

VectorType GetUpperRightCorner () const

void SetImage (ImageType *image)

void SetMetaDataDictionary (const MetaDataDictionaryType &dict)

std::string GetGCPProjection () const

UnsignedIntType GetNumberOfBands () const

StringVectorType GetBandName () const

double GetXPixelSpacing () const

double GetYPixelSpacing () const

virtual int GetDay () const =0

virtual int GetMonth () const =0

virtual int GetYear () const =0

virtual int GetHour () const =0

virtual int GetMinute () const =0

virtual int GetProductionDay () const =0

virtual int GetProductionMonth () const =0

virtual int GetProductionYear () const =0

- Public Member Functions inherited from itk::Object
unsigned long AddObserver (const EventObject &event, Command *)

unsigned long AddObserver (const EventObject &event, Command *) const

virtual LightObject::Pointer CreateAnother () const override

virtual void DebugOff () const

virtual void DebugOn () const

CommandGetCommand (unsigned long tag)

bool GetDebug () const

const MetaDataDictionaryGetMetaDataDictionary () const

MetaDataDictionaryGetMetaDataDictionary ()

virtual ModifiedTimeType GetMTime () const

virtual const std::string & GetObjectName () const

virtual const TimeStampGetTimeStamp () const

bool HasObserver (const EventObject &event) const

void InvokeEvent (const EventObject &)

void InvokeEvent (const EventObject &) const

virtual void Modified () const

virtual void Register () const override

void RemoveAllObservers ()

void RemoveObserver (unsigned long tag)

void SetDebug (bool debugFlag) const

void SetMetaDataDictionary (const MetaDataDictionary &rhs)

virtual void SetObjectName (std::string _arg)

virtual void SetReferenceCount (int) override

virtual void UnRegister () const noexceptoverride

- Public Member Functions inherited from itk::LightObject
virtual void Delete ()

virtual int GetReferenceCount () const

 itkCloneMacro (Self)

void Print (std::ostream &os, Indent indent=0) const


Protected Member Functions

void PrintSelf (std::ostream &os, itk::Indent indent) const override

- Protected Member Functions inherited from otb::ImageMetadataInterfaceBase
 ImageMetadataInterfaceBase ()

 ~ImageMetadataInterfaceBase () override

- Protected Member Functions inherited from itk::Object
 Object ()

bool PrintObservers (std::ostream &os, Indent indent) const

virtual void SetTimeStamp (const TimeStamp &time)

virtual ~Object ()

- Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer InternalClone () const

 LightObject ()

virtual void PrintHeader (std::ostream &os, Indent indent) const

virtual void PrintTrailer (std::ostream &os, Indent indent) const

virtual ~LightObject ()


Private Member Functions

void operator= (const Self &)

 OpticalImageMetadataInterface (const Self &)

virtual
WavelengthSpectralBandVectorType
GetSpectralSensitivity () const =0

 OpticalImageMetadataInterface ()

 ~OpticalImageMetadataInterface () override


Additional Inherited Members

- Static Public Member Functions inherited from otb::ImageMetadataInterfaceBase
static void PrintMetadata (std::ostream &os, itk::Indent indent, const MetaDataDictionaryType &dict)

- Static Public Member Functions inherited from itk::Object
static bool GetGlobalWarningDisplay ()

static void GlobalWarningDisplayOff ()

static void GlobalWarningDisplayOn ()

static Pointer New ()

static void SetGlobalWarningDisplay (bool flag)

- Static Public Member Functions inherited from itk::LightObject
static void BreakOnError ()

static Pointer New ()

- Protected Attributes inherited from otb::ImageMetadataInterfaceBase
MetaDataDictionaryType m_MetaDataDictionary

- Protected Attributes inherited from itk::LightObject
AtomicInt< int > m_ReferenceCount


Detailed Description

Class for Optical captor metadata reading.

Definition at line 39 of file otbOpticalImageMetadataInterface.h.

Member Typedef Documentation

Definition at line 46 of file otbOpticalImageMetadataInterface.h.

Definition at line 57 of file otbOpticalImageMetadataInterface.h.

typedef Superclass::ImageKeywordlistType otb::OpticalImageMetadataInterface::ImageKeywordlistType

Definition at line 55 of file otbOpticalImageMetadataInterface.h.

typedef Superclass::ImageType otb::OpticalImageMetadataInterface::ImageType

Definition at line 49 of file otbOpticalImageMetadataInterface.h.

Definition at line 58 of file otbOpticalImageMetadataInterface.h.

typedef Superclass::MetaDataDictionaryType otb::OpticalImageMetadataInterface::MetaDataDictionaryType

Definition at line 52 of file otbOpticalImageMetadataInterface.h.

Definition at line 45 of file otbOpticalImageMetadataInterface.h.

Definition at line 43 of file otbOpticalImageMetadataInterface.h.

Definition at line 44 of file otbOpticalImageMetadataInterface.h.

typedef Superclass::VariableLengthVectorType otb::OpticalImageMetadataInterface::VariableLengthVectorType

Definition at line 54 of file otbOpticalImageMetadataInterface.h.

typedef Superclass::VectorType otb::OpticalImageMetadataInterface::VectorType

Definition at line 53 of file otbOpticalImageMetadataInterface.h.

Definition at line 59 of file otbOpticalImageMetadataInterface.h.

Constructor & Destructor Documentation

otb::OpticalImageMetadataInterface::OpticalImageMetadataInterface ( )
protected

Vector that contains the filter function value in 6S format (step of 0.0025 micro m). There values a computed by 6S.

otb::OpticalImageMetadataInterface::~OpticalImageMetadataInterface ( )
inlineoverrideprotected

Vector that contains the filter function value in 6S format (step of 0.0025 micro m). There values a computed by 6S.

Definition at line 102 of file otbOpticalImageMetadataInterface.h.

otb::OpticalImageMetadataInterface::OpticalImageMetadataInterface ( const Self )
private

Member Function Documentation

virtual unsigned int otb::OpticalImageMetadataInterface::BandIndexToWavelengthPosition ( unsigned int  i) const
virtual

This method is to handle the permutation of the spectral band by some image provider in most cases, this method won't change the value, but for SPOT data, the bands are set up as 2 1 0 3 in the tiff file, this method which is overloaded for SPOT enables to retrieve the proper band.

Reimplemented in otb::FormosatImageMetadataInterface, otb::SpotImageMetadataInterface, otb::PleiadesImageMetadataInterface, and otb::Spot6ImageMetadataInterface.

std::vector<std::string> otb::OpticalImageMetadataInterface::GetEnhancedBandNames ( ) const
overridepure virtual
virtual VariableLengthVectorType otb::OpticalImageMetadataInterface::GetFirstWavelengths ( ) const
pure virtual
virtual VariableLengthVectorType otb::OpticalImageMetadataInterface::GetLastWavelengths ( ) const
pure virtual
virtual const char* otb::OpticalImageMetadataInterface::GetNameOfClass ( ) const
virtual
virtual VariableLengthVectorType otb::OpticalImageMetadataInterface::GetPhysicalBias ( ) const
pure virtual
virtual VariableLengthVectorType otb::OpticalImageMetadataInterface::GetPhysicalGain ( ) const
pure virtual
virtual double otb::OpticalImageMetadataInterface::GetSatAzimuth ( ) const
pure virtual
virtual double otb::OpticalImageMetadataInterface::GetSatElevation ( ) const
pure virtual
virtual VariableLengthVectorType otb::OpticalImageMetadataInterface::GetSolarIrradiance ( ) const
pure virtual
virtual WavelengthSpectralBandVectorType otb::OpticalImageMetadataInterface::GetSpectralSensitivity ( ) const
pure virtual
double otb::OpticalImageMetadataInterface::GetSunAzimuth ( ) const

Get the sun azimuth from the ossim metadata

double otb::OpticalImageMetadataInterface::GetSunElevation ( ) const

Get the sun elevation from the ossim metadata

void otb::OpticalImageMetadataInterface::operator= ( const Self )
private
void otb::OpticalImageMetadataInterface::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotectedvirtual

Reimplemented from otb::ImageMetadataInterfaceBase.


The documentation for this class was generated from the following file:
