otb::BandMathXImageFilter< TImage > Class Template Reference
Processing images region by region » Filters supporting StreamingGroup FeaturesExtraction » | Module OTBMathParserX

#include <otbBandMathXImageFilter.h>

+ Inheritance diagram for otb::BandMathXImageFilter< TImage >:

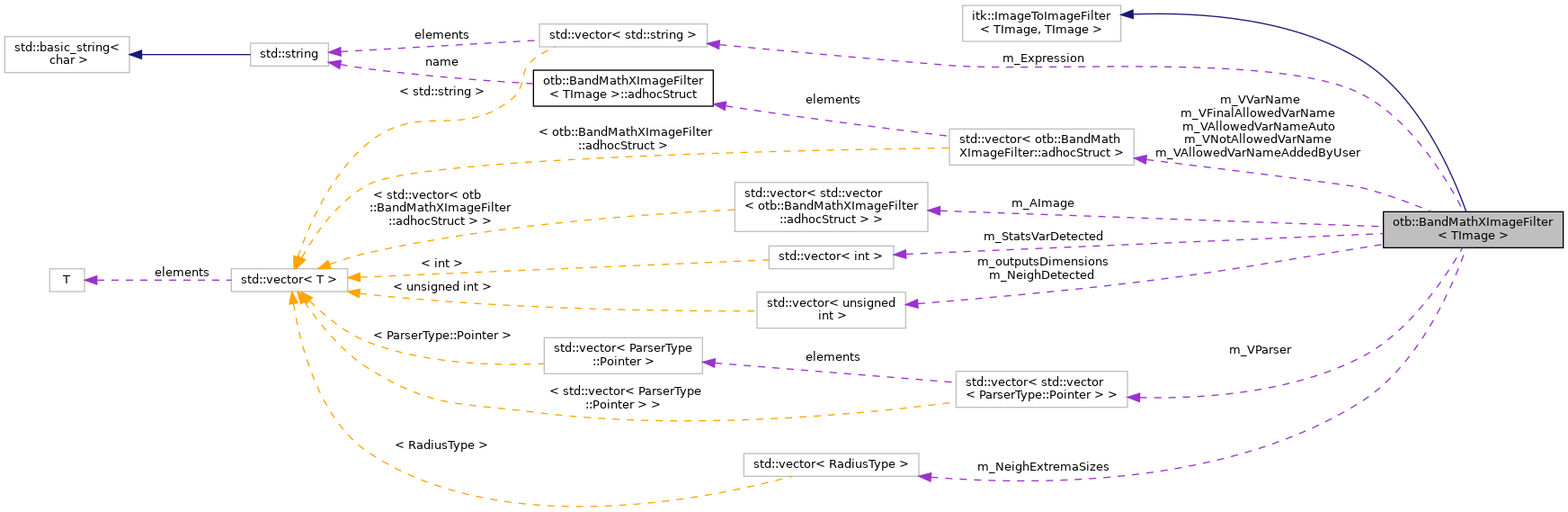

+ Collaboration diagram for otb::BandMathXImageFilter< TImage >:

Classes

struct  adhocStruct


Public Types

typedef ImageType::ConstPointer ConstImagePointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef itk::ProcessObject::DataObjectPointerArraySizeType DataObjectPointerArraySizeType

typedef ImageType::Pointer ImagePointer

typedef ImageType::RegionType ImageRegionType

typedef TImage ImageType

typedef ImageType::IndexType IndexType

typedef StreamingStatisticsVectorImageFilterType::MatrixType MatrixType

typedef ImageType::PointType OrigineType

typedef ParserX ParserType

typedef ImageType::PixelType PixelType

typedef ImageType::PixelType::ValueType PixelValueType

typedef itk::SmartPointer< Self > Pointer

typedef itk::ConstNeighborhoodIterator< TImage >::RadiusType RadiusType

typedef BandMathXImageFilter< TImage > Self

typedef ImageType::SpacingType SpacingType

typedef StreamingStatisticsVectorImageFilterType::Pointer StreamingStatisticsVectorImageFilterPointerType

typedef StreamingStatisticsVectorImageFilter< ImageType > StreamingStatisticsVectorImageFilterType

typedef itk::ImageToImageFilter< TImage, TImage > Superclass

typedef ParserType::ValueType ValueType


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const


Static Public Member Functions

static Pointer New ()

std::vector< std::string > m_Expression

std::vector< std::vector< ParserType::Pointer > > m_VParser

std::vector< std::vector< adhocStruct > > m_AImage

std::vector< adhocStruct > m_VVarName

std::vector< adhocStruct > m_VAllowedVarNameAuto

std::vector< adhocStruct > m_VAllowedVarNameAddedByUser

std::vector< adhocStruct > m_VFinalAllowedVarName

std::vector< adhocStruct > m_VNotAllowedVarName

std::vector< unsigned int > m_outputsDimensions

unsigned int m_SizeNeighbourhood

std::vector< int > m_StatsVarDetected

std::vector< unsigned int > m_NeighDetected

std::vector< RadiusType > m_NeighExtremaSizes

long m_UnderflowCount

long m_OverflowCount

itk::Array< long > m_ThreadUnderflow

itk::Array< long > m_ThreadOverflow

bool m_ManyExpressions

void SetNthInput (DataObjectPointerArraySizeType idx, const ImageType *image)

void SetNthInput (DataObjectPointerArraySizeType idx, const ImageType *image, const std::string &varName)

ImageType * GetNthInput (DataObjectPointerArraySizeType idx)

void SetManyExpressions (bool flag)

void SetExpression (const std::string &expression)

std::string GetExpression (unsigned int IDExpression) const

void SetMatrix (const std::string &name, const std::string &definition)

void SetConstant (const std::string &name, double value)

void ExportContext (const std::string &filename)

void ImportContext (const std::string &filename)

void ClearExpression ()

std::vector< std::string > GetVarNames () const

bool GlobalStatsDetected () const

 BandMathXImageFilter ()

 ~BandMathXImageFilter () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

void GenerateOutputInformation () override

void GenerateInputRequestedRegion () override

void BeforeThreadedGenerateData () override

void ThreadedGenerateData (const ImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override

void AfterThreadedGenerateData () override

 BandMathXImageFilter (const Self &)=delete

void operator= (const Self &)=delete

void AddVariable (adhocStruct &)

void CheckImageDimensions ()

void PrepareParsers ()

void PrepareParsersGlobStats ()

void OutputsDimensions ()


Detailed Description

template<class TImage>
class otb::BandMathXImageFilter< TImage >

Performs mathematical operations on the input images according to the formula specified by the user.

This filter is based on the mathematical parser library muParserX. The built in functions and operators list is available at: http://articles.beltoforion.de/article.php?a=muparserx.

In order to use this filter, at least one input image is to be set. An associated variable name can be specified or not by using the corresponding SetNthInput method. For the jth (j=1..T) input image, if no associated variable name has been specified, a default variable name is given by concatenating the prefix "im" with the corresponding input index plus one (for instance, im1 is related to the first input). If the jth input image is multidimensional, then the variable imj represents a vector whose components are related to its bands. In order to access the kth band, the variable observes the following pattern : imjbk.

See also
Parser

Definition at line 65 of file otbBandMathXImageFilter.h.

Member Typedef Documentation

◆ ConstImagePointer

template<class TImage >
typedef ImageType::ConstPointer otb::BandMathXImageFilter< TImage >::ConstImagePointer

Definition at line 82 of file otbBandMathXImageFilter.h.

◆ ConstPointer

template<class TImage >
typedef itk::SmartPointer<const Self> otb::BandMathXImageFilter< TImage >::ConstPointer

Definition at line 72 of file otbBandMathXImageFilter.h.

◆ DataObjectPointerArraySizeType

template<class TImage >
typedef itk::ProcessObject::DataObjectPointerArraySizeType otb::BandMathXImageFilter< TImage >::DataObjectPointerArraySizeType

Definition at line 93 of file otbBandMathXImageFilter.h.

◆ ImagePointer

template<class TImage >
typedef ImageType::Pointer otb::BandMathXImageFilter< TImage >::ImagePointer

Definition at line 83 of file otbBandMathXImageFilter.h.

◆ ImageRegionType

template<class TImage >
typedef ImageType::RegionType otb::BandMathXImageFilter< TImage >::ImageRegionType

Definition at line 84 of file otbBandMathXImageFilter.h.

◆ ImageType

template<class TImage >
typedef TImage otb::BandMathXImageFilter< TImage >::ImageType

Some convenient typedefs.

Definition at line 78 of file otbBandMathXImageFilter.h.

◆ IndexType

template<class TImage >
typedef ImageType::IndexType otb::BandMathXImageFilter< TImage >::IndexType

Definition at line 88 of file otbBandMathXImageFilter.h.

◆ MatrixType

template<class TImage >
typedef StreamingStatisticsVectorImageFilterType::MatrixType otb::BandMathXImageFilter< TImage >::MatrixType

Definition at line 98 of file otbBandMathXImageFilter.h.

◆ OrigineType

template<class TImage >
typedef ImageType::PointType otb::BandMathXImageFilter< TImage >::OrigineType

Definition at line 89 of file otbBandMathXImageFilter.h.

◆ ParserType

template<class TImage >
typedef ParserX otb::BandMathXImageFilter< TImage >::ParserType

Definition at line 91 of file otbBandMathXImageFilter.h.

◆ PixelType

template<class TImage >
typedef ImageType::PixelType otb::BandMathXImageFilter< TImage >::PixelType

Definition at line 87 of file otbBandMathXImageFilter.h.

◆ PixelValueType

template<class TImage >
typedef ImageType::PixelType::ValueType otb::BandMathXImageFilter< TImage >::PixelValueType

Definition at line 86 of file otbBandMathXImageFilter.h.

◆ Pointer

template<class TImage >
typedef itk::SmartPointer<Self> otb::BandMathXImageFilter< TImage >::Pointer

Definition at line 71 of file otbBandMathXImageFilter.h.

◆ RadiusType

template<class TImage >
typedef itk::ConstNeighborhoodIterator<TImage>::RadiusType otb::BandMathXImageFilter< TImage >::RadiusType

Definition at line 85 of file otbBandMathXImageFilter.h.

◆ Self

template<class TImage >
typedef BandMathXImageFilter<TImage> otb::BandMathXImageFilter< TImage >::Self

Standard class typedefs.

Definition at line 69 of file otbBandMathXImageFilter.h.

◆ SpacingType

template<class TImage >
typedef ImageType::SpacingType otb::BandMathXImageFilter< TImage >::SpacingType

Definition at line 90 of file otbBandMathXImageFilter.h.

◆ StreamingStatisticsVectorImageFilterPointerType

template<class TImage >
typedef StreamingStatisticsVectorImageFilterType::Pointer otb::BandMathXImageFilter< TImage >::StreamingStatisticsVectorImageFilterPointerType

Definition at line 97 of file otbBandMathXImageFilter.h.

◆ StreamingStatisticsVectorImageFilterType

template<class TImage >
typedef StreamingStatisticsVectorImageFilter<ImageType> otb::BandMathXImageFilter< TImage >::StreamingStatisticsVectorImageFilterType

Typedef for statistic computing.

Definition at line 96 of file otbBandMathXImageFilter.h.

◆ Superclass

template<class TImage >
typedef itk::ImageToImageFilter<TImage, TImage> otb::BandMathXImageFilter< TImage >::Superclass

Definition at line 70 of file otbBandMathXImageFilter.h.

◆ ValueType

template<class TImage >
typedef ParserType::ValueType otb::BandMathXImageFilter< TImage >::ValueType

Definition at line 92 of file otbBandMathXImageFilter.h.

Constructor & Destructor Documentation

◆ BandMathXImageFilter() [1/2]

template<class TImage >
otb::BandMathXImageFilter< TImage >::BandMathXImageFilter
protected

Constructor

Definition at line 45 of file otbBandMathXImageFilter.hxx.

References otb::BandMathXImageFilter< TImage >::adhocStruct::name, and otb::BandMathXImageFilter< TImage >::adhocStruct::type.

◆ ~BandMathXImageFilter()

template<class TImage >
otb::BandMathXImageFilter< TImage >::~BandMathXImageFilter
overrideprotected

Destructor

Definition at line 75 of file otbBandMathXImageFilter.hxx.

◆ BandMathXImageFilter() [2/2]

template<class TImage >
otb::BandMathXImageFilter< TImage >::BandMathXImageFilter ( const Self &  )
privatedelete

Return a pointer on the nth filter input

Member Function Documentation

◆ AddVariable()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::AddVariable ( adhocStruct &  ahc)
private

Return a pointer on the nth filter input

Definition at line 520 of file otbBandMathXImageFilter.hxx.

References otb::BandMathXImageFilter< TImage >::adhocStruct::name.

◆ AfterThreadedGenerateData()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::AfterThreadedGenerateData
overrideprotected

Return a pointer on the nth filter input

Definition at line 977 of file otbBandMathXImageFilter.hxx.

References otbWarningMacro.

◆ BeforeThreadedGenerateData()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::BeforeThreadedGenerateData
overrideprotected

Return a pointer on the nth filter input

Definition at line 964 of file otbBandMathXImageFilter.hxx.

◆ CheckImageDimensions()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::CheckImageDimensions
private

Return a pointer on the nth filter input

Definition at line 861 of file otbBandMathXImageFilter.hxx.

◆ ClearExpression()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::ClearExpression

Clear all previously set expression

Definition at line 252 of file otbBandMathXImageFilter.hxx.

◆ CreateAnother()

template<class TImage >
virtual::itk::LightObject::Pointer otb::BandMathXImageFilter< TImage >::CreateAnother ( void  ) const

◆ ExportContext()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::ExportContext ( const std::string &  filename)

Export constants and expressions to a given filename

Definition at line 332 of file otbBandMathXImageFilter.hxx.

◆ GenerateInputRequestedRegion()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::GenerateInputRequestedRegion
overrideprotected

Return a pointer on the nth filter input

Definition at line 914 of file otbBandMathXImageFilter.hxx.

◆ GenerateOutputInformation()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::GenerateOutputInformation
overrideprotected

Return a pointer on the nth filter input

Definition at line 882 of file otbBandMathXImageFilter.hxx.

◆ GetExpression()

template<typename TImage >
std::string otb::BandMathXImageFilter< TImage >::GetExpression ( unsigned int  IDExpression) const

Return the nth expression to be parsed

Definition at line 500 of file otbBandMathXImageFilter.hxx.

◆ GetNameOfClass()

template<class TImage >
virtual const char* otb::BandMathXImageFilter< TImage >::GetNameOfClass ( ) const
virtual

Run-time type information (and related methods).

◆ GetNthInput()

template<typename TImage >
TImage * otb::BandMathXImageFilter< TImage >::GetNthInput ( DataObjectPointerArraySizeType  idx)

Return a pointer on the nth filter input

Definition at line 210 of file otbBandMathXImageFilter.hxx.

◆ GetVarNames()

template<typename TImage >
std::vector< std::string > otb::BandMathXImageFilter< TImage >::GetVarNames

Return the variable and constant names

Definition at line 509 of file otbBandMathXImageFilter.hxx.

◆ GlobalStatsDetected()

template<class TImage >
bool otb::BandMathXImageFilter< TImage >::GlobalStatsDetected ( ) const
inline

Return a pointer on the nth filter input

Definition at line 136 of file otbBandMathXImageFilter.h.

◆ ImportContext()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::ImportContext ( const std::string &  filename)

Import constants and expressions from a given filename

Definition at line 403 of file otbBandMathXImageFilter.hxx.

◆ New()

template<class TImage >
static Pointer otb::BandMathXImageFilter< TImage >::New ( )
static

Method for creation through the object factory.

◆ operator=()

template<class TImage >
void otb::BandMathXImageFilter< TImage >::operator= ( const Self &  )
privatedelete

Return a pointer on the nth filter input

◆ OutputsDimensions()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::OutputsDimensions
private

Return a pointer on the nth filter input

Definition at line 812 of file otbBandMathXImageFilter.hxx.

◆ PrepareParsers()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::PrepareParsers
private

Return a pointer on the nth filter input

Definition at line 533 of file otbBandMathXImageFilter.hxx.

References otb::BandMathXImageFilter< TImage >::adhocStruct::name.

◆ PrepareParsersGlobStats()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::PrepareParsersGlobStats
private

Return a pointer on the nth filter input

Definition at line 739 of file otbBandMathXImageFilter.hxx.

◆ PrintSelf()

template<class TImage >
void otb::BandMathXImageFilter< TImage >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

Return a pointer on the nth filter input

Definition at line 95 of file otbBandMathXImageFilter.hxx.

◆ SetConstant()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::SetConstant ( const std::string &  name,
double  value
)

Set a constant

Definition at line 316 of file otbBandMathXImageFilter.hxx.

References otb::BandMathXImageFilter< TImage >::adhocStruct::name, otb::BandMathXImageFilter< TImage >::adhocStruct::type, and otb::BandMathXImageFilter< TImage >::adhocStruct::value.

◆ SetExpression()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::SetExpression ( const std::string &  expression)

Set an expression to be parsed

Definition at line 222 of file otbBandMathXImageFilter.hxx.

◆ SetManyExpressions()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::SetManyExpressions ( bool  flag)

Set an expression to be parsed

Definition at line 216 of file otbBandMathXImageFilter.hxx.

◆ SetMatrix()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::SetMatrix ( const std::string &  name,
const std::string &  definition
)

Set a matrix (or a vector)

Definition at line 258 of file otbBandMathXImageFilter.hxx.

References otb::BandMathXImageFilter< TImage >::adhocStruct::info, otb::BandMathXImageFilter< TImage >::adhocStruct::name, otb::BandMathXImageFilter< TImage >::adhocStruct::type, and otb::BandMathXImageFilter< TImage >::adhocStruct::value.

◆ SetNthInput() [1/2]

template<class TImage >
void otb::BandMathXImageFilter< TImage >::SetNthInput ( DataObjectPointerArraySizeType  idx,
const ImageType *  image
)

Return a pointer on the nth filter input

Definition at line 110 of file otbBandMathXImageFilter.hxx.

◆ SetNthInput() [2/2]

template<class TImage >
void otb::BandMathXImageFilter< TImage >::SetNthInput ( DataObjectPointerArraySizeType  idx,
const ImageType *  image,
const std::string &  varName
)

Return a pointer on the nth filter input

Definition at line 119 of file otbBandMathXImageFilter.hxx.

References otb::BandMathXImageFilter< TImage >::adhocStruct::info, otb::BandMathXImageFilter< TImage >::adhocStruct::name, and otb::BandMathXImageFilter< TImage >::adhocStruct::type.

◆ ThreadedGenerateData()

template<typename TImage >
void otb::BandMathXImageFilter< TImage >::ThreadedGenerateData ( const ImageRegionType &  outputRegionForThread,
itk::ThreadIdType  threadId
)
overrideprotected

Return a pointer on the nth filter input

Definition at line 1008 of file otbBandMathXImageFilter.hxx.

Member Data Documentation

◆ m_AImage

template<class TImage >
std::vector<std::vector<adhocStruct> > otb::BandMathXImageFilter< TImage >::m_AImage
private

Return a pointer on the nth filter input

Definition at line 174 of file otbBandMathXImageFilter.h.

◆ m_Expression

template<class TImage >
std::vector<std::string> otb::BandMathXImageFilter< TImage >::m_Expression
private

Return a pointer on the nth filter input

Definition at line 172 of file otbBandMathXImageFilter.h.

◆ m_ManyExpressions

template<class TImage >
bool otb::BandMathXImageFilter< TImage >::m_ManyExpressions
private

Return a pointer on the nth filter input

Definition at line 194 of file otbBandMathXImageFilter.h.

◆ m_NeighDetected

template<class TImage >
std::vector<unsigned int> otb::BandMathXImageFilter< TImage >::m_NeighDetected
private

Return a pointer on the nth filter input

Definition at line 186 of file otbBandMathXImageFilter.h.

◆ m_NeighExtremaSizes

template<class TImage >
std::vector<RadiusType> otb::BandMathXImageFilter< TImage >::m_NeighExtremaSizes
private

Return a pointer on the nth filter input

Definition at line 187 of file otbBandMathXImageFilter.h.

◆ m_outputsDimensions

template<class TImage >
std::vector<unsigned int> otb::BandMathXImageFilter< TImage >::m_outputsDimensions
private

Return a pointer on the nth filter input

Definition at line 180 of file otbBandMathXImageFilter.h.

◆ m_OverflowCount

template<class TImage >
long otb::BandMathXImageFilter< TImage >::m_OverflowCount
private

Return a pointer on the nth filter input

Definition at line 190 of file otbBandMathXImageFilter.h.

◆ m_SizeNeighbourhood

template<class TImage >
unsigned int otb::BandMathXImageFilter< TImage >::m_SizeNeighbourhood
private

Return a pointer on the nth filter input

Definition at line 182 of file otbBandMathXImageFilter.h.

◆ m_StatsVarDetected

template<class TImage >
std::vector<int> otb::BandMathXImageFilter< TImage >::m_StatsVarDetected
private

Return a pointer on the nth filter input

Definition at line 184 of file otbBandMathXImageFilter.h.

◆ m_ThreadOverflow

template<class TImage >
itk::Array<long> otb::BandMathXImageFilter< TImage >::m_ThreadOverflow
private

Return a pointer on the nth filter input

Definition at line 192 of file otbBandMathXImageFilter.h.

◆ m_ThreadUnderflow

template<class TImage >
itk::Array<long> otb::BandMathXImageFilter< TImage >::m_ThreadUnderflow
private

Return a pointer on the nth filter input

Definition at line 191 of file otbBandMathXImageFilter.h.

◆ m_UnderflowCount

template<class TImage >
long otb::BandMathXImageFilter< TImage >::m_UnderflowCount
private

Return a pointer on the nth filter input

Definition at line 189 of file otbBandMathXImageFilter.h.

◆ m_VAllowedVarNameAddedByUser

template<class TImage >
std::vector<adhocStruct> otb::BandMathXImageFilter< TImage >::m_VAllowedVarNameAddedByUser
private

Return a pointer on the nth filter input

Definition at line 177 of file otbBandMathXImageFilter.h.

◆ m_VAllowedVarNameAuto

template<class TImage >
std::vector<adhocStruct> otb::BandMathXImageFilter< TImage >::m_VAllowedVarNameAuto
private

Return a pointer on the nth filter input

Definition at line 176 of file otbBandMathXImageFilter.h.

◆ m_VFinalAllowedVarName

template<class TImage >
std::vector<adhocStruct> otb::BandMathXImageFilter< TImage >::m_VFinalAllowedVarName
private

Return a pointer on the nth filter input

Definition at line 178 of file otbBandMathXImageFilter.h.

◆ m_VNotAllowedVarName

template<class TImage >
std::vector<adhocStruct> otb::BandMathXImageFilter< TImage >::m_VNotAllowedVarName
private

Return a pointer on the nth filter input

Definition at line 179 of file otbBandMathXImageFilter.h.

◆ m_VParser

template<class TImage >
std::vector<std::vector<ParserType::Pointer> > otb::BandMathXImageFilter< TImage >::m_VParser
private

Return a pointer on the nth filter input

Definition at line 173 of file otbBandMathXImageFilter.h.

◆ m_VVarName

template<class TImage >
std::vector<adhocStruct> otb::BandMathXImageFilter< TImage >::m_VVarName
private

Return a pointer on the nth filter input

Definition at line 175 of file otbBandMathXImageFilter.h.

The documentation for this class was generated from the following files:
Generated at Wed Feb 28 2024 15:24:54 for OTB with   doxygen 1.8.17
