otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor > Class Template Reference

#include <otbPixelWiseBlockMatchingImageFilter.h>

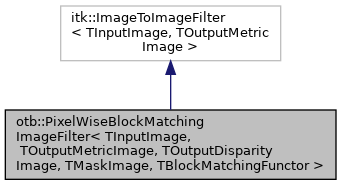

Inheritance diagram for otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >:

Collaboration diagram for otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >:

Public Types
typedef TBlockMatchingFunctor	BlockMatchingFunctorType
typedef itk::ConstNeighborhoodIterator< TInputImage >	ConstNeighborhoodIteratorType
typedef itk::SmartPointer< const Self >	ConstPointer
typedef OutputDisparityImageType::PixelType	DisparityPixelType
typedef InputImageType::IndexType	IndexType
typedef TInputImage	InputImageType
typedef TMaskImage	InputMaskImageType
typedef TOutputMetricImage::ValueType	MetricValueType
typedef TOutputDisparityImage	OutputDisparityImageType
typedef TOutputMetricImage	OutputMetricImageType
typedef itk::SmartPointer< Self >	Pointer
typedef InputImageType::PointType	PointType
typedef InputImageType::RegionType	RegionType
typedef PixelWiseBlockMatchingImageFilter	Self
typedef InputImageType::SizeType	SizeType
typedef InputImageType::SpacingType	SpacingType
typedef itk::ImageToImageFilter< TInputImage, TOutputDisparityImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
void	SetLeftInput (const TInputImage *image)
void	SetLeftMaskInput (const TMaskImage *image)
void	SetRightInput (const TInputImage *image)
void	SetRightMaskInput (const TMaskImage *image)

Static Public Member Functions
static Pointer	New ()
SizeType	m_Radius
int	m_MinimumHorizontalDisparity
int	m_MaximumHorizontalDisparity
int	m_MinimumVerticalDisparity
int	m_MaximumVerticalDisparity
bool	m_Minimize
SizeType	m_ExplorationRadius
BlockMatchingFunctorType	m_Functor
int	m_InitHorizontalDisparity
int	m_InitVerticalDisparity
unsigned int	m_Step
IndexType	m_GridIndex
static RegionType	ConvertFullToSubsampledRegion (RegionType full, unsigned int step, IndexType index)
static RegionType	ConvertSubsampledToFullRegion (RegionType sub, unsigned int step, IndexType index)
const TInputImage *	GetLeftInput () const
const TInputImage *	GetRightInput () const
const TMaskImage *	GetLeftMaskInput () const
const TMaskImage *	GetRightMaskInput () const
const TOutputMetricImage *	GetMetricOutput () const
TOutputMetricImage *	GetMetricOutput ()
const TOutputDisparityImage *	GetHorizontalDisparityOutput () const
TOutputDisparityImage *	GetHorizontalDisparityOutput ()
const TOutputDisparityImage *	GetVerticalDisparityOutput () const
TOutputDisparityImage *	GetVerticalDisparityOutput ()
void	SetRadius (unsigned int radius)
virtual void	SetRadius (SizeType _arg)
virtual const SizeType &	GetRadius () const
virtual void	SetMinimumHorizontalDisparity (int _arg)
virtual const int &	GetMinimumHorizontalDisparity () const
virtual void	SetMaximumHorizontalDisparity (int _arg)
virtual const int &	GetMaximumHorizontalDisparity () const
virtual void	SetMinimumVerticalDisparity (int _arg)
virtual const int &	GetMinimumVerticalDisparity () const
virtual void	SetMaximumVerticalDisparity (int _arg)
virtual const int &	GetMaximumVerticalDisparity () const
virtual void	SetMinimize (bool _arg)
virtual const bool &	GetMinimize () const
virtual void	MinimizeOn ()
virtual void	MinimizeOff ()
virtual void	SetExplorationRadius (SizeType _arg)
virtual const SizeType &	GetExplorationRadius () const
virtual void	SetInitHorizontalDisparity (int _arg)
virtual const int &	GetInitHorizontalDisparity () const
virtual void	SetInitVerticalDisparity (int _arg)
virtual const int &	GetInitVerticalDisparity () const
BlockMatchingFunctorType &	GetFunctor ()
const BlockMatchingFunctorType &	GetFunctor () const
void	SetHorizontalDisparityInput (const TOutputDisparityImage *hfield)
void	SetVerticalDisparityInput (const TOutputDisparityImage *vfield)
const TOutputDisparityImage *	GetHorizontalDisparityInput () const
const TOutputDisparityImage *	GetVerticalDisparityInput () const
virtual void	SetStep (unsigned int _arg)
virtual unsigned int	GetStep ()
virtual void	SetGridIndex (IndexType _arg)
virtual const IndexType &	GetGridIndex () const
	PixelWiseBlockMatchingImageFilter ()
	~PixelWiseBlockMatchingImageFilter () override
void	GenerateOutputInformation () override
void	GenerateInputRequestedRegion () override
void	BeforeThreadedGenerateData () override
void	ThreadedGenerateData (const RegionType &outputRegionForThread, itk::ThreadIdType threadId) override
	PixelWiseBlockMatchingImageFilter (const Self &)=delete
void	operator= (const Self &)

Detailed Description

template<class TInputImage, class TOutputMetricImage, class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>
class otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >

Perform 2D block matching between two images.

This filter performs pixel-wise 2D block-matching between a pair of image. This is especially useful in the case of stereo pairs in epipolar geometry, where displacements corresponding to differences of elevation occur in the horizontal direction only (in that case, the exploration along the vertical direction can be disabled). Please note that only integer pixel displacement are explored. For finer results, consider up-sampling the input images or use the SubPixelDisparityImageFilter.

The block-matching metric itself is defined by a template functor on neighborhood iterators. A wide range of block-matching criterions can be implemented this way, but the default functor performs a simple SSD (Sum of Square Distances). The radius of the blocks can be set using the SetRadius() method. The filter will try to minimize the metric value by default. Setting the minimize flag to off using the MinimizeOff() method will make the filter try to maximize the metric.

Only a user defined area of disparities between the two images is explored, which can be set by using the SetMinimumHorizontalDisparity() , SetMinimumVerticalDisparity(), SetMaximumHorizontalDisparity() and SetMaximumVerticalDisparity() methods.

This filter has three outputs: the first is the metric image, which contains the metric optimum value corresponding to the estimated displacement. The second and last outputs are the horizontal and vertical disparity maps, which can be retrieved using the GetHorizontalDisparityOutput() and GetVerticalDisparityOutput() methods. They contain the horizontal and vertical local displacement between the two input images (displacement is given in pixels, from left image to right image).

Masks are not mandatory. A mask allows indicating pixels validity in either left or right image. Left and right masks can be used independently. If masks are used, only pixels whose mask values are strictly positive will be considered for disparity matching. The other will exhibit a null metric value and a disparity corresponding to the minimum allowed disparity.

The disparity exploration can also be reduced thanks to initial disparity maps. The user can provide initial disparity estimate (using the same image type and size as the output disparities), or global disparity values. Then an exploration radius indicates the disparity range to be explored around the initial estimate (global minimum and maximum values are still in use).

See also

FineRegistrationImageFilter

StereorectificationDisplacementFieldSource

SubPixelDisparityImageFilter

Definition at line 298 of file otbPixelWiseBlockMatchingImageFilter.h.

Member Typedef Documentation

BlockMatchingFunctorType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef TBlockMatchingFunctor otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::BlockMatchingFunctorType

Definition at line 318 of file otbPixelWiseBlockMatchingImageFilter.h.

ConstNeighborhoodIteratorType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef itk::ConstNeighborhoodIterator<TInputImage> otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::ConstNeighborhoodIteratorType

Definition at line 330 of file otbPixelWiseBlockMatchingImageFilter.h.

ConstPointer

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef itk::SmartPointer<const Self> otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::ConstPointer

Definition at line 305 of file otbPixelWiseBlockMatchingImageFilter.h.

DisparityPixelType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef OutputDisparityImageType::PixelType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::DisparityPixelType

Definition at line 328 of file otbPixelWiseBlockMatchingImageFilter.h.

IndexType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef InputImageType::IndexType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::IndexType

Definition at line 321 of file otbPixelWiseBlockMatchingImageFilter.h.

InputImageType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef TInputImage otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::InputImageType

Useful typedefs

Definition at line 311 of file otbPixelWiseBlockMatchingImageFilter.h.

InputMaskImageType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef TMaskImage otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::InputMaskImageType

Definition at line 317 of file otbPixelWiseBlockMatchingImageFilter.h.

MetricValueType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef TOutputMetricImage::ValueType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::MetricValueType

Definition at line 326 of file otbPixelWiseBlockMatchingImageFilter.h.

OutputDisparityImageType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef TOutputDisparityImage otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::OutputDisparityImageType

Definition at line 316 of file otbPixelWiseBlockMatchingImageFilter.h.

OutputMetricImageType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef TOutputMetricImage otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::OutputMetricImageType

Definition at line 315 of file otbPixelWiseBlockMatchingImageFilter.h.

Pointer

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef itk::SmartPointer<Self> otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::Pointer

Definition at line 304 of file otbPixelWiseBlockMatchingImageFilter.h.

PointType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef InputImageType::PointType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::PointType

Definition at line 324 of file otbPixelWiseBlockMatchingImageFilter.h.

RegionType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef InputImageType::RegionType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::RegionType

Definition at line 322 of file otbPixelWiseBlockMatchingImageFilter.h.

Self

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef PixelWiseBlockMatchingImageFilter otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::Self

Standard class typedef

Definition at line 302 of file otbPixelWiseBlockMatchingImageFilter.h.

SizeType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef InputImageType::SizeType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SizeType

Definition at line 320 of file otbPixelWiseBlockMatchingImageFilter.h.

SpacingType

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef InputImageType::SpacingType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SpacingType

Definition at line 323 of file otbPixelWiseBlockMatchingImageFilter.h.

Superclass

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

typedef itk::ImageToImageFilter<TInputImage, TOutputDisparityImage> otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::Superclass

Definition at line 303 of file otbPixelWiseBlockMatchingImageFilter.h.

Constructor & Destructor Documentation

PixelWiseBlockMatchingImageFilter() [1/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::PixelWiseBlockMatchingImageFilter

protected

Constructor

Definition at line 32 of file otbPixelWiseBlockMatchingImageFilter.hxx.

~PixelWiseBlockMatchingImageFilter()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::~PixelWiseBlockMatchingImageFilter

overrideprotected

Destructor

Definition at line 74 of file otbPixelWiseBlockMatchingImageFilter.hxx.

PixelWiseBlockMatchingImageFilter() [2/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::PixelWiseBlockMatchingImageFilter ( const Self &  )

privatedelete

The radius of the blocks

Member Function Documentation

BeforeThreadedGenerateData()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::BeforeThreadedGenerateData

overrideprotected

Before threaded generate data

Definition at line 453 of file otbPixelWiseBlockMatchingImageFilter.hxx.

ConvertFullToSubsampledRegion()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::RegionType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::ConvertFullToSubsampledRegion ( RegionType  full, unsigned int  step, IndexType  index  )

static

Conversion function between full and subsampled grid region

Definition at line 697 of file otbPixelWiseBlockMatchingImageFilter.hxx.

ConvertSubsampledToFullRegion()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::RegionType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::ConvertSubsampledToFullRegion ( RegionType  sub, unsigned int  step, IndexType  index  )

static

Conversion function between subsampled and full grid region

Definition at line 734 of file otbPixelWiseBlockMatchingImageFilter.hxx.

CreateAnother()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual::itk::LightObject::Pointer otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::CreateAnother

(

void

)

const

GenerateInputRequestedRegion()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GenerateInputRequestedRegion

overrideprotected

Generate input requested region

Definition at line 307 of file otbPixelWiseBlockMatchingImageFilter.hxx.

GenerateOutputInformation()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GenerateOutputInformation

overrideprotected

Generate output information

Definition at line 261 of file otbPixelWiseBlockMatchingImageFilter.hxx.

GetExplorationRadius()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const SizeType& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetExplorationRadius ( ) const

virtual

The radius of the blocks

GetFunctor() [1/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

BlockMatchingFunctorType& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetFunctor ( )

inline

Get the functor for parameters setting

Definition at line 418 of file otbPixelWiseBlockMatchingImageFilter.h.

GetFunctor() [2/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

const BlockMatchingFunctorType& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetFunctor ( ) const

inline

Get the functor (const version)

Definition at line 424 of file otbPixelWiseBlockMatchingImageFilter.h.

GetGridIndex()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const IndexType& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetGridIndex ( ) const

virtual

The radius of the blocks

GetHorizontalDisparityInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

const TOutputDisparityImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetHorizontalDisparityInput

Get the initial disparity fields

Definition at line 240 of file otbPixelWiseBlockMatchingImageFilter.hxx.

GetHorizontalDisparityOutput() [1/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

TOutputDisparityImage* otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetHorizontalDisparityOutput

(

)

The radius of the blocks

GetHorizontalDisparityOutput() [2/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

TOutputDisparityImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetHorizontalDisparityOutput

Get the disparity output

Definition at line 180 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetInitHorizontalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const int& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetInitHorizontalDisparity ( ) const

virtual

The radius of the blocks

GetInitVerticalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const int& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetInitVerticalDisparity ( ) const

virtual

The radius of the blocks

GetLeftInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

const TInputImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetLeftInput

Get the inputs

Definition at line 113 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetLeftMaskInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

const TMaskImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetLeftMaskInput

The radius of the blocks

Definition at line 135 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetMaximumHorizontalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const int& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMaximumHorizontalDisparity ( ) const

virtual

The radius of the blocks

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetMaximumVerticalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const int& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMaximumVerticalDisparity ( ) const

virtual

The radius of the blocks

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetMetricOutput() [1/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

TOutputMetricImage* otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMetricOutput

(

)

The radius of the blocks

GetMetricOutput() [2/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

TOutputMetricImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMetricOutput

Get the metric output

Definition at line 157 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetMinimize()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const bool& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMinimize ( ) const

virtual

The radius of the blocks

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetMinimumHorizontalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const int& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMinimumHorizontalDisparity ( ) const

virtual

The radius of the blocks

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetMinimumVerticalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const int& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetMinimumVerticalDisparity ( ) const

virtual

The radius of the blocks

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetNameOfClass()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const char* otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

GetRadius()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual const SizeType& otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetRadius ( ) const

virtual

The radius of the blocks

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetRightInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

const TInputImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetRightInput

The radius of the blocks

Definition at line 124 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetRightMaskInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

const TMaskImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetRightMaskInput

The radius of the blocks

Definition at line 146 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

GetStep()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual unsigned int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetStep ( )

virtual

The radius of the blocks

GetVerticalDisparityInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

const TOutputDisparityImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetVerticalDisparityInput

The radius of the blocks

Definition at line 251 of file otbPixelWiseBlockMatchingImageFilter.hxx.

GetVerticalDisparityOutput() [1/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

TOutputDisparityImage* otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetVerticalDisparityOutput

(

)

The radius of the blocks

GetVerticalDisparityOutput() [2/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

TOutputDisparityImage * otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::GetVerticalDisparityOutput

Get the disparity output

Definition at line 202 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Referenced by otb::SubPixelDisparityImageFilter< TInputImage, TOutputMetricImage, TDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInputsFromBlockMatchingFilter().

MinimizeOff()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::MinimizeOff ( )

virtual

The radius of the blocks

MinimizeOn()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::MinimizeOn ( )

virtual

The radius of the blocks

New()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

static Pointer otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::New ( )

static

Method for creation through the object factory.

operator=()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::operator= ( const Self &  )

private

The radius of the blocks

SetExplorationRadius()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetExplorationRadius ( SizeType  _arg )

virtual

Set/Get the exploration radius in the disparity space

SetGridIndex()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetGridIndex ( IndexType  _arg )

virtual

Set/Get macro for the grid start index

SetHorizontalDisparityInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetHorizontalDisparityInput

(

const TOutputDisparityImage *

hfield

)

Set initial horizontal disparity field (optional, override m_InitHorizontalDisparity)

Definition at line 223 of file otbPixelWiseBlockMatchingImageFilter.hxx.

SetInitHorizontalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInitHorizontalDisparity ( int  _arg )

virtual

Set/Get the initial horizontal disparity

SetInitVerticalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetInitVerticalDisparity ( int  _arg )

virtual

Set/Get the initial vertical disparity

SetLeftInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetLeftInput

(

const TInputImage *


)

Set left input

Definition at line 80 of file otbPixelWiseBlockMatchingImageFilter.hxx.

SetLeftMaskInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetLeftMaskInput

(

const TMaskImage *


)

Set mask input (optional)

Definition at line 96 of file otbPixelWiseBlockMatchingImageFilter.hxx.

SetMaximumHorizontalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetMaximumHorizontalDisparity ( int  _arg )

virtual

• Set/Get the maximum disparity to explore

SetMaximumVerticalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetMaximumVerticalDisparity ( int  _arg )

virtual

• Set/Get the maximum disparity to explore

SetMinimize()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetMinimize ( bool  _arg )

virtual

The radius of the blocks

SetMinimumHorizontalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetMinimumHorizontalDisparity ( int  _arg )

virtual

• Set/Get the minimum disparity to explore

SetMinimumVerticalDisparity()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetMinimumVerticalDisparity ( int  _arg )

virtual

• Set/Get the minimum disparity to explore

SetRadius() [1/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetRadius ( SizeType  _arg )

virtual

Set/Get the radius of the area on which metric is evaluated

SetRadius() [2/2]

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetRadius ( unsigned int  radius )

inline

Set unsigned int radius

Definition at line 368 of file otbPixelWiseBlockMatchingImageFilter.h.

SetRightInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetRightInput

(

const TInputImage *


)

Set right input

Definition at line 88 of file otbPixelWiseBlockMatchingImageFilter.hxx.

SetRightMaskInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetRightMaskInput

(

const TMaskImage *


)

Set right mask input (optional)

Definition at line 104 of file otbPixelWiseBlockMatchingImageFilter.hxx.

SetStep()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

virtual void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetStep ( unsigned int  _arg )

virtual

Set/Get macro for the subsampling step

SetVerticalDisparityInput()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::SetVerticalDisparityInput

(

const TOutputDisparityImage *

vfield

)

Set initial vertical disparity field (optional, override m_InitVerticalDisparity)

Definition at line 231 of file otbPixelWiseBlockMatchingImageFilter.hxx.

ThreadedGenerateData()

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage , class TMaskImage , class TBlockMatchingFunctor >

void otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::ThreadedGenerateData ( const RegionType &  outputRegionForThread, itk::ThreadIdType  threadId  )

overrideprotected

Threaded generate data

Definition at line 472 of file otbPixelWiseBlockMatchingImageFilter.hxx.

Member Data Documentation

m_ExplorationRadius

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

SizeType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_ExplorationRadius

private

The exploration radius for disparities (used if non null)

Definition at line 498 of file otbPixelWiseBlockMatchingImageFilter.h.

m_Functor

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

BlockMatchingFunctorType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_Functor

private

Block-matching functor

Definition at line 501 of file otbPixelWiseBlockMatchingImageFilter.h.

m_GridIndex

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

IndexType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_GridIndex

private

Starting index for the subsampled grid. The index is measured with respect to the input image grid Each coordinate shall lie in [0, m_Step-1]

Definition at line 517 of file otbPixelWiseBlockMatchingImageFilter.h.

m_InitHorizontalDisparity

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_InitHorizontalDisparity

private

Initial horizontal disparity (0 by default, used if an exploration radius is set and if no input horizontal disparity map is given)

Definition at line 505 of file otbPixelWiseBlockMatchingImageFilter.h.

m_InitVerticalDisparity

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_InitVerticalDisparity

private

Initial vertical disparity (0 by default, used if an exploration radius is set and if no input vertical disparity map is given)

Definition at line 509 of file otbPixelWiseBlockMatchingImageFilter.h.

m_MaximumHorizontalDisparity

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_MaximumHorizontalDisparity

private

The max disparity to explore

Definition at line 486 of file otbPixelWiseBlockMatchingImageFilter.h.

m_MaximumVerticalDisparity

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_MaximumVerticalDisparity

private

The max disparity to explore

Definition at line 492 of file otbPixelWiseBlockMatchingImageFilter.h.

m_Minimize

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

bool otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_Minimize

private

Should we minimize or maximize ?

Definition at line 495 of file otbPixelWiseBlockMatchingImageFilter.h.

m_MinimumHorizontalDisparity

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_MinimumHorizontalDisparity

private

The min disparity to explore

Definition at line 483 of file otbPixelWiseBlockMatchingImageFilter.h.

m_MinimumVerticalDisparity

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_MinimumVerticalDisparity

private

The min disparity to explore

Definition at line 489 of file otbPixelWiseBlockMatchingImageFilter.h.

m_Radius

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

SizeType otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_Radius

private

The radius of the blocks

Definition at line 480 of file otbPixelWiseBlockMatchingImageFilter.h.

m_Step

template<class TInputImage , class TOutputMetricImage , class TOutputDisparityImage = TOutputMetricImage, class TMaskImage = otb::Image<unsigned char>, class TBlockMatchingFunctor = Functor::SSDBlockMatching<TInputImage, TOutputMetricImage>>

unsigned int otb::PixelWiseBlockMatchingImageFilter< TInputImage, TOutputMetricImage, TOutputDisparityImage, TMaskImage, TBlockMatchingFunctor >::m_Step

private

Computation step : disparities are computed on locations of a subsampled grid

Definition at line 512 of file otbPixelWiseBlockMatchingImageFilter.h.

---

The documentation for this class was generated from the following files:

• otbPixelWiseBlockMatchingImageFilter.h
• otbPixelWiseBlockMatchingImageFilter.hxx
