OTB  5.0.0
Orfeo Toolbox
Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | Private Member Functions | Private Attributes | List of all members
otb::FilterFunctionValues Class Reference

#include <otbFilterFunctionValues.h>

+ Inheritance diagram for otb::FilterFunctionValues:

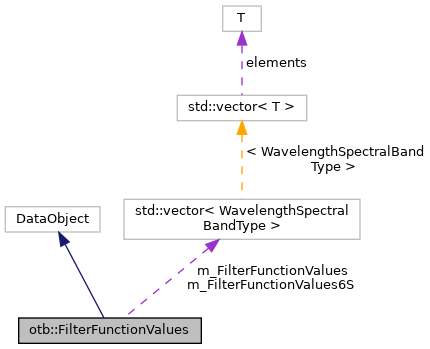

+ Collaboration diagram for otb::FilterFunctionValues:

Public Types

typedef itk::SmartPointer
< const Self
ConstPointer

typedef itk::SmartPointer< SelfPointer

typedef FilterFunctionValues Self

typedef itk::DataObject Superclass

typedef std::vector
< WavelengthSpectralBandType
ValuesVectorType

typedef float WavelengthSpectralBandType

- Public Types inherited from itk::DataObject
typedef SmartPointer< const SelfConstPointer

typedef std::string DataObjectIdentifierType

typedef std::vector< Pointer >
::size_type
DataObjectPointerArraySizeType

typedef SmartPointer< SelfPointer

typedef DataObject Self

typedef Object Superclass

- Public Types inherited from itk::Object
typedef SmartPointer< const SelfConstPointer

typedef SmartPointer< SelfPointer

typedef Object Self

typedef LightObject Superclass

- Public Types inherited from itk::LightObject
typedef SmartPointer< const SelfConstPointer

typedef SmartPointer< SelfPointer

typedef LightObject Self


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

WavelengthSpectralBandType GetCenterSpectralValue () const

const ValuesVectorTypeGetFilterFunctionValues () const

const ValuesVectorTypeGetFilterFunctionValues6S () const

virtual WavelengthSpectralBandType GetMaxSpectralValue ()

virtual WavelengthSpectralBandType GetMinSpectralValue ()

virtual const char * GetNameOfClass () const

virtual WavelengthSpectralBandType GetUserStep ()

void SetFilterFunctionValues (const ValuesVectorType &vect)

void SetFilterFunctionValues6S (const ValuesVectorType &vect)

virtual void SetMaxSpectralValue (WavelengthSpectralBandType _arg)

virtual void SetMinSpectralValue (WavelengthSpectralBandType _arg)

virtual void SetUserStep (WavelengthSpectralBandType _arg)

- Public Member Functions inherited from itk::DataObject
virtual void CopyInformation (const DataObject *)

virtual void DataHasBeenGenerated ()

void DisconnectPipeline ()

bool GetDataReleased () const

virtual const ModifiedTimeTypeGetPipelineMTime () const

virtual const RealTimeStampGetRealTimeStamp () const

virtual const bool & GetReleaseDataFlag () const

SmartPointerForwardReference
< ProcessObject
GetSource () const

DataObjectPointerArraySizeType GetSourceOutputIndex () const

const DataObjectIdentifierTypeGetSourceOutputName () const

virtual ModifiedTimeType GetUpdateMTime () const

virtual void Graft (const DataObject *)

virtual void Initialize ()

virtual void PrepareForNewData ()

virtual void PropagateRequestedRegion ()

void ReleaseData ()

virtual void ReleaseDataFlagOff ()

virtual void ReleaseDataFlagOn ()

virtual bool RequestedRegionIsOutsideOfTheBufferedRegion ()

virtual void ResetPipeline ()

void SetPipelineMTime (ModifiedTimeType time)

virtual void SetRealTimeStamp (RealTimeStamp _arg)

void SetReleaseDataFlag (bool flag)

virtual void SetRequestedRegion (const DataObject *)

virtual void SetRequestedRegionToLargestPossibleRegion ()

bool ShouldIReleaseData () const

virtual void Update ()

virtual void UpdateOutputData ()

virtual void UpdateOutputInformation ()

virtual bool VerifyRequestedRegion ()

- Public Member Functions inherited from itk::Object
unsigned long AddObserver (const EventObject &event, Command *)

unsigned long AddObserver (const EventObject &event, Command *) const

virtual void DebugOff () const

virtual void DebugOn () const

CommandGetCommand (unsigned long tag)

bool GetDebug () const

const MetaDataDictionaryGetMetaDataDictionary (void) const

MetaDataDictionaryGetMetaDataDictionary (void)

virtual ModifiedTimeType GetMTime () const

virtual const std::string & GetObjectName () const

virtual const TimeStampGetTimeStamp () const

bool HasObserver (const EventObject &event) const

void InvokeEvent (const EventObject &)

void InvokeEvent (const EventObject &) const

virtual void Modified () const

virtual void Register () const ITK_OVERRIDE

void RemoveAllObservers ()

void RemoveObserver (unsigned long tag)

void SetDebug (bool debugFlag) const

void SetMetaDataDictionary (const MetaDataDictionary &rhs)

virtual void SetObjectName (std::string _arg)

virtual void SetReferenceCount (int) ITK_OVERRIDE

virtual void UnRegister () const ITK_OVERRIDE

- Public Member Functions inherited from itk::LightObject
virtual void Delete ()

virtual int GetReferenceCount () const

 itkCloneMacro (Self)

void Print (std::ostream &os, Indent indent=0) const


Static Public Member Functions

static Pointer New ()

- Static Public Member Functions inherited from itk::DataObject
static bool GetGlobalReleaseDataFlag ()

static void GlobalReleaseDataFlagOff ()

static void GlobalReleaseDataFlagOn ()

static void SetGlobalReleaseDataFlag (bool val)

- Static Public Member Functions inherited from itk::Object
static bool GetGlobalWarningDisplay ()

static void GlobalWarningDisplayOff ()

static void GlobalWarningDisplayOn ()

static Pointer New ()

static void SetGlobalWarningDisplay (bool flag)

- Static Public Member Functions inherited from itk::LightObject
static void BreakOnError ()

static Pointer New ()


Protected Member Functions

 FilterFunctionValues ()

void PrintSelf (std::ostream &os, itk::Indent indent) const

 ~FilterFunctionValues ()

- Protected Member Functions inherited from itk::DataObject
 DataObject ()

virtual void PropagateResetPipeline ()

 ~DataObject ()

- Protected Member Functions inherited from itk::Object
 Object ()

bool PrintObservers (std::ostream &os, Indent indent) const

virtual void SetTimeStamp (const TimeStamp &time)

virtual ~Object ()

- Protected Member Functions inherited from itk::LightObject
virtual LightObject::Pointer InternalClone () const

 LightObject ()

virtual void PrintHeader (std::ostream &os, Indent indent) const

virtual void PrintTrailer (std::ostream &os, Indent indent) const

virtual ~LightObject ()


Private Member Functions

 FilterFunctionValues (const Self &)

void operator= (const Self &)


Private Attributes

ValuesVectorType m_FilterFunctionValues

ValuesVectorType m_FilterFunctionValues6S

WavelengthSpectralBandType m_MaxSpectralValue

WavelengthSpectralBandType m_MinSpectralValue

WavelengthSpectralBandType m_UserStep


Additional Inherited Members

- Protected Types inherited from itk::LightObject
typedef int InternalReferenceCountType

- Protected Attributes inherited from itk::LightObject
InternalReferenceCountType m_ReferenceCount

SimpleFastMutexLock m_ReferenceCountLock


Detailed Description

This class contains the values of the filter function for the processed spectral band.

The step between 2 values is 0.0025 micro meter. The class contains the min and the max value. Those value can be directly read from the image metadatas.

Examples:
Radiometry/AtmosphericCorrectionSequencement.cxx.

Definition at line 40 of file otbFilterFunctionValues.h.

Member Typedef Documentation

Definition at line 47 of file otbFilterFunctionValues.h.

Definition at line 46 of file otbFilterFunctionValues.h.

Standard typedefs

Definition at line 44 of file otbFilterFunctionValues.h.

Definition at line 45 of file otbFilterFunctionValues.h.

Definition at line 56 of file otbFilterFunctionValues.h.

Definition at line 53 of file otbFilterFunctionValues.h.

Constructor & Destructor Documentation

otb::FilterFunctionValues::FilterFunctionValues ( )
protected

Constructor

otb::FilterFunctionValues::~FilterFunctionValues ( )
inlineprotected

Destructor

Definition at line 110 of file otbFilterFunctionValues.h.

otb::FilterFunctionValues::FilterFunctionValues ( const Self )
private

Member Function Documentation

virtual::itk::LightObject::Pointer otb::FilterFunctionValues::CreateAnother ( void  ) const
virtual

Reimplemented from itk::Object.

WavelengthSpectralBandType otb::FilterFunctionValues::GetCenterSpectralValue ( ) const

Compute the center wavelength value for the filter

const ValuesVectorType& otb::FilterFunctionValues::GetFilterFunctionValues ( ) const
inline

Get vector that contains the filter function value.

Definition at line 66 of file otbFilterFunctionValues.h.

const ValuesVectorType& otb::FilterFunctionValues::GetFilterFunctionValues6S ( ) const
inline

Get vector that contains the filter function value 6S.

Definition at line 79 of file otbFilterFunctionValues.h.

virtual WavelengthSpectralBandType otb::FilterFunctionValues::GetMaxSpectralValue ( )
virtual

Get maximum spectral value. This value is automatically computed.

virtual WavelengthSpectralBandType otb::FilterFunctionValues::GetMinSpectralValue ( )
virtual

Get minimum spectral value.

virtual const char* otb::FilterFunctionValues::GetNameOfClass ( ) const
virtual

Type macro

Reimplemented from itk::DataObject.

virtual WavelengthSpectralBandType otb::FilterFunctionValues::GetUserStep ( )
virtual

Get user step between each wavelength spectral band values.

static Pointer otb::FilterFunctionValues::New ( )
static

Creation through object factory macro

void otb::FilterFunctionValues::operator= ( const Self )
private
void otb::FilterFunctionValues::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
protectedvirtual

PrintSelf method

Reimplemented from itk::DataObject.

void otb::FilterFunctionValues::SetFilterFunctionValues ( const ValuesVectorType vect)
inline

Set vector that contains the filter function value.

Definition at line 59 of file otbFilterFunctionValues.h.

void otb::FilterFunctionValues::SetFilterFunctionValues6S ( const ValuesVectorType vect)
inline

Get vector that contains the filter function value 6S.

Definition at line 72 of file otbFilterFunctionValues.h.

virtual void otb::FilterFunctionValues::SetMaxSpectralValue ( WavelengthSpectralBandType  _arg)
virtual

Set maximum spectral value. This value is automatically computed.

virtual void otb::FilterFunctionValues::SetMinSpectralValue ( WavelengthSpectralBandType  _arg)
virtual

Set minimum spectral value.

virtual void otb::FilterFunctionValues::SetUserStep ( WavelengthSpectralBandType  _arg)
virtual

Set user step between each wavelength spectral band values.

Member Data Documentation

ValuesVectorType otb::FilterFunctionValues::m_FilterFunctionValues
private

Vector that contains the filter function value.

Definition at line 120 of file otbFilterFunctionValues.h.

ValuesVectorType otb::FilterFunctionValues::m_FilterFunctionValues6S
private

Vector that contains the filter function value in 6S format (step of 0.0025 micro m). There values a computed by 6S. If the UserStep is 0.0025 micro m, then m_FilterFunctionValues is identical as m_FilterFunctionValues6S

Definition at line 125 of file otbFilterFunctionValues.h.

WavelengthSpectralBandType otb::FilterFunctionValues::m_MaxSpectralValue
private

Maximum spectral value (in micro m).

Definition at line 131 of file otbFilterFunctionValues.h.

WavelengthSpectralBandType otb::FilterFunctionValues::m_MinSpectralValue
private

Minimum spectral value (in micro m).

Definition at line 128 of file otbFilterFunctionValues.h.

WavelengthSpectralBandType otb::FilterFunctionValues::m_UserStep
private

User step between each wavelength spectral band values. (in micro micro m)

Definition at line 134 of file otbFilterFunctionValues.h.


The documentation for this class was generated from the following file:
