#include <otbBandsStatisticsAttributesLabelMapFilter.h>

Inheritance diagram for otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >:

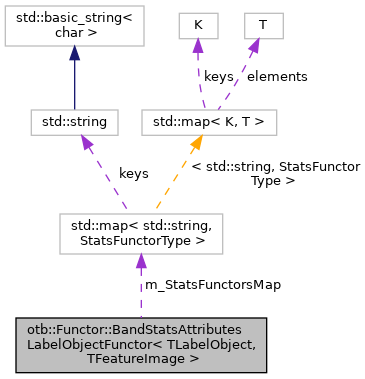

Collaboration diagram for otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >:

Public Types
typedef TFeatureImage::ConstPointer	FeatureImageConstPointer

typedef TFeatureImage::PixelType	FeatureType

typedef TLabelObject	LabelObjectType

typedef BandStatsAttributesLabelObjectFunctor	Self

typedef std::map< std::string, StatsFunctorType >	StatsFunctorsMapType

typedef StatisticsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >	StatsFunctorType

Public Member Functions
	BandStatsAttributesLabelObjectFunctor ()

virtual	~BandStatsAttributesLabelObjectFunctor ()

bool	m_ReducedAttributeSet

StatsFunctorsMapType	m_StatsFunctorsMap

bool	operator!= (const Self &self)

bool	operator== (const Self &self)

void	operator() (LabelObjectType *lo) const

void	AddFeature (const std::string &name, const TFeatureImage *img)

bool	RemoveFeature (const std::string &name)

const TFeatureImage *	GetFeatureImage (const std::string &name) const

void	ClearAllFeatures ()

unsigned int	GetNumberOfFeatures () const

void	SetReducedAttributeSet (bool flag)

bool	GetReducedAttributeSet () const

Detailed Description

template<class TLabelObject, class TFeatureImage>
class otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >

Functor to compute bands statistics attributes.

For one label object, this functors applies the StatisticsAttributesLabelObjectFunctor one each feature image provided through AddFeature()

As such, it allows computing in one pass statistics related to multiple features. It is used in the BandsStatisticsAttributesLabelMapFilter.

Features can be added, removed or cleared via the appropriate methods.

See also: BandsStatisticsAttributesLabelMapFilter; StatisticsAttributesLabelObjectFunctor

Definition at line 51 of file otbBandsStatisticsAttributesLabelMapFilter.h.

Member Typedef Documentation

◆ FeatureImageConstPointer

template<class TLabelObject , class TFeatureImage >

typedef TFeatureImage::ConstPointer otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::FeatureImageConstPointer

Feature image const pointer.

Definition at line 64 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ FeatureType

template<class TLabelObject , class TFeatureImage >

typedef TFeatureImage::PixelType otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::FeatureType

Typedef of the feature image type.

Definition at line 58 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ LabelObjectType

template<class TLabelObject , class TFeatureImage >

typedef TLabelObject otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::LabelObjectType

Typedef of the label object.

Definition at line 61 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ Self

template<class TLabelObject , class TFeatureImage >

typedef BandStatsAttributesLabelObjectFunctor otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::Self

Definition at line 55 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ StatsFunctorsMapType

template<class TLabelObject , class TFeatureImage >

typedef std::map<std::string, StatsFunctorType> otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::StatsFunctorsMapType

Map to store the functors.

Definition at line 70 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ StatsFunctorType

template<class TLabelObject , class TFeatureImage >

typedef StatisticsAttributesLabelObjectFunctor<TLabelObject, TFeatureImage> otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::StatsFunctorType

Statistics functor.

Definition at line 67 of file otbBandsStatisticsAttributesLabelMapFilter.h.

Constructor & Destructor Documentation

◆ BandStatsAttributesLabelObjectFunctor()

template<class TLabelObject , class TFeatureImage >

otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::BandStatsAttributesLabelObjectFunctor

Constructor

Definition at line 33 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ ~BandStatsAttributesLabelObjectFunctor()

template<class TLabelObject , class TFeatureImage >

otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::~BandStatsAttributesLabelObjectFunctor

virtual

Destructor

Definition at line 39 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

Member Function Documentation

◆ AddFeature()

template<class TLabelObject , class TFeatureImage >

void otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::AddFeature	(	const std::string &	name,
		const TFeatureImage *	img
	)

Add a feature with the given name

Definition at line 76 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ ClearAllFeatures()

template<class TLabelObject , class TFeatureImage >

void otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::ClearAllFeatures

Clear all the features

Definition at line 115 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ GetFeatureImage()

template<class TLabelObject , class TFeatureImage >

const TFeatureImage * otb::Functor::BandStatsAttributesLabelObjectFunctor< TLabelObject, TFeatureImage >::GetFeatureImage ( const std::string & name ) const

Get the feature image with this name

Definition at line 103 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.
