#include <otbGeometriesSet.h>

Inheritance diagram for otb::GeometriesSet:

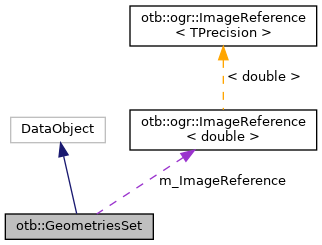

Collaboration diagram for otb::GeometriesSet:

Public Types
Standard ITK typedefs
typedef GeometriesSet	Self

typedef itk::DataObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
Standard macros
virtual const char *	GetNameOfClass () const

Geometries accessors
void	Set (ogr::DataSource::Pointer datasource)

void	Set (ogr::Layer layer)

Application of a command to a geometries set, through a visitor
template<typename Visitor >
Visitor::result_type	apply (Visitor const &visitor)

template<typename Visitor >
Visitor::result_type	apply (Visitor const &visitor) const

template<typename Visitor >
Visitor::result_type	apply (Visitor const &visitor, Self &visitable)

template<typename Visitor >
Visitor::result_type	apply (Visitor const &visitor, Self &visitable) const

bool	IsSet () const

Factory functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

static Pointer	New ()

static Pointer	New (ogr::DataSource::Pointer datasource)

static Pointer	New (ogr::Layer layer)

Image reference (spacing + origin)
typedef ogr::ImageReference< double >	ImageReference

typedef boost::variant< ogr::DataSource::Pointer, ogr::Layer >	AnyGeometriesSetType

AnyGeometriesSetType	m_GeometriesSet

ImageReference	m_ImageReference

void	SetImageReference (ImageReference const &imageReference)

ImageReference const &	GetImageReference () const

	GeometriesSet ()

	GeometriesSet (ogr::DataSource::Pointer datasource)

	GeometriesSet (ogr::Layer layer)

	~GeometriesSet () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Detailed Description

Common ITK type to manipulate any set of geometries: a otb::ogr::DataSource, or a otb::ogr::Layer.

Since: OTB v 3.14.0

Definition at line 38 of file otbGeometriesSet.h.

Member Typedef Documentation

◆ AnyGeometriesSetType

typedef boost::variant<ogr::DataSource::Pointer, ogr::Layer> otb::GeometriesSet::AnyGeometriesSetType

private

ImageReference setter.

Definition at line 179 of file otbGeometriesSet.h.

◆ ConstPointer

typedef itk::SmartPointer<const Self> otb::GeometriesSet::ConstPointer

Definition at line 47 of file otbGeometriesSet.h.

◆ ImageReference

typedef ogr::ImageReference<double> otb::GeometriesSet::ImageReference

ImageReference setter.

Definition at line 140 of file otbGeometriesSet.h.

◆ Pointer

typedef itk::SmartPointer<Self> otb::GeometriesSet::Pointer

Definition at line 46 of file otbGeometriesSet.h.

◆ Self

typedef GeometriesSet otb::GeometriesSet::Self

Definition at line 44 of file otbGeometriesSet.h.

◆ Superclass

typedef itk::DataObject otb::GeometriesSet::Superclass

Definition at line 45 of file otbGeometriesSet.h.

Constructor & Destructor Documentation

◆ GeometriesSet() [1/3]

otb::GeometriesSet::GeometriesSet ( )

protected

Default constructor. This actual geometries set is an in-memory otb::ogr::DataSource. It needs to be set to a set of geometries if you expect to serialize it or work on a otb::Layer.

When using this construction path, you'll likelly need to Set() the actual geometries set.

◆ GeometriesSet() [2/3]

otb::GeometriesSet::GeometriesSet ( ogr::DataSource::Pointer datasource )

protected

Init constructor from a otb::DataSource.

◆ GeometriesSet() [3/3]

otb::GeometriesSet::GeometriesSet ( ogr::Layer layer )

protected

Init constructor from a otb::Layer.

◆ ~GeometriesSet()

otb::GeometriesSet::~GeometriesSet ( )

overrideprotected

Destructor.

Member Function Documentation

◆ apply() [1/4]

template<typename Visitor >

Visitor::result_type otb::GeometriesSet::apply ( Visitor const & visitor )

inline

Unary visiting function to apply a visitor on any kind of geometies set.

As a GeometriesSet contains either a otb::ogr::DataSource, or a otb::ogr::Layer, one needs to apply a function on either kind of data. This can be done thanks to a specialization of boost::static_visitor<> that has a const operator() that takes either one (or two in case of binary visitors) otb::DataSource or otb::Layer as parameter(s).

Exceptions

Whatever is thrown by the actual visitor.

Template Parameters

Visitor type of the visitor functor.

Parameters

[in] visitor Functor visitor that shal derive from boost::static_visitor.

Definition at line 96 of file otbGeometriesSet.h.

◆ apply() [2/4]

template<typename Visitor >

Visitor::result_type otb::GeometriesSet::apply ( Visitor const & visitor ) const

inline

Unary visiting function to apply a visitor on any kind of geometies set.

As a GeometriesSet contains either a otb::ogr::DataSource, or a otb::ogr::Layer, one needs to apply a function on either kind of data. This can be done thanks to a specialization of boost::static_visitor<> that has a const operator() that takes either one (or two in case of binary visitors) otb::DataSource or otb::Layer as parameter(s).

Exceptions

Whatever is thrown by the actual visitor.

Template Parameters

Visitor type of the visitor functor.

Parameters

[in] visitor Functor visitor that shal derive from boost::static_visitor.

Definition at line 105 of file otbGeometriesSet.h.

◆ apply() [3/4]

template<typename Visitor >

Visitor::result_type otb::GeometriesSet::apply	(	Visitor const &	visitor,
		Self &	visitable
	)

inline

Binary visiting function to apply a visitor on any kind of geometies set. Unary visiting function to apply a visitor on any kind of geometies set.

As a GeometriesSet contains either a otb::ogr::DataSource, or a otb::ogr::Layer, one needs to apply a function on either kind of data. This can be done thanks to a specialization of boost::static_visitor<> that has a const operator() that takes either one (or two in case of binary visitors) otb::DataSource or otb::Layer as parameter(s).

Exceptions

Whatever is thrown by the actual visitor.

Template Parameters

Visitor type of the visitor functor.

Parameters

[in]	visitor	Functor visitor that shal derive from `boost::static_visitor`.
[in]	visitable	other geometries set to visit along side with the current geometries set instance.

Definition at line 117 of file otbGeometriesSet.h.

References m_GeometriesSet.

◆ apply() [4/4]

template<typename Visitor >

Visitor::result_type otb::GeometriesSet::apply	(	Visitor const &	visitor,
		Self &	visitable
	)		const

inline

Binary visiting function to apply a visitor on any kind of geometies set. Unary visiting function to apply a visitor on any kind of geometies set.

As a GeometriesSet contains either a otb::ogr::DataSource, or a otb::ogr::Layer, one needs to apply a function on either kind of data. This can be done thanks to a specialization of boost::static_visitor<> that has a const operator() that takes either one (or two in case of binary visitors) otb::DataSource or otb::Layer as parameter(s).

Exceptions

Whatever is thrown by the actual visitor.

Template Parameters

Visitor type of the visitor functor.

Parameters

[in]	visitor	Functor visitor that shal derive from `boost::static_visitor`.
[in]	visitable	other geometries set to visit along side with the current geometries set instance.

Definition at line 126 of file otbGeometriesSet.h.

References m_GeometriesSet.

◆ CreateAnother()

virtual::itk::LightObject::Pointer otb::GeometriesSet::CreateAnother ( void ) const

ITK method for creation through the object factory.

◆ GetImageReference()

ImageReference const& otb::GeometriesSet::GetImageReference ( ) const

inline

ImageReference getter.

Definition at line 149 of file otbGeometriesSet.h.

◆ GetNameOfClass()

virtual const char* otb::GeometriesSet::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

◆ IsSet()

bool otb::GeometriesSet::IsSet ( ) const

Does it contain a geometries set ?.

◆ New() [1/3]

static Pointer otb::GeometriesSet::New ( )

static

ITK method for creation through the object factory.

◆ New() [2/3]

static Pointer otb::GeometriesSet::New ( ogr::DataSource::Pointer datasource )

static

Direct builder from an existing otb::DataSource.

◆ New() [3/3]

static Pointer otb::GeometriesSet::New ( ogr::Layer layer )

static

Direct builder from an existing otb::Layer.

◆ PrintSelf()

void otb::GeometriesSet::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Prints self to stream.

◆ Set() [1/2]

void otb::GeometriesSet::Set ( ogr::DataSource::Pointer datasource )

◆ Set() [2/2]

void otb::GeometriesSet::Set ( ogr::Layer layer )

◆ SetImageReference()

void otb::GeometriesSet::SetImageReference ( ImageReference const & imageReference )

inline

ImageReference setter.

Definition at line 143 of file otbGeometriesSet.h.

Member Data Documentation

◆ m_GeometriesSet

AnyGeometriesSetType otb::GeometriesSet::m_GeometriesSet

private

ImageReference setter.

Definition at line 180 of file otbGeometriesSet.h.

Referenced by apply().

◆ m_ImageReference

ImageReference otb::GeometriesSet::m_ImageReference

private

ImageReference setter.

Definition at line 181 of file otbGeometriesSet.h.

The documentation for this class was generated from the following file:

otbGeometriesSet.h
