otb::HillShadingFilter< TInputImage, TOutputImage > Class Template Reference

#include <otbHillShadingFilter.h>

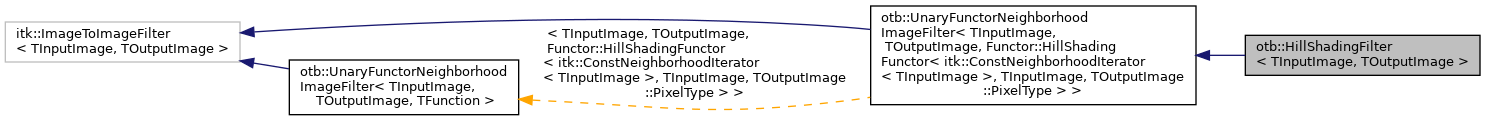

+ Inheritance diagram for otb::HillShadingFilter< TInputImage, TOutputImage >:

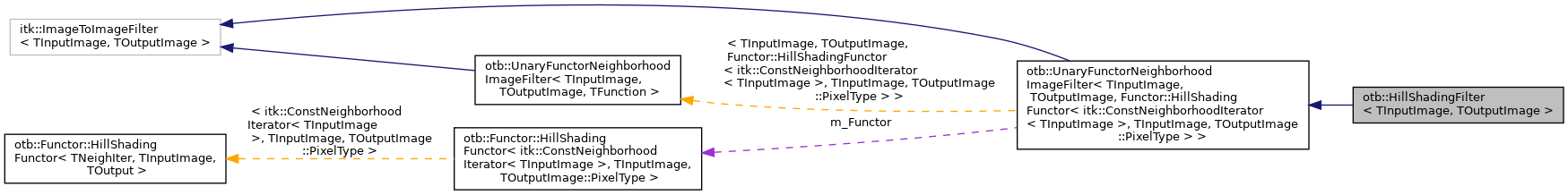

+ Collaboration diagram for otb::HillShadingFilter< TInputImage, TOutputImage >:

Public Types

typedef itk::SmartPointer< const SelfConstPointer

typedef itk::SmartPointer< SelfPointer

typedef HillShadingFilter Self

- Public Types inherited from otb::UnaryFunctorNeighborhoodImageFilter< TInputImage, TOutputImage, Functor::HillShadingFunctor< itk::ConstNeighborhoodIterator< TInputImage >, TInputImage, TOutputImage::PixelType > >
typedef itk::SmartPointer< const SelfConstPointer

typedef Functor::HillShadingFunctor< itk::ConstNeighborhoodIterator< TInputImage >, TInputImage, TOutputImage::PixelType > FunctorType

typedef InputImageType::PixelType InputImagePixelType

typedef InputImageType::ConstPointer InputImagePointer

typedef InputImageType::RegionType InputImageRegionType

typedef InputImageType::SizeType InputImageSizeType

typedef Superclass::InputImageType InputImageType

typedef OutputImageType::PixelType OutputImagePixelType

typedef OutputImageType::Pointer OutputImagePointer

typedef OutputImageType::RegionType OutputImageRegionType

typedef Superclass::OutputImageType OutputImageType

typedef itk::SmartPointer< SelfPointer

typedef itk::ProcessObject ProcessObjectType

typedef UnaryFunctorNeighborhoodImageFilter Self

typedef itk::ImageToImageFilter< TInputImage, TOutputImage > Superclass

typedef itk::ConstNeighborhoodIterator< TInputImage > NeighborhoodIteratorType

typedef NeighborhoodIteratorType::RadiusType RadiusType

typedef unsigned char RadiusSizeType


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

double GetAzimuthLight () const

double GetElevationLight () const

virtual const char * GetNameOfClass () const

void SetAzimuthLight (double az)

void SetElevationLight (double el)

- Public Member Functions inherited from otb::UnaryFunctorNeighborhoodImageFilter< TInputImage, TOutputImage, Functor::HillShadingFunctor< itk::ConstNeighborhoodIterator< TInputImage >, TInputImage, TOutputImage::PixelType > >
virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

virtual void SetRadius (InputImageSizeType _arg)

void SetRadius (unsigned int radius)

virtual InputImageSizeType GetRadius ()

FunctorTypeGetFunctor ()

const FunctorTypeGetFunctor () const

void SetFunctor (const FunctorType &functor)


Static Public Member Functions

static Pointer New ()

- Static Public Member Functions inherited from otb::UnaryFunctorNeighborhoodImageFilter< TInputImage, TOutputImage, Functor::HillShadingFunctor< itk::ConstNeighborhoodIterator< TInputImage >, TInputImage, TOutputImage::PixelType > >
static Pointer New ()


Protected Member Functions

 HillShadingFilter ()

 ~HillShadingFilter () override

- Protected Member Functions inherited from otb::UnaryFunctorNeighborhoodImageFilter< TInputImage, TOutputImage, Functor::HillShadingFunctor< itk::ConstNeighborhoodIterator< TInputImage >, TInputImage, TOutputImage::PixelType > >
 UnaryFunctorNeighborhoodImageFilter ()

 ~UnaryFunctorNeighborhoodImageFilter () override

void ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override

void GenerateInputRequestedRegion (void) override


Private Member Functions

 HillShadingFilter (const Self &)=delete

void operator= (const Self &)=delete


Detailed Description

template<class TInputImage, class TOutputImage>
class otb::HillShadingFilter< TInputImage, TOutputImage >

Filter to compute the lambertian of a surface given as an image.

The light source is assumed to be at a given elevation and azimuth (by default $ \pi/4 $ and $ \pi/6 $ respectively). This is used to generate hill shading representation of relief. The output is a value between 0 and 1.

Examples
BasicFilters/HillShadingExample.cxx.

Definition at line 42 of file otbHillShadingFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage , class TOutputImage >
typedef itk::SmartPointer<const Self> otb::HillShadingFilter< TInputImage, TOutputImage >::ConstPointer

Definition at line 52 of file otbHillShadingFilter.h.

◆ Pointer

template<class TInputImage , class TOutputImage >
typedef itk::SmartPointer<Self> otb::HillShadingFilter< TInputImage, TOutputImage >::Pointer

Definition at line 51 of file otbHillShadingFilter.h.

◆ Self

template<class TInputImage , class TOutputImage >
typedef HillShadingFilter otb::HillShadingFilter< TInputImage, TOutputImage >::Self

Standard class typedefs.

Definition at line 49 of file otbHillShadingFilter.h.

Constructor & Destructor Documentation

◆ HillShadingFilter() [1/2]

template<class TInputImage , class TOutputImage >
otb::HillShadingFilter< TInputImage, TOutputImage >::HillShadingFilter ( )
inlineprotected

Definition at line 81 of file otbHillShadingFilter.h.

◆ ~HillShadingFilter()

template<class TInputImage , class TOutputImage >
otb::HillShadingFilter< TInputImage, TOutputImage >::~HillShadingFilter ( )
inlineoverrideprotected

Definition at line 84 of file otbHillShadingFilter.h.

◆ HillShadingFilter() [2/2]

template<class TInputImage , class TOutputImage >
otb::HillShadingFilter< TInputImage, TOutputImage >::HillShadingFilter ( const Self )
privatedelete

Member Function Documentation

◆ CreateAnother()

template<class TInputImage , class TOutputImage >
virtual::itk::LightObject::Pointer otb::HillShadingFilter< TInputImage, TOutputImage >::CreateAnother ( void  ) const

◆ GetAzimuthLight()

template<class TInputImage , class TOutputImage >
double otb::HillShadingFilter< TInputImage, TOutputImage >::GetAzimuthLight ( ) const
inline

Definition at line 60 of file otbHillShadingFilter.h.

◆ GetElevationLight()

template<class TInputImage , class TOutputImage >
double otb::HillShadingFilter< TInputImage, TOutputImage >::GetElevationLight ( ) const
inline

Definition at line 70 of file otbHillShadingFilter.h.

◆ GetNameOfClass()

template<class TInputImage , class TOutputImage >
virtual const char* otb::HillShadingFilter< TInputImage, TOutputImage >::GetNameOfClass ( ) const
virtual

Run-time type information (and related methods).

◆ New()

template<class TInputImage , class TOutputImage >
static Pointer otb::HillShadingFilter< TInputImage, TOutputImage >::New ( )
static

Method for creation through the object factory.

◆ operator=()

template<class TInputImage , class TOutputImage >
void otb::HillShadingFilter< TInputImage, TOutputImage >::operator= ( const Self )
privatedelete

◆ SetAzimuthLight()

template<class TInputImage , class TOutputImage >
void otb::HillShadingFilter< TInputImage, TOutputImage >::SetAzimuthLight ( double  az)
inline

Definition at line 65 of file otbHillShadingFilter.h.

◆ SetElevationLight()

template<class TInputImage , class TOutputImage >
void otb::HillShadingFilter< TInputImage, TOutputImage >::SetElevationLight ( double  el)
inline

Definition at line 75 of file otbHillShadingFilter.h.


The documentation for this class was generated from the following file:
