otb::ImageRegionAdaptativeSplitter< VImageDimension > Class Template Reference

#include <otbImageRegionAdaptativeSplitter.h>

Inheritance diagram for otb::ImageRegionAdaptativeSplitter< VImageDimension >:

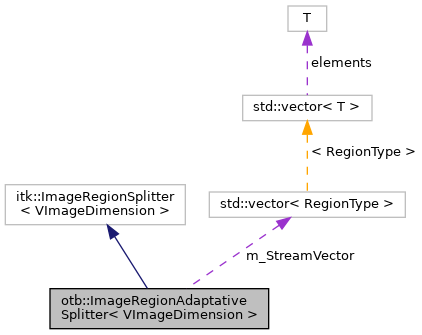

Collaboration diagram for otb::ImageRegionAdaptativeSplitter< VImageDimension >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::Index< VImageDimension >	IndexType
typedef IndexType::IndexValueType	IndexValueType
typedef itk::SmartPointer< Self >	Pointer
typedef itk::ImageRegion< VImageDimension >	RegionType
typedef ImageRegionAdaptativeSplitter	Self
typedef itk::Size< VImageDimension >	SizeType
typedef SizeType::SizeValueType	SizeValueType
typedef std::vector< RegionType >	StreamVectorType
typedef itk::ImageRegionSplitter< VImageDimension >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const RegionType &	GetImageRegion () const
virtual const char *	GetNameOfClass () const
unsigned int	GetNumberOfSplits (const RegionType &region, unsigned int requestedNumber) override
virtual const unsigned int &	GetRequestedNumberOfSplits () const
RegionType	GetSplit (unsigned int i, unsigned int numberOfPieces, const RegionType &region) override
virtual const SizeType &	GetTileHint () const
void	Modified () const override
virtual void	SetImageRegion (RegionType _arg)
virtual void	SetRequestedNumberOfSplits (unsigned int _arg)
virtual void	SetTileHint (SizeType _arg)

Static Public Member Functions
static unsigned int	GetImageDimension ()
static Pointer	New ()

Static Public Attributes
static const unsigned int	ImageDimension = VImageDimension

Protected Member Functions
	ImageRegionAdaptativeSplitter ()
	~ImageRegionAdaptativeSplitter () override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Private Member Functions
void	EstimateSplitMap ()
	ImageRegionAdaptativeSplitter (const ImageRegionAdaptativeSplitter &)=delete
void	operator= (const ImageRegionAdaptativeSplitter &)=delete

Private Attributes
RegionType	m_ImageRegion
bool	m_IsUpToDate
itk::SimpleFastMutexLock	m_Lock
unsigned int	m_RequestedNumberOfSplits
StreamVectorType	m_StreamVector
SizeType	m_TileHint {0,0}

Detailed Description

template<unsigned int VImageDimension>
class otb::ImageRegionAdaptativeSplitter< VImageDimension >

Definition at line 65 of file otbImageRegionAdaptativeSplitter.h.

Member Typedef Documentation

ConstPointer

template<unsigned int VImageDimension>

typedef itk::SmartPointer<const Self> otb::ImageRegionAdaptativeSplitter< VImageDimension >::ConstPointer

Definition at line 72 of file otbImageRegionAdaptativeSplitter.h.

IndexType

template<unsigned int VImageDimension>

typedef itk::Index<VImageDimension> otb::ImageRegionAdaptativeSplitter< VImageDimension >::IndexType

Index typedef support. An index is used to access pixel values.

Definition at line 90 of file otbImageRegionAdaptativeSplitter.h.

IndexValueType

template<unsigned int VImageDimension>

typedef IndexType::IndexValueType otb::ImageRegionAdaptativeSplitter< VImageDimension >::IndexValueType

Definition at line 91 of file otbImageRegionAdaptativeSplitter.h.

Pointer

template<unsigned int VImageDimension>

typedef itk::SmartPointer<Self> otb::ImageRegionAdaptativeSplitter< VImageDimension >::Pointer

Definition at line 71 of file otbImageRegionAdaptativeSplitter.h.

RegionType

template<unsigned int VImageDimension>

typedef itk::ImageRegion<VImageDimension> otb::ImageRegionAdaptativeSplitter< VImageDimension >::RegionType

Region typedef support.

Definition at line 98 of file otbImageRegionAdaptativeSplitter.h.

Self

template<unsigned int VImageDimension>

typedef ImageRegionAdaptativeSplitter otb::ImageRegionAdaptativeSplitter< VImageDimension >::Self

Standard class typedefs.

Definition at line 69 of file otbImageRegionAdaptativeSplitter.h.

SizeType

template<unsigned int VImageDimension>

typedef itk::Size<VImageDimension> otb::ImageRegionAdaptativeSplitter< VImageDimension >::SizeType

Size typedef support. A size is used to define region bounds.

Definition at line 94 of file otbImageRegionAdaptativeSplitter.h.

SizeValueType

template<unsigned int VImageDimension>

typedef SizeType::SizeValueType otb::ImageRegionAdaptativeSplitter< VImageDimension >::SizeValueType

Definition at line 95 of file otbImageRegionAdaptativeSplitter.h.

StreamVectorType

template<unsigned int VImageDimension>

typedef std::vector<RegionType> otb::ImageRegionAdaptativeSplitter< VImageDimension >::StreamVectorType

Definition at line 100 of file otbImageRegionAdaptativeSplitter.h.

Superclass

template<unsigned int VImageDimension>

typedef itk::ImageRegionSplitter<VImageDimension> otb::ImageRegionAdaptativeSplitter< VImageDimension >::Superclass

Definition at line 70 of file otbImageRegionAdaptativeSplitter.h.

Constructor & Destructor Documentation

ImageRegionAdaptativeSplitter() [1/2]

template<unsigned int VImageDimension>

otb::ImageRegionAdaptativeSplitter< VImageDimension >::ImageRegionAdaptativeSplitter ( )

inlineprotected

Definition at line 143 of file otbImageRegionAdaptativeSplitter.h.

~ImageRegionAdaptativeSplitter()

template<unsigned int VImageDimension>

otb::ImageRegionAdaptativeSplitter< VImageDimension >::~ImageRegionAdaptativeSplitter ( )

inlineoverrideprotected

Definition at line 147 of file otbImageRegionAdaptativeSplitter.h.

ImageRegionAdaptativeSplitter() [2/2]

template<unsigned int VImageDimension>

otb::ImageRegionAdaptativeSplitter< VImageDimension >::ImageRegionAdaptativeSplitter ( const ImageRegionAdaptativeSplitter< VImageDimension > &  )

privatedelete

Member Function Documentation

CreateAnother()

template<unsigned int VImageDimension>

virtual::itk::LightObject::Pointer otb::ImageRegionAdaptativeSplitter< VImageDimension >::CreateAnother

(

void

)

const

EstimateSplitMap()

template<unsigned int VImageDimension>

void otb::ImageRegionAdaptativeSplitter< VImageDimension >::EstimateSplitMap

private

This methods actually estimate the split map and stores it in a vector

Definition at line 75 of file otbImageRegionAdaptativeSplitter.hxx.

References otb::ImageRegionSquareTileSplitter< VImageDimension >::GetNumberOfSplits(), otb::ImageRegionSquareTileSplitter< VImageDimension >::GetSplit(), and otb::ImageRegionSquareTileSplitter< VImageDimension >::New().

GetImageDimension()

template<unsigned int VImageDimension>

static unsigned int otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetImageDimension ( )

inlinestatic

Dimension of the image available at run time.

Definition at line 84 of file otbImageRegionAdaptativeSplitter.h.

GetImageRegion()

template<unsigned int VImageDimension>

virtual const RegionType& otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetImageRegion ( ) const

virtual

Get the ImageRegion parameter

GetNameOfClass()

template<unsigned int VImageDimension>

virtual const char* otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

GetNumberOfSplits()

template<unsigned int VImageDimension>

unsigned int otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetNumberOfSplits ( const RegionType &  region, unsigned int  requestedNumber  )

override

Calling this method will set the image region and the requested number of splits, and call the EstimateSplitMap() method if necessary.

Definition at line 35 of file otbImageRegionAdaptativeSplitter.hxx.

GetRequestedNumberOfSplits()

template<unsigned int VImageDimension>

virtual const unsigned int& otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetRequestedNumberOfSplits ( ) const

virtual

Get the requested number of splits parameter

GetSplit()

template<unsigned int VImageDimension>

itk::ImageRegion< VImageDimension > otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetSplit ( unsigned int  i, unsigned int  numberOfPieces, const RegionType &  region  )

override

Calling this method will set the image region and the requested number of splits, and call the EstimateSplitMap() method if necessary.

Definition at line 55 of file otbImageRegionAdaptativeSplitter.hxx.

GetTileHint()

template<unsigned int VImageDimension>

virtual const SizeType& otb::ImageRegionAdaptativeSplitter< VImageDimension >::GetTileHint ( ) const

virtual

Get the TileHint parameter

Modified()

template<unsigned int VImageDimension>

void otb::ImageRegionAdaptativeSplitter< VImageDimension >::Modified ( ) const

inlineoverride

Make the Modified() method update the IsUpToDate flag

Definition at line 133 of file otbImageRegionAdaptativeSplitter.h.

New()

template<unsigned int VImageDimension>

static Pointer otb::ImageRegionAdaptativeSplitter< VImageDimension >::New ( )

static

Method for creation through the object factory.

operator=()

template<unsigned int VImageDimension>

void otb::ImageRegionAdaptativeSplitter< VImageDimension >::operator= ( const ImageRegionAdaptativeSplitter< VImageDimension > &  )

privatedelete

PrintSelf()

template<unsigned int VImageDimension>

void otb::ImageRegionAdaptativeSplitter< VImageDimension >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

Definition at line 252 of file otbImageRegionAdaptativeSplitter.hxx.

SetImageRegion()

template<unsigned int VImageDimension>

virtual void otb::ImageRegionAdaptativeSplitter< VImageDimension >::SetImageRegion ( RegionType  _arg )

virtual

Set the ImageRegion parameter

SetRequestedNumberOfSplits()

template<unsigned int VImageDimension>

virtual void otb::ImageRegionAdaptativeSplitter< VImageDimension >::SetRequestedNumberOfSplits ( unsigned int  _arg )

virtual

Set the requested number of splits parameter

SetTileHint()

template<unsigned int VImageDimension>

virtual void otb::ImageRegionAdaptativeSplitter< VImageDimension >::SetTileHint ( SizeType  _arg )

virtual

Set the TileHint parameter

Member Data Documentation

ImageDimension

template<unsigned int VImageDimension>

const unsigned int otb::ImageRegionAdaptativeSplitter< VImageDimension >::ImageDimension = VImageDimension

static

Dimension of the image available at compile time.

Definition at line 81 of file otbImageRegionAdaptativeSplitter.h.

m_ImageRegion

template<unsigned int VImageDimension>

RegionType otb::ImageRegionAdaptativeSplitter< VImageDimension >::m_ImageRegion

private

Definition at line 164 of file otbImageRegionAdaptativeSplitter.h.

m_IsUpToDate

template<unsigned int VImageDimension>

bool otb::ImageRegionAdaptativeSplitter< VImageDimension >::m_IsUpToDate

mutableprivate

Definition at line 173 of file otbImageRegionAdaptativeSplitter.h.

m_Lock

template<unsigned int VImageDimension>

itk::SimpleFastMutexLock otb::ImageRegionAdaptativeSplitter< VImageDimension >::m_Lock

private

Definition at line 176 of file otbImageRegionAdaptativeSplitter.h.

m_RequestedNumberOfSplits

template<unsigned int VImageDimension>

unsigned int otb::ImageRegionAdaptativeSplitter< VImageDimension >::m_RequestedNumberOfSplits

private

Definition at line 167 of file otbImageRegionAdaptativeSplitter.h.

m_StreamVector

template<unsigned int VImageDimension>

StreamVectorType otb::ImageRegionAdaptativeSplitter< VImageDimension >::m_StreamVector

private

Definition at line 170 of file otbImageRegionAdaptativeSplitter.h.

m_TileHint

template<unsigned int VImageDimension>

SizeType otb::ImageRegionAdaptativeSplitter< VImageDimension >::m_TileHint {0,0}

private

Definition at line 161 of file otbImageRegionAdaptativeSplitter.h.

---

The documentation for this class was generated from the following files:

• otbImageRegionAdaptativeSplitter.h
• otbImageRegionAdaptativeSplitter.hxx
