otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer > Class Template Reference

#include <otbListSampleToVariableDimensionHistogramGenerator.h>

Inheritance diagram for otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >:

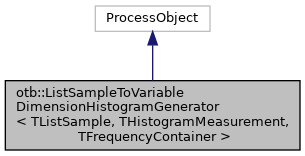

Collaboration diagram for otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::DataObjectPointer	DataObjectPointer
typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType
typedef itk::NumericTraits< THistogramMeasurement >::RealType	HistogramMeasurementRealType
typedef HistogramType::SizeType	HistogramSizeType
typedef itk::Statistics::Histogram< HistogramMeasurementRealType, TFrequencyContainer >	HistogramType
typedef TListSample	ListSampleType
typedef HistogramType::MeasurementVectorType	MeasurementVectorType
typedef itk::SmartPointer< Self >	Pointer
typedef ListSampleToVariableDimensionHistogramGenerator	Self
typedef itk::ProcessObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const bool &	GetAutoMinMax () const
const ListSampleType *	GetListSample () const
virtual const char *	GetNameOfClass () const
const HistogramType *	GetOutput ()
virtual void	SetAutoMinMax (bool _arg)
void	SetHistogramMax (const MeasurementVectorType &histogramMax)
void	SetHistogramMin (const MeasurementVectorType &histogramMin)
void	SetListSample (const ListSampleType *inputlist)
void	SetMarginalScale (float scale)
void	SetNumberOfBins (HistogramSizeType sizes)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
void	GenerateData () override
	ListSampleToVariableDimensionHistogramGenerator ()
DataObjectPointer	MakeOutput (DataObjectPointerArraySizeType idx) override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~ListSampleToVariableDimensionHistogramGenerator () override

Private Attributes
bool	m_AutoMinMax
MeasurementVectorType	m_HistogramMax
MeasurementVectorType	m_HistogramMin
float	m_MarginalScale
HistogramSizeType	m_Sizes {0,0}

Detailed Description

template<class TListSample, class THistogramMeasurement, class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>
class otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >

Generates a VariableDimensionHistogram from a ListSample.

This class is a fork from itk::ListSampleToHistogramGenerator adapted to produce VariableDimensionHistogram, whose dimension can be chosen at runtime.

Since the MeasurementVectorSize template parameter is no longer needed, it has been removed.

For more information, please refer to the ListSampleToHistogramGenerator class documentation.

See also

VariableDimensionHistogram, ListSample, ListSampleToHistogramGenerator

Definition at line 50 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Member Typedef Documentation

ConstPointer

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef itk::SmartPointer<const Self> otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ConstPointer

Definition at line 57 of file otbListSampleToVariableDimensionHistogramGenerator.h.

DataObjectPointer

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef Superclass::DataObjectPointer otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::DataObjectPointer

DataObject typedef

Definition at line 77 of file otbListSampleToVariableDimensionHistogramGenerator.h.

DataObjectPointerArraySizeType

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef itk::ProcessObject::DataObjectPointerArraySizeType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::DataObjectPointerArraySizeType

Definition at line 78 of file otbListSampleToVariableDimensionHistogramGenerator.h.

HistogramMeasurementRealType

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef itk::NumericTraits<THistogramMeasurement>::RealType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::HistogramMeasurementRealType

Type needed for defining the limits of the histogram bins

Definition at line 69 of file otbListSampleToVariableDimensionHistogramGenerator.h.

HistogramSizeType

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef HistogramType::SizeType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::HistogramSizeType

Definition at line 73 of file otbListSampleToVariableDimensionHistogramGenerator.h.

HistogramType

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef itk::Statistics::Histogram<HistogramMeasurementRealType, TFrequencyContainer> otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::HistogramType

Definition at line 71 of file otbListSampleToVariableDimensionHistogramGenerator.h.

ListSampleType

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef TListSample otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ListSampleType

typedef the ListSampleType

Definition at line 63 of file otbListSampleToVariableDimensionHistogramGenerator.h.

MeasurementVectorType

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef HistogramType::MeasurementVectorType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::MeasurementVectorType

Definition at line 74 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Pointer

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef itk::SmartPointer<Self> otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::Pointer

Definition at line 56 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Self

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef ListSampleToVariableDimensionHistogramGenerator otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::Self

Standard typedefs

Definition at line 54 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Superclass

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

typedef itk::ProcessObject otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::Superclass

Definition at line 55 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Constructor & Destructor Documentation

ListSampleToVariableDimensionHistogramGenerator()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ListSampleToVariableDimensionHistogramGenerator

protected

Definition at line 33 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

References otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_AutoMinMax, otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_MarginalScale, and otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::MakeOutput().

~ListSampleToVariableDimensionHistogramGenerator()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::~ListSampleToVariableDimensionHistogramGenerator ( )

inlineoverrideprotected

Definition at line 114 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Member Function Documentation

CreateAnother()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

virtual::itk::LightObject::Pointer otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::CreateAnother

(

void

)

const

GenerateData()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::GenerateData

overrideprotected

Definition at line 86 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

References otbMsgDebugMacro, and otbMsgDevMacro.

GetAutoMinMax()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

virtual const bool& otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::GetAutoMinMax ( ) const

virtual

GetListSample()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

const ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ListSampleType * otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::GetListSample

Definition at line 56 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

GetNameOfClass()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

virtual const char* otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

GetOutput()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

const ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::HistogramType * otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::GetOutput

Definition at line 68 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

MakeOutput()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::DataObjectPointer otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::MakeOutput ( DataObjectPointerArraySizeType  idx )

overrideprotected

Definition at line 76 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

Referenced by otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ListSampleToVariableDimensionHistogramGenerator().

New()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

static Pointer otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::New ( )

static

Method for creation through the object factory.

PrintSelf()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

Definition at line 211 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

SetAutoMinMax()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

virtual void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::SetAutoMinMax ( bool  _arg )

virtual

SetHistogramMax()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::SetHistogramMax ( const MeasurementVectorType &  histogramMax )

inline

Definition at line 106 of file otbListSampleToVariableDimensionHistogramGenerator.h.

SetHistogramMin()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::SetHistogramMin ( const MeasurementVectorType &  histogramMin )

inline

Definition at line 100 of file otbListSampleToVariableDimensionHistogramGenerator.h.

SetListSample()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer >

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::SetListSample

(

const ListSampleType *

inputlist

)

Definition at line 47 of file otbListSampleToVariableDimensionHistogramGenerator.hxx.

SetMarginalScale()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::SetMarginalScale ( float  scale )

inline

Definition at line 87 of file otbListSampleToVariableDimensionHistogramGenerator.h.

SetNumberOfBins()

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

void otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::SetNumberOfBins ( HistogramSizeType  sizes )

inline

Definition at line 92 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Member Data Documentation

m_AutoMinMax

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

bool otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_AutoMinMax

private

Definition at line 127 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Referenced by otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ListSampleToVariableDimensionHistogramGenerator().

m_HistogramMax

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

MeasurementVectorType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_HistogramMax

private

Definition at line 126 of file otbListSampleToVariableDimensionHistogramGenerator.h.

m_HistogramMin

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

MeasurementVectorType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_HistogramMin

private

Definition at line 125 of file otbListSampleToVariableDimensionHistogramGenerator.h.

m_MarginalScale

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

float otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_MarginalScale

private

Definition at line 124 of file otbListSampleToVariableDimensionHistogramGenerator.h.

Referenced by otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::ListSampleToVariableDimensionHistogramGenerator().

m_Sizes

template<class TListSample , class THistogramMeasurement , class TFrequencyContainer = itk::Statistics::DenseFrequencyContainer2>

HistogramSizeType otb::ListSampleToVariableDimensionHistogramGenerator< TListSample, THistogramMeasurement, TFrequencyContainer >::m_Sizes {0,0}

private

Definition at line 123 of file otbListSampleToVariableDimensionHistogramGenerator.h.

---

The documentation for this class was generated from the following files:

• otbListSampleToVariableDimensionHistogramGenerator.h
• otbListSampleToVariableDimensionHistogramGenerator.hxx
