otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue > Class Template Reference

#include <otbNormalBayesMachineLearningModel.h>

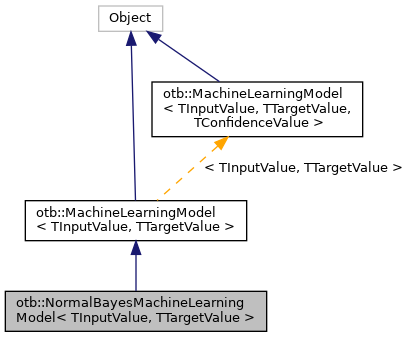

Inheritance diagram for otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >:

Collaboration diagram for otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >:

Public Types
typedef Superclass::ConfidenceValueType	ConfidenceValueType
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::InputListSampleType	InputListSampleType
typedef Superclass::InputSampleType	InputSampleType
typedef Superclass::InputValueType	InputValueType
typedef itk::SmartPointer< Self >	Pointer
typedef Superclass::ProbaSampleType	ProbaSampleType
typedef NormalBayesMachineLearningModel	Self
typedef MachineLearningModel< TInputValue, TTargetValue >	Superclass
typedef Superclass::TargetListSampleType	TargetListSampleType
typedef Superclass::TargetSampleType	TargetSampleType
typedef Superclass::TargetValueType	TargetValueType
Public Types inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
typedef MachineLearningModel	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef MLMSampleTraits< TInputValue >::ValueType	InputValueType
typedef MLMSampleTraits< TInputValue >::SampleType	InputSampleType
typedef itk::Statistics::ListSample< InputSampleType >	InputListSampleType
typedef MLMTargetTraits< TTargetValue >::ValueType	TargetValueType
typedef MLMTargetTraits< TTargetValue >::SampleType	TargetSampleType
typedef itk::Statistics::ListSample< TargetSampleType >	TargetListSampleType
typedef MLMTargetTraits< double >::ValueType	ConfidenceValueType
typedef MLMTargetTraits< double >::SampleType	ConfidenceSampleType
typedef itk::Statistics::ListSample< ConfidenceSampleType >	ConfidenceListSampleType
typedef itk::VariableLengthVector< double >	ProbaSampleType
typedef itk::Statistics::ListSample< ProbaSampleType >	ProbaListSampleType
static Pointer	New ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
void	Train () override
void	Save (const std::string &filename, const std::string &name="") override
void	Load (const std::string &filename, const std::string &name="") override

Classification model file compatibility tests
cv::Ptr< cv::ml::NormalBayesClassifier >	m_NormalBayesModel
bool	CanReadFile (const std::string &) override
bool	CanWriteFile (const std::string &) override
	NormalBayesMachineLearningModel ()
	~NormalBayesMachineLearningModel () override=default
TargetSampleType	DoPredict (const InputSampleType &input, ConfidenceValueType *quality=nullptr, ProbaSampleType *proba=nullptr) const override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	NormalBayesMachineLearningModel (const Self &)=delete
void	operator= (const Self &)=delete

Additional Inherited Members
Public Member Functions inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
virtual const char *	GetNameOfClass () const
TargetSampleType	Predict (const InputSampleType &input, ConfidenceValueType *quality=nullptr, ProbaSampleType *proba=nullptr) const
virtual void	SetDimension (unsigned int _arg)
virtual unsigned int	GetDimension ()
TargetListSampleType::Pointer	PredictBatch (const InputListSampleType *input, ConfidenceListSampleType *quality=nullptr, ProbaListSampleType *proba=nullptr) const
bool	HasConfidenceIndex () const
bool	HasProbaIndex () const
virtual void	SetInputListSample (InputListSampleType *_arg)
	itkGetObjectMacro (InputListSample, InputListSampleType)
virtual const InputListSampleType *	GetInputListSample () const
	itkGetObjectMacro (TargetListSample, TargetListSampleType)
	itkGetObjectMacro (ConfidenceListSample, ConfidenceListSampleType)
virtual void	SetTargetListSample (TargetListSampleType *_arg)
virtual bool	GetRegressionMode ()
void	SetRegressionMode (bool flag)
Protected Member Functions inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
	MachineLearningModel ()
	~MachineLearningModel () override=default
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
Protected Attributes inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
InputListSampleType::Pointer	m_InputListSample
InputListSampleType::Pointer	m_ValidationListSample
TargetListSampleType::Pointer	m_TargetListSample
ConfidenceListSampleType::Pointer	m_ConfidenceListSample
bool	m_RegressionMode
bool	m_IsRegressionSupported
bool	m_ConfidenceIndex
bool	m_ProbaIndex
bool	m_IsDoPredictBatchMultiThreaded
unsigned int	m_Dimension

Detailed Description

template<class TInputValue, class TTargetValue>
class otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >

Definition at line 35 of file otbNormalBayesMachineLearningModel.h.

Member Typedef Documentation

ConfidenceValueType

template<class TInputValue , class TTargetValue >

typedef Superclass::ConfidenceValueType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::ConfidenceValueType

Definition at line 50 of file otbNormalBayesMachineLearningModel.h.

ConstPointer

template<class TInputValue , class TTargetValue >

typedef itk::SmartPointer<const Self> otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::ConstPointer

Definition at line 42 of file otbNormalBayesMachineLearningModel.h.

InputListSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::InputListSampleType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::InputListSampleType

Definition at line 46 of file otbNormalBayesMachineLearningModel.h.

InputSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::InputSampleType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::InputSampleType

Definition at line 45 of file otbNormalBayesMachineLearningModel.h.

InputValueType

template<class TInputValue , class TTargetValue >

typedef Superclass::InputValueType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::InputValueType

Definition at line 44 of file otbNormalBayesMachineLearningModel.h.

Pointer

template<class TInputValue , class TTargetValue >

typedef itk::SmartPointer<Self> otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::Pointer

Definition at line 41 of file otbNormalBayesMachineLearningModel.h.

ProbaSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::ProbaSampleType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::ProbaSampleType

Definition at line 51 of file otbNormalBayesMachineLearningModel.h.

Self

template<class TInputValue , class TTargetValue >

typedef NormalBayesMachineLearningModel otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::Self

Standard class typedefs.

Definition at line 39 of file otbNormalBayesMachineLearningModel.h.

Superclass

template<class TInputValue , class TTargetValue >

typedef MachineLearningModel<TInputValue, TTargetValue> otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::Superclass

Definition at line 40 of file otbNormalBayesMachineLearningModel.h.

TargetListSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::TargetListSampleType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::TargetListSampleType

Definition at line 49 of file otbNormalBayesMachineLearningModel.h.

TargetSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::TargetSampleType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::TargetSampleType

Definition at line 48 of file otbNormalBayesMachineLearningModel.h.

TargetValueType

template<class TInputValue , class TTargetValue >

typedef Superclass::TargetValueType otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::TargetValueType

Definition at line 47 of file otbNormalBayesMachineLearningModel.h.

Constructor & Destructor Documentation

NormalBayesMachineLearningModel() [1/2]

template<class TInputValue , class TOutputValue >

otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::NormalBayesMachineLearningModel

protected

Constructor

Definition at line 33 of file otbNormalBayesMachineLearningModel.hxx.

~NormalBayesMachineLearningModel()

template<class TInputValue , class TTargetValue >

otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::~NormalBayesMachineLearningModel ( )

overrideprotecteddefault

Destructor

NormalBayesMachineLearningModel() [2/2]

template<class TInputValue , class TTargetValue >

otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::NormalBayesMachineLearningModel ( const Self &  )

privatedelete

Is the input model file readable and compatible with the corresponding classifier ?

Member Function Documentation

CanReadFile()

template<class TInputValue , class TOutputValue >

bool otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::CanReadFile ( const std::string &  file )

overridevirtual

Is the input model file readable and compatible with the corresponding classifier ?

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 105 of file otbNormalBayesMachineLearningModel.hxx.

References CV_TYPE_NAME_ML_NBAYES.

CanWriteFile()

template<class TInputValue , class TOutputValue >

bool otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::CanWriteFile ( const std::string &  )

overridevirtual

Is the input model file writable and compatible with the corresponding classifier ?

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 131 of file otbNormalBayesMachineLearningModel.hxx.

CreateAnother()

template<class TInputValue , class TTargetValue >

virtual::itk::LightObject::Pointer otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::CreateAnother

(

void

)

const

Run-time type information (and related methods).

DoPredict()

template<class TInputValue , class TOutputValue >

NormalBayesMachineLearningModel< TInputValue, TOutputValue >::TargetSampleType otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::DoPredict ( const InputSampleType &  input, ConfidenceValueType *  quality = nullptr, ProbaSampleType *  proba = nullptr  ) const

overrideprotected

Predict values using the model

Definition at line 59 of file otbNormalBayesMachineLearningModel.hxx.

GetNameOfClass()

template<class TInputValue , class TTargetValue >

virtual const char* otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Load()

template<class TInputValue , class TOutputValue >

void otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::Load ( const std::string &  filename, const std::string &  name = ""  )

overridevirtual

Load the model from file

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 98 of file otbNormalBayesMachineLearningModel.hxx.

New()

template<class TInputValue , class TTargetValue >

static Pointer otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::New ( )

static

Run-time type information (and related methods).

operator=()

template<class TInputValue , class TTargetValue >

void otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::operator= ( const Self &  )

privatedelete

Is the input model file readable and compatible with the corresponding classifier ?

PrintSelf()

template<class TInputValue , class TOutputValue >

void otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

PrintSelf method

Definition at line 137 of file otbNormalBayesMachineLearningModel.hxx.

Save()

template<class TInputValue , class TOutputValue >

void otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::Save ( const std::string &  filename, const std::string &  name = ""  )

overridevirtual

Save the model to file

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 88 of file otbNormalBayesMachineLearningModel.hxx.

Train()

template<class TInputValue , class TOutputValue >

void otb::NormalBayesMachineLearningModel< TInputValue, TOutputValue >::Train

overridevirtual

Train the machine learning model

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 40 of file otbNormalBayesMachineLearningModel.hxx.

References CV_VAR_CATEGORICAL, and CV_VAR_NUMERICAL.

Member Data Documentation

m_NormalBayesModel

template<class TInputValue , class TTargetValue >

cv::Ptr<cv::ml::NormalBayesClassifier> otb::NormalBayesMachineLearningModel< TInputValue, TTargetValue >::m_NormalBayesModel

private

Is the input model file readable and compatible with the corresponding classifier ?

Definition at line 92 of file otbNormalBayesMachineLearningModel.h.

---

The documentation for this class was generated from the following files:

• otbNormalBayesMachineLearningModel.h
• otbNormalBayesMachineLearningModel.hxx
