otb::PatternSampler Class Reference

#include <otbPatternSampler.h>

Inheritance diagram for otb::PatternSampler:

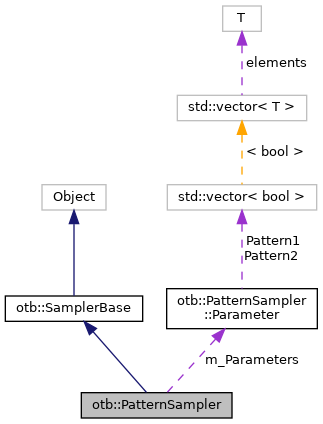

Collaboration diagram for otb::PatternSampler:

Classes
struct	Parameter

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef struct otb::PatternSampler::Parameter	ParameterType
typedef itk::SmartPointer< Self >	Pointer
typedef PatternSampler	Self
typedef SamplerBase	Superclass
Public Types inherited from otb::SamplerBase
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::SmartPointer< Self >	Pointer
typedef SamplerBase	Self
typedef itk::Object	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
Public Member Functions inherited from otb::SamplerBase
virtual unsigned long	GetChosenElements ()
virtual unsigned long	GetNeededElements ()
virtual unsigned long	GetProcessedElements ()
virtual double	GetRate ()
virtual unsigned long	GetTotalElements ()
void	SetNumberOfElements (unsigned long needed, unsigned long total)
void	SetRate (double rate, unsigned long total=0UL)

Static Public Member Functions
static Pointer	New ()
ParameterType	m_Parameters
unsigned long	m_Index1
unsigned long	m_Index2
static void	ImportPatterns (const std::string &data, ParameterType &param)
static void	ExportPatterns (const ParameterType &param, std::string &data)
void	SetParameters (const ParameterType &param)
ParameterType	GetParameters ()
void	Reset (void) override
bool	TakeSample (void)
	PatternSampler ()
	~PatternSampler () override
	PatternSampler (const Self &)
void	operator= (const Self &)
std::vector< bool >	RandArray (unsigned long N, unsigned long T)
unsigned long	FindBestSize (unsigned long tot)
static unsigned int	ParseSymbol (const char &s)

Additional Inherited Members
Protected Member Functions inherited from otb::SamplerBase
	SamplerBase ()
	~SamplerBase () override
Protected Attributes inherited from otb::SamplerBase
unsigned long	m_ChosenElements
unsigned long	m_ProcessedElements

Detailed Description

Periodic sampler for iteration loops.

This class allows doing periodic sampling during an iteration loop.

Definition at line 39 of file otbPatternSampler.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::PatternSampler::ConstPointer

Definition at line 45 of file otbPatternSampler.h.

ParameterType

typedef struct otb::PatternSampler::Parameter otb::PatternSampler::ParameterType

Internal parameters, only contains an offset to shift the periodic sampling

Pointer

typedef itk::SmartPointer<Self> otb::PatternSampler::Pointer

Definition at line 44 of file otbPatternSampler.h.

Self

typedef PatternSampler otb::PatternSampler::Self

Definition at line 42 of file otbPatternSampler.h.

Superclass

typedef SamplerBase otb::PatternSampler::Superclass

Definition at line 43 of file otbPatternSampler.h.

Constructor & Destructor Documentation

PatternSampler() [1/2]

otb::PatternSampler::PatternSampler ( )

protected

Constructor

~PatternSampler()

otb::PatternSampler::~PatternSampler ( )

inlineoverrideprotected

Destructor

Definition at line 120 of file otbPatternSampler.h.

PatternSampler() [2/2]

otb::PatternSampler::PatternSampler ( const Self &  )

private

Internal parameters for the sampler

Member Function Documentation

CreateAnother()

virtual::itk::LightObject::Pointer otb::PatternSampler::CreateAnother

(

void

)

const

ExportPatterns()

static void otb::PatternSampler::ExportPatterns ( const ParameterType &  param, std::string &  data  )

static

Export the sampling patterns in the input parameter to an output string. If the second pattern is not empty, it will be concatenated to the output string, separated by a slash

FindBestSize()

unsigned long otb::PatternSampler::FindBestSize ( unsigned long  tot )

private

Find a suitable size for internal patterns

GetNameOfClass()

virtual const char* otb::PatternSampler::GetNameOfClass ( ) const

virtual

Runtime information support.

Reimplemented from otb::SamplerBase.

GetParameters()

ParameterType otb::PatternSampler::GetParameters ( )

inline

Getter for internal parameters

Definition at line 87 of file otbPatternSampler.h.

ImportPatterns()

static void otb::PatternSampler::ImportPatterns ( const std::string &  data, ParameterType &  param  )

static

Import sampling patterns from an input string Two patterns may be given, separated by a slash Beware, the second pattern may be empty

New()

static Pointer otb::PatternSampler::New ( )

static

Method for creation through the object factory.

operator=()

void otb::PatternSampler::operator= ( const Self &  )

private

Internal parameters for the sampler

ParseSymbol()

static unsigned int otb::PatternSampler::ParseSymbol ( const char &  s )

staticprivate

Helper function to decode boolean sequence Characters converted into true : '1' 'X' 'y' 'Y' '|' '+' Characters converted into false : '0' '_' 'n' 'N' '.' '-' Other characters will return a 2

RandArray()

std::vector<bool> otb::PatternSampler::RandArray ( unsigned long  N, unsigned long  T  )

private

Generate a random array of booleans

Reset()

void otb::PatternSampler::Reset ( void  )

overridevirtual

Method that resets the internal state of the sampler

Reimplemented from otb::SamplerBase.

SetParameters()

void otb::PatternSampler::SetParameters ( const ParameterType &  param )

inline

Setter for internal parameters

Definition at line 76 of file otbPatternSampler.h.

TakeSample()

bool otb::PatternSampler::TakeSample

(

void

)

Method to call during iteration, returns true if the sample is selected, and false otherwise.

Member Data Documentation

m_Index1

unsigned long otb::PatternSampler::m_Index1

private

Index tracking the position in first internal pattern

Definition at line 139 of file otbPatternSampler.h.

m_Index2

unsigned long otb::PatternSampler::m_Index2

private

Index tracking the position in the second internal pattern

Definition at line 142 of file otbPatternSampler.h.

m_Parameters

ParameterType otb::PatternSampler::m_Parameters

private

Internal parameters for the sampler

Definition at line 136 of file otbPatternSampler.h.

---

The documentation for this class was generated from the following file:

• otbPatternSampler.h
