otb::Radarsat2CalibrationLookupData Class Reference

#include <otbRadarsat2ImageMetadataInterface.h>

Inheritance diagram for otb::Radarsat2CalibrationLookupData:

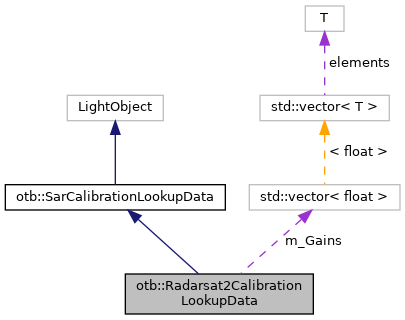

Collaboration diagram for otb::Radarsat2CalibrationLookupData:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef std::vector< float >	GainListType
typedef itk::IndexValueType	IndexValueType
typedef itk::SmartPointer< Self >	Pointer
typedef Radarsat2CalibrationLookupData	Self
typedef SarCalibrationLookupData	Superclass
Public Types inherited from otb::SarCalibrationLookupData
enum	{   SIGMA = 0,   BETA,   GAMMA,   DN,   NOISE }
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::IndexValueType	IndexValueType
typedef itk::SmartPointer< Self >	Pointer
typedef SarCalibrationLookupData	Self
typedef itk::LightObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
double	GetValue (const IndexValueType x, const IndexValueType) const override
void	InitParameters (short type, int offset, GainListType gains)
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Radarsat2CalibrationLookupData ()
	~Radarsat2CalibrationLookupData () override
Public Member Functions inherited from otb::SarCalibrationLookupData
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual short	GetType ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	SarCalibrationLookupData ()
void	SetType (short t)
	~SarCalibrationLookupData () override=default
virtual void	ToKeywordlist (MetaData::Keywordlist &kwl, const std::string &prefix) const
virtual void	FromKeywordlist (const MetaData::Keywordlist &kwl, const std::string &prefix)

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from otb::SarCalibrationLookupData
static Pointer	New ()

Private Member Functions
void	operator= (const Self &)=delete
	Radarsat2CalibrationLookupData (const Self &)=delete

Private Attributes
GainListType	m_Gains
int	m_Offset

Detailed Description

Definition at line 83 of file otbRadarsat2ImageMetadataInterface.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::Radarsat2CalibrationLookupData::ConstPointer

Definition at line 91 of file otbRadarsat2ImageMetadataInterface.h.

GainListType

typedef std::vector<float> otb::Radarsat2CalibrationLookupData::GainListType

Definition at line 101 of file otbRadarsat2ImageMetadataInterface.h.

IndexValueType

typedef itk::IndexValueType otb::Radarsat2CalibrationLookupData::IndexValueType

Definition at line 97 of file otbRadarsat2ImageMetadataInterface.h.

Pointer

typedef itk::SmartPointer<Self> otb::Radarsat2CalibrationLookupData::Pointer

Definition at line 90 of file otbRadarsat2ImageMetadataInterface.h.

Self

typedef Radarsat2CalibrationLookupData otb::Radarsat2CalibrationLookupData::Self

Standard typedefs

Definition at line 88 of file otbRadarsat2ImageMetadataInterface.h.

Superclass

typedef SarCalibrationLookupData otb::Radarsat2CalibrationLookupData::Superclass

Definition at line 89 of file otbRadarsat2ImageMetadataInterface.h.

Constructor & Destructor Documentation

Radarsat2CalibrationLookupData() [1/2]

otb::Radarsat2CalibrationLookupData::Radarsat2CalibrationLookupData ( )

inline

Definition at line 104 of file otbRadarsat2ImageMetadataInterface.h.

~Radarsat2CalibrationLookupData()

otb::Radarsat2CalibrationLookupData::~Radarsat2CalibrationLookupData ( )

inlineoverride

Definition at line 108 of file otbRadarsat2ImageMetadataInterface.h.

Radarsat2CalibrationLookupData() [2/2]

otb::Radarsat2CalibrationLookupData::Radarsat2CalibrationLookupData ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

virtual::itk::LightObject::Pointer otb::Radarsat2CalibrationLookupData::CreateAnother

(

void

)

const

GetNameOfClass()

virtual const char* otb::Radarsat2CalibrationLookupData::GetNameOfClass ( ) const

virtual

RTTI

Reimplemented from otb::SarCalibrationLookupData.

GetValue()

double otb::Radarsat2CalibrationLookupData::GetValue ( const IndexValueType  x, const  IndexValueType  ) const

inlineoverridevirtual

Reimplemented from otb::SarCalibrationLookupData.

Definition at line 119 of file otbRadarsat2ImageMetadataInterface.h.

References m_Gains, and m_Offset.

InitParameters()

void otb::Radarsat2CalibrationLookupData::InitParameters ( short  type, int  offset, GainListType  gains  )

inline

Definition at line 112 of file otbRadarsat2ImageMetadataInterface.h.

References m_Gains, m_Offset, and otb::SarCalibrationLookupData::SetType().

New()

static Pointer otb::Radarsat2CalibrationLookupData::New ( )

static

Creation through the object factory

operator=()

void otb::Radarsat2CalibrationLookupData::operator= ( const Self &  )

privatedelete

PrintSelf()

void otb::Radarsat2CalibrationLookupData::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

inlineoverride

Definition at line 135 of file otbRadarsat2ImageMetadataInterface.h.

References m_Gains, m_Offset, and otb::SarCalibrationLookupData::PrintSelf().

Member Data Documentation

m_Gains

GainListType otb::Radarsat2CalibrationLookupData::m_Gains

private

Definition at line 154 of file otbRadarsat2ImageMetadataInterface.h.

Referenced by GetValue(), InitParameters(), and PrintSelf().

m_Offset

int otb::Radarsat2CalibrationLookupData::m_Offset

private

Definition at line 155 of file otbRadarsat2ImageMetadataInterface.h.

Referenced by GetValue(), InitParameters(), and PrintSelf().

---

The documentation for this class was generated from the following file:

• otbRadarsat2ImageMetadataInterface.h
