#include <otbRasterizeVectorDataFilter.h>

Inheritance diagram for otb::RasterizeVectorDataFilter< TVectorData, TInputImage, TOutputImage >:

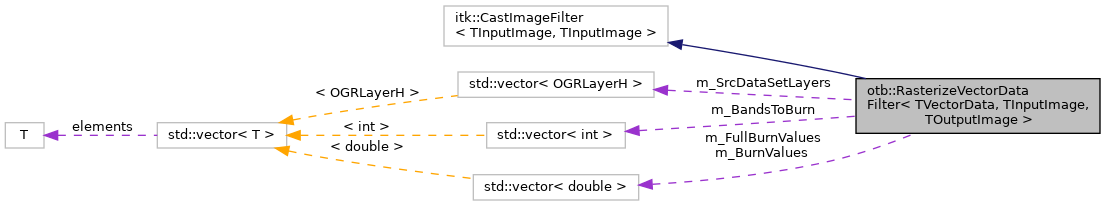

Collaboration diagram for otb::RasterizeVectorDataFilter< TVectorData, TInputImage, TOutputImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::SmartPointer< Self >	Pointer

typedef RasterizeVectorDataFilter	Self

typedef itk::CastImageFilter< TInputImage, TOutputImage >	Superclass

typedef TInputImage	InputImageType

typedef InputImageType::ConstPointer	InputImagePointer

typedef InputImageType::RegionType	InputImageRegionType

typedef InputImageType::PixelType	InputImagePixelType

typedef InputImageType::IndexType	InputIndexType

typedef InputImageType::PointType	InputPointType

typedef TOutputImage	OutputImageType

typedef OutputImageType::Pointer	OutputImagePointer

typedef OutputImageType::RegionType	OutputImageRegionType

typedef OutputImageType::PixelType	OutputImagePixelType

typedef OutputImageType::InternalPixelType	OutputImageInternalPixelType

typedef TVectorData	VectorDataType

typedef VectorDataType::DataTreeType	DataTreeType

typedef DataTreeType::TreeNodeType	InternalTreeNodeType

typedef DataTreeType::Pointer	DataTreePointerType

typedef DataTreeType::ConstPointer	DataTreeConstPointerType

typedef itk::DataObject	DataObjectType

GDALDataset *	m_OGRDataSourcePointer

std::vector< OGRLayerH >	m_SrcDataSetLayers

std::vector< double >	m_BurnValues

std::vector< double >	m_FullBurnValues

std::vector< int >	m_BandsToBurn

bool	m_AllTouchedMode

virtual const char *	GetNameOfClass () const

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual void	SetAllTouchedMode (bool _arg)

virtual const bool &	GetAllTouchedMode () const

virtual void	AllTouchedModeOn ()

virtual void	AllTouchedModeOff ()

const InputImageType *	GetInput ()

const DataObjectType *	GetInput (unsigned int idx)

virtual void	AddVectorData (const VectorDataType *vd)

void	AddColor (const OutputImagePixelType &burnValuesPix)

static Pointer	New ()

void	GenerateData () override

	RasterizeVectorDataFilter ()

	~RasterizeVectorDataFilter () override

void	GenerateOutputInformation () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	RasterizeVectorDataFilter (const Self &)=delete

void	operator= (const Self &)=delete

Detailed Description

template<class TVectorData, class TInputImage, class TOutputImage = TInputImage>
class otb::RasterizeVectorDataFilter< TVectorData, TInputImage, TOutputImage >

Burn geometries from the specified VectorData into raster.

This class handles burning several input VectorDatas into the input raster. It handles producing the output in any pixel type supported by OTB since this class inherits itk::CastImageFilter.

An explicit list of burn values for each layer for each band must be passed in, if not, the burn vector set by the user will be duplicated to fit this condition.

The user can set an OutputPixelType as a burn vector via AddBurnValue(OutputImagePixelType burnValuesPix). To have a different color for each VectorData, use this method with different burnValuesPix as many times as VectorDatas set. Again, the color will be duplicated if only one burnValuesPix is set.

Note : The VectorDatas and the input raster must be in the same projectionRef. Nothing is done in this class to reproject the VectorData into the image coordinate system.

Definition at line 63 of file otbRasterizeVectorDataFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TVectorData , class TInputImage , class TOutputImage = TInputImage>

typedef itk::SmartPointer<const Self> otb::RasterizeVectorDataFilter< TVectorData, TInputImage, TOutputImage >::ConstPointer

Definition at line 70 of file otbRasterizeVectorDataFilter.h.

◆ DataObjectType

template<class TVectorData , class TInputImage , class TOutputImage = TInputImage>

typedef itk::DataObject otb::RasterizeVectorDataFilter< TVectorData, TInputImage, TOutputImage >::DataObjectType
