#include <otbSamplingRateCalculator.h>

Inheritance diagram for otb::SamplingRateCalculator:

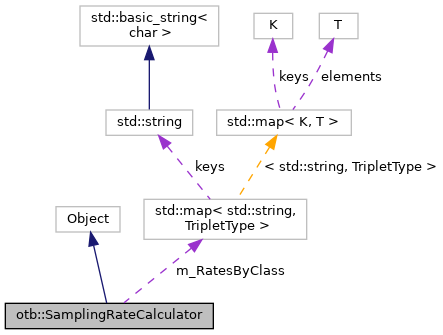

Collaboration diagram for otb::SamplingRateCalculator:

Classes
struct	Triplet

Public Types
typedef std::map< std::string, unsigned long >	ClassCountMapType

typedef ClassCountMapType::const_iterator	constItMapType

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TripletType >	MapRateType

typedef itk::SmartPointer< Self >	Pointer

typedef SamplingRateCalculator	Self

typedef itk::Object	Superclass

typedef struct OTBSampling_EXPORT otb::SamplingRateCalculator::Triplet	TripletType

Public Member Functions
void	ClearRates (void)

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

virtual const MapRateType &	GetRatesByClass () const

void	Read (std::string filename)

void	SetAllSamples (void)

void	SetClassCount (const ClassCountMapType &map)

void	SetMinimumNbOfSamplesByClass (void)

void	SetNbOfSamplesAllClasses (unsigned long)

void	SetNbOfSamplesByClass (const ClassCountMapType &required)

void	SetPercentageOfSamples (double percent)

void	SetTotalNumberOfSamples (unsigned long value)

void	Write (std::string filename)

Static Public Member Functions
static Pointer	New ()

static ClassCountMapType	ReadRequiredSamples (const std::string &filename)

Protected Member Functions
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	SamplingRateCalculator ()

	~SamplingRateCalculator () override

Private Member Functions
void	operator= (const Self &)=delete

	SamplingRateCalculator (const Self &)=delete

void	UpdateRate (const std::string &name)

Private Attributes
MapRateType	m_RatesByClass

Detailed Description

This class is a sampling rate calculator.

It computes sampling rates for each class, given input statistics on available samples, and a sampling strategy.

Definition at line 40 of file otbSamplingRateCalculator.h.

Member Typedef Documentation

◆ ClassCountMapType

typedef std::map<std::string, unsigned long> otb::SamplingRateCalculator::ClassCountMapType

typdefs

Definition at line 50 of file otbSamplingRateCalculator.h.

◆ constItMapType

typedef ClassCountMapType::const_iterator otb::SamplingRateCalculator::constItMapType

Definition at line 51 of file otbSamplingRateCalculator.h.

◆ ConstPointer

typedef itk::SmartPointer<const Self> otb::SamplingRateCalculator::ConstPointer

Definition at line 47 of file otbSamplingRateCalculator.h.

◆ MapRateType

typedef std::map<std::string, TripletType> otb::SamplingRateCalculator::MapRateType

Definition at line 60 of file otbSamplingRateCalculator.h.

◆ Pointer

typedef itk::SmartPointer<Self> otb::SamplingRateCalculator::Pointer

Definition at line 46 of file otbSamplingRateCalculator.h.

◆ Self

typedef SamplingRateCalculator otb::SamplingRateCalculator::Self

Standard typedefs

Definition at line 44 of file otbSamplingRateCalculator.h.

◆ Superclass

typedef itk::Object otb::SamplingRateCalculator::Superclass

Definition at line 45 of file otbSamplingRateCalculator.h.

◆ TripletType

typedef struct OTBSampling_EXPORT otb::SamplingRateCalculator::Triplet otb::SamplingRateCalculator::TripletType

Constructor & Destructor Documentation

◆ SamplingRateCalculator() [1/2]

otb::SamplingRateCalculator::SamplingRateCalculator ( )

protected

Constructor

◆ ~SamplingRateCalculator()

otb::SamplingRateCalculator::~SamplingRateCalculator ( )

inlineoverrideprotected

Destructor

Definition at line 113 of file otbSamplingRateCalculator.h.

◆ SamplingRateCalculator() [2/2]

otb::SamplingRateCalculator::SamplingRateCalculator ( const Self & )

privatedelete

Member Function Documentation

◆ ClearRates()

void otb::SamplingRateCalculator::ClearRates ( void )

Clear internal data

◆ CreateAnother()

virtual::itk::LightObject::Pointer otb::SamplingRateCalculator::CreateAnother ( void ) const

◆ GetNameOfClass()

virtual const char* otb::SamplingRateCalculator::GetNameOfClass ( ) const

virtual

Creation through object factory macro

◆ GetRatesByClass()

virtual const MapRateType& otb::SamplingRateCalculator::GetRatesByClass ( ) const

virtual

Get macro to the computed sampling rates.

◆ New()

static Pointer otb::SamplingRateCalculator::New ( )

static

Type macro

Referenced by otb::Wrapper::TrainImagesBase::SplitTrainingAndValidationSamples().

◆ operator=()

void otb::SamplingRateCalculator::operator= ( const Self & )

privatedelete

◆ PrintSelf()

void otb::SamplingRateCalculator::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

PrintSelf method

◆ Read()

void otb::SamplingRateCalculator::Read ( std::string filename )

Method to import sampling rates from a CSV file. Columns are : class name, required samples, total samples, rate.

◆ ReadRequiredSamples()

static ClassCountMapType otb::SamplingRateCalculator::ReadRequiredSamples ( const std::string & filename )

static

◆ SetAllSamples()

void otb::SamplingRateCalculator::SetAllSamples ( void )

Method to select all available samples

◆ SetClassCount()

void otb::SamplingRateCalculator::SetClassCount ( const ClassCountMapType & map )

Set method to input the total number of samples in each class. This method should be called before the other Set... methods that apply a sampling strategy

◆ SetMinimumNbOfSamplesByClass()

void otb::SamplingRateCalculator::SetMinimumNbOfSamplesByClass ( void )

Method to choose a sampling strategy based on the smallest class. The number of samples in each class is set to this minimum size

◆ SetNbOfSamplesAllClasses()

void otb::SamplingRateCalculator::SetNbOfSamplesAllClasses ( unsigned long )

Method to set the same number of required samples in each class

◆ SetNbOfSamplesByClass()

void otb::SamplingRateCalculator::SetNbOfSamplesByClass ( const ClassCountMapType & required )

Method to manually set the number of samples required in each class

◆ SetPercentageOfSamples()

void otb::SamplingRateCalculator::SetPercentageOfSamples ( double percent )

Method to set a percentage of samples for each class

◆ SetTotalNumberOfSamples()

void otb::SamplingRateCalculator::SetTotalNumberOfSamples ( unsigned long value )

Method to set the total number of samples to generate

◆ UpdateRate()

void otb::SamplingRateCalculator::UpdateRate ( const std::string & name )

private

Update the computed rate for a given class.

◆ Write()

void otb::SamplingRateCalculator::Write ( std::string filename )

Method to export sampling rates in a CSV file. Columns are : class name, required samples, total samples, rate.

Member Data Documentation

◆ m_RatesByClass

MapRateType otb::SamplingRateCalculator::m_RatesByClass
