#include <otbSatelliteRSR.h>

Inheritance diagram for otb::SatelliteRSR< TPrecision, TValuePrecision >:

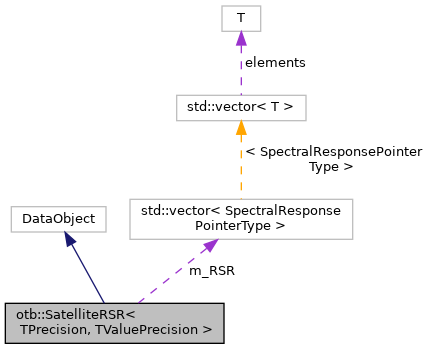

Collaboration diagram for otb::SatelliteRSR< TPrecision, TValuePrecision >:

Classes
struct	sort_band

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::SmartPointer< Self >	Pointer

typedef SatelliteRSR	Self

typedef itk::DataObject	Superclass

typedef TPrecision	PrecisionType

typedef TValuePrecision	ValuePrecisionType

typedef SpectralResponse< TPrecision, TValuePrecision >	SpectralResponseType

typedef SpectralResponseType::Pointer	SpectralResponsePointerType

typedef std::vector< SpectralResponsePointerType >	RSRVectorType

typedef SpectralResponseType::VectorPairType	VectorPairType

bool	m_SortBands

RSRVectorType	m_RSR

SpectralResponsePointerType	m_SolarIrradiance

unsigned int	m_NbBands

static Pointer	New ()

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

virtual unsigned int	GetNbBands () const

virtual void	SetNbBands (unsigned int _arg)

virtual void	SetSortBands (bool _arg)

virtual bool	Clear ()

virtual int	Size () const

void	Load (const std::string &filename, ValuePrecisionType coefNormalization=1.0)

void	Load (PrecisionType lambdaMin, PrecisionType lambdaMax, PrecisionType sampling, ValuePrecisionType coefNormalization=1.0)

ValuePrecisionType	operator() (const PrecisionType &lambda, const unsigned int numBand)

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

RSRVectorType &	GetRSR ()

SpectralResponseType *	GetSolarIrradiance ()

	SatelliteRSR ()

	~SatelliteRSR () override

	SatelliteRSR (const Self &)=delete

void	operator= (const Self &)=delete

Detailed Description

template<class TPrecision = double, class TValuePrecision = double>
class otb::SatelliteRSR< TPrecision, TValuePrecision >

This class represents a hierarchy of vector data.

This class contains an std::vector of spectral response, class otb::SpectralResponse (one for each band of the satellite).

The two templates indicate:

the precision of the wavelength (X) (by default: double)
the precision of the gain associated to the wavelength (Y) (by default: double)

See also: SpectralResponse; itk::DataObject

Definition at line 48 of file otbSatelliteRSR.h.

Member Typedef Documentation

◆ ConstPointer

template<class TPrecision = double, class TValuePrecision = double>

typedef itk::SmartPointer<const Self> otb::SatelliteRSR< TPrecision, TValuePrecision >::ConstPointer

Definition at line 55 of file otbSatelliteRSR.h.

◆ Pointer

template<class TPrecision = double, class TValuePrecision = double>

typedef itk::SmartPointer<Self> otb::SatelliteRSR< TPrecision, TValuePrecision >::Pointer

Definition at line 54 of file otbSatelliteRSR.h.

◆ PrecisionType

template<class TPrecision = double, class TValuePrecision = double>

typedef TPrecision otb::SatelliteRSR< TPrecision, TValuePrecision >::PrecisionType

Template parameters typedef

Definition at line 72 of file otbSatelliteRSR.h.

◆ RSRVectorType

template<class TPrecision = double, class TValuePrecision = double>

typedef std::vector<SpectralResponsePointerType> otb::SatelliteRSR< TPrecision, TValuePrecision >::RSRVectorType

Template parameters typedef

Definition at line 81 of file otbSatelliteRSR.h.

◆ Self

template<class TPrecision = double, class TValuePrecision = double>

typedef SatelliteRSR otb::SatelliteRSR< TPrecision, TValuePrecision >::Self

Standard class typedefs

Definition at line 52 of file otbSatelliteRSR.h.

◆ SpectralResponsePointerType

template<class TPrecision = double, class TValuePrecision = double>

typedef SpectralResponseType::Pointer otb::SatelliteRSR< TPrecision, TValuePrecision >::SpectralResponsePointerType

Template parameters typedef

Definition at line 80 of file otbSatelliteRSR.h.

◆ SpectralResponseType

template<class TPrecision = double, class TValuePrecision = double>

typedef SpectralResponse<TPrecision, TValuePrecision> otb::SatelliteRSR< TPrecision, TValuePrecision >::SpectralResponseType

Template parameters typedef

Definition at line 79 of file otbSatelliteRSR.h.

◆ Superclass

template<class TPrecision = double, class TValuePrecision = double>

typedef itk::DataObject otb::SatelliteRSR< TPrecision, TValuePrecision >::Superclass

Definition at line 53 of file otbSatelliteRSR.h.

◆ ValuePrecisionType

template<class TPrecision = double, class TValuePrecision = double>

typedef TValuePrecision otb::SatelliteRSR< TPrecision, TValuePrecision >::ValuePrecisionType

Template parameters typedef

Definition at line 77 of file otbSatelliteRSR.h.

◆ VectorPairType

template<class TPrecision = double, class TValuePrecision = double>

typedef SpectralResponseType::VectorPairType otb::SatelliteRSR< TPrecision, TValuePrecision >::VectorPairType

Template parameters typedef

Definition at line 82 of file otbSatelliteRSR.h.

Constructor & Destructor Documentation

◆ SatelliteRSR() [1/2]

template<class TPrecision , class TValuePrecision >

otb::SatelliteRSR< TPrecision, TValuePrecision >::SatelliteRSR

protected

Constructor

Definition at line 30 of file otbSatelliteRSR.hxx.

◆ ~SatelliteRSR()

template<class TPrecision = double, class TValuePrecision = double>

otb::SatelliteRSR< TPrecision, TValuePrecision >::~SatelliteRSR ( )

inlineoverrideprotected

Constructor from a ASCII file Destructor

Definition at line 155 of file otbSatelliteRSR.h.

◆ SatelliteRSR() [2/2]

template<class TPrecision = double, class TValuePrecision = double>

otb::SatelliteRSR< TPrecision, TValuePrecision >::SatelliteRSR ( const Self & )

privatedelete

Template parameters typedef

Member Function Documentation

◆ Clear()

template<class TPrecision , class TValuePrecision >

bool otb::SatelliteRSR< TPrecision, TValuePrecision >::Clear

virtual

Clear the vector data

Definition at line 119 of file otbSatelliteRSR.hxx.

◆ CreateAnother()

template<class TPrecision = double, class TValuePrecision = double>

virtual::itk::LightObject::Pointer otb::SatelliteRSR< TPrecision, TValuePrecision >::CreateAnother ( void ) const

Template parameters typedef

◆ GetNameOfClass()

template<class TPrecision = double, class TValuePrecision = double>

virtual const char* otb::SatelliteRSR< TPrecision, TValuePrecision >::GetNameOfClass ( ) const

virtual

Template parameters typedef

◆ GetNbBands()

template<class TPrecision = double, class TValuePrecision = double>

virtual unsigned int otb::SatelliteRSR< TPrecision, TValuePrecision >::GetNbBands ( ) const

virtual

Set the number of band of the satellite from an ASCII file Need to parse first all the file to determine the number of columns

◆ GetRSR()

template<class TPrecision = double, class TValuePrecision = double>

RSRVectorType& otb::SatelliteRSR< TPrecision, TValuePrecision >::GetRSR ( )

inline

get vector of RSR

Definition at line 136 of file otbSatelliteRSR.h.

References otb::SatelliteRSR< TPrecision, TValuePrecision >::m_RSR.

◆ GetSolarIrradiance()

template<class TPrecision = double, class TValuePrecision = double>

SpectralResponseType* otb::SatelliteRSR< TPrecision, TValuePrecision >::GetSolarIrradiance ( )

inline

get the solar irradiance

Definition at line 142 of file otbSatelliteRSR.h.

References otb::SatelliteRSR< TPrecision, TValuePrecision >::m_SolarIrradiance.

◆ Load() [1/2]

template<class TPrecision , class TValuePrecision >

void otb::SatelliteRSR< TPrecision, TValuePrecision >::Load	(	const std::string &	filename,
		ValuePrecisionType	coefNormalization = `1.0`
	)

Fill from a ASCII file (spectral gauge)

Definition at line 38 of file otbSatelliteRSR.hxx.

◆ Load() [2/2]

template<class TPrecision , class TValuePrecision >

void otb::SatelliteRSR< TPrecision, TValuePrecision >::Load	(	PrecisionType	lambdaMin,
		PrecisionType	lambdaMax,
		PrecisionType	sampling,
		ValuePrecisionType	coefNormalization = `1.0`
	)

Fill from user defined criteria (sampling band from lambdaMin to lambdaMax with Bandwidth width)

Definition at line 86 of file otbSatelliteRSR.hxx.

◆ New()

template<class TPrecision = double, class TValuePrecision = double>

static Pointer otb::SatelliteRSR< TPrecision, TValuePrecision >::New ( )

static

Standard macros

◆ operator()()

template<class TPrecision , class TValuePrecision >

SatelliteRSR< TPrecision, TValuePrecision >::ValuePrecisionType otb::SatelliteRSR< TPrecision, TValuePrecision >::operator()	(	const PrecisionType &	lambda,
		const unsigned int	numBand
	)

inline

Parameters

PrecisionType
Band

Returns: The interpolated value of the SR for the numBand (band num 0 to band num (m_NbBands-1)).

Definition at line 132 of file otbSatelliteRSR.hxx.

◆ operator=()

template<class TPrecision = double, class TValuePrecision = double>

void otb::SatelliteRSR< TPrecision, TValuePrecision >::operator= ( const Self & )

privatedelete

Template parameters typedef

◆ PrintSelf()

template<class TPrecision , class TValuePrecision >

void otb::SatelliteRSR< TPrecision, TValuePrecision >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

override

PrintSelf method

Definition at line 147 of file otbSatelliteRSR.hxx.

◆ SetNbBands()

template<class TPrecision = double, class TValuePrecision = double>

virtual void otb::SatelliteRSR< TPrecision, TValuePrecision >::SetNbBands ( unsigned int _arg )

virtual

Template parameters typedef

◆ SetSortBands()

template<class TPrecision = double, class TValuePrecision = double>

virtual void otb::SatelliteRSR< TPrecision, TValuePrecision >::SetSortBands ( bool _arg )

virtual

Template parameters typedef

◆ Size()

template<class TPrecision , class TValuePrecision >

int otb::SatelliteRSR< TPrecision, TValuePrecision >::Size

virtual

Return the number of element in the vector (nb bands)

Definition at line 126 of file otbSatelliteRSR.hxx.

Member Data Documentation

◆ m_NbBands

template<class TPrecision = double, class TValuePrecision = double>

unsigned int otb::SatelliteRSR< TPrecision, TValuePrecision >::m_NbBands

private

Number of bands

Definition at line 170 of file otbSatelliteRSR.h.

◆ m_RSR

template<class TPrecision = double, class TValuePrecision = double>

RSRVectorType otb::SatelliteRSR< TPrecision, TValuePrecision >::m_RSR

private

Vector of SpectralResponse

Definition at line 164 of file otbSatelliteRSR.h.

Referenced by otb::SatelliteRSR< TPrecision, TValuePrecision >::GetRSR().

◆ m_SolarIrradiance

template<class TPrecision = double, class TValuePrecision = double>

SpectralResponsePointerType otb::SatelliteRSR< TPrecision, TValuePrecision >::m_SolarIrradiance

private

Solar irradiance vector

Definition at line 167 of file otbSatelliteRSR.h.

Referenced by otb::SatelliteRSR< TPrecision, TValuePrecision >::GetSolarIrradiance().

◆ m_SortBands

template<class TPrecision = double, class TValuePrecision = double>

bool otb::SatelliteRSR< TPrecision, TValuePrecision >::m_SortBands

protected

Template parameters typedef

Definition at line 155 of file otbSatelliteRSR.h.

The documentation for this class was generated from the following files:
