otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage > Class Template Reference

#include <otbScalarImageToPanTexTextureFilter.h>

Inheritance diagram for otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >:

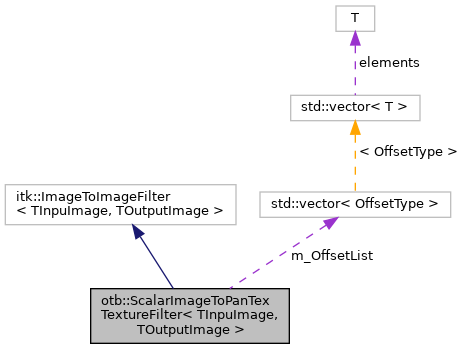

Collaboration diagram for otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef CooccurrenceIndexedListType::ConstPointer	CooccurrenceIndexedListConstPointerType
typedef CooccurrenceIndexedListType::Pointer	CooccurrenceIndexedListPointerType
typedef GreyLevelCooccurrenceIndexedList< InputPixelType >	CooccurrenceIndexedListType
typedef CooccurrenceIndexedListType::IndexType	CooccurrenceIndexType
typedef InputImageType::Pointer	InputImagePointerType
typedef TInpuImage	InputImageType
typedef InputImageType::PixelType	InputPixelType
typedef InputImageType::RegionType	InputRegionType
typedef std::vector< OffsetType >	OffsetListType
typedef InputImageType::OffsetType	OffsetType
typedef OutputImageType::Pointer	OutputImagePointerType
typedef TOutputImage	OutputImageType
typedef OutputImageType::RegionType	OutputRegionType
typedef CooccurrenceIndexedListType::PixelValueType	PixelValueType
typedef itk::SmartPointer< Self >	Pointer
typedef CooccurrenceIndexedListType::RelativeFrequencyType	RelativeFrequencyType
typedef ScalarImageToPanTexTextureFilter	Self
typedef InputRegionType::SizeType	SizeType
typedef itk::ImageToImageFilter< TInpuImage, TOutputImage >	Superclass
typedef VectorType::const_iterator	VectorConstIteratorType
typedef VectorType::iterator	VectorIteratorType
typedef CooccurrenceIndexedListType::VectorType	VectorType

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual InputPixelType	GetInputImageMaximum ()
virtual InputPixelType	GetInputImageMinimum ()
virtual const char *	GetNameOfClass () const
virtual unsigned int	GetNumberOfBinsPerAxis ()
virtual SizeType	GetRadius ()
virtual void	SetInputImageMaximum (InputPixelType _arg)
virtual void	SetInputImageMinimum (InputPixelType _arg)
virtual void	SetNumberOfBinsPerAxis (unsigned int _arg)
virtual void	SetRadius (SizeType _arg)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
void	GenerateInputRequestedRegion () override
	ScalarImageToPanTexTextureFilter ()
	~ScalarImageToPanTexTextureFilter () override=default
void	ThreadedGenerateData (const OutputRegionType &outputRegion, itk::ThreadIdType threadId) override

Private Member Functions
void	operator= (const Self &)=delete
	ScalarImageToPanTexTextureFilter (const Self &)=delete

Static Private Member Functions
static OutputRegionType	RegionUnion (const OutputRegionType &region1, const OutputRegionType &region2)

Private Attributes
InputPixelType	m_InputImageMaximum
InputPixelType	m_InputImageMinimum
unsigned int	m_NumberOfBinsPerAxis
OffsetListType	m_OffsetList
SizeType	m_Radius

Detailed Description

template<class TInpuImage, class TOutputImage>
class otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >

This class computes a texture derived built-up presence index (PanTex)

This class computes a texture-derived built-up presence index (PanTex) from textural characteristics of scalar images.It is the min value of the contrast in 8 directions.

Print references:

Pesari, M., A. Gerhardinger, F. Kayitakire. 2008. A robust built-up area presence index by anisotropic rotation-invariant textural measure. IEEE Journal of selected topics in applied earth observations and remote sensing. Vol1, NO3.

See also

otb::GreyLevelCooccurrenceIndexedList

Definition at line 50 of file otbScalarImageToPanTexTextureFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInpuImage , class TOutputImage >

typedef itk::SmartPointer<const Self> otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::ConstPointer

Definition at line 57 of file otbScalarImageToPanTexTextureFilter.h.

CooccurrenceIndexedListConstPointerType

template<class TInpuImage , class TOutputImage >

typedef CooccurrenceIndexedListType::ConstPointer otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::CooccurrenceIndexedListConstPointerType

Definition at line 79 of file otbScalarImageToPanTexTextureFilter.h.

CooccurrenceIndexedListPointerType

template<class TInpuImage , class TOutputImage >

typedef CooccurrenceIndexedListType::Pointer otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::CooccurrenceIndexedListPointerType

Definition at line 78 of file otbScalarImageToPanTexTextureFilter.h.

CooccurrenceIndexedListType

template<class TInpuImage , class TOutputImage >

typedef GreyLevelCooccurrenceIndexedList<InputPixelType> otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::CooccurrenceIndexedListType

Definition at line 77 of file otbScalarImageToPanTexTextureFilter.h.

CooccurrenceIndexType

template<class TInpuImage , class TOutputImage >

typedef CooccurrenceIndexedListType::IndexType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::CooccurrenceIndexType

Definition at line 80 of file otbScalarImageToPanTexTextureFilter.h.

InputImagePointerType

template<class TInpuImage , class TOutputImage >

typedef InputImageType::Pointer otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::InputImagePointerType

Definition at line 67 of file otbScalarImageToPanTexTextureFilter.h.

InputImageType

template<class TInpuImage , class TOutputImage >

typedef TInpuImage otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::InputImageType

Template class typedefs

Definition at line 63 of file otbScalarImageToPanTexTextureFilter.h.

InputPixelType

template<class TInpuImage , class TOutputImage >

typedef InputImageType::PixelType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::InputPixelType

Definition at line 68 of file otbScalarImageToPanTexTextureFilter.h.

InputRegionType

template<class TInpuImage , class TOutputImage >

typedef InputImageType::RegionType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::InputRegionType

Definition at line 69 of file otbScalarImageToPanTexTextureFilter.h.

OffsetListType

template<class TInpuImage , class TOutputImage >

typedef std::vector<OffsetType> otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::OffsetListType

Definition at line 72 of file otbScalarImageToPanTexTextureFilter.h.

OffsetType

template<class TInpuImage , class TOutputImage >

typedef InputImageType::OffsetType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::OffsetType

Definition at line 71 of file otbScalarImageToPanTexTextureFilter.h.

OutputImagePointerType

template<class TInpuImage , class TOutputImage >

typedef OutputImageType::Pointer otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::OutputImagePointerType

Definition at line 74 of file otbScalarImageToPanTexTextureFilter.h.

OutputImageType

template<class TInpuImage , class TOutputImage >

typedef TOutputImage otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::OutputImageType

Definition at line 73 of file otbScalarImageToPanTexTextureFilter.h.

OutputRegionType

template<class TInpuImage , class TOutputImage >

typedef OutputImageType::RegionType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::OutputRegionType

Definition at line 75 of file otbScalarImageToPanTexTextureFilter.h.

PixelValueType

template<class TInpuImage , class TOutputImage >

typedef CooccurrenceIndexedListType::PixelValueType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::PixelValueType

Definition at line 81 of file otbScalarImageToPanTexTextureFilter.h.

Pointer

template<class TInpuImage , class TOutputImage >

typedef itk::SmartPointer<Self> otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::Pointer

Definition at line 56 of file otbScalarImageToPanTexTextureFilter.h.

RelativeFrequencyType

template<class TInpuImage , class TOutputImage >

typedef CooccurrenceIndexedListType::RelativeFrequencyType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::RelativeFrequencyType

Definition at line 82 of file otbScalarImageToPanTexTextureFilter.h.

Self

template<class TInpuImage , class TOutputImage >

typedef ScalarImageToPanTexTextureFilter otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::Self

Standard class typedefs

Definition at line 54 of file otbScalarImageToPanTexTextureFilter.h.

SizeType

template<class TInpuImage , class TOutputImage >

typedef InputRegionType::SizeType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::SizeType

Definition at line 70 of file otbScalarImageToPanTexTextureFilter.h.

Superclass

template<class TInpuImage , class TOutputImage >

typedef itk::ImageToImageFilter<TInpuImage, TOutputImage> otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::Superclass

Definition at line 55 of file otbScalarImageToPanTexTextureFilter.h.

VectorConstIteratorType

template<class TInpuImage , class TOutputImage >

typedef VectorType::const_iterator otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::VectorConstIteratorType

Definition at line 86 of file otbScalarImageToPanTexTextureFilter.h.

VectorIteratorType

template<class TInpuImage , class TOutputImage >

typedef VectorType::iterator otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::VectorIteratorType

Definition at line 85 of file otbScalarImageToPanTexTextureFilter.h.

VectorType

template<class TInpuImage , class TOutputImage >

typedef CooccurrenceIndexedListType::VectorType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::VectorType

Definition at line 83 of file otbScalarImageToPanTexTextureFilter.h.

Constructor & Destructor Documentation

ScalarImageToPanTexTextureFilter() [1/2]

template<class TInputImage , class TOutputImage >

otb::ScalarImageToPanTexTextureFilter< TInputImage, TOutputImage >::ScalarImageToPanTexTextureFilter

protected

Constructor

Definition at line 34 of file otbScalarImageToPanTexTextureFilter.hxx.

References otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::m_OffsetList.

~ScalarImageToPanTexTextureFilter()

template<class TInpuImage , class TOutputImage >

otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::~ScalarImageToPanTexTextureFilter ( )

overrideprotecteddefault

Destructor

ScalarImageToPanTexTextureFilter() [2/2]

template<class TInpuImage , class TOutputImage >

otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::ScalarImageToPanTexTextureFilter ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

template<class TInpuImage , class TOutputImage >

virtual::itk::LightObject::Pointer otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::CreateAnother

(

void

)

const

GenerateInputRequestedRegion()

template<class TInputImage , class TOutputImage >

void otb::ScalarImageToPanTexTextureFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion

overrideprotected

Generate the input requested region

Definition at line 46 of file otbScalarImageToPanTexTextureFilter.hxx.

GetInputImageMaximum()

template<class TInpuImage , class TOutputImage >

virtual InputPixelType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::GetInputImageMaximum ( )

virtual

Get the input image maximum

GetInputImageMinimum()

template<class TInpuImage , class TOutputImage >

virtual InputPixelType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::GetInputImageMinimum ( )

virtual

Get the input image minimum

GetNameOfClass()

template<class TInpuImage , class TOutputImage >

virtual const char* otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::GetNameOfClass ( ) const

virtual

RTTI

GetNumberOfBinsPerAxis()

template<class TInpuImage , class TOutputImage >

virtual unsigned int otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::GetNumberOfBinsPerAxis ( )

virtual

Get the number of bin per axis for histogram generation

GetRadius()

template<class TInpuImage , class TOutputImage >

virtual SizeType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::GetRadius ( )

virtual

Get the radius of the window on which textures will be computed

New()

template<class TInpuImage , class TOutputImage >

static Pointer otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::New ( )

static

Creation through the object factory

operator=()

template<class TInpuImage , class TOutputImage >

void otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::operator= ( const Self &  )

privatedelete

RegionUnion()

template<class TInpuImage , class TOutputImage >

static OutputRegionType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::RegionUnion ( const OutputRegionType &  region1, const OutputRegionType &  region2  )

staticprivate

Convenient method to compute union of 2 regions

SetInputImageMaximum()

template<class TInpuImage , class TOutputImage >

virtual void otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::SetInputImageMaximum ( InputPixelType  _arg )

virtual

Set the input image maximum

SetInputImageMinimum()

template<class TInpuImage , class TOutputImage >

virtual void otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::SetInputImageMinimum ( InputPixelType  _arg )

virtual

Set the input image minimum

SetNumberOfBinsPerAxis()

template<class TInpuImage , class TOutputImage >

virtual void otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::SetNumberOfBinsPerAxis ( unsigned int  _arg )

virtual

Set the number of bin per axis for histogram generation

SetRadius()

template<class TInpuImage , class TOutputImage >

virtual void otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::SetRadius ( SizeType  _arg )

virtual

Set the radius of the window on which textures will be computed

ThreadedGenerateData()

template<class TInputImage , class TOutputImage >

void otb::ScalarImageToPanTexTextureFilter< TInputImage, TOutputImage >::ThreadedGenerateData ( const OutputRegionType &  outputRegion, itk::ThreadIdType  threadId  )

overrideprotected

Parallel textures extraction

calculate minimum offset and set it as neighborhood radius

Definition at line 89 of file otbScalarImageToPanTexTextureFilter.hxx.

Member Data Documentation

m_InputImageMaximum

template<class TInpuImage , class TOutputImage >

InputPixelType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::m_InputImageMaximum

private

Input image maximum

Definition at line 146 of file otbScalarImageToPanTexTextureFilter.h.

m_InputImageMinimum

template<class TInpuImage , class TOutputImage >

InputPixelType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::m_InputImageMinimum

private

Input image minimum

Definition at line 143 of file otbScalarImageToPanTexTextureFilter.h.

m_NumberOfBinsPerAxis

template<class TInpuImage , class TOutputImage >

unsigned int otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::m_NumberOfBinsPerAxis

private

Number of bins per axis for histogram generation

Definition at line 140 of file otbScalarImageToPanTexTextureFilter.h.

m_OffsetList

template<class TInpuImage , class TOutputImage >

OffsetListType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::m_OffsetList

private

List of Offsets for co-occurence

Definition at line 137 of file otbScalarImageToPanTexTextureFilter.h.

Referenced by otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::ScalarImageToPanTexTextureFilter().

m_Radius

template<class TInpuImage , class TOutputImage >

SizeType otb::ScalarImageToPanTexTextureFilter< TInpuImage, TOutputImage >::m_Radius

private

Radius of the window on which to compute textures

Definition at line 134 of file otbScalarImageToPanTexTextureFilter.h.

---

The documentation for this class was generated from the following files:

• otbScalarImageToPanTexTextureFilter.h
• otbScalarImageToPanTexTextureFilter.hxx
