otb::Sentinel1CalibrationLookupData Class Reference

#include <otbSentinel1CalibrationLookupData.h>

Inheritance diagram for otb::Sentinel1CalibrationLookupData:

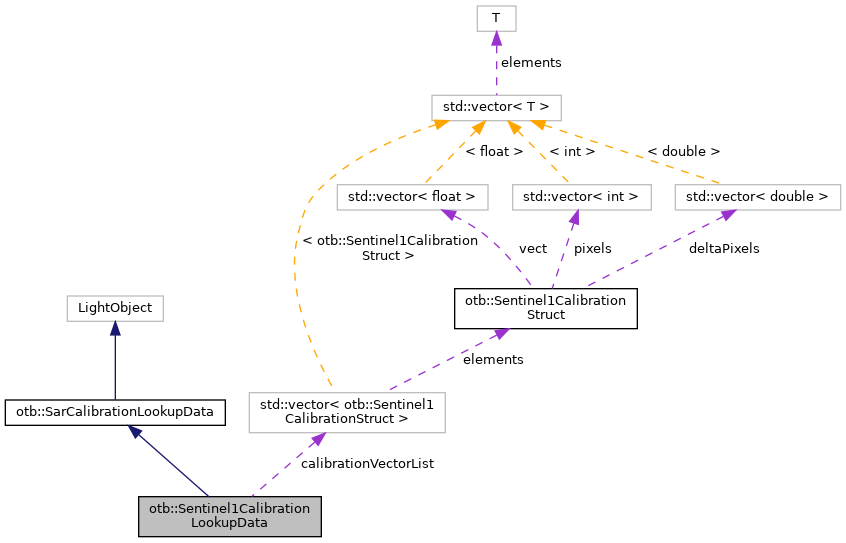

Collaboration diagram for otb::Sentinel1CalibrationLookupData:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::IndexValueType	IndexValueType
typedef itk::SmartPointer< Self >	Pointer
typedef Sentinel1CalibrationLookupData	Self
typedef SarCalibrationLookupData	Superclass
Public Types inherited from otb::SarCalibrationLookupData
enum	{   SIGMA = 0,   BETA,   GAMMA,   DN,   NOISE }
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::IndexValueType	IndexValueType
typedef itk::SmartPointer< Self >	Pointer
typedef SarCalibrationLookupData	Self
typedef itk::LightObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
void	FromKeywordlist (const MetaData::Keywordlist &kwl, const std::string &prefix) override
virtual const char *	GetNameOfClass () const
int	GetPixelIndex (int x, const Sentinel1CalibrationStruct &calVec) const
double	GetValue (const IndexValueType x, const IndexValueType y) const override
int	GetVectorIndex (int y) const
void	InitParameters (short type, double ft, double lt, int lines, int c, std::vector< Sentinel1CalibrationStruct > const &vlist)
	Sentinel1CalibrationLookupData ()
void	ToKeywordlist (MetaData::Keywordlist &kwl, const std::string &prefix) const override
	~Sentinel1CalibrationLookupData () override=default
Public Member Functions inherited from otb::SarCalibrationLookupData
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual short	GetType ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	SarCalibrationLookupData ()
void	SetType (short t)
	~SarCalibrationLookupData () override=default

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from otb::SarCalibrationLookupData
static Pointer	New ()

Private Member Functions
void	operator= (const Self &)=delete
	Sentinel1CalibrationLookupData (const Self &)=delete

Private Attributes
std::vector< Sentinel1CalibrationStruct >	calibrationVectorList
int	count
double	firstLineTime
double	lastLineTime
double	lineTimeInterval
int	numOfLines

Detailed Description

Computes the Sentinel 1 calibration contribution for the given pixel using a LUT. Depending on how it is initialized, the LUT can be a ALPHA, BETA, SIGMA or DN calibration LUT.

Definition at line 60 of file otbSentinel1CalibrationLookupData.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::Sentinel1CalibrationLookupData::ConstPointer

Definition at line 68 of file otbSentinel1CalibrationLookupData.h.

IndexValueType

typedef itk::IndexValueType otb::Sentinel1CalibrationLookupData::IndexValueType

Definition at line 74 of file otbSentinel1CalibrationLookupData.h.

Pointer

typedef itk::SmartPointer<Self> otb::Sentinel1CalibrationLookupData::Pointer

Definition at line 67 of file otbSentinel1CalibrationLookupData.h.

Self

typedef Sentinel1CalibrationLookupData otb::Sentinel1CalibrationLookupData::Self

Standard typedefs

Definition at line 65 of file otbSentinel1CalibrationLookupData.h.

Superclass

typedef SarCalibrationLookupData otb::Sentinel1CalibrationLookupData::Superclass

Definition at line 66 of file otbSentinel1CalibrationLookupData.h.

Constructor & Destructor Documentation

Sentinel1CalibrationLookupData() [1/2]

otb::Sentinel1CalibrationLookupData::Sentinel1CalibrationLookupData

(

)

~Sentinel1CalibrationLookupData()

otb::Sentinel1CalibrationLookupData::~Sentinel1CalibrationLookupData ( )

overridedefault

Sentinel1CalibrationLookupData() [2/2]

otb::Sentinel1CalibrationLookupData::Sentinel1CalibrationLookupData ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

virtual::itk::LightObject::Pointer otb::Sentinel1CalibrationLookupData::CreateAnother

(

void

)

const

FromKeywordlist()

void otb::Sentinel1CalibrationLookupData::FromKeywordlist ( const MetaData::Keywordlist &  kwl, const std::string &  prefix  )

overridevirtual

Keywordlist import

Reimplemented from otb::SarCalibrationLookupData.

GetNameOfClass()

virtual const char* otb::Sentinel1CalibrationLookupData::GetNameOfClass ( ) const

virtual

RTTI

Reimplemented from otb::SarCalibrationLookupData.

GetPixelIndex()

int otb::Sentinel1CalibrationLookupData::GetPixelIndex	(	int	x,
		const Sentinel1CalibrationStruct &	calVec
	)		const

GetValue()

double otb::Sentinel1CalibrationLookupData::GetValue ( const IndexValueType  x, const IndexValueType  y  ) const

overridevirtual

Reimplemented from otb::SarCalibrationLookupData.

GetVectorIndex()

int otb::Sentinel1CalibrationLookupData::GetVectorIndex

(

int

y

)

const

InitParameters()

void otb::Sentinel1CalibrationLookupData::InitParameters	(	short	type,
		double	ft,
		double	lt,
		int	lines,
		int	c,
		std::vector< Sentinel1CalibrationStruct > const &	vlist
	)

New()

static Pointer otb::Sentinel1CalibrationLookupData::New ( )

static

Creation through the object factory

operator=()

void otb::Sentinel1CalibrationLookupData::operator= ( const Self &  )

privatedelete

ToKeywordlist()

void otb::Sentinel1CalibrationLookupData::ToKeywordlist ( MetaData::Keywordlist &  kwl, const std::string &  prefix  ) const

overridevirtual

Keywordlist export

Reimplemented from otb::SarCalibrationLookupData.

Member Data Documentation

calibrationVectorList

std::vector<Sentinel1CalibrationStruct> otb::Sentinel1CalibrationLookupData::calibrationVectorList

private

Definition at line 104 of file otbSentinel1CalibrationLookupData.h.

count

int otb::Sentinel1CalibrationLookupData::count

private

Definition at line 103 of file otbSentinel1CalibrationLookupData.h.

firstLineTime

double otb::Sentinel1CalibrationLookupData::firstLineTime

private

Definition at line 100 of file otbSentinel1CalibrationLookupData.h.

lastLineTime

double otb::Sentinel1CalibrationLookupData::lastLineTime

private

Definition at line 101 of file otbSentinel1CalibrationLookupData.h.

lineTimeInterval

double otb::Sentinel1CalibrationLookupData::lineTimeInterval

private

Definition at line 105 of file otbSentinel1CalibrationLookupData.h.

numOfLines

int otb::Sentinel1CalibrationLookupData::numOfLines

private

Definition at line 102 of file otbSentinel1CalibrationLookupData.h.

---

The documentation for this class was generated from the following file:

• otbSentinel1CalibrationLookupData.h
