otb::SpatialReference Class Reference

#include <otbSpatialReference.h>

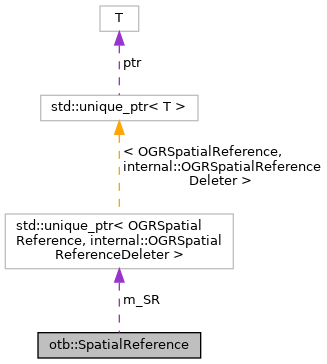

Collaboration diagram for otb::SpatialReference:

Public Types
enum	hemisphere {   hemisphere::north,   hemisphere::south }
typedef std::unique_ptr< OGRSpatialReference, internal::OGRSpatialReferenceDeleter >	OGRSpatialReferencePtr

Public Member Functions
bool	NormalizeESRI ()
SpatialReference &	operator= (const SpatialReference &other) noexcept
	SpatialReference (const SpatialReference &other) noexcept
unsigned int	ToEPSG () const
std::string	ToWkt () const

Static Public Member Functions
static SpatialReference	FromDescription (const std::string &sr_description)
static SpatialReference	FromEPSG (unsigned int epsg)
static SpatialReference	FromGeogCS (const std::string &GeogName, const std::string &DatumName, const std::string &SpheroidName, const double SemiMajor, const double InvFlattening)
static SpatialReference	FromUTM (unsigned int zone, hemisphere hem)
static SpatialReference	FromWGS84 ()
static void	UTMFromGeoPoint (double lon, double lat, unsigned int &zone, hemisphere &hem)

Private Member Functions
	SpatialReference (const OGRSpatialReference *ref)
	SpatialReference (OGRSpatialReferencePtr ref)

Private Attributes
OGRSpatialReferencePtr	m_SR

Friends
class	CoordinateTransformation
OTBGdalAdapters_EXPORT friend bool	operator!= (const SpatialReference &sr1, const SpatialReference &sr2) noexcept
OTBGdalAdapters_EXPORT friend bool	operator== (const SpatialReference &sr1, const SpatialReference &sr2) noexcept

Detailed Description

This class is a wrapper around OGRSpatialReference.

This class is a wrapper around OGRSpatialReference. It aims at manipulating spatial reference within OTB, in a safe and easy way. The class provides several constructors that all enforce the RAII: either they fail or they provide a definitive, valid object.

Building a SpatialReference requires to call one of the From*() method. There are no public constructors (apart from copy and assignment)

Definition at line 79 of file otbSpatialReference.h.

Member Typedef Documentation

OGRSpatialReferencePtr

typedef std::unique_ptr<OGRSpatialReference, internal::OGRSpatialReferenceDeleter> otb::SpatialReference::OGRSpatialReferencePtr

Definition at line 86 of file otbSpatialReference.h.

Member Enumeration Documentation

hemisphere

enum otb::SpatialReference::hemisphere

strong

Build a SpatialReference from a UTM zone passed to OGRSpatialReference::SetUTM() from GDAL

Parameters

zone	UTM zone to use
hem	hemisphere::north or hemisphere::south

Exceptions

InvalidSRDescriptionException

in case of failure of setUTM()

Enumerator
north
south

Definition at line 127 of file otbSpatialReference.h.

Constructor & Destructor Documentation

SpatialReference() [1/3]

otb::SpatialReference::SpatialReference ( const SpatialReference &  other )

noexcept

Copy constructor.

SpatialReference() [2/3]

otb::SpatialReference::SpatialReference ( const OGRSpatialReference *  ref )

private

Constructor from wrapped type. ref will be cloned.

SpatialReference() [3/3]

otb::SpatialReference::SpatialReference ( OGRSpatialReferencePtr  ref )

private

Constructor from unique_ptr to wrapped type. On success (no throw) the passed unique_ptr will be cleared, and ownership transferred

Member Function Documentation

FromDescription()

static SpatialReference otb::SpatialReference::FromDescription ( const std::string &  sr_description )

static

Build a SpatialRereference from a description string. The description string is passed to OGRSpatialReference:SetFromUserInput() from GDAL. Currently, supported syntax is:

• Well Known Text definition
• "EPSG:n" and "EPSGA:n" form EPSG codes
• PROJ definitions
• WMS auto projections ...

  Parameters

  description

  a string containing the description of the spatial reference to parse

  Exceptions

  InvalidSRDescriptionException

  in case of failure of SetFromUserInput()

Referenced by otb::GenericMapProjection< TDirectionOfMapping, TScalarType, NInputDimensions, NOutputDimensions >::SetWkt().

FromEPSG()

static SpatialReference otb::SpatialReference::FromEPSG ( unsigned int  epsg )

static

Build a SpatialReference from an epsg code

Parameters

epsg	EPSG code passed to OGRSpatialReference::importFromEPSGA() from GDAL

Exceptions

InvalidSRDescriptionException

in case of failure of importFromEPSGA()

Referenced by otb::MapFileProductWriter< TInputImage >::InitializeVectorData(), otb::MapFileProductWriter< TInputImage >::Tiling(), and otb::MapFileProductWriter< TInputImage >::Write().

FromGeogCS()

static SpatialReference otb::SpatialReference::FromGeogCS ( const std::string &  GeogName, const std::string &  DatumName, const std::string &  SpheroidName, const double  SemiMajor, const double  InvFlattening  )

static

Build a SpatialReference from the datum, ellipsoid, prime meridian and angular units.

See OGRSpatialReference::SetGeogCS for more details.

Parameters

GeogName	user visible name for the geographic coordinate system
DatumName	key name for this datum.
SpheroidName	user visible spheroid name
SemiMajor	the semi major axis of the spheroid
InvFlattening	the inverse flattening for the spheroid

Exceptions

InvalidSRDescriptionException

in case of failure of FromGeogCS()

FromUTM()

static SpatialReference otb::SpatialReference::FromUTM ( unsigned int  zone, hemisphere  hem  )

static

Referenced by otb::GenericRSResampleImageFilter< TInputImage, TOutputImage >::SetOutputParametersFromMap().

FromWGS84()

static SpatialReference otb::SpatialReference::FromWGS84 ( )

static

Build a SpatialRereference for wgs84

Exceptions

InvalidSRDescriptionException

(very unlikely since there is a standard method in gdal to build a WGS84 projection)

Referenced by otb::Multi3DMapToDEMFilter< T3DImage, TMaskImage, TOutputDEMImage >::BeforeThreadedGenerateData(), otb::ImageToOSMVectorDataGenerator< TImage >::EstimateImageExtent(), otb::Multi3DMapToDEMFilter< T3DImage, TMaskImage, TOutputDEMImage >::SetOutputParametersFromImage(), otb::GenericRSResampleImageFilter< TInputImage, TOutputImage >::SetOutputParametersFromMap(), and otb::GenericMapProjection< TDirectionOfMapping, TScalarType, NInputDimensions, NOutputDimensions >::SetWkt().

NormalizeESRI()

bool otb::SpatialReference::NormalizeESRI

(

)

Try to normalize spatial reference fields to be compatible with ESRI.

Returns

True on success. Not modified if false is returned

operator=()

SpatialReference& otb::SpatialReference::operator= ( const SpatialReference &  other )

noexcept

Assignment operator.

ToEPSG()

unsigned int otb::SpatialReference::ToEPSG

(

)

const

Convert the spatial reference to an EPSG code

Returns

If no EPSG code was found or the EPSG code

ToWkt()

std::string otb::SpatialReference::ToWkt

(

)

const

Export the spatial reference to a Well Known Text string

Returns

A string containing the Well Known Text description

Referenced by otb::GenericRSResampleImageFilter< TInputImage, TOutputImage >::SetOutputParametersFromMap().

UTMFromGeoPoint()

static void otb::SpatialReference::UTMFromGeoPoint ( double  lon, double  lat, unsigned int &  zone, hemisphere &  hem  )

static

Find which UTM zone a given (lat,lon) point falls in.

Precondition

-180<=lon<=180

-90<=lat<=90

Parameters

lon	Point longitude
lat	Point latitude
zone	Output UTM zone
hem	output hemisphere

Referenced by otb::GenericRSResampleImageFilter< TInputImage, TOutputImage >::SetOutputParametersFromMap().

Friends And Related Function Documentation

CoordinateTransformation

friend class CoordinateTransformation

friend

Definition at line 81 of file otbSpatialReference.h.

operator!=

OTBGdalAdapters_EXPORT friend bool operator!= ( const SpatialReference &  sr1, const SpatialReference &  sr2  )

friend

Different operator (based on OGRSpatialReference::IsSame())

operator==

OTBGdalAdapters_EXPORT friend bool operator== ( const SpatialReference &  sr1, const SpatialReference &  sr2  )

friend

Equal operator (based on OGRSpatialReference::IsSame())

Member Data Documentation

m_SR

OGRSpatialReferencePtr otb::SpatialReference::m_SR

private

Definition at line 204 of file otbSpatialReference.h.

---

The documentation for this class was generated from the following file:

• otbSpatialReference.h
