otb::StatisticsXMLFileReader< TMeasurementVector > Class Template Reference

#include <otbStatisticsXMLFileReader.h>

Inheritance diagram for otb::StatisticsXMLFileReader< TMeasurementVector >:

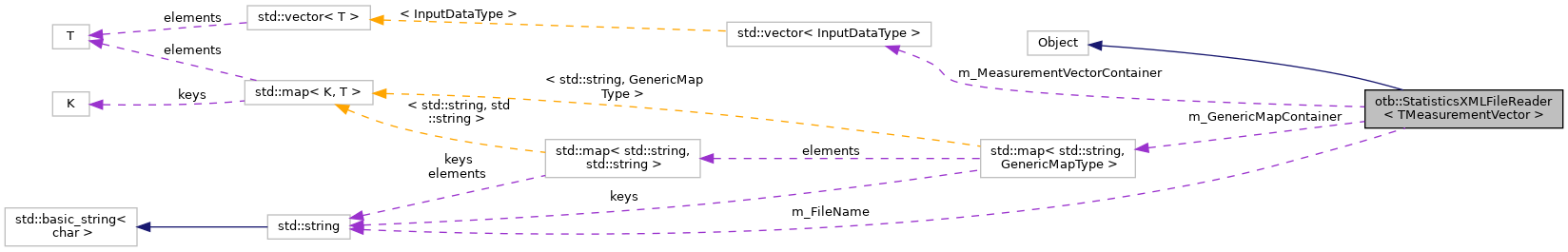

Collaboration diagram for otb::StatisticsXMLFileReader< TMeasurementVector >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef std::map< std::string, GenericMapType >	GenericMapContainer
typedef std::map< std::string, std::string >	GenericMapType
typedef std::pair< std::string, MeasurementVectorType >	InputDataType
typedef MeasurementVectorType::ValueType	InputValueType
typedef std::vector< InputDataType >	MeasurementVectorContainer
typedef TMeasurementVector	MeasurementVectorType
typedef itk::SmartPointer< Self >	Pointer
typedef StatisticsXMLFileReader	Self
typedef itk::Object	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
void	Modified () const override

Static Public Member Functions
static Pointer	New ()
std::string	m_FileName
MeasurementVectorContainer	m_MeasurementVectorContainer
bool	m_IsUpdated
GenericMapContainer	m_GenericMapContainer
virtual void	SetFileName (const char *_arg)
virtual const char *	GetFileName () const
unsigned int	GetNumberOfOutputs ()
std::vector< std::string >	GetStatisticVectorNames ()
std::vector< std::string >	GetStatisticMapNames ()
MeasurementVectorType	GetStatisticVectorByName (const char *statisticName)
template<typename MapType >
MapType	GetStatisticMapByName (const char *statisticName)
virtual void	Read ()
	StatisticsXMLFileReader ()
	~StatisticsXMLFileReader () override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	StatisticsXMLFileReader (const Self &)=delete
void	operator= (const Self &)=delete

Detailed Description

template<class TMeasurementVector>
class otb::StatisticsXMLFileReader< TMeasurementVector >

Read a xml file where are stored several statistics.

To get a specific statistic Measurement vector, use the method GetStatisticVectorByName(name) which allow you to get the Measurement vector for the statistic set as parameter.

Definition at line 42 of file otbStatisticsXMLFileReader.h.

Member Typedef Documentation

ConstPointer

template<class TMeasurementVector >

typedef itk::SmartPointer<const Self> otb::StatisticsXMLFileReader< TMeasurementVector >::ConstPointer

Definition at line 49 of file otbStatisticsXMLFileReader.h.

GenericMapContainer

template<class TMeasurementVector >

typedef std::map<std::string, GenericMapType> otb::StatisticsXMLFileReader< TMeasurementVector >::GenericMapContainer

Definition at line 66 of file otbStatisticsXMLFileReader.h.

GenericMapType

template<class TMeasurementVector >

typedef std::map<std::string, std::string> otb::StatisticsXMLFileReader< TMeasurementVector >::GenericMapType

Definition at line 65 of file otbStatisticsXMLFileReader.h.

InputDataType

template<class TMeasurementVector >

typedef std::pair<std::string, MeasurementVectorType> otb::StatisticsXMLFileReader< TMeasurementVector >::InputDataType

Convenient typedef

Definition at line 62 of file otbStatisticsXMLFileReader.h.

InputValueType

template<class TMeasurementVector >

typedef MeasurementVectorType::ValueType otb::StatisticsXMLFileReader< TMeasurementVector >::InputValueType

Definition at line 59 of file otbStatisticsXMLFileReader.h.

MeasurementVectorContainer

template<class TMeasurementVector >

typedef std::vector<InputDataType> otb::StatisticsXMLFileReader< TMeasurementVector >::MeasurementVectorContainer

Definition at line 63 of file otbStatisticsXMLFileReader.h.

MeasurementVectorType

template<class TMeasurementVector >

typedef TMeasurementVector otb::StatisticsXMLFileReader< TMeasurementVector >::MeasurementVectorType

InputSampleList typedefs

Definition at line 55 of file otbStatisticsXMLFileReader.h.

Pointer

template<class TMeasurementVector >

typedef itk::SmartPointer<Self> otb::StatisticsXMLFileReader< TMeasurementVector >::Pointer

Definition at line 48 of file otbStatisticsXMLFileReader.h.

Self

template<class TMeasurementVector >

typedef StatisticsXMLFileReader otb::StatisticsXMLFileReader< TMeasurementVector >::Self

Standard class typedefs

Definition at line 46 of file otbStatisticsXMLFileReader.h.

Superclass

template<class TMeasurementVector >

typedef itk::Object otb::StatisticsXMLFileReader< TMeasurementVector >::Superclass

Definition at line 47 of file otbStatisticsXMLFileReader.h.

Constructor & Destructor Documentation

StatisticsXMLFileReader() [1/2]

template<class TMeasurementVector >

otb::StatisticsXMLFileReader< TMeasurementVector >::StatisticsXMLFileReader

protected

Set the output filename

Definition at line 35 of file otbStatisticsXMLFileReader.hxx.

~StatisticsXMLFileReader()

template<class TMeasurementVector >

otb::StatisticsXMLFileReader< TMeasurementVector >::~StatisticsXMLFileReader ( )

inlineoverrideprotected

Set the output filename

Definition at line 99 of file otbStatisticsXMLFileReader.h.

StatisticsXMLFileReader() [2/2]

template<class TMeasurementVector >

otb::StatisticsXMLFileReader< TMeasurementVector >::StatisticsXMLFileReader ( const Self &  )

privatedelete

Set the output filename

Member Function Documentation

CreateAnother()

template<class TMeasurementVector >

virtual::itk::LightObject::Pointer otb::StatisticsXMLFileReader< TMeasurementVector >::CreateAnother

(

void

)

const

GetFileName()

template<class TMeasurementVector >

virtual const char* otb::StatisticsXMLFileReader< TMeasurementVector >::GetFileName ( ) const

virtual

Set the output filename

GetNameOfClass()

template<class TMeasurementVector >

virtual const char* otb::StatisticsXMLFileReader< TMeasurementVector >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

GetNumberOfOutputs()

template<class TMeasurementVector >

unsigned int otb::StatisticsXMLFileReader< TMeasurementVector >::GetNumberOfOutputs

Get the number of Outputs

Definition at line 40 of file otbStatisticsXMLFileReader.hxx.

GetStatisticMapByName()

template<class TMeasurementVector >

template<typename MapType >

MapType otb::StatisticsXMLFileReader< TMeasurementVector >::GetStatisticMapByName

(

const char *

statisticName

)

Method to get a statistics map by name

Definition at line 110 of file otbStatisticsXMLFileReader.hxx.

References otb::Wrapper::XML::Read().

GetStatisticMapNames()

template<class TMeasurementVector >

std::vector< std::string > otb::StatisticsXMLFileReader< TMeasurementVector >::GetStatisticMapNames

Get the list of map statistics names

Definition at line 63 of file otbStatisticsXMLFileReader.hxx.

References otb::Wrapper::XML::Read().

GetStatisticVectorByName()

template<class TMeasurementVector >

StatisticsXMLFileReader< TMeasurementVector >::MeasurementVectorType otb::StatisticsXMLFileReader< TMeasurementVector >::GetStatisticVectorByName

(

const char *

statisticName

)

Method to get the MeasurementVector by name

Definition at line 81 of file otbStatisticsXMLFileReader.hxx.

References otb::Wrapper::XML::Read().

GetStatisticVectorNames()

template<class TMeasurementVector >

std::vector< std::string > otb::StatisticsXMLFileReader< TMeasurementVector >::GetStatisticVectorNames

Get the list of vector statistics names

Definition at line 46 of file otbStatisticsXMLFileReader.hxx.

References otb::Wrapper::XML::Read().

Modified()

template<class TMeasurementVector >

void otb::StatisticsXMLFileReader< TMeasurementVector >::Modified ( ) const

inlineoverride

Definition at line 68 of file otbStatisticsXMLFileReader.h.

References otb::StatisticsXMLFileReader< TMeasurementVector >::m_IsUpdated.

New()

template<class TMeasurementVector >

static Pointer otb::StatisticsXMLFileReader< TMeasurementVector >::New ( )

static

Method for creation through the object factory.

operator=()

template<class TMeasurementVector >

void otb::StatisticsXMLFileReader< TMeasurementVector >::operator= ( const Self &  )

privatedelete

Set the output filename

PrintSelf()

template<class TMeasurementVector >

void otb::StatisticsXMLFileReader< TMeasurementVector >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

Set the output filename

Definition at line 236 of file otbStatisticsXMLFileReader.hxx.

Read()

template<class TMeasurementVector >

void otb::StatisticsXMLFileReader< TMeasurementVector >::Read

protectedvirtual

Read into the file and extract information in vector and map containers

Definition at line 138 of file otbStatisticsXMLFileReader.hxx.

SetFileName()

template<class TMeasurementVector >

virtual void otb::StatisticsXMLFileReader< TMeasurementVector >::SetFileName ( const char *  _arg )

virtual

Set the output filename

Member Data Documentation

m_FileName

template<class TMeasurementVector >

std::string otb::StatisticsXMLFileReader< TMeasurementVector >::m_FileName

private

Set the output filename

Definition at line 108 of file otbStatisticsXMLFileReader.h.

m_GenericMapContainer

template<class TMeasurementVector >

GenericMapContainer otb::StatisticsXMLFileReader< TMeasurementVector >::m_GenericMapContainer

private

Set the output filename

Definition at line 111 of file otbStatisticsXMLFileReader.h.

m_IsUpdated

template<class TMeasurementVector >

bool otb::StatisticsXMLFileReader< TMeasurementVector >::m_IsUpdated

mutableprivate

Set the output filename

Definition at line 110 of file otbStatisticsXMLFileReader.h.

Referenced by otb::StatisticsXMLFileReader< TMeasurementVector >::Modified().

m_MeasurementVectorContainer

template<class TMeasurementVector >

MeasurementVectorContainer otb::StatisticsXMLFileReader< TMeasurementVector >::m_MeasurementVectorContainer

private

Set the output filename

Definition at line 109 of file otbStatisticsXMLFileReader.h.

---

The documentation for this class was generated from the following files:

• otbStatisticsXMLFileReader.h
• otbStatisticsXMLFileReader.hxx
