otb::StreamingShrinkStreamingManager< TInputImage > Class Template Reference

#include <otbStreamingShrinkImageFilter.h>

Inheritance diagram for otb::StreamingShrinkStreamingManager< TInputImage >:

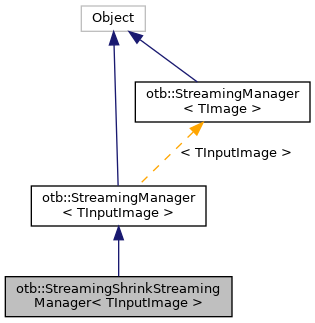

Collaboration diagram for otb::StreamingShrinkStreamingManager< TInputImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef ImageType::Pointer	ImagePointerType
typedef TInputImage	ImageType
typedef RegionType::IndexType	IndexType
typedef ImageType::InternalPixelType	PixelType
typedef itk::SmartPointer< Self >	Pointer
typedef ImageType::RegionType	RegionType
typedef StreamingShrinkStreamingManager	Self
typedef RegionType::SizeType	SizeType
typedef StreamingManager< TInputImage >	Superclass
Public Types inherited from otb::StreamingManager< TInputImage >
typedef itk::ImageRegionSplitterBase	AbstractSplitterType
typedef itk::SmartPointer< const Self >	ConstPointer
typedef ImageType::Pointer	ImagePointerType
typedef TInputImage	ImageType
typedef RegionType::IndexType	IndexType
typedef otb::PipelineMemoryPrintCalculator::MemoryPrintType	MemoryPrintType
typedef ImageType::InternalPixelType	PixelType
typedef itk::SmartPointer< Self >	Pointer
typedef ImageType::RegionType	RegionType
typedef StreamingManager	Self
typedef RegionType::SizeType	SizeType
typedef itk::LightObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
unsigned int	GetShrinkFactor () const
void	PrepareStreaming (itk::DataObject *input, const RegionType &region) override
void	SetShrinkFactor (unsigned int val)
Public Member Functions inherited from otb::StreamingManager< TInputImage >
virtual MemoryPrintType	GetDefaultRAM ()
virtual const char *	GetNameOfClass () const
virtual unsigned int	GetNumberOfSplits ()
virtual RegionType	GetSplit (unsigned int i)
const AbstractSplitterType *	GetSplitter () const
virtual void	SetDefaultRAM (MemoryPrintType _arg)

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const unsigned int	InputImageDimension = TInputImage::ImageDimension
Static Public Attributes inherited from otb::StreamingManager< TInputImage >
static const unsigned int	ImageDimension

Protected Member Functions
	StreamingShrinkStreamingManager ()
	~StreamingShrinkStreamingManager () override
Protected Member Functions inherited from otb::StreamingManager< TInputImage >
virtual unsigned int	EstimateOptimalNumberOfDivisions (itk::DataObject *input, const RegionType &region, MemoryPrintType availableRAMInMB, double bias=1.0)
	StreamingManager ()
	~StreamingManager () override

Private Member Functions
void	operator= (const StreamingShrinkStreamingManager &)=delete
	StreamingShrinkStreamingManager (const StreamingShrinkStreamingManager &)=delete

Private Attributes
unsigned int	m_ShrinkFactor

Additional Inherited Members
Protected Types inherited from otb::StreamingManager< TInputImage >
typedef AbstractSplitterType::Pointer	AbstractSplitterPointerType
Protected Attributes inherited from otb::StreamingManager< TInputImage >
unsigned int	m_ComputedNumberOfSplits
RegionType	m_Region
AbstractSplitterPointerType	m_Splitter

Detailed Description

template<class TInputImage>
class otb::StreamingShrinkStreamingManager< TInputImage >

Definition at line 109 of file otbStreamingShrinkImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInputImage >

typedef itk::SmartPointer<const Self> otb::StreamingShrinkStreamingManager< TInputImage >::ConstPointer

Definition at line 116 of file otbStreamingShrinkImageFilter.h.

ImagePointerType

template<class TInputImage >

typedef ImageType::Pointer otb::StreamingShrinkStreamingManager< TInputImage >::ImagePointerType

Definition at line 125 of file otbStreamingShrinkImageFilter.h.

ImageType

template<class TInputImage >

typedef TInputImage otb::StreamingShrinkStreamingManager< TInputImage >::ImageType

Definition at line 122 of file otbStreamingShrinkImageFilter.h.

IndexType

template<class TInputImage >

typedef RegionType::IndexType otb::StreamingShrinkStreamingManager< TInputImage >::IndexType

Definition at line 127 of file otbStreamingShrinkImageFilter.h.

PixelType

template<class TInputImage >

typedef ImageType::InternalPixelType otb::StreamingShrinkStreamingManager< TInputImage >::PixelType

Definition at line 129 of file otbStreamingShrinkImageFilter.h.

Pointer

template<class TInputImage >

typedef itk::SmartPointer<Self> otb::StreamingShrinkStreamingManager< TInputImage >::Pointer

Definition at line 115 of file otbStreamingShrinkImageFilter.h.

RegionType

template<class TInputImage >

typedef ImageType::RegionType otb::StreamingShrinkStreamingManager< TInputImage >::RegionType

Definition at line 126 of file otbStreamingShrinkImageFilter.h.

Self

template<class TInputImage >

typedef StreamingShrinkStreamingManager otb::StreamingShrinkStreamingManager< TInputImage >::Self

Standard class typedefs.

Definition at line 113 of file otbStreamingShrinkImageFilter.h.

SizeType

template<class TInputImage >

typedef RegionType::SizeType otb::StreamingShrinkStreamingManager< TInputImage >::SizeType

Definition at line 128 of file otbStreamingShrinkImageFilter.h.

Superclass

template<class TInputImage >

typedef StreamingManager<TInputImage> otb::StreamingShrinkStreamingManager< TInputImage >::Superclass

Definition at line 114 of file otbStreamingShrinkImageFilter.h.

Constructor & Destructor Documentation

StreamingShrinkStreamingManager() [1/2]

template<class TImage >

otb::StreamingShrinkStreamingManager< TImage >::StreamingShrinkStreamingManager

protected

Definition at line 33 of file otbStreamingShrinkImageFilter.hxx.

~StreamingShrinkStreamingManager()

template<class TImage >

otb::StreamingShrinkStreamingManager< TImage >::~StreamingShrinkStreamingManager

overrideprotected

Definition at line 38 of file otbStreamingShrinkImageFilter.hxx.

StreamingShrinkStreamingManager() [2/2]

template<class TInputImage >

otb::StreamingShrinkStreamingManager< TInputImage >::StreamingShrinkStreamingManager ( const StreamingShrinkStreamingManager< TInputImage > &  )

privatedelete

Member Function Documentation

CreateAnother()

template<class TInputImage >

virtual::itk::LightObject::Pointer otb::StreamingShrinkStreamingManager< TInputImage >::CreateAnother

(

void

)

const

GetNameOfClass()

template<class TInputImage >

virtual const char* otb::StreamingShrinkStreamingManager< TInputImage >::GetNameOfClass ( ) const

virtual

Runtime information support.

GetShrinkFactor()

template<class TInputImage >

unsigned int otb::StreamingShrinkStreamingManager< TInputImage >::GetShrinkFactor ( ) const

inline

Definition at line 142 of file otbStreamingShrinkImageFilter.h.

New()

template<class TInputImage >

static Pointer otb::StreamingShrinkStreamingManager< TInputImage >::New ( )

static

Method for creation through the object factory.

operator=()

template<class TInputImage >

void otb::StreamingShrinkStreamingManager< TInputImage >::operator= ( const StreamingShrinkStreamingManager< TInputImage > &  )

privatedelete

PrepareStreaming()

template<class TImage >

void otb::StreamingShrinkStreamingManager< TImage >::PrepareStreaming ( itk::DataObject *  input, const RegionType &  region  )

overridevirtual

Actually computes the stream divisions, according to the specified streaming mode, eventually using the input parameter to estimate memory consumption

Implements otb::StreamingManager< TInputImage >.

Definition at line 43 of file otbStreamingShrinkImageFilter.hxx.

References otbMsgDevMacro.

SetShrinkFactor()

template<class TInputImage >

void otb::StreamingShrinkStreamingManager< TInputImage >::SetShrinkFactor ( unsigned int  val )

inline

Definition at line 137 of file otbStreamingShrinkImageFilter.h.

Member Data Documentation

InputImageDimension

template<class TInputImage >

const unsigned int otb::StreamingShrinkStreamingManager< TInputImage >::InputImageDimension = TInputImage::ImageDimension

static

Definition at line 131 of file otbStreamingShrinkImageFilter.h.

m_ShrinkFactor

template<class TInputImage >

unsigned int otb::StreamingShrinkStreamingManager< TInputImage >::m_ShrinkFactor

private

Definition at line 155 of file otbStreamingShrinkImageFilter.h.

---

The documentation for this class was generated from the following files:

• otbStreamingShrinkImageFilter.h
• otbStreamingShrinkImageFilter.hxx
