#include <otbWrapperCommandLineLauncher.h>

Inheritance diagram for otb::Wrapper::CommandLineLauncher:

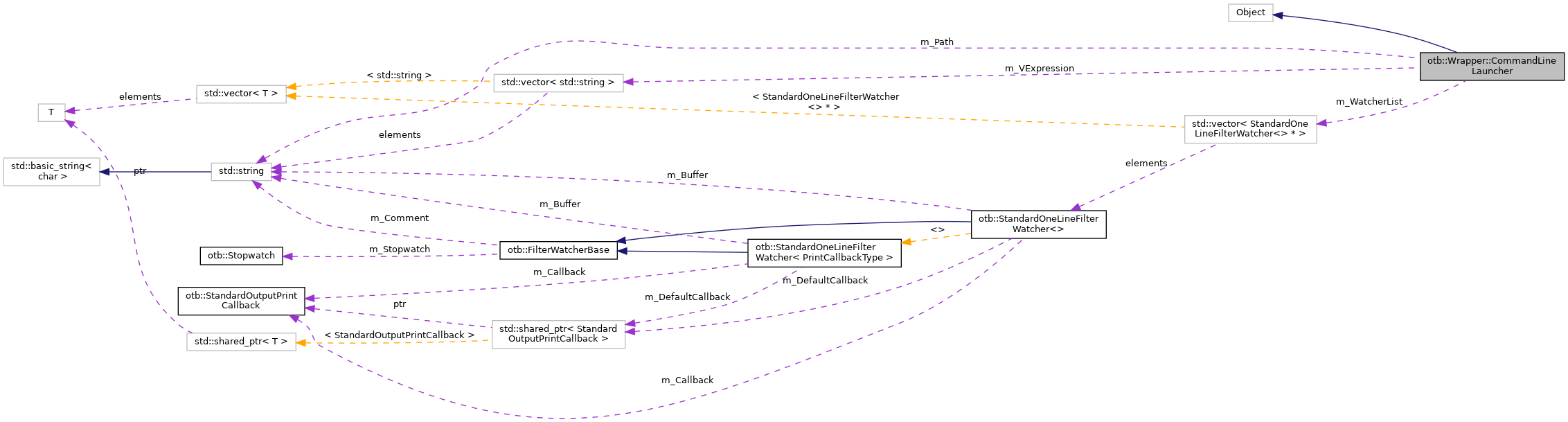

Collaboration diagram for otb::Wrapper::CommandLineLauncher:

Public Types
typedef itk::MemberCommand< Self >	AddProcessCommandType

typedef itk::SmartPointer< const Self >	ConstPointer

enum	ParamResultType { OKPARAM, MISSINGMANDATORYPARAMETER, MISSINGPARAMETERVALUE, WRONGPARAMETERVALUE, INVALIDNUMBEROFVALUE, DEFAULT }

typedef CommandLineParser::ParseResultType	ParseResultType

typedef itk::SmartPointer< Self >	Pointer

typedef CommandLineLauncher	Self

typedef itk::Object	Superclass

typedef std::vector< StandardOneLineFilterWatcher<> * >	WatcherListType

Public Member Functions
bool	BeforeExecute ()

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

void	DisplayHelp (bool longHelp=false)

bool	Execute ()

bool	ExecuteAndWriteOutput ()

virtual const char *	GetNameOfClass () const

bool	Load ()

bool	Load (const std::vector< std::string > &vexp)

void	LoadTestEnv ()

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
bool	CheckKeyValidity (std::string &key)

bool	CheckParametersPrefix ()

bool	CheckUnicity ()

	CommandLineLauncher ()

void	DeleteWatcherList ()

void	DisplayOutputParameters ()

std::string	DisplayParameterHelp (const Parameter::Pointer &param, const std::string paramKey, bool longHelp=false)

unsigned int	GetMaxKeySize () const

void	LinkWatchers (itk::Object *caller, const itk::EventObject &event)

bool	LoadApplication ()

CommandLineLauncher::ParamResultType	LoadParameters ()

bool	LoadPath ()

	~CommandLineLauncher () override

Private Member Functions
bool	CheckMissingMandatoryParameter (const std::string &paramKey) const

bool	CheckOutputPathsValidity (const std::string &paramKey) const

void	CheckUnusedParameter (const std::string &paramKey) const

	CommandLineLauncher (const CommandLineLauncher &)=delete

bool	ExecuteAndWriteOutputNoCatch ()

void	operator= (const CommandLineLauncher &)=delete

Private Attributes
AddProcessCommandType::Pointer	m_AddProcessCommand

Application::Pointer	m_Application

itk::StdStreamLogOutput::Pointer	m_LogOutput

CommandLineParser::Pointer	m_Parser

std::string	m_Path

bool	m_ReportProgress

std::vector< std::string >	m_VExpression

WatcherListType	m_WatcherList

Detailed Description

This class check the validity of a command line application.

To be valid, the expression must be as follow: ModuleName (ModulePath) –attribut1_Key attribut1_Value –attribut2_Key attribut2_Value After the attribute key, if the user give several values (expression without "--" separated by space), it will automatically be interpreted as a list.

Definition at line 57 of file otbWrapperCommandLineLauncher.h.

Member Typedef Documentation

◆ AddProcessCommandType

typedef itk::MemberCommand<Self> otb::Wrapper::CommandLineLauncher::AddProcessCommandType

Command Member

Definition at line 80 of file otbWrapperCommandLineLauncher.h.

◆ ConstPointer

typedef itk::SmartPointer<const Self> otb::Wrapper::CommandLineLauncher::ConstPointer

Definition at line 64 of file otbWrapperCommandLineLauncher.h.

◆ ParseResultType

typedef CommandLineParser::ParseResultType otb::Wrapper::CommandLineLauncher::ParseResultType

Parse result enum

Definition at line 70 of file otbWrapperCommandLineLauncher.h.

◆ Pointer

typedef itk::SmartPointer<Self> otb::Wrapper::CommandLineLauncher::Pointer

Definition at line 63 of file otbWrapperCommandLineLauncher.h.

◆ Self

typedef CommandLineLauncher otb::Wrapper::CommandLineLauncher::Self

Standard class typedefs.

Definition at line 61 of file otbWrapperCommandLineLauncher.h.

◆ Superclass

typedef itk::Object otb::Wrapper::CommandLineLauncher::Superclass

Definition at line 62 of file otbWrapperCommandLineLauncher.h.

◆ WatcherListType

typedef std::vector<StandardOneLineFilterWatcher<>*> otb::Wrapper::CommandLineLauncher::WatcherListType

Filter watcher list type

Definition at line 77 of file otbWrapperCommandLineLauncher.h.

Member Enumeration Documentation

◆ ParamResultType

enum otb::Wrapper::CommandLineLauncher::ParamResultType

Enumerator
OKPARAM
MISSINGMANDATORYPARAMETER
MISSINGPARAMETERVALUE
WRONGPARAMETERVALUE
INVALIDNUMBEROFVALUE
DEFAULT

Definition at line 74 of file otbWrapperCommandLineLauncher.h.

Constructor & Destructor Documentation

◆ CommandLineLauncher() [1/2]

otb::Wrapper::CommandLineLauncher::CommandLineLauncher ( )

protected

Constructor

◆ ~CommandLineLauncher()

otb::Wrapper::CommandLineLauncher::~CommandLineLauncher ( )

overrideprotected

Destructor

◆ CommandLineLauncher() [2/2]

otb::Wrapper::CommandLineLauncher::CommandLineLauncher ( const CommandLineLauncher & )

privatedelete

Member Function Documentation

◆ BeforeExecute()

bool otb::Wrapper::CommandLineLauncher::BeforeExecute ( )

Gather the code process to do before Execute and ExecuteAndWriteOutput Returns false if a problem occurs, true otherwise.

◆ CheckKeyValidity()

bool otb::Wrapper::CommandLineLauncher::CheckKeyValidity ( std::string & key )

protected

Check if each key is valid for the application.

◆ CheckMissingMandatoryParameter()

bool otb::Wrapper::CommandLineLauncher::CheckMissingMandatoryParameter ( const std::string & paramKey ) const

private

Returns: false if paramKey is a missing mandatory parameter

◆ CheckOutputPathsValidity()

bool otb::Wrapper::CommandLineLauncher::CheckOutputPathsValidity ( const std::string & paramKey ) const

private

Returns: false if paramKey is an OutputFilename parameter pointing to a path that does not exist

◆ CheckParametersPrefix()

bool otb::Wrapper::CommandLineLauncher::CheckParametersPrefix ( )

protected

Check if option contains at least one "-".

◆ CheckUnicity()

bool otb::Wrapper::CommandLineLauncher::CheckUnicity ( )

protected

Check if each key is unique in the expression.

◆ CheckUnusedParameter()

void otb::Wrapper::CommandLineLauncher::CheckUnusedParameter ( const std::string & paramKey ) const

private

Prints a warning to std::cerr if paramKey is an unused parameter

◆ CreateAnother()

virtual::itk::LightObject::Pointer otb::Wrapper::CommandLineLauncher::CreateAnother ( void ) const

◆ DeleteWatcherList()

void otb::Wrapper::CommandLineLauncher::DeleteWatcherList ( )

protected

Clear watcher list, deleting its pointers.

◆ DisplayHelp()

void otb::Wrapper::CommandLineLauncher::DisplayHelp ( bool longHelp = false )

Create and display the help of the application

◆ DisplayOutputParameters()

void otb::Wrapper::CommandLineLauncher::DisplayOutputParameters ( )

protected

Display the output parameter (Role == RoleOutput)

◆ DisplayParameterHelp()

std::string otb::Wrapper::CommandLineLauncher::DisplayParameterHelp	(	const Parameter::Pointer &	param,
		const std::string	paramKey,
		bool	longHelp = `false`
	)

protected

Create and display the help of the application

◆ Execute()

bool otb::Wrapper::CommandLineLauncher::Execute ( )

Launch the process, using the Execute application method The method will check if the user asked for help (looking at –help key) before loading parameter and launching process.

◆ ExecuteAndWriteOutput()

bool otb::Wrapper::CommandLineLauncher::ExecuteAndWriteOutput ( )

Launch the process, using the ExecuteAndWriteOutput application method The method will check if the user asked for help (looking at –help key) before loading parameter and launching process.

◆ ExecuteAndWriteOutputNoCatch()

bool otb::Wrapper::CommandLineLauncher::ExecuteAndWriteOutputNoCatch ( )

private

Actually launch the process and write outputs, without catching exceptions.

◆ GetMaxKeySize()

unsigned int otb::Wrapper::CommandLineLauncher::GetMaxKeySize ( ) const

protected

Returns the width of the longest key (in number of chars)

◆ GetNameOfClass()

virtual const char* otb::Wrapper::CommandLineLauncher::GetNameOfClass ( ) const

virtual

RTTI support

◆ LinkWatchers()

void otb::Wrapper::CommandLineLauncher::LinkWatchers	(	itk::Object *	caller,
		const itk::EventObject &	event
	)

protected

Load the watchers for internal progress and writing progress report.

◆ Load() [1/2]

bool otb::Wrapper::CommandLineLauncher::Load ( )

Load the application in several steps :

Load the paths
Load the application using the ApplicationRegistry

◆ Load() [2/2]

bool otb::Wrapper::CommandLineLauncher::Load ( const std::vector< std::string > & vexp )

same as Load method but set the expression before.

◆ LoadApplication()

bool otb::Wrapper::CommandLineLauncher::LoadApplication ( )

protected

Load the application calling the CreateApplication method of the ApplicationRegistry classes. Pay attention, the executable paths have to be loaded or set in the environment before calling the function.

◆ LoadParameters()

CommandLineLauncher::ParamResultType otb::Wrapper::CommandLineLauncher::LoadParameters ( )

protected

Parse the user expression, extract the key and the associated string and set it as value of each corresponding application parameter.

◆ LoadPath()

bool otb::Wrapper::CommandLineLauncher::LoadPath ( )

protected

Load the executable path. It looks for the key –modulePath, extract and interpret as path the following strings.

◆ LoadTestEnv()

void otb::Wrapper::CommandLineLauncher::LoadTestEnv ( )

Performs specific action for testing environment

◆ New()

static Pointer otb::Wrapper::CommandLineLauncher::New ( )

static

Defining ::New() static method

◆ operator=()

void otb::Wrapper::CommandLineLauncher::operator= ( const CommandLineLauncher & )

privatedelete

Member Data Documentation

◆ m_AddProcessCommand

AddProcessCommandType::Pointer otb::Wrapper::CommandLineLauncher::m_AddProcessCommand

private

Definition at line 196 of file otbWrapperCommandLineLauncher.h.

◆ m_Application

Application::Pointer otb::Wrapper::CommandLineLauncher::m_Application

private

Definition at line 187 of file otbWrapperCommandLineLauncher.h.

◆ m_LogOutput

itk::StdStreamLogOutput::Pointer otb::Wrapper::CommandLineLauncher::m_LogOutput

private

Definition at line 194 of file otbWrapperCommandLineLauncher.h.

◆ m_Parser

CommandLineParser::Pointer otb::Wrapper::CommandLineLauncher::m_Parser

private

Definition at line 190 of file otbWrapperCommandLineLauncher.h.

◆ m_Path

std::string otb::Wrapper::CommandLineLauncher::m_Path

private

Definition at line 185 of file otbWrapperCommandLineLauncher.h.

◆ m_ReportProgress

bool otb::Wrapper::CommandLineLauncher::m_ReportProgress

private

Definition at line 197 of file otbWrapperCommandLineLauncher.h.

◆ m_VExpression

std::vector<std::string> otb::Wrapper::CommandLineLauncher::m_VExpression

private

Definition at line 189 of file otbWrapperCommandLineLauncher.h.

◆ m_WatcherList

WatcherListType otb::Wrapper::CommandLineLauncher::m_WatcherList

private

Definition at line 192 of file otbWrapperCommandLineLauncher.h.

The documentation for this class was generated from the following file:

otbWrapperCommandLineLauncher.h
