otb::SARCalib Struct Reference

#include <otbSARMetadata.h>

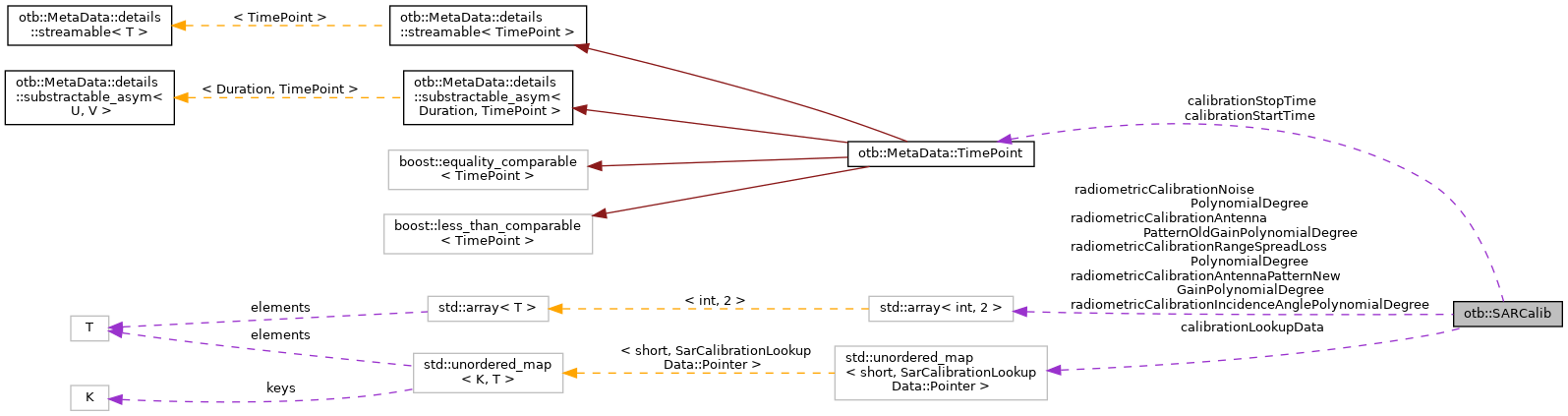

Collaboration diagram for otb::SARCalib:

Public Types
using	ArrayType = std::array< int, 2 >
using	PointSetType = itk::PointSet< double, 2 >

Public Member Functions
void	FromKeywordlist (const MetaData::Keywordlist &kwl, const std::string &prefix)
void	ToKeywordlist (MetaData::Keywordlist &kwl, const std::string &prefix) const

Public Attributes
std::unordered_map< short, SarCalibrationLookupData::Pointer >	calibrationLookupData
bool	calibrationLookupFlag = false
MetaData::TimePoint	calibrationStartTime
MetaData::TimePoint	calibrationStopTime
PointSetType::Pointer	radiometricCalibrationAntennaPatternNewGain = PointSetType::New()
ArrayType	radiometricCalibrationAntennaPatternNewGainPolynomialDegree
PointSetType::Pointer	radiometricCalibrationAntennaPatternOldGain = PointSetType::New()
ArrayType	radiometricCalibrationAntennaPatternOldGainPolynomialDegree
PointSetType::Pointer	radiometricCalibrationIncidenceAngle = PointSetType::New()
ArrayType	radiometricCalibrationIncidenceAnglePolynomialDegree
PointSetType::Pointer	radiometricCalibrationNoise = PointSetType::New()
ArrayType	radiometricCalibrationNoisePolynomialDegree
PointSetType::Pointer	radiometricCalibrationRangeSpreadLoss = PointSetType::New()
ArrayType	radiometricCalibrationRangeSpreadLossPolynomialDegree
double	rescalingFactor

Detailed Description

SAR calibration LUTs.

Definition at line 281 of file otbSARMetadata.h.

Member Typedef Documentation

ArrayType

using otb::SARCalib::ArrayType = std::array<int, 2>

Definition at line 284 of file otbSARMetadata.h.

PointSetType

using otb::SARCalib::PointSetType = itk::PointSet<double, 2>

Definition at line 283 of file otbSARMetadata.h.

Member Function Documentation

FromKeywordlist()

void otb::SARCalib::FromKeywordlist	(	const MetaData::Keywordlist &	kwl,
		const std::string &	prefix
	)

Keywordlist import

ToKeywordlist()

void otb::SARCalib::ToKeywordlist	(	MetaData::Keywordlist &	kwl,
		const std::string &	prefix
	)		const

Keywordlist export

Member Data Documentation

calibrationLookupData

std::unordered_map<short, SarCalibrationLookupData::Pointer> otb::SARCalib::calibrationLookupData

Definition at line 300 of file otbSARMetadata.h.

Referenced by otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

calibrationLookupFlag

bool otb::SARCalib::calibrationLookupFlag = false

Definition at line 286 of file otbSARMetadata.h.

Referenced by otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

calibrationStartTime

MetaData::TimePoint otb::SARCalib::calibrationStartTime

Definition at line 288 of file otbSARMetadata.h.

calibrationStopTime

MetaData::TimePoint otb::SARCalib::calibrationStopTime

Definition at line 289 of file otbSARMetadata.h.

radiometricCalibrationAntennaPatternNewGain

PointSetType::Pointer otb::SARCalib::radiometricCalibrationAntennaPatternNewGain = PointSetType::New()

Definition at line 296 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationAntennaPatternNewGainPolynomialDegree

ArrayType otb::SARCalib::radiometricCalibrationAntennaPatternNewGainPolynomialDegree

Definition at line 291 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationAntennaPatternOldGain

PointSetType::Pointer otb::SARCalib::radiometricCalibrationAntennaPatternOldGain = PointSetType::New()

Definition at line 297 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationAntennaPatternOldGainPolynomialDegree

ArrayType otb::SARCalib::radiometricCalibrationAntennaPatternOldGainPolynomialDegree

Definition at line 292 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationIncidenceAngle

PointSetType::Pointer otb::SARCalib::radiometricCalibrationIncidenceAngle = PointSetType::New()

Definition at line 298 of file otbSARMetadata.h.

Referenced by otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationIncidenceAnglePolynomialDegree

ArrayType otb::SARCalib::radiometricCalibrationIncidenceAnglePolynomialDegree

Definition at line 293 of file otbSARMetadata.h.

Referenced by otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationNoise

PointSetType::Pointer otb::SARCalib::radiometricCalibrationNoise = PointSetType::New()

Definition at line 295 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationNoisePolynomialDegree

ArrayType otb::SARCalib::radiometricCalibrationNoisePolynomialDegree

Definition at line 290 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationRangeSpreadLoss

PointSetType::Pointer otb::SARCalib::radiometricCalibrationRangeSpreadLoss = PointSetType::New()

Definition at line 299 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

radiometricCalibrationRangeSpreadLossPolynomialDegree

ArrayType otb::SARCalib::radiometricCalibrationRangeSpreadLossPolynomialDegree

Definition at line 294 of file otbSARMetadata.h.

Referenced by otb::SarBrightnessToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData(), and otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

rescalingFactor

double otb::SARCalib::rescalingFactor

Definition at line 287 of file otbSARMetadata.h.

Referenced by otb::SarRadiometricCalibrationToImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData().

---

The documentation for this struct was generated from the following file:

• otbSARMetadata.h
