otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy > Class Template Reference

#include <otbGeometriesToGeometriesFilter.h>

Inheritance diagram for otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >:

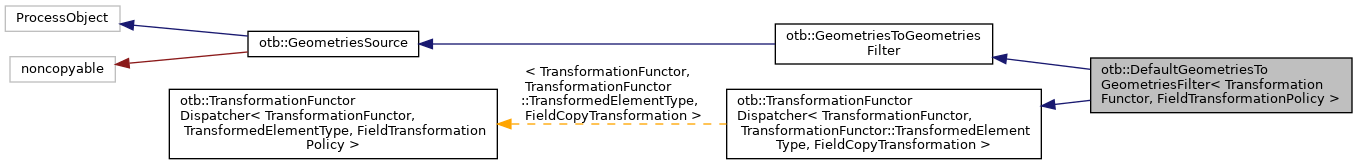

Collaboration diagram for otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >:

Public Types
Standard ITK typedefs
typedef DefaultGeometriesToGeometriesFilter	Self
typedef GeometriesToGeometriesFilter	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Class typedefs
typedef TransformationFunctor	TransformationFunctorType
typedef TransformationFunctor::TransformedElementType	TransformedElementType
typedef TransformationFunctorDispatcher< TransformationFunctorType, TransformedElementType, FieldTransformationPolicy >	TransformationFunctorDispatcherType
Public Types inherited from otb::GeometriesToGeometriesFilter
typedef GeometriesToGeometriesFilter	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef GeometriesSet	InputGeometriesType
typedef GeometriesSet	OutputGeometriesType
Public Types inherited from otb::GeometriesSource
typedef GeometriesSource	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType
typedef GeometriesSet	OutputGeometriesType

Standard macros
static Pointer	New ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
	DefaultGeometriesToGeometriesFilter ()
	~DefaultGeometriesToGeometriesFilter () override
void	DoProcessLayer (ogr::Layer const &source, ogr::Layer &destination) const override
void	DoDefineNewLayerFields (ogr::Layer const &source, ogr::Layer &dest) const override

Additional Inherited Members
Public Member Functions inherited from otb::GeometriesToGeometriesFilter
virtual void	SetInput (const InputGeometriesType *input)
const InputGeometriesType *	GetInput (void)
Public Member Functions inherited from otb::GeometriesSource
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual OutputGeometriesType *	GetOutput (void)
virtual OutputGeometriesType *	GetOutput (DataObjectPointerArraySizeType idx)
virtual void	SetOutput (OutputGeometriesType *output, DataObjectPointerArraySizeType idx=0)
void	PrepareOutputs () override
Static Public Member Functions inherited from otb::GeometriesSource
static Pointer	New ()
Protected Member Functions inherited from otb::GeometriesToGeometriesFilter
	GeometriesToGeometriesFilter ()
	~GeometriesToGeometriesFilter () override
void	GenerateData (void) override
Protected Member Functions inherited from otb::GeometriesSource
	GeometriesSource ()
	~GeometriesSource () override
virtual void	DoAllocateOutputs ()

Detailed Description

template<class TransformationFunctor, class FieldTransformationPolicy = FieldCopyTransformation>
class otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >

Generic helper class to filter geometries sets given a transformation functor. This generic class provides the default behaviour for most filters that we may need to implement.

Thanks to it, we just need to provide a TransformationFunctor, and a FieldTransformationPolicy (if the default no-transformation policy is not what we need).

Since

OTB v 3.14.0

Todo:

Find a better name

Definition at line 367 of file otbGeometriesToGeometriesFilter.h.

Member Typedef Documentation

ConstPointer

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef itk::SmartPointer<const Self> otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::ConstPointer

Definition at line 378 of file otbGeometriesToGeometriesFilter.h.

Pointer

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef itk::SmartPointer<Self> otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::Pointer

Definition at line 377 of file otbGeometriesToGeometriesFilter.h.

Self

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef DefaultGeometriesToGeometriesFilter otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::Self

Definition at line 375 of file otbGeometriesToGeometriesFilter.h.

Superclass

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef GeometriesToGeometriesFilter otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::Superclass

Definition at line 376 of file otbGeometriesToGeometriesFilter.h.

TransformationFunctorDispatcherType

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef TransformationFunctorDispatcher<TransformationFunctorType, TransformedElementType, FieldTransformationPolicy> otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::TransformationFunctorDispatcherType

Definition at line 385 of file otbGeometriesToGeometriesFilter.h.

TransformationFunctorType

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef TransformationFunctor otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::TransformationFunctorType

Definition at line 383 of file otbGeometriesToGeometriesFilter.h.

TransformedElementType

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

typedef TransformationFunctor::TransformedElementType otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::TransformedElementType

Definition at line 384 of file otbGeometriesToGeometriesFilter.h.

Constructor & Destructor Documentation

DefaultGeometriesToGeometriesFilter()

template<class TransformationFunctor , class FieldTransformationPolicy >

otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::DefaultGeometriesToGeometriesFilter

inlineprotected

Default constructor.

Definition at line 33 of file otbGeometriesToGeometriesFilter.hxx.

~DefaultGeometriesToGeometriesFilter()

template<class TransformationFunctor , class FieldTransformationPolicy >

otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::~DefaultGeometriesToGeometriesFilter

inlineoverrideprotected

Destructor.

Definition at line 40 of file otbGeometriesToGeometriesFilter.hxx.

Member Function Documentation

CreateAnother()

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

virtual::itk::LightObject::Pointer otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::CreateAnother

(

void

)

const

Method for creation through the object factory.

DoDefineNewLayerFields()

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

void otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::DoDefineNewLayerFields ( ogr::Layer const &  source, ogr::Layer &  dest  ) const

inlineoverrideprotectedvirtual

Hook used to define the fields of the new layer.

Parameters

[in]	source	source Layer – for reference
[in,out]	dest	destination Layer

Just forwards the fields definition to the FieldTransformationPolicy inherited from the TransformationFunctorDispatcherType.

Implements otb::GeometriesToGeometriesFilter.

Definition at line 425 of file otbGeometriesToGeometriesFilter.h.

DoProcessLayer()

template<class TransformationFunctor , class FieldTransformationPolicy >

void otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::DoProcessLayer ( ogr::Layer const &  source, ogr::Layer &  destination  ) const

inlineoverrideprotectedvirtual

Hook that actually filters an OGR Layer.

Parameters

[in]	source	Input layer
[in,out]	destination	Output layer

This specialization just forwards the transformation to the m_TransformationFunctor.

Note

When source == destination, it means this is an in-place filter.

Implements otb::GeometriesToGeometriesFilter.

Definition at line 48 of file otbGeometriesToGeometriesFilter.hxx.

GetNameOfClass()

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

virtual const char* otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from otb::GeometriesToGeometriesFilter.

New()

template<class TransformationFunctor , class FieldTransformationPolicy = FieldCopyTransformation>

static Pointer otb::DefaultGeometriesToGeometriesFilter< TransformationFunctor, FieldTransformationPolicy >::New ( )

static

Method for creation through the object factory.

---

The documentation for this class was generated from the following files:

• otbGeometriesToGeometriesFilter.h
• otbGeometriesToGeometriesFilter.hxx
