OTB  7.0.0
Orfeo Toolbox
Public Member Functions | Public Attributes | List of all members
otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput > Class Template Reference

#include <otbVegetationIndicesFunctor.h>

+ Inheritance diagram for otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >:

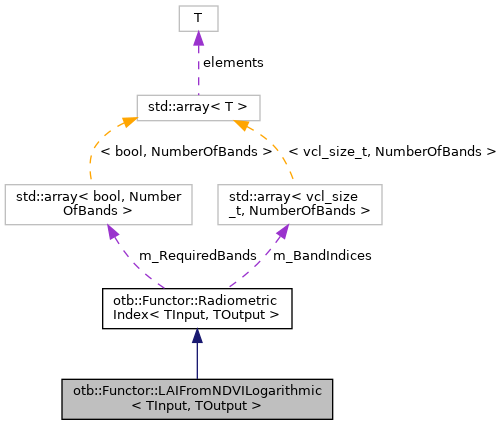

+ Collaboration diagram for otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >:

Public Member Functions

const double & GetExtionctionCoefficient () const

const double & GetNdviInf () const

const double & GetNdviSoil () const

 LAIFromNDVILogarithmic ()

TOutput operator() (const itk::VariableLengthVector< TInput > &input) const override

void SetExtinctionCoefficient (const double &val)

void SetNdviInf (const double &val)

void SetNdviSoil (const double &val)

- Public Member Functions inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
 RadiometricIndex (const std::set< BandNameType > &requiredBands)

virtual ~RadiometricIndex ()=default

std::set< BandNameTypeGetRequiredBands () const

void SetBandIndex (BandNameType band, vcl_size_t index)

void SetBandsIndices (const std::map< BandNameType, vcl_size_t > &indicesMap)

vcl_size_t GetBandIndex (BandNameType band) const


Public Attributes

double m_ExtinctionCoefficient

double m_NdviInf

double m_NdviSoil


Additional Inherited Members

- Public Types inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
using BandNameType = CommonBandNames

using InputType = TInput

using OutputType = TOutput

using PixelType = itk::VariableLengthVector< InputType >

- Static Public Attributes inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
static constexpr double Epsilon = 0.0000001

static constexpr vcl_size_t NumberOfBands = static_cast<vcl_size_t>(BandNameType::MAX)

- Protected Member Functions inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
vcl_size_t UncheckedBandIndex (BandNameType band) const

double Value (BandNameType band, const itk::VariableLengthVector< TInput > &input) const


Detailed Description

template<class TInput, class TOutput>
class otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >

computes the LAI from NDVI

This functor computes the LAI from NDVI using a logarithmic relationship. Asrar et al. (1984), Baret and Guyot (1991) and Wilson and Meyers (2007). Default values for the parameters are taken from A. Bsaibes et al. / Remote Sensing of Environment 113 (2009) 716-729

Definition at line 603 of file otbVegetationIndicesFunctor.h.

Constructor & Destructor Documentation

◆ LAIFromNDVILogarithmic()

template<class TInput , class TOutput >
otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::LAIFromNDVILogarithmic ( )
inline

Definition at line 606 of file otbVegetationIndicesFunctor.h.

Member Function Documentation

◆ GetExtionctionCoefficient()

template<class TInput , class TOutput >
const double& otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::GetExtionctionCoefficient ( ) const
inline

Definition at line 636 of file otbVegetationIndicesFunctor.h.

◆ GetNdviInf()

template<class TInput , class TOutput >
const double& otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::GetNdviInf ( ) const
inline

Definition at line 626 of file otbVegetationIndicesFunctor.h.

◆ GetNdviSoil()

template<class TInput , class TOutput >
const double& otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::GetNdviSoil ( ) const
inline

Definition at line 616 of file otbVegetationIndicesFunctor.h.

◆ operator()()

template<class TInput , class TOutput >
TOutput otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::operator() ( const itk::VariableLengthVector< TInput > &  input) const
inlineoverridevirtual

Astract method which will compute the radiometric indice

Parameters
inputA itk::VariableLengthVector<TInput> holding the pixel values for each band
Returns
The indice value as TOutput (starts at 1 for first band)

Implements otb::Functor::RadiometricIndex< TInput, TOutput >.

Definition at line 641 of file otbVegetationIndicesFunctor.h.

References otb::Functor::NDVI< TInput, TOutput >::Compute(), and otb::Functor::RadiometricIndex< TInput, TOutput >::Value().

◆ SetExtinctionCoefficient()

template<class TInput , class TOutput >
void otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::SetExtinctionCoefficient ( const double &  val)
inline

Definition at line 631 of file otbVegetationIndicesFunctor.h.

◆ SetNdviInf()

template<class TInput , class TOutput >
void otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::SetNdviInf ( const double &  val)
inline

Definition at line 621 of file otbVegetationIndicesFunctor.h.

◆ SetNdviSoil()

template<class TInput , class TOutput >
void otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::SetNdviSoil ( const double &  val)
inline

Definition at line 611 of file otbVegetationIndicesFunctor.h.

Member Data Documentation

◆ m_ExtinctionCoefficient

template<class TInput , class TOutput >
double otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::m_ExtinctionCoefficient

Definition at line 660 of file otbVegetationIndicesFunctor.h.

◆ m_NdviInf

template<class TInput , class TOutput >
double otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::m_NdviInf

Definition at line 659 of file otbVegetationIndicesFunctor.h.

◆ m_NdviSoil

template<class TInput , class TOutput >
double otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::m_NdviSoil

Definition at line 658 of file otbVegetationIndicesFunctor.h.


The documentation for this class was generated from the following file:
