otb::Functor::RadiometricIndex< TInput, TOutput > Class Template Reference

#include <otbRadiometricIndex.h>

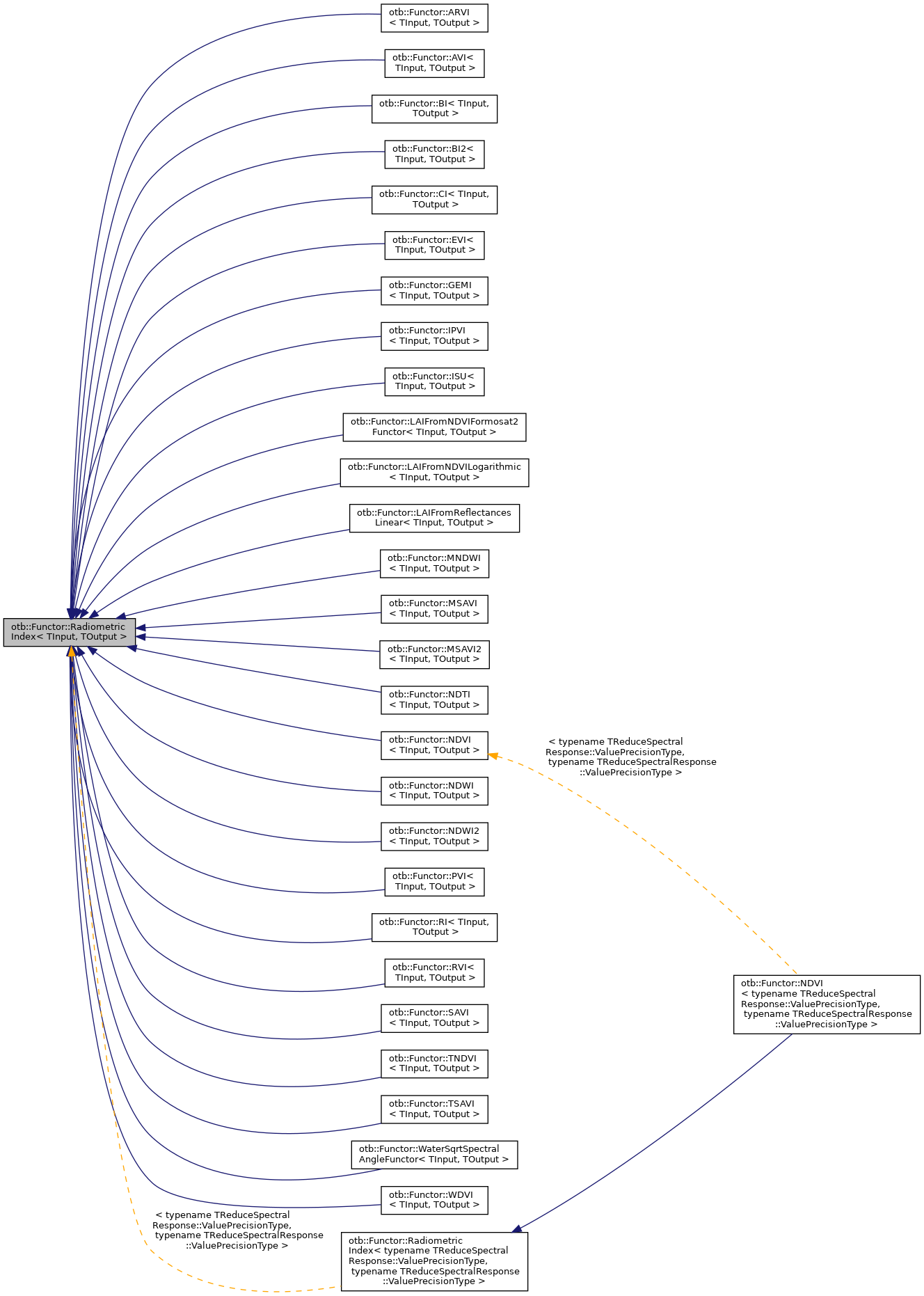

Inheritance diagram for otb::Functor::RadiometricIndex< TInput, TOutput >:

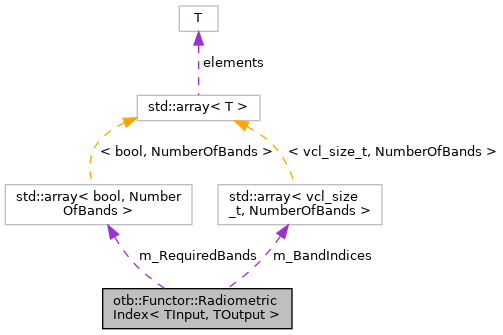

Collaboration diagram for otb::Functor::RadiometricIndex< TInput, TOutput >:

Public Types
using	BandNameType = CommonBandNames
using	InputType = TInput
using	OutputType = TOutput
using	PixelType = itk::VariableLengthVector< InputType >

Public Member Functions
	RadiometricIndex (const std::set< BandNameType > &requiredBands)
virtual	~RadiometricIndex ()=default

Static Public Attributes
static constexpr double	Epsilon = 0.0000001
static constexpr vcl_size_t	NumberOfBands = static_cast<vcl_size_t>(BandNameType::MAX)
using	RequiredBandsContainer = std::array< bool, NumberOfBands >
using	BandIndicesContainer = std::array< vcl_size_t, NumberOfBands >
RequiredBandsContainer	m_RequiredBands
BandIndicesContainer	m_BandIndices
std::set< BandNameType >	GetRequiredBands () const
void	SetBandIndex (BandNameType band, vcl_size_t index)
void	SetBandsIndices (const std::map< BandNameType, vcl_size_t > &indicesMap)
vcl_size_t	GetBandIndex (BandNameType band) const
virtual TOutput	operator() (const itk::VariableLengthVector< TInput > &input) const =0
vcl_size_t	UncheckedBandIndex (BandNameType band) const
double	Value (BandNameType band, const itk::VariableLengthVector< TInput > &input) const
	RadiometricIndex ()=delete

Detailed Description

template<typename TInput, typename TOutput>
class otb::Functor::RadiometricIndex< TInput, TOutput >

Base class for all radiometric indices.

This class is the base class for all radiometric indices.

It offers services to:

• Indicate which band are required among CommonBandNames enum
• Set indices of each required band
• Compute the indice response to a pixel by subclassing the pure virtual operator()

This class is designed for performance on the critical path. For best performances use the Value() method when implementing operator() to avoid branches.

Definition at line 57 of file otbRadiometricIndex.h.

Member Typedef Documentation

BandIndicesContainer

template<typename TInput , typename TOutput >

using otb::Functor::RadiometricIndex< TInput, TOutput >::BandIndicesContainer = std::array<vcl_size_t, NumberOfBands>

private

An array storing the indice for each band.

Definition at line 220 of file otbRadiometricIndex.h.

BandNameType

template<typename TInput , typename TOutput >

using otb::Functor::RadiometricIndex< TInput, TOutput >::BandNameType = CommonBandNames

Enum Among which bands are used.

Definition at line 67 of file otbRadiometricIndex.h.

InputType

template<typename TInput , typename TOutput >

using otb::Functor::RadiometricIndex< TInput, TOutput >::InputType = TInput

Types for input/output.

Definition at line 61 of file otbRadiometricIndex.h.

OutputType

template<typename TInput , typename TOutput >

using otb::Functor::RadiometricIndex< TInput, TOutput >::OutputType = TOutput

Definition at line 63 of file otbRadiometricIndex.h.

PixelType

template<typename TInput , typename TOutput >

using otb::Functor::RadiometricIndex< TInput, TOutput >::PixelType = itk::VariableLengthVector<InputType>

Definition at line 62 of file otbRadiometricIndex.h.

RequiredBandsContainer

template<typename TInput , typename TOutput >

using otb::Functor::RadiometricIndex< TInput, TOutput >::RequiredBandsContainer = std::array<bool, NumberOfBands>

private

An array storing the required status for each band.

Definition at line 216 of file otbRadiometricIndex.h.

Constructor & Destructor Documentation

~RadiometricIndex()

template<typename TInput , typename TOutput >

virtual otb::Functor::RadiometricIndex< TInput, TOutput >::~RadiometricIndex ( )

virtualdefault

RadiometricIndex() [1/2]

template<typename TInput , typename TOutput >

otb::Functor::RadiometricIndex< TInput, TOutput >::RadiometricIndex ( const std::set< BandNameType > &  requiredBands )

inline

Parameters

requiredBands

the set<CommonBandNames> of required bands

Exceptions

runtime_error

if requiredBands contains CommonBandNames::MAX

Definition at line 81 of file otbRadiometricIndex.h.

RadiometricIndex() [2/2]

template<typename TInput , typename TOutput >

otb::Functor::RadiometricIndex< TInput, TOutput >::RadiometricIndex ( )

privatedelete

An array storing the required status for each band.

Member Function Documentation

GetBandIndex()

template<typename TInput , typename TOutput >

vcl_size_t otb::Functor::RadiometricIndex< TInput, TOutput >::GetBandIndex ( BandNameType  band ) const

inline

Parameters

band	The band for which to retrieve indice

Returns

The indices of the band

Exceptions

runtime_error

if band is CommandBandName::MAX

Definition at line 151 of file otbRadiometricIndex.h.

Referenced by otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetBlueChannel(), otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetGreenChannel(), otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetNIRChannel(), and otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetRedChannel().

GetRequiredBands()

template<typename TInput , typename TOutput >

std::set<BandNameType> otb::Functor::RadiometricIndex< TInput, TOutput >::GetRequiredBands ( ) const

inline

Returns

a set<CommandBandName> containing the required bands for this indice.

Definition at line 102 of file otbRadiometricIndex.h.

operator()()

template<typename TInput , typename TOutput >

virtual TOutput otb::Functor::RadiometricIndex< TInput, TOutput >::operator() ( const itk::VariableLengthVector< TInput > &  input ) const

pure virtual

Astract method which will compute the radiometric indice

Parameters

input

A itk::VariableLengthVector<TInput> holding the pixel values for each band

Returns

The indice value as TOutput (starts at 1 for first band)

Implemented in otb::Functor::NDVI< typename TReduceSpectralResponse::ValuePrecisionType, typename TReduceSpectralResponse::ValuePrecisionType >, otb::Functor::LAIFromNDVIFormosat2Functor< TInput, TOutput >, otb::Functor::LAIFromReflectancesLinear< TInput, TOutput >, otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >, otb::Functor::TNDVI< TInput, TOutput >, otb::Functor::IPVI< TInput, TOutput >, otb::Functor::EVI< TInput, TOutput >, otb::Functor::ARVI< TInput, TOutput >, otb::Functor::AVI< TInput, TOutput >, otb::Functor::GEMI< TInput, TOutput >, otb::Functor::MSAVI2< TInput, TOutput >, otb::Functor::MSAVI< TInput, TOutput >, otb::Functor::WDVI< TInput, TOutput >, otb::Functor::TSAVI< TInput, TOutput >, otb::Functor::SAVI< TInput, TOutput >, otb::Functor::NDTI< TInput, TOutput >, otb::Functor::BI2< TInput, TOutput >, otb::Functor::PVI< TInput, TOutput >, otb::Functor::BI< TInput, TOutput >, otb::Functor::MNDWI< TInput, TOutput >, otb::Functor::CI< TInput, TOutput >, otb::Functor::RVI< TInput, TOutput >, otb::Functor::NDWI2< TInput, TOutput >, otb::Functor::RI< TInput, TOutput >, otb::Functor::NDWI< TInput, TOutput >, otb::Functor::NDVI< TInput, TOutput >, and otb::Functor::ISU< TInput, TOutput >.

SetBandIndex()

template<typename TInput , typename TOutput >

void otb::Functor::RadiometricIndex< TInput, TOutput >::SetBandIndex ( BandNameType  band, vcl_size_t  index  )

inline

Parameters

band	The band to set (value in CommandBandName)
index	The index of the band to set (starts at 1 for first band)

Exceptions

runtime_error

if band is CommandBandName::MAX

Definition at line 122 of file otbRadiometricIndex.h.

Referenced by otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetBlueChannel(), otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetGreenChannel(), otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetNIRChannel(), and otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetRedChannel().

SetBandsIndices()

template<typename TInput , typename TOutput >

void otb::Functor::RadiometricIndex< TInput, TOutput >::SetBandsIndices ( const std::map< BandNameType, vcl_size_t > &  indicesMap )

inline

Parameters

indicesMap

a std::map<CommandBandName,size_t> containing all bands indices to set (starts at 1 for first band)

Exceptions

runtime_error

if indicesMap contains CommandBandName::MAX

Definition at line 137 of file otbRadiometricIndex.h.

UncheckedBandIndex()

template<typename TInput , typename TOutput >

vcl_size_t otb::Functor::RadiometricIndex< TInput, TOutput >::UncheckedBandIndex ( BandNameType  band ) const

inlineprotected

Helper method to retrieve index for band name. With respect to the public method, this method will not throw an exception if CommandBandName::MAX is used as a parameter. Since it is meant for internal use in the critical path and not for client code, it will only assert that band is not CommandBandName::MAX in debug mode.

Parameters

band	The band for which to retrieve indice

Returns

The indices of the band

Definition at line 181 of file otbRadiometricIndex.h.

Value()

template<typename TInput , typename TOutput >

double otb::Functor::RadiometricIndex< TInput, TOutput >::Value ( BandNameType  band, const itk::VariableLengthVector< TInput > &  input  ) const

inlineprotected

Helper method to parse input itk::VariableLengthVector<TInput> and get the corresponding band value. For instance:

As this function is on the critical performance path, no checks are made to see whether this band is really required for this indice. However an assertion will be raised in debug mode.

Parameters

band	The band for which to retrieve the value
input	A itk::VariableLengthVector<TInput> holding the pixel values for each band

Returns

The value of the band as double

Definition at line 204 of file otbRadiometricIndex.h.

Referenced by otb::Functor::ISU< TInput, TOutput >::operator()(), otb::Functor::NDVI< typename TReduceSpectralResponse::ValuePrecisionType, typename TReduceSpectralResponse::ValuePrecisionType >::operator()(), otb::Functor::RI< TInput, TOutput >::operator()(), otb::Functor::NDWI< TInput, TOutput >::operator()(), otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::operator()(), otb::Functor::NDWI2< TInput, TOutput >::operator()(), otb::Functor::RVI< TInput, TOutput >::operator()(), otb::Functor::CI< TInput, TOutput >::operator()(), otb::Functor::BI< TInput, TOutput >::operator()(), otb::Functor::MNDWI< TInput, TOutput >::operator()(), otb::Functor::PVI< TInput, TOutput >::operator()(), otb::Functor::BI2< TInput, TOutput >::operator()(), otb::Functor::NDTI< TInput, TOutput >::operator()(), otb::Functor::SAVI< TInput, TOutput >::operator()(), otb::Functor::TSAVI< TInput, TOutput >::operator()(), otb::Functor::WDVI< TInput, TOutput >::operator()(), otb::Functor::MSAVI< TInput, TOutput >::operator()(), otb::Functor::MSAVI2< TInput, TOutput >::operator()(), otb::Functor::GEMI< TInput, TOutput >::operator()(), otb::Functor::AVI< TInput, TOutput >::operator()(), otb::Functor::ARVI< TInput, TOutput >::operator()(), otb::Functor::EVI< TInput, TOutput >::operator()(), otb::Functor::IPVI< TInput, TOutput >::operator()(), otb::Functor::TNDVI< TInput, TOutput >::operator()(), otb::Functor::LAIFromNDVILogarithmic< TInput, TOutput >::operator()(), otb::Functor::LAIFromReflectancesLinear< TInput, TOutput >::operator()(), otb::Functor::LAIFromNDVIFormosat2Functor< TInput, TOutput >::operator()(), and otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetReferenceWaterPixel().

Member Data Documentation

Epsilon

template<typename TInput , typename TOutput >

constexpr double otb::Functor::RadiometricIndex< TInput, TOutput >::Epsilon = 0.0000001

staticconstexpr

Definition at line 72 of file otbRadiometricIndex.h.

m_BandIndices

template<typename TInput , typename TOutput >

BandIndicesContainer otb::Functor::RadiometricIndex< TInput, TOutput >::m_BandIndices

private

An array storing the required status for each band.

Definition at line 221 of file otbRadiometricIndex.h.

m_RequiredBands

template<typename TInput , typename TOutput >

RequiredBandsContainer otb::Functor::RadiometricIndex< TInput, TOutput >::m_RequiredBands

private

An array storing the required status for each band.

Definition at line 217 of file otbRadiometricIndex.h.

NumberOfBands

template<typename TInput , typename TOutput >

constexpr vcl_size_t otb::Functor::RadiometricIndex< TInput, TOutput >::NumberOfBands = static_cast<vcl_size_t>(BandNameType::MAX)

staticconstexpr

The number of bands, derived from the Enum MAX value.

Definition at line 70 of file otbRadiometricIndex.h.

---

The documentation for this class was generated from the following file:

• otbRadiometricIndex.h
