otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput > Class Template Reference
Thematic modules » Radiometry modulesGroup Core » | Module OTBIndices

#include <otbLandsatTMIndices.h>

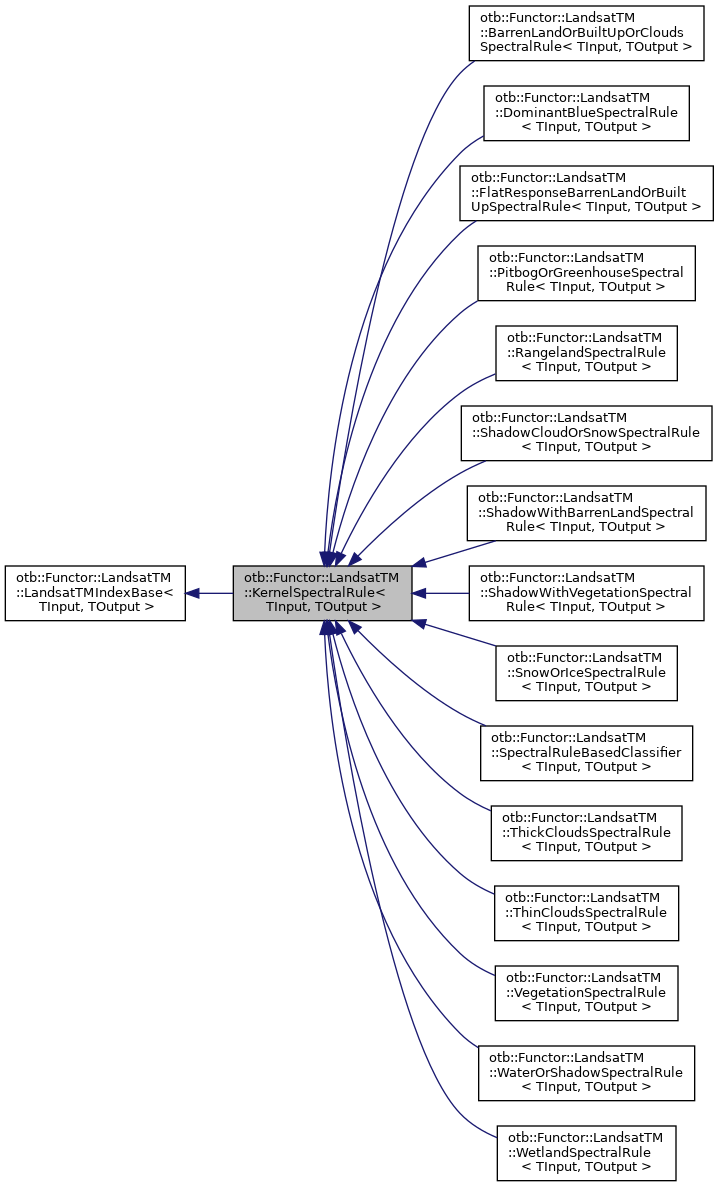

+ Inheritance diagram for otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >:
+ Collaboration diagram for otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >:

Public Types

typedef bool OutputPixelType

typedef TInput::ValueType PrecisionType


Public Member Functions

virtual std::string GetName () const

PrecisionType GetTV1 () const

PrecisionType GetTV2 () const

 KernelSpectralRule ()

void SetTV1 (PrecisionType tv1)

void SetTV2 (PrecisionType tv2)

 ~KernelSpectralRule () override

- Public Member Functions inherited from otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >
 LandsatTMIndexBase ()

bool operator!= (const LandsatTMIndexBase &) const

bool operator== (const LandsatTMIndexBase &other) const

void SetIndex (BandName::LandsatTMBandNames band, unsigned int channel)

virtual ~LandsatTMIndexBase ()

unsigned int GetIndex (BandName::LandsatTMBandNames band) const

unsigned int GetTM1 () const

unsigned int GetTM2 () const

unsigned int GetTM3 () const

unsigned int GetTM4 () const

unsigned int GetTM5 () const

unsigned int GetTM60 () const

unsigned int GetTM61 () const

unsigned int GetTM62 () const

unsigned int GetTM7 () const

void SetSAT (SATType sat)

SATType GetSAT () const

void SetDegree (DegreeType deg)

DegreeType GetDegre () const

void SetReflectance (ReflectanceType ref)

ReflectanceType GetReflectance () const

double GetEpsilonToBeConsideredAsZero () const


Protected Member Functions

void SetMinMax (const TInput &inputPixel, PrecisionType *max13, PrecisionType *min123, PrecisionType *max123, PrecisionType *min12347, PrecisionType *max12347, PrecisionType *max234, PrecisionType *max45)

- Protected Member Functions inherited from otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >
TInput PrepareValues (const TInput &inputPixel)


Protected Attributes

PrecisionType m_TV1

PrecisionType m_TV2

- Protected Attributes inherited from otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >
double m_EpsilonToBeConsideredAsZero

unsigned int m_TM1

unsigned int m_TM2

unsigned int m_TM3

unsigned int m_TM4

unsigned int m_TM5

unsigned int m_TM60

unsigned int m_TM61

unsigned int m_TM62

unsigned int m_TM7

SATType m_SAT

DegreeType m_Degree

ReflectanceType m_Reflectance


Detailed Description

template<class TInput, class TOutput>
class otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >

Implementation of the Kernel Spectral rules for Landsat TM image land cover classification as described in table IV of Baraldi et al. 2006, "Automatic Spectral Rule-Based Preliminary Mapping of Calibrated Landsat TM and ETM+ Images", IEEE Trans. on Geoscience and Remote Sensing, vol 44, no 9.

This is a virtual class defining the common accessors to the 14 spectral rules

Definition at line 1132 of file otbLandsatTMIndices.h.

Member Typedef Documentation

◆ OutputPixelType

template<class TInput , class TOutput >
typedef bool otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::OutputPixelType

Definition at line 1136 of file otbLandsatTMIndices.h.

◆ PrecisionType

template<class TInput , class TOutput >
typedef TInput::ValueType otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::PrecisionType

Definition at line 1135 of file otbLandsatTMIndices.h.

Constructor & Destructor Documentation

◆ KernelSpectralRule()

template<class TInput , class TOutput >
otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::KernelSpectralRule ( )
inline

Definition at line 1144 of file otbLandsatTMIndices.h.

◆ ~KernelSpectralRule()

template<class TInput , class TOutput >
otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::~KernelSpectralRule ( )
inlineoverride

Definition at line 1147 of file otbLandsatTMIndices.h.

Member Function Documentation

◆ GetName()

template<class TInput , class TOutput >
virtual std::string otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::GetName ( ) const
inlinevirtual

Return the index name

Reimplemented in otb::Functor::LandsatTM::WetlandSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::ShadowCloudOrSnowSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::ShadowWithVegetationSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::ShadowWithBarrenLandSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::FlatResponseBarrenLandOrBuiltUpSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::BarrenLandOrBuiltUpOrCloudsSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::RangelandSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::VegetationSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::DominantBlueSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::PitbogOrGreenhouseSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::WaterOrShadowSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::SnowOrIceSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::ThinCloudsSpectralRule< TInput, TOutput >, otb::Functor::LandsatTM::ThickCloudsSpectralRule< TInput, TOutput >, and otb::Functor::LandsatTM::SpectralRuleBasedClassifier< TInput, TOutput >.

Definition at line 1139 of file otbLandsatTMIndices.h.

◆ GetTV1()

template<class TInput , class TOutput >
PrecisionType otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::GetTV1 ( ) const
inline

Definition at line 1161 of file otbLandsatTMIndices.h.

References otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::m_TV1.

◆ GetTV2()

template<class TInput , class TOutput >
PrecisionType otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::GetTV2 ( ) const
inline

Definition at line 1166 of file otbLandsatTMIndices.h.

References otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::m_TV2.

◆ SetMinMax()

template<class TInput , class TOutput >
void otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::SetMinMax ( const TInput &  inputPixel,
PrecisionType *  max13,
PrecisionType *  min123,
PrecisionType *  max123,
PrecisionType *  min12347,
PrecisionType *  max12347,
PrecisionType *  max234,
PrecisionType *  max45
)
inlineprotected

Definition at line 1178 of file otbLandsatTMIndices.h.

References otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >::m_TM1, otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >::m_TM2, otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >::m_TM3, otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >::m_TM4, otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >::m_TM5, and otb::Functor::LandsatTM::LandsatTMIndexBase< TInput, TOutput >::m_TM7.

Referenced by otb::Functor::LandsatTM::ThickCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ThinCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::SnowOrIceSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::PitbogOrGreenhouseSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::VegetationSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::RangelandSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::BarrenLandOrBuiltUpOrCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::FlatResponseBarrenLandOrBuiltUpSpectralRule< TInput, TOutput >::operator()(), and otb::Functor::LandsatTM::ShadowCloudOrSnowSpectralRule< TInput, TOutput >::operator()().

◆ SetTV1()

template<class TInput , class TOutput >
void otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::SetTV1 ( PrecisionType  tv1)
inline

Definition at line 1151 of file otbLandsatTMIndices.h.

References otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::m_TV1.

◆ SetTV2()

template<class TInput , class TOutput >
void otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::SetTV2 ( PrecisionType  tv2)
inline

Definition at line 1156 of file otbLandsatTMIndices.h.

References otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::m_TV2.

Member Data Documentation

◆ m_TV1

template<class TInput , class TOutput >
PrecisionType otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::m_TV1
protected

Tolerance value 1

Definition at line 1173 of file otbLandsatTMIndices.h.

Referenced by otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::GetTV1(), otb::Functor::LandsatTM::SpectralRuleBasedClassifier< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ThickCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ThinCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::SnowOrIceSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::PitbogOrGreenhouseSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::DominantBlueSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::VegetationSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::RangelandSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::BarrenLandOrBuiltUpOrCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::FlatResponseBarrenLandOrBuiltUpSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ShadowWithBarrenLandSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ShadowWithVegetationSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ShadowCloudOrSnowSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::WetlandSpectralRule< TInput, TOutput >::operator()(), and otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::SetTV1().

◆ m_TV2

template<class TInput , class TOutput >
PrecisionType otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::m_TV2
protected

Tolerance value 2

Definition at line 1176 of file otbLandsatTMIndices.h.

Referenced by otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::GetTV2(), otb::Functor::LandsatTM::SpectralRuleBasedClassifier< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::SnowOrIceSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::PitbogOrGreenhouseSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::VegetationSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::RangelandSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::BarrenLandOrBuiltUpOrCloudsSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::FlatResponseBarrenLandOrBuiltUpSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::ShadowWithVegetationSpectralRule< TInput, TOutput >::operator()(), otb::Functor::LandsatTM::WetlandSpectralRule< TInput, TOutput >::operator()(), and otb::Functor::LandsatTM::KernelSpectralRule< TInput, TOutput >::SetTV2().

The documentation for this class was generated from the following file:
