otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput > Class Template Reference

#include <otbWaterSqrtSpectralAngleImageFilter.h>

Inheritance diagram for otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >:

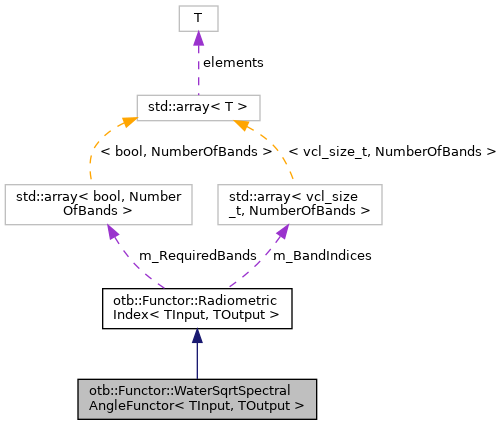

Collaboration diagram for otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >:

Public Member Functions
	WaterSqrtSpectralAngleFunctor ()
virtual	~WaterSqrtSpectralAngleFunctor ()=default
void	SetReferenceWaterPixel (PixelType ref)
TOutput	operator() (PixelType const &inPix) const override
void	SetBlueChannel (unsigned int channel)
unsigned int	GetBlueChannel () const
void	SetGreenChannel (unsigned int channel)
unsigned int	GetGreenChannel () const
void	SetRedChannel (unsigned int channel)
unsigned int	GetRedChannel () const
void	SetNIRChannel (unsigned int channel)
unsigned int	GetNIRChannel () const
Public Member Functions inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
	RadiometricIndex (const std::set< BandNameType > &requiredBands)
virtual	~RadiometricIndex ()=default
std::set< BandNameType >	GetRequiredBands () const
void	SetBandIndex (BandNameType band, vcl_size_t index)
void	SetBandsIndices (const std::map< BandNameType, vcl_size_t > &indicesMap)
vcl_size_t	GetBandIndex (BandNameType band) const
virtual TOutput	operator() (const itk::VariableLengthVector< TInput > &input) const =0

Private Attributes
PixelType	m_ReferencePixel
double	m_RefNorm

Additional Inherited Members
Public Types inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
using	BandNameType = CommonBandNames
using	InputType = TInput
using	OutputType = TOutput
using	PixelType = itk::VariableLengthVector< InputType >
Static Public Attributes inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
static constexpr double	Epsilon = 0.0000001
static constexpr vcl_size_t	NumberOfBands = static_cast<vcl_size_t>(BandNameType::MAX)
Protected Member Functions inherited from otb::Functor::RadiometricIndex< TInput, TOutput >
vcl_size_t	UncheckedBandIndex (BandNameType band) const
double	Value (BandNameType band, const itk::VariableLengthVector< TInput > &input) const

Detailed Description

template<class TInput, class TOutput>
class otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >

This functor uses a spectral angle with a particular reference pixel.

Definition at line 43 of file otbWaterSqrtSpectralAngleImageFilter.h.

Constructor & Destructor Documentation

WaterSqrtSpectralAngleFunctor()

template<class TInput , class TOutput >

otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::WaterSqrtSpectralAngleFunctor ( )

inline

Definition at line 48 of file otbWaterSqrtSpectralAngleImageFilter.h.

~WaterSqrtSpectralAngleFunctor()

template<class TInput , class TOutput >

virtual otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::~WaterSqrtSpectralAngleFunctor ( )

virtualdefault

Member Function Documentation

GetBlueChannel()

template<class TInput , class TOutput >

unsigned int otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetBlueChannel ( ) const

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 99 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::GetBandIndex().

GetGreenChannel()

template<class TInput , class TOutput >

unsigned int otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetGreenChannel ( ) const

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 107 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::GetBandIndex().

GetNIRChannel()

template<class TInput , class TOutput >

unsigned int otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetNIRChannel ( ) const

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 123 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::GetBandIndex().

GetRedChannel()

template<class TInput , class TOutput >

unsigned int otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::GetRedChannel ( ) const

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 115 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::GetBandIndex().

operator()()

template<class TInput , class TOutput >

TOutput otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::operator() ( PixelType const &  inPix ) const

inlineoverride

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 77 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::m_ReferencePixel, otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::m_RefNorm, and otb::Functor::RadiometricIndex< TInput, TOutput >::Value().

SetBlueChannel()

template<class TInput , class TOutput >

void otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetBlueChannel ( unsigned int  channel )

inline

Legacy getters and setters (use SetBandIndex/GetBandIndex instead)

Deprecated:

Definition at line 95 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::SetBandIndex().

SetGreenChannel()

template<class TInput , class TOutput >

void otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetGreenChannel ( unsigned int  channel )

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 103 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::SetBandIndex().

SetNIRChannel()

template<class TInput , class TOutput >

void otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetNIRChannel ( unsigned int  channel )

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 119 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::SetBandIndex().

SetRedChannel()

template<class TInput , class TOutput >

void otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetRedChannel ( unsigned int  channel )

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 111 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::RadiometricIndex< TInput, TOutput >::SetBandIndex().

SetReferenceWaterPixel()

template<class TInput , class TOutput >

void otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetReferenceWaterPixel ( PixelType  ref )

inline

Set Reference Pixel

Parameters

ref	: The new reference pixel, the band indices will be used.

Definition at line 65 of file otbWaterSqrtSpectralAngleImageFilter.h.

References otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::m_ReferencePixel, otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::m_RefNorm, and otb::Functor::RadiometricIndex< TInput, TOutput >::Value().

Member Data Documentation

m_ReferencePixel

template<class TInput , class TOutput >

PixelType otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::m_ReferencePixel

private

Definition at line 133 of file otbWaterSqrtSpectralAngleImageFilter.h.

Referenced by otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::operator()(), and otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetReferenceWaterPixel().

m_RefNorm

template<class TInput , class TOutput >

double otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::m_RefNorm

private

Definition at line 134 of file otbWaterSqrtSpectralAngleImageFilter.h.

Referenced by otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::operator()(), and otb::Functor::WaterSqrtSpectralAngleFunctor< TInput, TOutput >::SetReferenceWaterPixel().

---

The documentation for this class was generated from the following file:

• otbWaterSqrtSpectralAngleImageFilter.h
