otb::GDALImageMetadataInterface Class Reference

#include <otbGDALImageMetadataInterface.h>

+ Inheritance diagram for otb::GDALImageMetadataInterface:

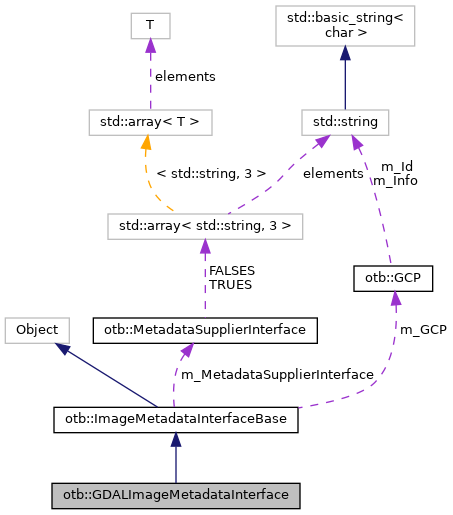

+ Collaboration diagram for otb::GDALImageMetadataInterface:

Public Types

using ConstPointer = itk::SmartPointer< const Self >

typedef Superclass::ImageType ImageType

typedef Superclass::MetaDataDictionaryType MetaDataDictionaryType

using Pointer = itk::SmartPointer< Self >

using Self = GDALImageMetadataInterface

using Superclass = ImageMetadataInterfaceBase

typedef Superclass::VariableLengthVectorType VariableLengthVectorType

typedef Superclass::VectorType VectorType

- Public Types inherited from otb::ImageMetadataInterfaceBase
typedef itk::SmartPointer< const SelfConstPointer

typedef itk::ImageBase< 2 > ImageType

typedef itk::MetaDataDictionary MetaDataDictionaryType

typedef itk::SmartPointer< SelfPointer

typedef ImageMetadataInterfaceBase Self

typedef std::vector< std::string > StringVectorType

typedef itk::Object Superclass

typedef std::vector< unsigned int > UIntVectorType

typedef unsigned int UnsignedIntType

typedef MetaDataKey::VariableLengthVectorType VariableLengthVectorType

typedef MetaDataKey::VectorType VectorType


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

void Parse (ImageMetadata &) override

- Public Member Functions inherited from otb::ImageMetadataInterfaceBase
const MetaDataDictionaryTypeGetMetaDataDictionary () const

std::string GetProjectionRef () const

void SetImage (ImageType *image)

void SetMetaDataDictionary (const MetaDataDictionaryType &dict)

void SetMetadataSupplierInterface (const MetadataSupplierInterface &)

std::string GetGCPProjection () const

UnsignedIntType GetGCPCount () const

GCPGetGCPs (unsigned int GCPnum)

std::string GetGCPId (unsigned int GCPnum) const

std::string GetGCPInfo (unsigned int GCPnum) const

double GetGCPRow (unsigned int GCPnum) const

double GetGCPCol (unsigned int GCPnum) const

double GetGCPX (unsigned int GCPnum) const

double GetGCPY (unsigned int GCPnum) const

double GetGCPZ (unsigned int GCPnum) const

VectorType GetGeoTransform () const

VectorType GetUpperLeftCorner () const

VectorType GetUpperRightCorner () const

VectorType GetLowerLeftCorner () const

VectorType GetLowerRightCorner () const

const std::string & Fetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)

const double & Fetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)

const MetaData::TimePointFetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)

const std::string & Fetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)

const boost::any & FetchRPC (ImageMetadata &imd, const double lineOffset=0.0, const double sampleOffset=0.0)


Static Public Member Functions

static Pointer New ()


Protected Member Functions

 GDALImageMetadataInterface ()

 ~GDALImageMetadataInterface () override=default

- Protected Member Functions inherited from otb::ImageMetadataInterfaceBase
 ImageMetadataInterfaceBase ()=default

 ~ImageMetadataInterfaceBase () override=default

void PrintSelf (std::ostream &os, itk::Indent indent) const override


Private Member Functions

 GDALImageMetadataInterface (const Self &)=delete

void operator= (const Self &)=delete


Additional Inherited Members

- Protected Attributes inherited from otb::ImageMetadataInterfaceBase
MetaDataDictionaryType m_MetaDataDictionary

const MetadataSupplierInterfacem_MetadataSupplierInterface = nullptr


Detailed Description

Definition at line 31 of file otbGDALImageMetadataInterface.h.

Member Typedef Documentation

◆ ConstPointer

using otb::GDALImageMetadataInterface::ConstPointer = itk::SmartPointer<const Self>

Definition at line 37 of file otbGDALImageMetadataInterface.h.

◆ ImageType

typedef Superclass::ImageType otb::GDALImageMetadataInterface::ImageType

Definition at line 43 of file otbGDALImageMetadataInterface.h.

◆ MetaDataDictionaryType

typedef Superclass::MetaDataDictionaryType otb::GDALImageMetadataInterface::MetaDataDictionaryType

Definition at line 46 of file otbGDALImageMetadataInterface.h.

◆ Pointer

using otb::GDALImageMetadataInterface::Pointer = itk::SmartPointer<Self>

Definition at line 36 of file otbGDALImageMetadataInterface.h.

◆ Self

Definition at line 34 of file otbGDALImageMetadataInterface.h.

◆ Superclass

Definition at line 35 of file otbGDALImageMetadataInterface.h.

◆ VariableLengthVectorType

typedef Superclass::VariableLengthVectorType otb::GDALImageMetadataInterface::VariableLengthVectorType

Definition at line 48 of file otbGDALImageMetadataInterface.h.

◆ VectorType

typedef Superclass::VectorType otb::GDALImageMetadataInterface::VectorType

Definition at line 47 of file otbGDALImageMetadataInterface.h.

Constructor & Destructor Documentation

◆ GDALImageMetadataInterface() [1/2]

otb::GDALImageMetadataInterface::GDALImageMetadataInterface ( )
protected

◆ ~GDALImageMetadataInterface()

otb::GDALImageMetadataInterface::~GDALImageMetadataInterface ( )
overrideprotecteddefault

◆ GDALImageMetadataInterface() [2/2]

otb::GDALImageMetadataInterface::GDALImageMetadataInterface ( const Self )
privatedelete

Member Function Documentation

◆ CreateAnother()

virtual::itk::LightObject::Pointer otb::GDALImageMetadataInterface::CreateAnother ( void  ) const

◆ GetNameOfClass()

virtual const char* otb::GDALImageMetadataInterface::GetNameOfClass ( ) const
virtual

Run-time type information (and related methods).

Reimplemented from otb::ImageMetadataInterfaceBase.

◆ New()

static Pointer otb::GDALImageMetadataInterface::New ( )
static

Method for creation through the object factory.

◆ operator=()

void otb::GDALImageMetadataInterface::operator= ( const Self )
privatedelete

◆ Parse()

void otb::GDALImageMetadataInterface::Parse ( ImageMetadata )
overridevirtual

Parses the metadata using the MetadataSupplierInterface and fill the ImageMetadata object Raises "MissingMetadataException" if parsing fails.

Reimplemented from otb::ImageMetadataInterfaceBase.


The documentation for this class was generated from the following file:
