otb::ImageMetadata Class Reference
Group Core » Module OTBMetadata

#include <otbImageMetadata.h>

+ Inheritance diagram for otb::ImageMetadata:

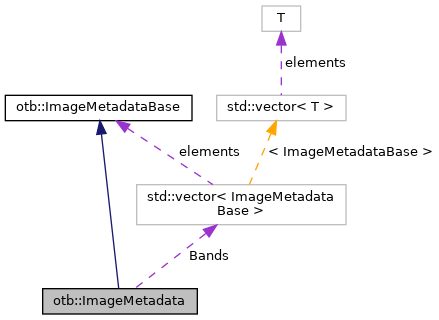

+ Collaboration diagram for otb::ImageMetadata:

Public Types

using ImageMetadataBandsType = std::vector< ImageMetadataBase >

using KeywordlistVector = std::vector< ImageMetadata::Keywordlist >

- Public Types inherited from otb::ImageMetadataBase
template<class TKey , class TVal >
using DictType = std::map< TKey, TVal >

using Keywordlist = std::unordered_map< std::string, std::string >


Public Member Functions

void Add (const std::string &key, const std::string &value)

void Add (MDGeom key, const boost::any &value)

void Add (MDL1D key, const MetaData::LUT1D &value)

void Add (MDL2D key, const MetaData::LUT2D &value)

void Add (MDNum key, const double &value)

void Add (MDNum, const MetaDataKey::VariableLengthVectorType)

void Add (MDStr key, const std::string &value)

void Add (MDTime key, const MetaData::TimePoint &value)

void append (const ImageMetadata &)

void AppendToBandKeywordlists (KeywordlistVector &) const

void AppendToKeywordlists (KeywordlistVector &) const

void compact ()

bool FromKeywordlists (const KeywordlistVector &)

itk::VariableLengthVector< double > GetAsVector (MDNum key) const

std::vector< std::string > GetBandNames () const

std::vector< std::string > GetEnhancedBandNames () const

int GetSize () const

bool HasBandMetadata (MDL1D key) const

bool HasBandMetadata (MDNum key) const

 ImageMetadata ()=default

 ImageMetadata (DictType< MDGeom, boost::any > geometryKeys, DictType< MDNum, double > numericKeys, DictType< MDStr, std::string > stringKeys, DictType< MDL1D, MetaData::LUT1D > lut1DKeys, DictType< MDL2D, MetaData::LUT2D > lut2DKeys, DictType< MDTime, MetaData::TimePoint > timeKeys, DictType< std::string, std::string > extraKeys, ImageMetadataBandsType bands)

void Merge (const ImageMetadata &)

ImageMetadata slice (int start, int end) const

- Public Member Functions inherited from otb::ImageMetadataBase
void Add (const std::string &key, const std::string &value)

void Add (MDGeom key, const boost::any &value)

void Add (MDL1D key, const MetaData::LUT1D &value)

void Add (MDL2D key, const MetaData::LUT2D &value)

void Add (MDNum key, const double &value)

void Add (MDStr key, const std::string &value)

void Add (MDTime key, const MetaData::TimePoint &value)

bool FromKeywordlist (const Keywordlist &)

void Fuse (const ImageMetadataBase &)

std::vector< unsigned int > GetDefaultDisplay () const

const Projection::GCPParam & GetGCPParam () const

std::string GetKeyListL1D () const

std::string GetKeyListNum () const

std::string GetKeyListStr () const

std::string GetKeyListTime () const

std::string GetProjectedGeometry () const

std::string GetProjectionProj () const

std::string GetProjectionWKT () const

const Projection::RPCParam & GetRPCParam () const

const SARParam & GetSARParam () const

int GetSize () const

bool Has (const std::string &key) const

bool Has (MDGeom key) const

bool Has (MDL1D key) const

bool Has (MDL2D key) const

bool Has (MDNum key) const

bool Has (MDStr key) const

bool Has (MDTime key) const

bool HasProjectedGeometry () const

bool HasSensorGeometry () const

 ImageMetadataBase ()=default

 ImageMetadataBase (DictType< MDGeom, boost::any > geometryKeys, DictType< MDNum, double > numericKeys, DictType< MDStr, std::string > stringKeys, DictType< MDL1D, MetaData::LUT1D > lut1DKeys, DictType< MDL2D, MetaData::LUT2D > lut2DKeys, DictType< MDTime, MetaData::TimePoint > timeKeys, DictType< std::string, std::string > extraKeys)

const std::string & operator[] (const std::string &key) const

const boost::any & operator[] (MDGeom key) const

const MetaData::LUT1D & operator[] (MDL1D key) const

const MetaData::LUT2D & operator[] (MDL2D key) const

const double & operator[] (MDNum key) const

const std::string & operator[] (MDStr key) const

const MetaData::TimePoint & operator[] (MDTime key) const

vcl_size_t Remove (const std::string &key)

vcl_size_t Remove (MDGeom key)

vcl_size_t Remove (MDL1D key)

vcl_size_t Remove (MDL2D key)

vcl_size_t Remove (MDNum key)

vcl_size_t Remove (MDStr key)

vcl_size_t Remove (MDTime key)

vcl_size_t RemoveProjectedGeometry ()

vcl_size_t RemoveSensorGeometry ()

std::string ToJSON (bool multiline=false) const

void ToKeywordlist (Keywordlist &) const


Public Attributes

ImageMetadataBandsType Bands

- Public Attributes inherited from otb::ImageMetadataBase
DictType< std::string, std::string > ExtraKeys

DictType< MDGeom, boost::any > GeometryKeys

DictType< MDL1D, MetaData::LUT1D > LUT1DKeys

DictType< MDL2D, MetaData::LUT2D > LUT2DKeys

DictType< MDNum, double > NumericKeys

DictType< MDStr, std::string > StringKeys

DictType< MDTime, MetaData::TimePoint > TimeKeys


Detailed Description

Generic class containing image metadata used in OTB.

Definition at line 270 of file otbImageMetadata.h.

Member Typedef Documentation

◆ ImageMetadataBandsType

using otb::ImageMetadata::ImageMetadataBandsType = std::vector<ImageMetadataBase>

Band-specific metadatas

Definition at line 277 of file otbImageMetadata.h.

◆ KeywordlistVector

using otb::ImageMetadata::KeywordlistVector = std::vector<ImageMetadata::Keywordlist>

Metadata object as a vector of Keywordlist

Definition at line 274 of file otbImageMetadata.h.

Constructor & Destructor Documentation

◆ ImageMetadata() [1/2]

otb::ImageMetadata::ImageMetadata ( )
default

◆ ImageMetadata() [2/2]

otb::ImageMetadata::ImageMetadata ( DictType< MDGeom, boost::any >  geometryKeys,
DictType< MDNum, double >  numericKeys,
DictType< MDStr, std::string >  stringKeys,
DictType< MDL1D, MetaData::LUT1D >  lut1DKeys,
DictType< MDL2D, MetaData::LUT2D >  lut2DKeys,
DictType< MDTime, MetaData::TimePoint >  timeKeys,
DictType< std::string, std::string >  extraKeys,
ImageMetadataBandsType  bands
)

Member Function Documentation

◆ Add() [1/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ Add() [2/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ Add() [3/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ Add() [4/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ Add() [5/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ Add() [6/8]

void otb::ImageMetadata::Add ( MDNum  ,
const MetaDataKey::VariableLengthVectorType
)

Referenced by otb::RPCTransformBase< TScalarType, 3, 2 >::OptimizeParameters().

◆ Add() [7/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ Add() [8/8]

void otb::ImageMetadataBase::Add

Setter for numeric keys on each band

◆ append()

void otb::ImageMetadata::append ( const ImageMetadata &  )

concatenate with an other ImageMetadata If a key exists in both ImageMetadata, keeps the value of this ImageMetadata.

◆ AppendToBandKeywordlists()

void otb::ImageMetadata::AppendToBandKeywordlists ( KeywordlistVector &  ) const

Append the bands of the Metadata to a vector of KeywordList. Each KeywordList contain the metadata of a band.

◆ AppendToKeywordlists()

void otb::ImageMetadata::AppendToKeywordlists ( KeywordlistVector &  ) const

Append the Metadata to a vector of KeywordList. The first KeywordList contains the metadata common to all the bands. The following KeywordList contains the metadata of the bands.

◆ compact()

void otb::ImageMetadata::compact ( )

if all bands share the same value of a key, put it at top level

◆ FromKeywordlists()

bool otb::ImageMetadata::FromKeywordlists ( const KeywordlistVector &  )

Import metadata from a vector of keywordlist. The first KeywordList contains the metadata common to all the bands. The following KeywordList contains the metadata of the bands. Will skip MDGeom::SensorGeometry. Returns True if all keywords were parsed correctly.

◆ GetAsVector()

itk::VariableLengthVector<double> otb::ImageMetadata::GetAsVector ( MDNum  key) const

Getter for numeric keys on each band

◆ GetBandNames()

std::vector<std::string> otb::ImageMetadata::GetBandNames ( ) const

Return a vector containing the name of each band of the ImageMetadata or an empty vector if at least one band name is missing

◆ GetEnhancedBandNames()

std::vector<std::string> otb::ImageMetadata::GetEnhancedBandNames ( ) const

Return a vector containing the name of each band of the ImageMetadata or an empty vector if at least one band name is missing

◆ GetSize()

int otb::ImageMetadata::GetSize ( ) const

Return the number of elements in the ImageMetadata

◆ HasBandMetadata() [1/2]

bool otb::ImageMetadata::HasBandMetadata ( MDL1D  key) const

test whether the metadata corresponding to key is present on each band

◆ HasBandMetadata() [2/2]

bool otb::ImageMetadata::HasBandMetadata ( MDNum  key) const

test whether the metadata corresponding to key is present on each band

◆ Merge()

void otb::ImageMetadata::Merge ( const ImageMetadata &  )

merge with another ImageMetadata If a key exists in both ImageMetadata, keeps the value of this ImageMetadata.

◆ slice()

ImageMetadata otb::ImageMetadata::slice ( int  start,
int  end
) const

Extract metadata from a subset of the bands

Member Data Documentation

◆ Bands

ImageMetadataBandsType otb::ImageMetadata::Bands

Definition at line 278 of file otbImageMetadata.h.

Referenced by otb::ImageFileReader< TOutputImage, ConvertPixelTraits >::GenerateOutputInformation().
