#include <otbGDALRPCTransformer.h>

Inheritance diagram for otb::GDALRPCTransformer:

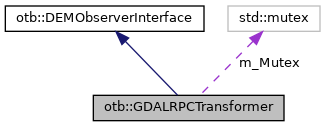

Collaboration diagram for otb::GDALRPCTransformer:

Public Types
using	PointType = itk::Point< double, 3 >

Public Member Functions
bool	ForwardTransform (double x, double y, double *z, int nPointCount)

PointType	ForwardTransform (PointType p)

	GDALRPCTransformer (const Projection::RPCParam &, bool useDEM)

	GDALRPCTransformer (double LineOffset, double SampleOffset, double LatOffset, double LonOffset, double HeightOffset, double LineScale, double SampleScale, double LatScale, double LonScale, double HeightScale, const double(&LineNum)[20], const double(&LineDen)[20], const double(&SampleNum)[20], const double(&SampleDen)[20], bool useDEM)

bool	InverseTransform (double x, double y, double *z, int nPointCount)

PointType	InverseTransform (PointType p)

void	SetOption (const std::string &Name, const std::string &Value)

void	SetPixErrThreshold (double PixErrThreshold)

	~GDALRPCTransformer ()

Protected Member Functions
void	Update () final

Protected Member Functions inherited from otb::DEMObserverInterface
	DEMObserverInterface ()=default

	DEMObserverInterface (DEMObserverInterface const &)=delete

DEMObserverInterface &	operator= (DEMObserverInterface const &)=delete

	~DEMObserverInterface ()=default

Private Attributes
GDALRPCInfo	m_GDALRPCInfo

bool	m_Modified = true

std::mutex	m_Mutex

char **	m_Options = nullptr

double	m_PixErrThreshold = 0.1

void *	m_TransformArg = nullptr

bool	m_UseDEM = true

Detailed Description

This class is a wrapper around GDALCreateRPCTransformer and GDALRPCTransform.

This class aims at manipulating RPC transformations within OTB, in a safe and easy way.

To use this wrapper, one needs to call the constructor with the correct parameters. Then, one can set the options, and the threshold. Finally, one can call ForwardTransform or BackwardTransform, depending in the desired result.

The parameters provided to the constructor are those found in the RPCParam structure defined in the otbGeometryMetadata.h file. They are quite similar to what can be found in GDALRPCInfo.

Definition at line 52 of file otbGDALRPCTransformer.h.

Member Typedef Documentation

◆ PointType

using otb::GDALRPCTransformer::PointType = itk::Point<double, 3>

Definition at line 56 of file otbGDALRPCTransformer.h.

Constructor & Destructor Documentation

◆ GDALRPCTransformer() [1/2]

otb::GDALRPCTransformer::GDALRPCTransformer	(	double	LineOffset,
		double	SampleOffset,
		double	LatOffset,
		double	LonOffset,
		double	HeightOffset,
		double	LineScale,
		double	SampleScale,
		double	LatScale,
		double	LonScale,
		double	HeightScale,
		const double(&)	LineNum[20],
		const double(&)	LineDen[20],
		const double(&)	SampleNum[20],
		const double(&)	SampleDen[20],
		bool	useDEM
	)

Build a GDALRPCTransformer

The parameters describe the RPC model. They can be found in the RPCParam structure defined in the otbGeometryMetadata.h file. They are quite similar to what can be found in GDALRPCInfo. See also http://geotiff.maptools.org/rpc_prop.html

◆ GDALRPCTransformer() [2/2]

otb::GDALRPCTransformer::GDALRPCTransformer	(	const Projection::RPCParam &	,
		bool	useDEM
	)

◆ ~GDALRPCTransformer()

otb::GDALRPCTransformer::~GDALRPCTransformer ( )

Member Function Documentation

◆ ForwardTransform() [1/2]

bool otb::GDALRPCTransformer::ForwardTransform	(	double *	x,
		double *	y,
		double *	z,
		int	nPointCount
	)

Compute a forward transformation

This method performs a transformation from column/row to long/lat/height space. It can work with an arbitrary number of points.

Parameters

[in,out]	x	array of the X coordinate of the points to convert
[in,out]	y	array of the Y coordinate of the points to convert
[in,out]	z	array of the Z coordinate of the points to convert
[in]	nPointCount	the number of points to convert

Returns: true if all points were correctly transformed

Precondition: x, y, z != nullptr

◆ ForwardTransform() [2/2]

PointType otb::GDALRPCTransformer::ForwardTransform ( PointType p )

Compute an forward transformation

This method performs a transformation from column/row to long/lat/height space. It works with only one point.

Parameters

[in] p coordinates of the point to convert

Returns: the coordinates of the converted point

◆ InverseTransform() [1/2]

bool otb::GDALRPCTransformer::InverseTransform	(	double *	x,
		double *	y,
		double *	z,
		int	nPointCount
	)

Compute an inverse transformation

This method performs a transformation from long/lat/height to column/row space. It can work with an arbitrary number of points.

Parameters

[in,out]	x	array of the X coordinate of the points to convert
[in,out]	y	array of the Y coordinate of the points to convert
[in,out]	z	array of the Z coordinate of the points to convert
[in]	nPointCount	the number of points to convert

Returns: true if all points were correctly transformed

Precondition: x, y, z != nullptr

◆ InverseTransform() [2/2]

PointType otb::GDALRPCTransformer::InverseTransform ( PointType p )

Compute an inverse transformation

This method performs a transformation from long/lat/height to column/row space. It works with only one point.

Parameters

[in] p coordinates of the point to convert

Returns: the coordinates of the converted point

◆ SetOption()

void otb::GDALRPCTransformer::SetOption	(	const std::string &	Name,
		const std::string &	Value
	)

Set additional options to the transformer

RPC_HEIGHT: a fixed height offset to be applied to all points passed in. In this situation the Z passed into the transformation function is assumed to be height above ground, and the RPC_HEIGHT is assumed to be an average height above sea level for ground in the target scene.
RPC_HEIGHT_SCALE: a factor used to multiply heights above ground. Useful when elevation offsets of the DEM are not expressed in meters.
RPC_DEM: the name of a GDAL dataset (a DEM file typically) used to extract elevation offsets from. In this situation the Z passed into the transformation function is assumed to be height above ground. This option should be used in replacement of RPC_HEIGHT to provide a way of defining a non uniform ground for the target scene
RPC_DEMINTERPOLATION: the DEM interpolation ("near", "bilinear" or "cubic"). Default is "bilinear".
RPC_DEM_MISSING_VALUE: value of DEM height that must be used in case the DEM has nodata value at the sampling point, or if its extent does not cover the requested coordinate. When not specified, missing values will cause a failed transform.
RPC_DEM_SRS: (GDAL >= 3.2) WKT SRS, or any string recognized by OGRSpatialReference::SetFromUserInput(), to be used as an override for DEM SRS. Useful if DEM SRS does not have an explicit vertical component.
RPC_DEM_APPLY_VDATUM_SHIFT: whether the vertical component of a compound SRS for the DEM should be used (when it is present). This is useful so as to be able to transform the "raw" values from the DEM expressed with respect to a geoid to the heights with respect to the WGS84 ellipsoid. When this is enabled, the GTIFF_REPORT_COMPD_CS configuration option will be also set temporarily so as to get the vertical information from GeoTIFF files. Defaults to TRUE. (GDAL >= 2.1.0)
RPC_PIXEL_ERROR_THRESHOLD: overrides the dfPixErrThreshold parameter, ie the error (measured in pixels) allowed in the iterative solution of pixel/line to lat/long computations (the other way is always exact given the equations). (GDAL >= 2.1.0)
RPC_MAX_ITERATIONS: maximum number of iterations allowed in the iterative solution of pixel/line to lat/long computations. Default value is 10 in the absence of a DEM, or 20 if there is a DEM. (GDAL >= 2.1.0)
RPC_FOOTPRINT: WKT or GeoJSON polygon (in long / lat coordinate space) with a validity footprint for the RPC. Any coordinate transformation that goes from or arrive outside this footprint will be considered invalid. This is useful in situations where the RPC values become highly unstable outside of the area on which they have been computed for, potentially leading to undesirable "echoes" / false positives. This requires GDAL to be built against GEOS.

Parameters

[in]	Name	a string containing the name of the option
[in]	Value	a string containing the value of the option

◆ SetPixErrThreshold()

void otb::GDALRPCTransformer::SetPixErrThreshold ( double PixErrThreshold )

Set the error (measured in pixels) allowed in the iterative solution of pixel/line to lat/long computations (the other way is always exact given the equations). Starting with GDAL 2.1, this may also be set through the RPC_PIXEL_ERROR_THRESHOLD transformer option. If a negative or null value is provided, then this defaults to 0.1 pixel.

Parameters

[in] PixErrThreshold the new value of the error

◆ Update()

void otb::GDALRPCTransformer::Update ( )

finalprotectedvirtual

Regenerate the transformer

Called when performing a transformation and some options were modified.

Implements otb::DEMObserverInterface.

Member Data Documentation

◆ m_GDALRPCInfo

GDALRPCInfo otb::GDALRPCTransformer::m_GDALRPCInfo

private

The RPC model

Definition at line 216 of file otbGDALRPCTransformer.h.

◆ m_Modified

bool otb::GDALRPCTransformer::m_Modified = true

private

Used to know if Update is required after a change in the options

Definition at line 213 of file otbGDALRPCTransformer.h.

◆ m_Mutex

std::mutex otb::GDALRPCTransformer::m_Mutex

private

Lock threads when instantiating the GDAL RPC transformer

Definition at line 228 of file otbGDALRPCTransformer.h.

◆ m_Options

char** otb::GDALRPCTransformer::m_Options = nullptr

private

The options

Definition at line 219 of file otbGDALRPCTransformer.h.

◆ m_PixErrThreshold

double otb::GDALRPCTransformer::m_PixErrThreshold = 0.1

private

The error allowed in the iterative solution

Definition at line 222 of file otbGDALRPCTransformer.h.

◆ m_TransformArg

void* otb::GDALRPCTransformer::m_TransformArg = nullptr

private

The transformer arguments

Definition at line 225 of file otbGDALRPCTransformer.h.

◆ m_UseDEM

bool otb::GDALRPCTransformer::m_UseDEM = true

private

Use the DEM singleton in DEM computations

Definition at line 231 of file otbGDALRPCTransformer.h.

The documentation for this class was generated from the following file:

otbGDALRPCTransformer.h
