otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions > Class Template Reference

#include <otbGenericRSTransform.h>

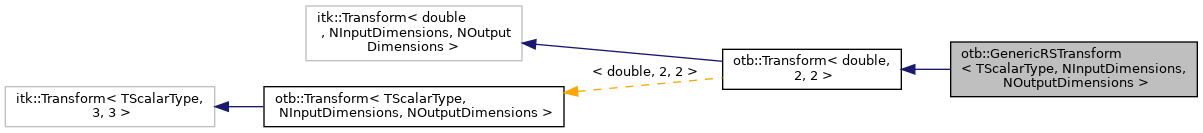

+ Inheritance diagram for otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >:

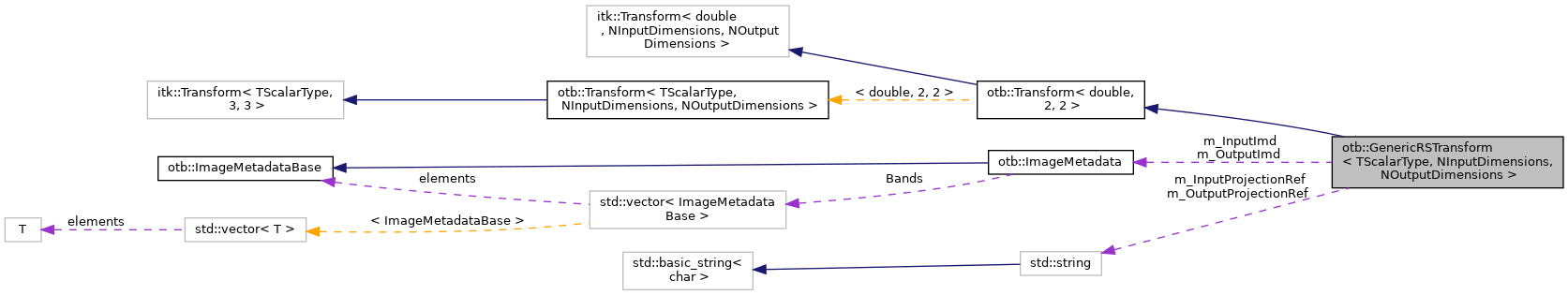

+ Collaboration diagram for otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >:

Public Types

typedef TransformDirection::TransformationDirection DirectionOfMappingEnumType

typedef GenericTransformType::Pointer GenericTransformPointerType

typedef itk::Transform< double, NInputDimensions, NOutputDimensions > GenericTransformType

typedef itk::Point< ScalarType, NInputDimensions > InputPointType

typedef Superclass::InverseTransformBasePointer InverseTransformBasePointer

typedef Superclass::JacobianType JacobianType

typedef itk::Point< double, 2 > OriginType

typedef itk::Point< ScalarType, NOutputDimensions > OutputPointType

typedef Superclass::ScalarType ScalarType

typedef itk::Vector< double, 2 > SpacingType

typedef TransformType::Pointer TransformPointerType

typedef otb::CompositeTransform< GenericTransformType, GenericTransformTypeTransformType

Standard ITK typedefs
typedef otb::Transform< TScalarType, NInputDimensions, NOutputDimensions > Superclass

typedef GenericRSTransform Self

typedef itk::SmartPointer< SelfPointer

typedef itk::SmartPointer< const SelfConstPointer

- Public Types inherited from otb::Transform< TScalarType, NInputDimensions, NOutputDimensions >
typedef itk::SmartPointer< const SelfConstPointer

typedef itk::CovariantVector< TScalarType, NInputDimensions > InputCovariantVectorType

typedef itk::Point< TScalarType, NInputDimensions > InputPointType

typedef itk::Vector< TScalarType, NInputDimensions > InputVectorType

typedef vnl_vector_fixed< TScalarType, NInputDimensions > InputVnlVectorType

typedef Superclass::InverseTransformBasePointer InverseTransformBasePointer

typedef Superclass::InverseTransformBaseType InverseTransformBaseType

typedef itk::Array2D< double > JacobianType

typedef Superclass::NumberOfParametersType NumberOfParametersType

typedef itk::CovariantVector< TScalarType, NOutputDimensions > OutputCovariantVectorType

typedef itk::Point< TScalarType, NOutputDimensions > OutputPointType

typedef itk::Vector< TScalarType, NOutputDimensions > OutputVectorType

typedef vnl_vector_fixed< TScalarType, NOutputDimensions > OutputVnlVectorType

typedef Superclass::ParametersType ParametersType

typedef Superclass::ParametersValueType ParametersValueType

typedef itk::SmartPointer< SelfPointer

typedef TScalarType ScalarType

typedef Transform Self

typedef itk::Transform< TScalarType, NInputDimensions, NOutputDimensions > Superclass

enum  TransformDirection {
  FORWARD = 0,
  INVERSE = 1
}


Public Member Functions

void ComputeJacobianWithRespectToParameters (const InputPointType &, JacobianType &) const override

virtual ::itk::LightObject::Pointer CreateAnother (void) const

const itk::MetaDataDictionary & GetInputDictionary () const

bool GetInverse (Self *inverseTransform) const

InverseTransformBasePointer GetInverseTransform () const override

virtual const char * GetNameOfClass () const

const itk::MetaDataDictionary & GetOutputDictionary () const

virtual const char * GetOutputProjectionRef () const

virtual const TransformTypeGetTransform () const

virtual Projection::TransformAccuracy GetTransformAccuracy ()

virtual void InstantiateTransform ()

virtual bool IsUpToDate ()

void SetInputDictionary (const itk::MetaDataDictionary &dictionary)

void SetOutputDictionary (const itk::MetaDataDictionary &dictionary)

virtual void SetOutputProjectionRef (const char *_arg)

void SetParameters (const typename Superclass::ParametersType &) override

OutputPointType TransformPoint (const InputPointType &point) const override

virtual void SetInputProjectionRef (const char *_arg)

virtual const char * GetInputProjectionRef () const

virtual ImageKeywordlist GetInputKeywordList ()

void SetInputKeywordList (const ImageKeywordlist &kwl)

virtual ImageKeywordlist GetOutputKeywordList ()

void SetOutputKeywordList (const ImageKeywordlist &kwl)

virtual void SetInputOrigin (OriginType _arg)

virtual const OriginTypeGetInputOrigin () const

virtual void SetInputSpacing (SpacingType _arg)

virtual const SpacingTypeGetInputSpacing () const

virtual void SetOutputOrigin (OriginType _arg)

virtual const OriginTypeGetOutputOrigin () const

virtual void SetOutputSpacing (SpacingType _arg)

virtual const SpacingTypeGetOutputSpacing () const

- Public Member Functions inherited from otb::Transform< TScalarType, NInputDimensions, NOutputDimensions >
void ComputeJacobianWithRespectToParameters (const InputPointType &, JacobianType &) const override

unsigned int GetInputSpaceDimension (void) const override

NumberOfParametersType GetNumberOfParameters (void) const override

unsigned int GetOutputSpaceDimension (void) const override

const ParametersTypeGetParameters (void) const override

void SetFixedParameters (const ParametersType &) override

void SetParameters (const ParametersType &) override

void SetParametersByValue (const ParametersType &p) override

OutputCovariantVectorType TransformCovariantVector (const InputCovariantVectorType &) const override

OutputPointType TransformPoint (const InputPointType &) const override

OutputVectorType TransformVector (const InputVectorType &) const override

OutputVnlVectorType TransformVector (const InputVnlVectorType &) const override

const ParametersTypeGetFixedParameters (void) const override

virtual const JacobianTypeGetJacobian (const InputPointType &) const


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const unsigned int InputSpaceDimension = NInputDimensions

static const unsigned int OutputSpaceDimension = NOutputDimensions

static const unsigned int ParametersDimension = NInputDimensions*(NInputDimensions + 1)

static const unsigned int SpaceDimension = NInputDimensions

- Static Public Attributes inherited from otb::Transform< TScalarType, NInputDimensions, NOutputDimensions >
static const unsigned int InputSpaceDimension = NInputDimensions

static const unsigned int OutputSpaceDimension = NOutputDimensions


Protected Member Functions

 GenericRSTransform ()

void Modified () const override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 ~GenericRSTransform () override

- Protected Member Functions inherited from otb::Transform< TScalarType, NInputDimensions, NOutputDimensions >
void PrintSelf (std::ostream &os, itk::Indent indent) const override

 Transform ()

 Transform (NumberOfParametersType numberOfParameters)

 ~Transform () override


Private Member Functions

 GenericRSTransform (const Self &)=delete

void operator= (const Self &)=delete


Private Attributes

itk::MetaDataDictionary m_InputDictionary

ImageKeywordlist m_InputKeywordList

OriginType m_InputOrigin

std::string m_InputProjectionRef

SpacingType m_InputSpacing

GenericTransformPointerType m_InputTransform

itk::MetaDataDictionary m_OutputDictionary

ImageKeywordlist m_OutputKeywordList

OriginType m_OutputOrigin

std::string m_OutputProjectionRef

SpacingType m_OutputSpacing

GenericTransformPointerType m_OutputTransform

TransformPointerType m_Transform

Projection::TransformAccuracy m_TransformAccuracy

bool m_TransformUpToDate


Additional Inherited Members

- Protected Attributes inherited from otb::Transform< TScalarType, NInputDimensions, NOutputDimensions >
ParametersType m_FixedParameters

JacobianType m_Jacobian

ParametersType m_Parameters


Detailed Description

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
class otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >

This is the class to handle generic remote sensing transform.

The transformation will transform the coordinate from any map projection or sensor model to any map projection or sensor model.

If one of the projection (output or input) is a map projection, it can be specified using the WKT or the EPSG code.

Definition at line 55 of file otbGenericRSTransform.h.

Member Typedef Documentation

◆ ConstPointer

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::SmartPointer<const Self> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::ConstPointer

Definition at line 65 of file otbGenericRSTransform.h.

◆ DirectionOfMappingEnumType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef TransformDirection::TransformationDirection otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::DirectionOfMappingEnumType

Definition at line 87 of file otbGenericRSTransform.h.

◆ GenericTransformPointerType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef GenericTransformType::Pointer otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GenericTransformPointerType

Definition at line 77 of file otbGenericRSTransform.h.

◆ GenericTransformType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::Transform<double, NInputDimensions, NOutputDimensions> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GenericTransformType

Definition at line 76 of file otbGenericRSTransform.h.

◆ InputPointType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::Point<ScalarType, NInputDimensions> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::InputPointType

Definition at line 70 of file otbGenericRSTransform.h.

◆ InverseTransformBasePointer

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef Superclass::InverseTransformBasePointer otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::InverseTransformBasePointer

Definition at line 81 of file otbGenericRSTransform.h.

◆ JacobianType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef Superclass::JacobianType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::JacobianType

Definition at line 69 of file otbGenericRSTransform.h.

◆ OriginType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::Point<double, 2> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::OriginType

Definition at line 74 of file otbGenericRSTransform.h.

◆ OutputPointType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::Point<ScalarType, NOutputDimensions> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::OutputPointType

Definition at line 71 of file otbGenericRSTransform.h.

◆ Pointer

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::SmartPointer<Self> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::Pointer

Definition at line 64 of file otbGenericRSTransform.h.

◆ ScalarType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef Superclass::ScalarType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::ScalarType

Definition at line 68 of file otbGenericRSTransform.h.

◆ Self

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef GenericRSTransform otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::Self

Definition at line 63 of file otbGenericRSTransform.h.

◆ SpacingType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef itk::Vector<double, 2> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SpacingType

Definition at line 73 of file otbGenericRSTransform.h.

◆ Superclass

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef otb::Transform<TScalarType, NInputDimensions, NOutputDimensions> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::Superclass

Definition at line 62 of file otbGenericRSTransform.h.

◆ TransformPointerType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef TransformType::Pointer otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::TransformPointerType

Definition at line 79 of file otbGenericRSTransform.h.

◆ TransformType

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
typedef otb::CompositeTransform<GenericTransformType, GenericTransformType> otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::TransformType

Definition at line 78 of file otbGenericRSTransform.h.

Constructor & Destructor Documentation

◆ GenericRSTransform() [1/2]

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GenericRSTransform ( )
protected

◆ ~GenericRSTransform()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::~GenericRSTransform ( )
inlineoverrideprotected

Definition at line 207 of file otbGenericRSTransform.h.

◆ GenericRSTransform() [2/2]

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GenericRSTransform ( const Self )
privatedelete

Member Function Documentation

◆ ComputeJacobianWithRespectToParameters()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::ComputeJacobianWithRespectToParameters ( const InputPointType ,
JacobianType
) const
inlineoverride

Definition at line 201 of file otbGenericRSTransform.h.

◆ CreateAnother()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual::itk::LightObject::Pointer otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::CreateAnother ( void  ) const

◆ GetInputDictionary()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
const itk::MetaDataDictionary& otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInputDictionary ( ) const
inline

Set/Get Dictionary

Deprecated:

Definition at line 107 of file otbGenericRSTransform.h.

◆ GetInputKeywordList()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual ImageKeywordlist otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInputKeywordList ( )
virtual

Set InputKeywordlist

Deprecated:

◆ GetInputOrigin()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const OriginType& otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInputOrigin ( ) const
virtual

Set the origin of the vector data.

See also
GetOrigin()

◆ GetInputProjectionRef()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const char* otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInputProjectionRef ( ) const
virtual

Set/Get for input and output projections.

◆ GetInputSpacing()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const SpacingType& otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInputSpacing ( ) const
virtual

Set the spacing (size of a pixel) of the vector data.

See also
GetSignedSpacing()

◆ GetInverse()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
bool otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInverse ( Self inverseTransform) const

◆ GetInverseTransform()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
InverseTransformBasePointer otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetInverseTransform ( ) const
override

◆ GetNameOfClass()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const char* otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetNameOfClass ( ) const
virtual

Run-time type information (and related methods).

Reimplemented from otb::Transform< TScalarType, NInputDimensions, NOutputDimensions >.

◆ GetOutputDictionary()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
const itk::MetaDataDictionary& otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetOutputDictionary ( ) const
inline

Definition at line 118 of file otbGenericRSTransform.h.

◆ GetOutputKeywordList()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual ImageKeywordlist otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetOutputKeywordList ( )
virtual

Set OutputKeywordlist

Deprecated:

◆ GetOutputOrigin()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const OriginType& otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetOutputOrigin ( ) const
virtual

Set the origin of the vector data.

See also
GetOrigin()

◆ GetOutputProjectionRef()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const char* otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetOutputProjectionRef ( ) const
virtual

◆ GetOutputSpacing()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const SpacingType& otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetOutputSpacing ( ) const
virtual

Set the spacing (size of a pixel) of the vector data.

See also
GetSignedSpacing()

◆ GetTransform()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual const TransformType* otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetTransform ( ) const
virtual

Methods prototypes

◆ GetTransformAccuracy()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual Projection::TransformAccuracy otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::GetTransformAccuracy ( )
virtual

Get Transform accuracy

◆ InstantiateTransform()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::InstantiateTransform ( )
virtual

◆ IsUpToDate()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual bool otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::IsUpToDate ( )
inlinevirtual

Check if the transform is up to date

Definition at line 176 of file otbGenericRSTransform.h.

◆ Modified()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::Modified ( void  ) const
inlineoverrideprotected

Definition at line 211 of file otbGenericRSTransform.h.

◆ New()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
static Pointer otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::New ( )
static

◆ operator=()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::operator= ( const Self )
privatedelete

◆ PrintSelf()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

◆ SetInputDictionary()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetInputDictionary ( const itk::MetaDataDictionary &  dictionary)
inline

Definition at line 112 of file otbGenericRSTransform.h.

◆ SetInputKeywordList()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetInputKeywordList ( const ImageKeywordlist kwl)
inline

Set InputKeywordlist

Deprecated:

Definition at line 133 of file otbGenericRSTransform.h.

◆ SetInputOrigin()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetInputOrigin ( OriginType  _arg)
virtual

Set the origin of the vector data.

See also
GetOrigin()

◆ SetInputProjectionRef()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetInputProjectionRef ( const char *  _arg)
virtual

Set/Get for input and output projections.

◆ SetInputSpacing()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetInputSpacing ( SpacingType  _arg)
virtual

Set the spacing (size of a pixel) of the vector data.

See also
GetSignedSpacing()

◆ SetOutputDictionary()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetOutputDictionary ( const itk::MetaDataDictionary &  dictionary)
inline

Definition at line 123 of file otbGenericRSTransform.h.

◆ SetOutputKeywordList()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetOutputKeywordList ( const ImageKeywordlist kwl)
inline

Set OutputKeywordlist

Deprecated:

Definition at line 144 of file otbGenericRSTransform.h.

◆ SetOutputOrigin()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetOutputOrigin ( OriginType  _arg)
virtual

Set the origin of the vector data.

See also
GetOrigin()

◆ SetOutputProjectionRef()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetOutputProjectionRef ( const char *  _arg)
virtual

◆ SetOutputSpacing()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
virtual void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetOutputSpacing ( SpacingType  _arg)
virtual

Set the spacing (size of a pixel) of the vector data.

See also
GetSignedSpacing()

◆ SetParameters()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
void otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SetParameters ( const typename Superclass::ParametersType )
inlineoverride

Definition at line 196 of file otbGenericRSTransform.h.

◆ TransformPoint()

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
OutputPointType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::TransformPoint ( const InputPointType point) const
override

Member Data Documentation

◆ InputSpaceDimension

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
const unsigned int otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::InputSpaceDimension = NInputDimensions
static

Definition at line 91 of file otbGenericRSTransform.h.

◆ m_InputDictionary

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
itk::MetaDataDictionary otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_InputDictionary
private

Definition at line 226 of file otbGenericRSTransform.h.

◆ m_InputKeywordList

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
ImageKeywordlist otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_InputKeywordList
private

Definition at line 223 of file otbGenericRSTransform.h.

◆ m_InputOrigin

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
OriginType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_InputOrigin
private

Definition at line 233 of file otbGenericRSTransform.h.

◆ m_InputProjectionRef

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
std::string otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_InputProjectionRef
private

Definition at line 229 of file otbGenericRSTransform.h.

◆ m_InputSpacing

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
SpacingType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_InputSpacing
private

Definition at line 232 of file otbGenericRSTransform.h.

◆ m_InputTransform

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
GenericTransformPointerType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_InputTransform
private

Definition at line 239 of file otbGenericRSTransform.h.

◆ m_OutputDictionary

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
itk::MetaDataDictionary otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_OutputDictionary
private

Definition at line 227 of file otbGenericRSTransform.h.

◆ m_OutputKeywordList

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
ImageKeywordlist otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_OutputKeywordList
private

Definition at line 224 of file otbGenericRSTransform.h.

◆ m_OutputOrigin

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
OriginType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_OutputOrigin
private

Definition at line 235 of file otbGenericRSTransform.h.

◆ m_OutputProjectionRef

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
std::string otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_OutputProjectionRef
private

Definition at line 230 of file otbGenericRSTransform.h.

◆ m_OutputSpacing

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
SpacingType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_OutputSpacing
private

Definition at line 234 of file otbGenericRSTransform.h.

◆ m_OutputTransform

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
GenericTransformPointerType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_OutputTransform
private

Definition at line 240 of file otbGenericRSTransform.h.

◆ m_Transform

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
TransformPointerType otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_Transform
private

Definition at line 237 of file otbGenericRSTransform.h.

◆ m_TransformAccuracy

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
Projection::TransformAccuracy otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_TransformAccuracy
private

Definition at line 242 of file otbGenericRSTransform.h.

◆ m_TransformUpToDate

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
bool otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::m_TransformUpToDate
mutableprivate

Definition at line 241 of file otbGenericRSTransform.h.

◆ OutputSpaceDimension

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
const unsigned int otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::OutputSpaceDimension = NOutputDimensions
static

Definition at line 92 of file otbGenericRSTransform.h.

◆ ParametersDimension

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
const unsigned int otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::ParametersDimension = NInputDimensions*(NInputDimensions + 1)
static

Definition at line 94 of file otbGenericRSTransform.h.

◆ SpaceDimension

template<class TScalarType = double, unsigned int NInputDimensions = 2, unsigned int NOutputDimensions = 2>
const unsigned int otb::GenericRSTransform< TScalarType, NInputDimensions, NOutputDimensions >::SpaceDimension = NInputDimensions
static

Definition at line 93 of file otbGenericRSTransform.h.


The documentation for this class was generated from the following file:
