otb::Image< TPixel, VImageDimension > Class Template Reference

#include <otbImage.h>

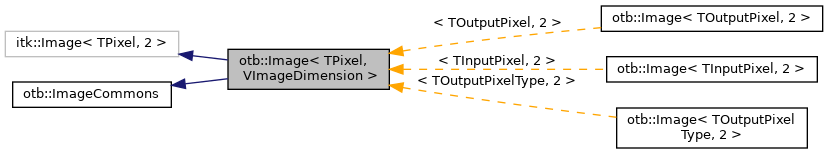

Inheritance diagram for otb::Image< TPixel, VImageDimension >:

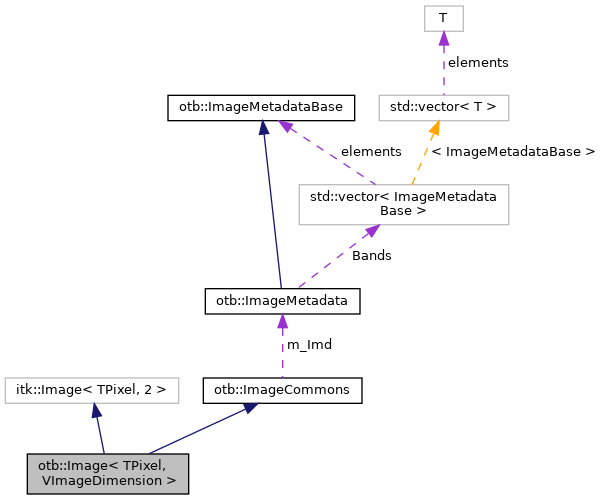

Collaboration diagram for otb::Image< TPixel, VImageDimension >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::WeakPointer< const Self >	ConstWeakPointer
typedef Superclass::DirectionType	DirectionType
typedef ImageMetadataInterfaceBase::ImageKeywordlistType	ImageKeywordlistType
typedef ImageMetadataInterfaceBase::Pointer	ImageMetadataInterfacePointerType
typedef Superclass::IndexType	IndexType
typedef Superclass::InternalPixelType	InternalPixelType
typedef Superclass::IOPixelType	IOPixelType
typedef itk::NeighborhoodAccessorFunctor< Self >	NeighborhoodAccessorFunctorType
typedef Superclass::OffsetType	OffsetType
typedef Superclass::OffsetValueType	OffsetValueType
typedef Superclass::PixelContainer	PixelContainer
typedef PixelContainer::ConstPointer	PixelContainerConstPointer
typedef PixelContainer::Pointer	PixelContainerPointer
typedef Superclass::PixelType	PixelType
typedef itk::SmartPointer< Self >	Pointer
typedef Superclass::PointType	PointType
typedef Superclass::RegionType	RegionType
typedef Image	Self
typedef Superclass::SizeType	SizeType
typedef Superclass::SpacingType	SpacingType
typedef itk::Image< TPixel, VImageDimension >	Superclass
typedef Superclass::ValueType	ValueType
typedef ImageMetadataInterfaceBase::VectorType	VectorType

Public Member Functions
void	CopyInformation (const itk::DataObject *) override
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual double	GetGCPCol (unsigned int GCPnum) const
virtual unsigned int	GetGCPCount (void) const
virtual std::string	GetGCPId (unsigned int GCPnum) const
virtual std::string	GetGCPInfo (unsigned int GCPnum) const
virtual std::string	GetGCPProjection (void) const
virtual double	GetGCPRow (unsigned int GCPnum) const
virtual OTB_GCP &	GetGCPs (unsigned int GCPnum)
virtual const OTB_GCP &	GetGCPs (unsigned int GCPnum) const
virtual double	GetGCPX (unsigned int GCPnum) const
virtual double	GetGCPY (unsigned int GCPnum) const
virtual double	GetGCPZ (unsigned int GCPnum) const
virtual VectorType	GetGeoTransform (void) const
virtual ImageKeywordlistType	GetImageKeywordlist (void)
virtual const ImageKeywordlistType	GetImageKeywordlist (void) const
virtual const char *	GetNameOfClass () const
NeighborhoodAccessorFunctorType	GetNeighborhoodAccessor ()
const NeighborhoodAccessorFunctorType	GetNeighborhoodAccessor () const
virtual std::string	GetProjectionRef (void) const
SpacingType	GetSignedSpacing () const
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
virtual void	SetImageKeywordList (const ImageKeywordlistType &kwl)
virtual void	SetProjectionRef (const std::string &wkt)
virtual void	SetSignedSpacing (SpacingType spacing)
virtual void	SetSignedSpacing (double spacing[VImageDimension])
virtual VectorType	GetUpperLeftCorner (void) const
virtual VectorType	GetUpperRightCorner (void) const
virtual VectorType	GetLowerLeftCorner (void) const
virtual VectorType	GetLowerRightCorner (void) const

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const unsigned int	ImageDimension = VImageDimension

Protected Member Functions
	Image ()
	~Image () override

Private Member Functions
ImageMetadataInterfacePointerType	GetMetaDataInterface () const
	Image (const Self &)=delete
void	operator= (const Self &)=delete

Private Attributes
ImageMetadataInterfacePointerType	m_ImageMetadataInterface

Detailed Description

template<class TPixel, unsigned int VImageDimension = 2>
class otb::Image< TPixel, VImageDimension >

Creation of an "otb" image which contains metadata.

Examples:

BasicFilters/DEMToRainbowExample.cxx, BasicFilters/HillShadingExample.cxx, DisparityMap/FineRegistrationImageFilterExample.cxx, DisparityMap/NCCRegistrationFilterExample.cxx, FeatureExtraction/CloudDetectionExample.cxx, Fusion/BayesianFusionImageFilter.cxx, Fusion/PanSharpeningExample.cxx, IO/DEMToImageGenerator.cxx, Markov/MarkovClassification1Example.cxx, Markov/MarkovClassification2Example.cxx, Markov/MarkovRegularizationExample.cxx, Markov/MarkovRestorationExample.cxx, Patented/SIFTExample.cxx, Patented/SIFTFastExample.cxx, Projections/VectorDataExtractROIExample.cxx, and Projections/VectorDataProjectionExample.cxx.

Definition at line 89 of file otbImage.h.

Member Typedef Documentation

ConstPointer

template<class TPixel, unsigned int VImageDimension = 2>

typedef itk::SmartPointer<const Self> otb::Image< TPixel, VImageDimension >::ConstPointer

Definition at line 96 of file otbImage.h.

ConstWeakPointer

template<class TPixel, unsigned int VImageDimension = 2>

typedef itk::WeakPointer<const Self> otb::Image< TPixel, VImageDimension >::ConstWeakPointer

Definition at line 97 of file otbImage.h.

DirectionType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::DirectionType otb::Image< TPixel, VImageDimension >::DirectionType

Direction typedef support. A matrix of direction cosines.

Definition at line 151 of file otbImage.h.

ImageKeywordlistType

template<class TPixel, unsigned int VImageDimension = 2>

typedef ImageMetadataInterfaceBase::ImageKeywordlistType otb::Image< TPixel, VImageDimension >::ImageKeywordlistType

Definition at line 100 of file otbImage.h.

ImageMetadataInterfacePointerType

template<class TPixel, unsigned int VImageDimension = 2>

typedef ImageMetadataInterfaceBase::Pointer otb::Image< TPixel, VImageDimension >::ImageMetadataInterfacePointerType

Definition at line 101 of file otbImage.h.

IndexType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::IndexType otb::Image< TPixel, VImageDimension >::IndexType

Index typedef support. An index is used to access pixel values.

Definition at line 142 of file otbImage.h.

InternalPixelType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::InternalPixelType otb::Image< TPixel, VImageDimension >::InternalPixelType

Internal Pixel representation. Used to maintain a uniform API with Image Adaptors and allow keeping a particular internal representation of data while showing a different external representation.

Definition at line 120 of file otbImage.h.

IOPixelType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::IOPixelType otb::Image< TPixel, VImageDimension >::IOPixelType

Definition at line 122 of file otbImage.h.

NeighborhoodAccessorFunctorType

template<class TPixel, unsigned int VImageDimension = 2>

typedef itk::NeighborhoodAccessorFunctor<Self> otb::Image< TPixel, VImageDimension >::NeighborhoodAccessorFunctorType

Accessor type that convert data between internal and external representations. Tyepdef for the functor used to access a neighborhood of pixel pointers.

Definition at line 130 of file otbImage.h.

OffsetType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::OffsetType otb::Image< TPixel, VImageDimension >::OffsetType

Offset typedef support. An offset is used to access pixel values.

Definition at line 145 of file otbImage.h.

OffsetValueType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::OffsetValueType otb::Image< TPixel, VImageDimension >::OffsetValueType

Offset typedef (relative position between indices)

Definition at line 169 of file otbImage.h.

PixelContainer

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::PixelContainer otb::Image< TPixel, VImageDimension >::PixelContainer

Container used to store pixels in the image.

Definition at line 139 of file otbImage.h.

PixelContainerConstPointer

template<class TPixel, unsigned int VImageDimension = 2>

typedef PixelContainer::ConstPointer otb::Image< TPixel, VImageDimension >::PixelContainerConstPointer

Definition at line 166 of file otbImage.h.

PixelContainerPointer

template<class TPixel, unsigned int VImageDimension = 2>

typedef PixelContainer::Pointer otb::Image< TPixel, VImageDimension >::PixelContainerPointer

A pointer to the pixel container.

Definition at line 165 of file otbImage.h.

PixelType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::PixelType otb::Image< TPixel, VImageDimension >::PixelType

Pixel typedef support. Used to declare pixel type in filters or other operations.

Definition at line 107 of file otbImage.h.

Pointer

template<class TPixel, unsigned int VImageDimension = 2>

typedef itk::SmartPointer<Self> otb::Image< TPixel, VImageDimension >::Pointer

Definition at line 95 of file otbImage.h.

PointType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::PointType otb::Image< TPixel, VImageDimension >::PointType

Origin typedef support. The origin is the geometric coordinates of the index (0, 0).

Definition at line 162 of file otbImage.h.

RegionType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::RegionType otb::Image< TPixel, VImageDimension >::RegionType

Region typedef support. A region is used to specify a subset of an image.

Definition at line 154 of file otbImage.h.

Self

template<class TPixel, unsigned int VImageDimension = 2>

typedef Image otb::Image< TPixel, VImageDimension >::Self

Standard class typedefs.

Definition at line 93 of file otbImage.h.

SizeType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::SizeType otb::Image< TPixel, VImageDimension >::SizeType

Size typedef support. A size is used to define region bounds.

Definition at line 148 of file otbImage.h.

SpacingType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::SpacingType otb::Image< TPixel, VImageDimension >::SpacingType

Spacing typedef support. Spacing holds the size of a pixel. The spacing is the geometric distance between image samples.

Definition at line 158 of file otbImage.h.

Superclass

template<class TPixel, unsigned int VImageDimension = 2>

typedef itk::Image<TPixel, VImageDimension> otb::Image< TPixel, VImageDimension >::Superclass

Definition at line 94 of file otbImage.h.

ValueType

template<class TPixel, unsigned int VImageDimension = 2>

typedef Superclass::ValueType otb::Image< TPixel, VImageDimension >::ValueType

Typedef alias for PixelType

Definition at line 114 of file otbImage.h.

VectorType

template<class TPixel, unsigned int VImageDimension = 2>

typedef ImageMetadataInterfaceBase::VectorType otb::Image< TPixel, VImageDimension >::VectorType

Definition at line 99 of file otbImage.h.

Constructor & Destructor Documentation

Image() [1/2]

template<class TPixel , unsigned int VImageDimension>

otb::Image< TPixel, VImageDimension >::Image ( )

protected

Definition at line 33 of file otbImage.hxx.

~Image()

template<class TPixel, unsigned int VImageDimension = 2>

otb::Image< TPixel, VImageDimension >::~Image ( )

inlineoverrideprotected

Definition at line 257 of file otbImage.h.

Image() [2/2]

template<class TPixel, unsigned int VImageDimension = 2>

otb::Image< TPixel, VImageDimension >::Image ( const Self &  )

privatedelete

Member Function Documentation

CopyInformation()

template<class TPixel , unsigned int VImageDimension>

void otb::Image< TPixel, VImageDimension >::CopyInformation ( const itk::DataObject *  data )

override

Copy metadata from a DataObject.

Definition at line 213 of file otbImage.hxx.

CreateAnother()

template<class TPixel, unsigned int VImageDimension = 2>

virtual::itk::LightObject::Pointer otb::Image< TPixel, VImageDimension >::CreateAnother

(

void

)

const

GetGCPCol()

template<class TPixel , unsigned int VImageDimension>

double otb::Image< TPixel, VImageDimension >::GetGCPCol ( unsigned int  GCPnum ) const

virtual

Definition at line 92 of file otbImage.hxx.

GetGCPCount()

template<class TPixel , unsigned int VImageDimension>

unsigned int otb::Image< TPixel, VImageDimension >::GetGCPCount ( void  ) const

virtual

Definition at line 56 of file otbImage.hxx.

GetGCPId()

template<class TPixel , unsigned int VImageDimension>

std::string otb::Image< TPixel, VImageDimension >::GetGCPId ( unsigned int  GCPnum ) const

virtual

Definition at line 74 of file otbImage.hxx.

GetGCPInfo()

template<class TPixel , unsigned int VImageDimension>

std::string otb::Image< TPixel, VImageDimension >::GetGCPInfo ( unsigned int  GCPnum ) const

virtual

Definition at line 80 of file otbImage.hxx.

GetGCPProjection()

template<class TPixel , unsigned int VImageDimension>

std::string otb::Image< TPixel, VImageDimension >::GetGCPProjection ( void  ) const

virtual

Get the GCP projection coordinates of the image.

Definition at line 50 of file otbImage.hxx.

GetGCPRow()

template<class TPixel , unsigned int VImageDimension>

double otb::Image< TPixel, VImageDimension >::GetGCPRow ( unsigned int  GCPnum ) const

virtual

Definition at line 86 of file otbImage.hxx.

GetGCPs() [1/2]

template<class TPixel , unsigned int VImageDimension>

OTB_GCP & otb::Image< TPixel, VImageDimension >::GetGCPs ( unsigned int  GCPnum )

virtual

Definition at line 62 of file otbImage.hxx.

GetGCPs() [2/2]

template<class TPixel , unsigned int VImageDimension>

const OTB_GCP & otb::Image< TPixel, VImageDimension >::GetGCPs ( unsigned int  GCPnum ) const

virtual

Definition at line 68 of file otbImage.hxx.

GetGCPX()

template<class TPixel , unsigned int VImageDimension>

double otb::Image< TPixel, VImageDimension >::GetGCPX ( unsigned int  GCPnum ) const

virtual

Definition at line 98 of file otbImage.hxx.

GetGCPY()

template<class TPixel , unsigned int VImageDimension>

double otb::Image< TPixel, VImageDimension >::GetGCPY ( unsigned int  GCPnum ) const

virtual

Definition at line 104 of file otbImage.hxx.

GetGCPZ()

template<class TPixel , unsigned int VImageDimension>

double otb::Image< TPixel, VImageDimension >::GetGCPZ ( unsigned int  GCPnum ) const

virtual

Definition at line 110 of file otbImage.hxx.

GetGeoTransform()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::VectorType otb::Image< TPixel, VImageDimension >::GetGeoTransform ( void  ) const

virtual

Get the six coefficients of affine geoTtransform.

Definition at line 116 of file otbImage.hxx.

GetImageKeywordlist() [1/2]

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::ImageKeywordlistType otb::Image< TPixel, VImageDimension >::GetImageKeywordlist ( void  )

virtual

Get image keyword list

Definition at line 188 of file otbImage.hxx.

GetImageKeywordlist() [2/2]

template<class TPixel , unsigned int VImageDimension>

const Image< TPixel, VImageDimension >::ImageKeywordlistType otb::Image< TPixel, VImageDimension >::GetImageKeywordlist ( void  ) const

virtual

Definition at line 204 of file otbImage.hxx.

GetLowerLeftCorner()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::VectorType otb::Image< TPixel, VImageDimension >::GetLowerLeftCorner ( void  ) const

virtual

Get image corners.

Definition at line 134 of file otbImage.hxx.

GetLowerRightCorner()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::VectorType otb::Image< TPixel, VImageDimension >::GetLowerRightCorner ( void  ) const

virtual

Get image corners.

Definition at line 140 of file otbImage.hxx.

GetMetaDataInterface()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::ImageMetadataInterfacePointerType otb::Image< TPixel, VImageDimension >::GetMetaDataInterface ( ) const

private

Return the ImageMetadataInterfacePointer associated to the data and creates it on first call

Definition at line 220 of file otbImage.hxx.

GetNameOfClass()

template<class TPixel, unsigned int VImageDimension = 2>

virtual const char* otb::Image< TPixel, VImageDimension >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

GetNeighborhoodAccessor() [1/2]

template<class TPixel, unsigned int VImageDimension = 2>

NeighborhoodAccessorFunctorType otb::Image< TPixel, VImageDimension >::GetNeighborhoodAccessor ( )

inline

Return the Pixel Accessor object Return the Pixel Accesor object Return the NeighborhoodAccessor functor

Definition at line 184 of file otbImage.h.

GetNeighborhoodAccessor() [2/2]

template<class TPixel, unsigned int VImageDimension = 2>

const NeighborhoodAccessorFunctorType otb::Image< TPixel, VImageDimension >::GetNeighborhoodAccessor ( ) const

inline

Return the NeighborhoodAccessor functor

Definition at line 190 of file otbImage.h.

GetProjectionRef()

template<class TPixel , unsigned int VImageDimension>

std::string otb::Image< TPixel, VImageDimension >::GetProjectionRef ( void  ) const

virtual

Get the projection coordinate system of the image.

Definition at line 38 of file otbImage.hxx.

GetSignedSpacing()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::SpacingType otb::Image< TPixel, VImageDimension >::GetSignedSpacing

(

)

const

Get signed spacing

Definition at line 146 of file otbImage.hxx.

Referenced by otb::PersistentSamplingFilterBase< TInputImage >::GenerateOutputInformation().

GetUpperLeftCorner()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::VectorType otb::Image< TPixel, VImageDimension >::GetUpperLeftCorner ( void  ) const

virtual

Get image corners.

Definition at line 122 of file otbImage.hxx.

GetUpperRightCorner()

template<class TPixel , unsigned int VImageDimension>

Image< TPixel, VImageDimension >::VectorType otb::Image< TPixel, VImageDimension >::GetUpperRightCorner ( void  ) const

virtual

Get image corners.

Definition at line 128 of file otbImage.hxx.

New()

template<class TPixel, unsigned int VImageDimension = 2>

static Pointer otb::Image< TPixel, VImageDimension >::New ( )

static

Method for creation through the object factory.

Referenced by otb::MeanShiftSmoothingImageFilter< TInputImage, TOutputImage, TKernel, TOutputIterationImage >::BeforeThreadedGenerateData(), and otb::MeanShiftSmoothingImageFilter< TInputImage, TOutputImage, TKernel, TOutputIterationImage >::MeanShiftSmoothingImageFilter().

operator=()

template<class TPixel, unsigned int VImageDimension = 2>

void otb::Image< TPixel, VImageDimension >::operator= ( const Self &  )

privatedelete

PrintSelf()

template<class TPixel , unsigned int VImageDimension>

void otb::Image< TPixel, VImageDimension >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

override

Definition at line 228 of file otbImage.hxx.

SetImageKeywordList()

template<class TPixel , unsigned int VImageDimension>

void otb::Image< TPixel, VImageDimension >::SetImageKeywordList ( const ImageKeywordlistType &  kwl )

virtual

Definition at line 197 of file otbImage.hxx.

SetProjectionRef()

template<class TPixel , unsigned int VImageDimension>

void otb::Image< TPixel, VImageDimension >::SetProjectionRef ( const std::string &  wkt )

virtual

Definition at line 44 of file otbImage.hxx.

SetSignedSpacing() [1/2]

template<class TPixel , unsigned int VImageDimension>

void otb::Image< TPixel, VImageDimension >::SetSignedSpacing ( SpacingType  spacing )

virtual

Set signed spacing

Definition at line 158 of file otbImage.hxx.

SetSignedSpacing() [2/2]

template<class TPixel , unsigned int VImageDimension>

void otb::Image< TPixel, VImageDimension >::SetSignedSpacing ( double  spacing[VImageDimension] )

virtual

Set signed spacing

Definition at line 181 of file otbImage.hxx.

Member Data Documentation

ImageDimension

template<class TPixel, unsigned int VImageDimension = 2>

const unsigned int otb::Image< TPixel, VImageDimension >::ImageDimension = VImageDimension

static

Dimension of the image. This constant is used by functions that are templated over image type (as opposed to being templated over pixel type and dimension) when they need compile time access to the dimension of the image.

Definition at line 136 of file otbImage.h.

Referenced by otb::Image< TOutputPixelType, 2 >::GetSignedSpacing().

m_ImageMetadataInterface

template<class TPixel, unsigned int VImageDimension = 2>

ImageMetadataInterfacePointerType otb::Image< TPixel, VImageDimension >::m_ImageMetadataInterface

mutableprivate

Definition at line 271 of file otbImage.h.

---

The documentation for this class was generated from the following files:

• otbImage.h
• otbImage.hxx
