otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection > Class Template Reference

#include <otbImageToModulusAndDirectionImageFilter.h>

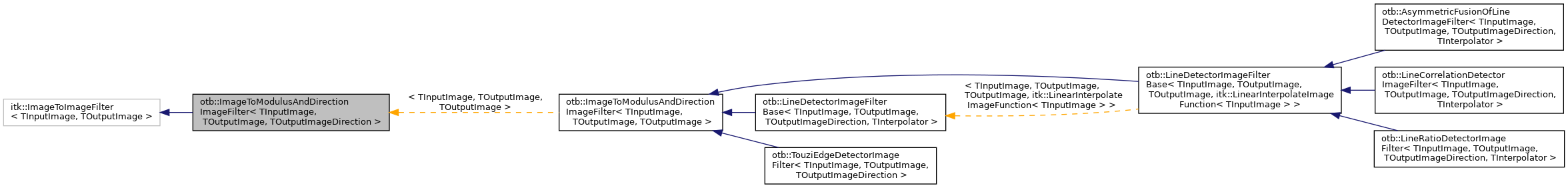

+ Inheritance diagram for otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >:

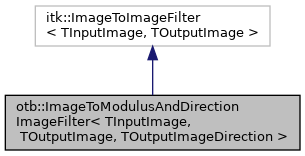

+ Collaboration diagram for otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >:

Public Types

typedef itk::SmartPointer< const SelfConstPointer

typedef InputImageType::ConstPointer InputImageConstPointer

typedef InputImageType::Pointer InputImagePointer

typedef InputImageType::RegionType InputImageRegionType

typedef Superclass::InputImageType InputImageType

typedef OutputImageType::ConstPointer OutputImageConstPointer

typedef TOutputImageDirection OutputImageDirectionType

typedef OutputImageType::Pointer OutputImagePointer

typedef OutputImageType::RegionType OutputImageRegionType

typedef Superclass::OutputImageType OutputImageType

typedef itk::SmartPointer< SelfPointer

typedef ImageToModulusAndDirectionImageFilter Self

typedef itk::ImageToImageFilter< TInputImage, TOutputImage > Superclass


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

void GenerateInputRequestedRegion () override

virtual const char * GetNameOfClass () const

const OutputImageDirectionTypeGetOutputDirection () const

OutputImageDirectionTypeGetOutputDirection ()


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const unsigned int InputImageDimension = TInputImage::ImageDimension

static const unsigned int OutputImageDimension = TOutputImage::ImageDimension


Protected Member Functions

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 ~ImageToModulusAndDirectionImageFilter () override


Private Member Functions

 ImageToModulusAndDirectionImageFilter (const Self &)=delete

void operator= (const Self &)=delete

const OutputImageTypeGetOutput () const

OutputImageTypeGetOutput ()

 ImageToModulusAndDirectionImageFilter ()


Detailed Description

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
class otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >

Base class for modulus and direction image filters.

This is the base class for alls class' generate modulus and directions outputs. GetOutput() method return the output image modulus and GetOutputDirection() return the output image direction

Definition at line 42 of file otbImageToModulusAndDirectionImageFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef itk::SmartPointer<const Self> otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::ConstPointer

Definition at line 54 of file otbImageToModulusAndDirectionImageFilter.h.

◆ InputImageConstPointer

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef InputImageType::ConstPointer otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::InputImageConstPointer

Definition at line 67 of file otbImageToModulusAndDirectionImageFilter.h.

◆ InputImagePointer

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef InputImageType::Pointer otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::InputImagePointer

Definition at line 66 of file otbImageToModulusAndDirectionImageFilter.h.

◆ InputImageRegionType

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef InputImageType::RegionType otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::InputImageRegionType

Definition at line 68 of file otbImageToModulusAndDirectionImageFilter.h.

◆ InputImageType

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef Superclass::InputImageType otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::InputImageType

Definition at line 60 of file otbImageToModulusAndDirectionImageFilter.h.

◆ OutputImageConstPointer

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef OutputImageType::ConstPointer otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageConstPointer

Definition at line 70 of file otbImageToModulusAndDirectionImageFilter.h.

◆ OutputImageDirectionType

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef TOutputImageDirection otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageDirectionType

Definition at line 64 of file otbImageToModulusAndDirectionImageFilter.h.

◆ OutputImagePointer

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef OutputImageType::Pointer otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImagePointer

Definition at line 69 of file otbImageToModulusAndDirectionImageFilter.h.

◆ OutputImageRegionType

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef OutputImageType::RegionType otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageRegionType

Definition at line 71 of file otbImageToModulusAndDirectionImageFilter.h.

◆ OutputImageType

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef Superclass::OutputImageType otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageType

Definition at line 63 of file otbImageToModulusAndDirectionImageFilter.h.

◆ Pointer

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef itk::SmartPointer<Self> otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::Pointer

Definition at line 53 of file otbImageToModulusAndDirectionImageFilter.h.

◆ Self

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef ImageToModulusAndDirectionImageFilter otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::Self

typedef for the classes standards.

Definition at line 51 of file otbImageToModulusAndDirectionImageFilter.h.

◆ Superclass

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
typedef itk::ImageToImageFilter<TInputImage, TOutputImage> otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::Superclass

Definition at line 52 of file otbImageToModulusAndDirectionImageFilter.h.

Constructor & Destructor Documentation

◆ ImageToModulusAndDirectionImageFilter() [1/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::ImageToModulusAndDirectionImageFilter ( )
protected

Return the const output image modulus

Definition at line 34 of file otbImageToModulusAndDirectionImageFilter.hxx.

◆ ~ImageToModulusAndDirectionImageFilter()

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::~ImageToModulusAndDirectionImageFilter ( )
inlineoverrideprotected

Definition at line 89 of file otbImageToModulusAndDirectionImageFilter.h.

◆ ImageToModulusAndDirectionImageFilter() [2/2]

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::ImageToModulusAndDirectionImageFilter ( const Self )
privatedelete

Member Function Documentation

◆ CreateAnother()

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
virtual::itk::LightObject::Pointer otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::CreateAnother ( void  ) const

◆ GenerateInputRequestedRegion()

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
void otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::GenerateInputRequestedRegion ( )
override

Standard "GenerateInputRequestedRegion" method

Definition at line 101 of file otbImageToModulusAndDirectionImageFilter.hxx.

◆ GetNameOfClass()

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
virtual const char* otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::GetNameOfClass ( ) const
virtual

◆ GetOutput() [1/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
const ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageType * otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::GetOutput ( ) const

Return the const output image modulus

Definition at line 49 of file otbImageToModulusAndDirectionImageFilter.hxx.

◆ GetOutput() [2/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageType * otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::GetOutput ( )

Return the output image modulus

Definition at line 61 of file otbImageToModulusAndDirectionImageFilter.hxx.

◆ GetOutputDirection() [1/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
const ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageDirectionType * otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::GetOutputDirection ( ) const

Return the const output image direction

Definition at line 74 of file otbImageToModulusAndDirectionImageFilter.hxx.

◆ GetOutputDirection() [2/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageDirectionType * otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::GetOutputDirection ( )

Return the output image direction

Definition at line 87 of file otbImageToModulusAndDirectionImageFilter.hxx.

◆ New()

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
static Pointer otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::New ( )
static

Method for management of the object factory.

◆ operator=()

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
void otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::operator= ( const Self )
privatedelete

◆ PrintSelf()

template<class TInputImage , class TOutputImage , class TOutputImageDirection >
void otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

Standard "PrintSelf" method

Definition at line 110 of file otbImageToModulusAndDirectionImageFilter.hxx.

Member Data Documentation

◆ InputImageDimension

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
const unsigned int otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::InputImageDimension = TInputImage::ImageDimension
static

Extract dimensions as well of the images of entry of exit.

Definition at line 46 of file otbImageToModulusAndDirectionImageFilter.h.

◆ OutputImageDimension

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage>
const unsigned int otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >::OutputImageDimension = TOutputImage::ImageDimension
static

Extract dimensions as well of the images of entry of exit.

Definition at line 47 of file otbImageToModulusAndDirectionImageFilter.h.


The documentation for this class was generated from the following files:
