Module OTBCommon

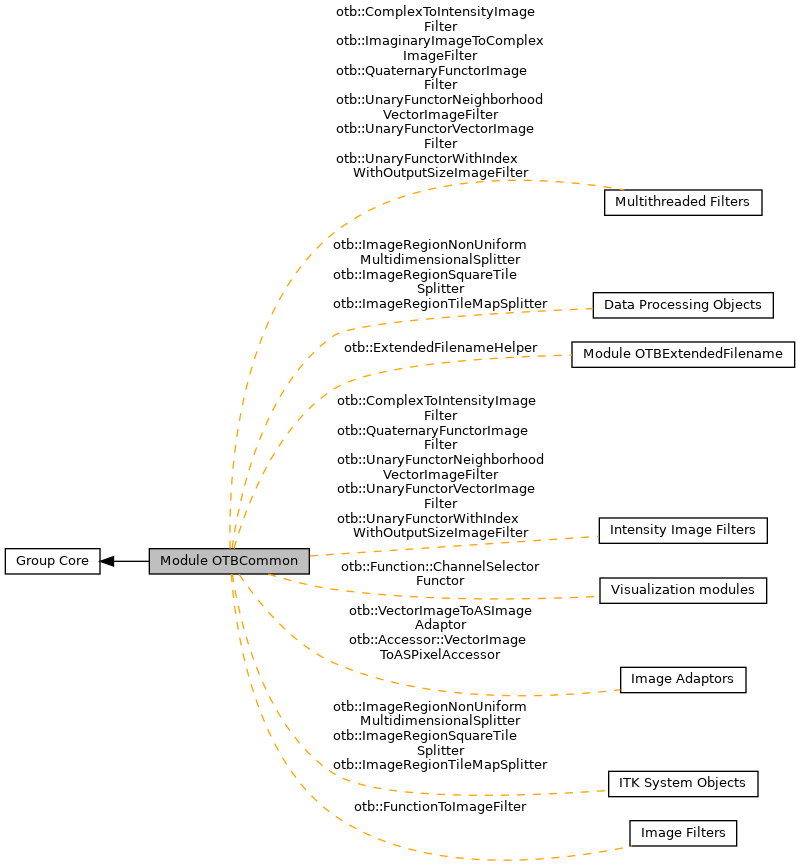

Collaboration diagram for Module OTBCommon:

Classes
class	otb::Function::ChannelSelectorFunctor< TInputPixel >
class	otb::CommandProgressUpdate< TFilter >
class	otb::ComplexToIntensityImageFilter< TInputImage, TOutputImage >
class	otb::ComplexToVectorImageCastFilter< TInputImage, TOutputImage >
class	otb::DecimateImageFilter< TInputImage, TOutputImage >
class	otb::ExtendedFilenameHelper
class	otb::FilterWatcherBase
class	otb::FunctionToImageFilter< TInputImage, TOutputImage, TFunction >
class	otb::ImageAndVectorImageOperationFilter< TInputImage, TVectorInputImage, TOutputImage >
class	otb::ImageRegionNonUniformMultidimensionalSplitter< VImageDimension >
class	otb::ImageRegionSquareTileSplitter< VImageDimension >
class	otb::ImageRegionTileMapSplitter< VImageDimension >
class	otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImageDirection >
class	otb::ImaginaryImageToComplexImageFilter< TInputImageImaginaryPart, TOutputImage >
class	otb::ImportImageFilter< TOutputImageType >
class	otb::ImportVectorImageFilter< TOutputImageType >
class	otb::Interval
struct	otb::mpl::is_array< T >
struct	otb::mpl::is_array< itk::VariableLengthVector< T > >
struct	otb::mpl::is_array< itk::VariableLengthVectorExpression< TExpr1, TExpr2, TBinaryOp > >
struct	otb::internals::ZipIterator< TImageIterator, ConstOrMutable >::PixelListProxy::iterator__
class	otb::Logger
class	otb::Statistics::ModelComponentBase< TSample >
struct	otb::NeatRegionLogger
struct	otb::internals::ZipIterator< TImageIterator, ConstOrMutable >::PixelListProxy
class	otb::QuaternaryFunctorImageFilter< TInputImage1, TInputImage2, TInputImage3, TInputImage4, TOutputImage, TFunction >
class	otb::Rectangle< TValue >
class	otb::RGBAPixelConverter< TInternalInputPixelType, TOutputPixelType >
struct	otb::Span< T >
class	otb::StandardFilterWatcher
class	otb::StandardOneLineFilterWatcher< PrintCallbackType >
class	otb::StandardOutputPrintCallback
class	otb::StandardWriterWatcher
class	otb::Stopwatch
class	otb::StringToHTML
class	otb::SubsampledImageRegionIterator< TImage >
class	otb::System
class	otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >
class	otb::UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, TFunction >
class	otb::UnaryFunctorWithIndexWithOutputSizeImageFilter< TInputImage, TOutputImage, TFunction >
class	otb::Functor::UniformAlphaBlendingFunctor< TInputPixel, TInputPixel2, TOutputPixel >
class	Utils
class	otb::VariableLengthVectorConverter< TInputType, TPrecisionType >
class	otb::VectorImageToASImageAdaptor< TImage >
class	otb::Accessor::VectorImageToASPixelAccessor< T >
class	otb::WriterWatcherBase
class	otb::internals::ZipIterator< TImageIterator, ConstOrMutable >

Typedefs
template<typename TImageIterator >
using	otb::ZipConstIterator = internals::ZipIterator< TImageIterator, internals::ConstTag >
template<typename TImageIterator >
using	otb::ZipIterator = internals::ZipIterator< TImageIterator, internals::MutableTag >

Variables
template<typename T >
constexpr bool	otb::mpl::is_array_v = is_array<T>::value
template<typename T >
auto	otb::make_span (T *first, T *last) noexcept
template<typename T >
auto	otb::make_span (T *first, std::vcl_size_t count) noexcept
template<typename T , std::vcl_size_t N>
auto	otb::make_span (T(&arr)[N]) noexcept
template<typename ContiguousContainer >
auto	otb::make_span (ContiguousContainer &c) noexcept

Detailed Description

Typedef Documentation

ZipConstIterator

template<typename TImageIterator >

using otb::ZipConstIterator = typedef internals::ZipIterator<TImageIterator, internals::ConstTag>

Typedef for a ZipConstIterator. ZipConstIterator presents a single iterator over a list of const image iterators.

Author

Luc Hermitte (CS Group)

Copyright

CNES

See also

otb::internals::ZipIterator<>

Definition at line 435 of file otbZipIterator.h.

ZipIterator

template<typename TImageIterator >

using otb::ZipIterator = typedef internals::ZipIterator<TImageIterator, internals::MutableTag>

Typedef for a ZipIterator. ZipIterator presents a single iterator over a list of image iterators.

Author

Luc Hermitte (CS Group)

Copyright

CNES

See also

otb::internals::ZipIterator<>

Definition at line 425 of file otbZipIterator.h.

Function Documentation

make_span() [1/4]

template<typename ContiguousContainer >

auto otb::make_span ( ContiguousContainer &  c )

inlinenoexcept

Helper function to make a span from a contiguous container. Compensate the fact we do not have access to C++17 span{container}.

Template Parameters

ContiguousContainer

Auto deduced type of the container

Parameters

[in]

cont

container of contiguous elements

Returns

a span over [c.data(), c.size())

Exceptions

None

See also

otb::Span<>

Author

Luc Hermitte (CS Group)

Copyright

CNES

Definition at line 288 of file otbSpan.h.

make_span() [2/4]

template<typename T >

auto otb::make_span ( T *  first, std::vcl_size_t  count  )

inlinenoexcept

Helper function to make a span from a range defined with a pointer plus a size. Compensate the fact we are not have access to C++17 span{ptr, count}.

Template Parameters

T	Auto deduced type of the elements

Parameters

[in]	first	start of the memory zone
[in]	count	number of elements in the span.

Returns

a span over [first, first+count)

Exceptions

None

Precondition

NOT first != nullptr XOR count != 0

See also

otb::Span<>

Author

Luc Hermitte (CS Group)

Copyright

CNES

Definition at line 247 of file otbSpan.h.

make_span() [3/4]

template<typename T >

auto otb::make_span ( T *  first, T *  last  )

inlinenoexcept

Helper function to make a span from a range defined with pointers. Compensate the fact we are not have access to C++17 span{ptr1, ptr2}.

Template Parameters

T	Auto deduced type of the elements

Parameters

[in]	first	start of the memory zone
[in]	last	end of the memory zone

Returns

a span over [first, last)

Exceptions

None

Precondition

NOT first != nullptr XOR last != nullptr

first < last

[first, last) can be iterated

See also

otb::Span<>

Author

Luc Hermitte (CS Group)

Copyright

CNES

Definition at line 224 of file otbSpan.h.

make_span() [4/4]

template<typename T , std::vcl_size_t N>

auto otb::make_span ( T(&)  arr[N] )

inlinenoexcept

Helper function to make a span from a static array. Compensate the fact we are not have access to C++17 span{array}.

Template Parameters

T	Auto deduced type of the elements
N	Auto deduced number of elements in the array

Parameters

[in]

array

static array

Returns

a span over [&array[0], &array[N])

Exceptions

None

See also

otb::Span<>

Author

Luc Hermitte (CS Group)

Copyright

CNES

Definition at line 268 of file otbSpan.h.

Variable Documentation

is_array_v

template<typename T >

constexpr bool otb::mpl::is_array_v = is_array<T>::value

constexpr

Helper variable to identify any array pixel types.

Template Parameters

T	Type to check

Returns

true for types that inherit from itk::FixedArray

true for itk::VariableLengthVector, and expression templates made of VLV.

false otherwise

At this moment, there is no specialization for std::vector nor types that inherit from vnl_vector.

See also

is_array<>

Definition at line 114 of file otbArrayTraits.h.
