otb::ImageToRadianceImageFilter< TInputImage, TOutputImage > Class Template Reference

#include <otbImageToRadianceImageFilter.h>

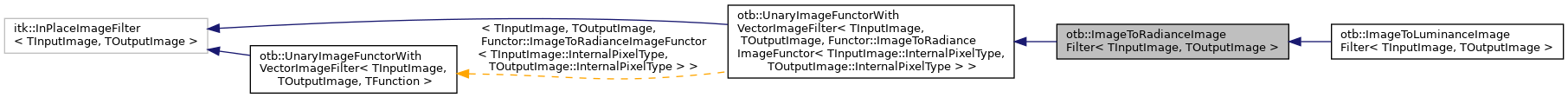

Inheritance diagram for otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >:

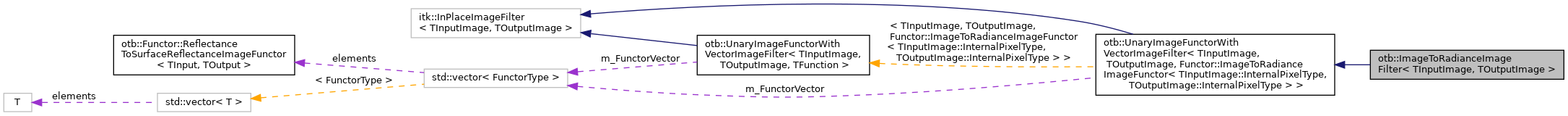

Collaboration diagram for otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >:

typedef TInputImage	InputImageType
typedef TOutputImage	OutputImageType
typedef Functor::ImageToRadianceImageFunctor< typename InputImageType::InternalPixelType, typename OutputImageType::InternalPixelType >	FunctorType
typedef ImageToRadianceImageFilter	Self
typedef UnaryImageFunctorWithVectorImageFilter< InputImageType, OutputImageType, FunctorType >	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef InputImageType::PixelType	InputPixelType
typedef InputImageType::InternalPixelType	InputInternalPixelType
typedef InputImageType::RegionType	InputImageRegionType
typedef OutputImageType::PixelType	OutputPixelType
typedef OutputImageType::InternalPixelType	OutputInternalPixelType
typedef OutputImageType::RegionType	OutputImageRegionType
typedef itk::VariableLengthVector< double >	VectorType
typedef InputImageType::SizeType	SizeType
static const unsigned int	InputImageDimension = TInputImage::ImageDimension
static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension
VectorType	m_Alpha
VectorType	m_Beta
static Pointer	New ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
virtual void	SetAlpha (VectorType _arg)
virtual const VectorType &	GetAlpha () const
virtual void	SetBeta (VectorType _arg)
virtual const VectorType &	GetBeta () const
	ImageToRadianceImageFilter ()
	~ImageToRadianceImageFilter () override
void	BeforeThreadedGenerateData (void) override

Additional Inherited Members
Public Types inherited from otb::UnaryImageFunctorWithVectorImageFilter< TInputImage, TOutputImage, Functor::ImageToRadianceImageFunctor< TInputImage::InternalPixelType, TOutputImage::InternalPixelType > >
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::SmartPointer< Self >	Pointer
typedef UnaryImageFunctorWithVectorImageFilter	Self
typedef itk::InPlaceImageFilter< TInputImage, TOutputImage >	Superclass
typedef TInputImage	InputImageType
typedef TOutputImage	OutputImageType
typedef Functor::ImageToRadianceImageFunctor< TInputImage::InternalPixelType, TOutputImage::InternalPixelType >	FunctorType
typedef InputImageType::PixelType	InputPixelType
typedef InputImageType::InternalPixelType	InputInternalPixelType
typedef InputImageType::RegionType	InputImageRegionType
typedef OutputImageType::PixelType	OutputPixelType
typedef OutputImageType::InternalPixelType	OutputInternalPixelType
typedef OutputImageType::RegionType	OutputImageRegionType
typedef InputImageType::SizeType	SizeType
typedef std::vector< FunctorType >	FunctorVectorType
Public Member Functions inherited from otb::UnaryImageFunctorWithVectorImageFilter< TInputImage, TOutputImage, Functor::ImageToRadianceImageFunctor< TInputImage::InternalPixelType, TOutputImage::InternalPixelType > >
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
FunctorVectorType &	GetFunctorVector (void)
Static Public Member Functions inherited from otb::UnaryImageFunctorWithVectorImageFilter< TInputImage, TOutputImage, Functor::ImageToRadianceImageFunctor< TInputImage::InternalPixelType, TOutputImage::InternalPixelType > >
static Pointer	New ()
Static Public Attributes inherited from otb::UnaryImageFunctorWithVectorImageFilter< TInputImage, TOutputImage, Functor::ImageToRadianceImageFunctor< TInputImage::InternalPixelType, TOutputImage::InternalPixelType > >
static const unsigned int	InputImageDimension
static const unsigned int	OutputImageDimension
Protected Member Functions inherited from otb::UnaryImageFunctorWithVectorImageFilter< TInputImage, TOutputImage, Functor::ImageToRadianceImageFunctor< TInputImage::InternalPixelType, TOutputImage::InternalPixelType > >
	UnaryImageFunctorWithVectorImageFilter ()
	~UnaryImageFunctorWithVectorImageFilter () override
void	GenerateOutputInformation () override
void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Detailed Description

template<class TInputImage, class TOutputImage>
class otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >

Convert a raw value into a radiance value.

Transform a classical image into the radiance image. For this it uses the functor ImageToRadianceImageFunctor calling for each component of each pixel.

For Spot image in the dimap format, the correction parameters are retrieved automatically from the metadata

Examples

Radiometry/AtmosphericCorrectionSequencement.cxx.

Definition at line 107 of file otbImageToRadianceImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInputImage , class TOutputImage >

typedef itk::SmartPointer<const Self> otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::ConstPointer

"typedef" to simplify the variables definition and the declaration.

Definition at line 127 of file otbImageToRadianceImageFilter.h.

FunctorType

template<class TInputImage , class TOutputImage >

typedef Functor::ImageToRadianceImageFunctor<typename InputImageType::InternalPixelType, typename OutputImageType::InternalPixelType> otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::FunctorType

"typedef" to simplify the variables definition and the declaration.

Definition at line 121 of file otbImageToRadianceImageFilter.h.

InputImageRegionType

template<class TInputImage , class TOutputImage >

typedef InputImageType::RegionType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::InputImageRegionType

"typedef" to simplify the variables definition and the declaration.

Definition at line 138 of file otbImageToRadianceImageFilter.h.

InputImageType

template<class TInputImage , class TOutputImage >

typedef TInputImage otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::InputImageType

"typedef" to simplify the variables definition and the declaration.

Definition at line 119 of file otbImageToRadianceImageFilter.h.

InputInternalPixelType

template<class TInputImage , class TOutputImage >

typedef InputImageType::InternalPixelType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::InputInternalPixelType

"typedef" to simplify the variables definition and the declaration.

Definition at line 137 of file otbImageToRadianceImageFilter.h.

InputPixelType

template<class TInputImage , class TOutputImage >

typedef InputImageType::PixelType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::InputPixelType

Supported images definition.

Definition at line 133 of file otbImageToRadianceImageFilter.h.

OutputImageRegionType

template<class TInputImage , class TOutputImage >

typedef OutputImageType::RegionType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::OutputImageRegionType

"typedef" to simplify the variables definition and the declaration.

Definition at line 141 of file otbImageToRadianceImageFilter.h.

OutputImageType

template<class TInputImage , class TOutputImage >

typedef TOutputImage otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::OutputImageType

"typedef" to simplify the variables definition and the declaration.

Definition at line 120 of file otbImageToRadianceImageFilter.h.

OutputInternalPixelType

template<class TInputImage , class TOutputImage >

typedef OutputImageType::InternalPixelType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::OutputInternalPixelType

"typedef" to simplify the variables definition and the declaration.

Definition at line 140 of file otbImageToRadianceImageFilter.h.

OutputPixelType

template<class TInputImage , class TOutputImage >

typedef OutputImageType::PixelType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::OutputPixelType

"typedef" to simplify the variables definition and the declaration.

Definition at line 139 of file otbImageToRadianceImageFilter.h.

Pointer

template<class TInputImage , class TOutputImage >

typedef itk::SmartPointer<Self> otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::Pointer

"typedef" to simplify the variables definition and the declaration.

Definition at line 126 of file otbImageToRadianceImageFilter.h.

Self

template<class TInputImage , class TOutputImage >

typedef ImageToRadianceImageFilter otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::Self

"typedef" for standard classes.

Definition at line 124 of file otbImageToRadianceImageFilter.h.

SizeType

template<class TInputImage , class TOutputImage >

typedef InputImageType::SizeType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::SizeType

Image size "typedef" definition.

Definition at line 146 of file otbImageToRadianceImageFilter.h.

Superclass

template<class TInputImage , class TOutputImage >

typedef UnaryImageFunctorWithVectorImageFilter<InputImageType, OutputImageType, FunctorType> otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::Superclass

"typedef" to simplify the variables definition and the declaration.

Definition at line 125 of file otbImageToRadianceImageFilter.h.

VectorType

template<class TInputImage , class TOutputImage >

typedef itk::VariableLengthVector<double> otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::VectorType

"typedef" to simplify the variables definition and the declaration.

Definition at line 143 of file otbImageToRadianceImageFilter.h.

Constructor & Destructor Documentation

ImageToRadianceImageFilter()

template<class TInputImage , class TOutputImage >

otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::ImageToRadianceImageFilter ( )

inlineprotected

Constructor

Definition at line 162 of file otbImageToRadianceImageFilter.h.

~ImageToRadianceImageFilter()

template<class TInputImage , class TOutputImage >

otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::~ImageToRadianceImageFilter ( )

inlineoverrideprotected

Destructor

Definition at line 170 of file otbImageToRadianceImageFilter.h.

Member Function Documentation

BeforeThreadedGenerateData()

template<class TInputImage , class TOutputImage >

void otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData ( void  )

inlineoverrideprotected

Update the functor list and input parameters

Definition at line 175 of file otbImageToRadianceImageFilter.h.

References otbMsgDevMacro, otb::PhysicalBias, otb::PhysicalGain, otb::Functor::ImageToRadianceImageFunctor< TInput, TOutput >::SetAlpha(), and otb::Functor::ImageToRadianceImageFunctor< TInput, TOutput >::SetBeta().

CreateAnother()

template<class TInputImage , class TOutputImage >

virtual::itk::LightObject::Pointer otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::CreateAnother

(

void

)

const

"typedef" to simplify the variables definition and the declaration.

GetAlpha()

template<class TInputImage , class TOutputImage >

virtual const VectorType& otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::GetAlpha ( ) const

virtual

Give the absolute calibration gains.

GetBeta()

template<class TInputImage , class TOutputImage >

virtual const VectorType& otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::GetBeta ( ) const

virtual

Give the absolute calibration bias.

GetNameOfClass()

template<class TInputImage , class TOutputImage >

virtual const char* otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::GetNameOfClass ( ) const

virtual

return class name.

New()

template<class TInputImage , class TOutputImage >

static Pointer otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::New ( )

static

object factory method.

SetAlpha()

template<class TInputImage , class TOutputImage >

virtual void otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::SetAlpha ( VectorType  _arg )

virtual

Set the absolute calibration gains.

SetBeta()

template<class TInputImage , class TOutputImage >

virtual void otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::SetBeta ( VectorType  _arg )

virtual

Set the absolute calibration bias.

Member Data Documentation

InputImageDimension

template<class TInputImage , class TOutputImage >

const unsigned int otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::InputImageDimension = TInputImage::ImageDimension

static

Extract input and output images dimensions.

Definition at line 114 of file otbImageToRadianceImageFilter.h.

m_Alpha

template<class TInputImage , class TOutputImage >

VectorType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::m_Alpha

private

Ponderation declaration

Definition at line 215 of file otbImageToRadianceImageFilter.h.

m_Beta

template<class TInputImage , class TOutputImage >

VectorType otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::m_Beta

private

"typedef" to simplify the variables definition and the declaration.

Definition at line 216 of file otbImageToRadianceImageFilter.h.

OutputImageDimension

template<class TInputImage , class TOutputImage >

const unsigned int otb::ImageToRadianceImageFilter< TInputImage, TOutputImage >::OutputImageDimension = TOutputImage::ImageDimension

static

"typedef" to simplify the variables definition and the declaration.

Definition at line 115 of file otbImageToRadianceImageFilter.h.

---

The documentation for this class was generated from the following file:

• otbImageToRadianceImageFilter.h
