otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor > Class Template Reference

#include <otbLabelMapFeaturesFunctorImageFilter.h>

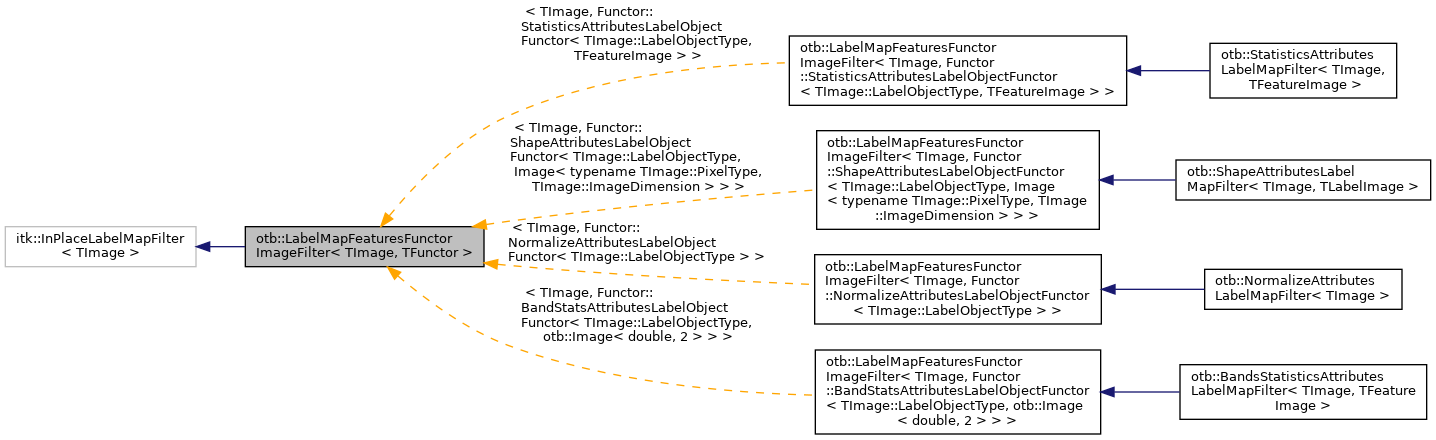

Inheritance diagram for otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >:

Collaboration diagram for otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef TFunctor	FunctorType
typedef TImage	ImageType
typedef ImageType::LabelObjectType	LabelObjectType
typedef itk::SmartPointer< Self >	Pointer
typedef LabelMapFeaturesFunctorImageFilter	Self
typedef itk::InPlaceLabelMapFilter< TImage >	Superclass

Public Member Functions
virtual const char *	GetNameOfClass () const

Static Public Attributes
static const unsigned int	ImageDimension = TImage::ImageDimension
FunctorType	m_Functor
void	SetFunctor (FunctorType &functor)
const FunctorType &	GetFunctor () const
FunctorType &	GetFunctor ()
	LabelMapFeaturesFunctorImageFilter ()
	~LabelMapFeaturesFunctorImageFilter () override
void	ThreadedProcessLabelObject (LabelObjectType *labelObject) override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	LabelMapFeaturesFunctorImageFilter (const Self &)=delete
void	operator= (const Self &)=delete

Detailed Description

template<class TImage, class TFunctor>
class otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >

This class applies a functor to compute new features.

The functor is applied on each LabelObject, enriching the available features.

The LabelObject type must be an AttributeMapLabelObject.

This filter can not be instantiated on its own, since its purpose is to provide a base class for all LabelMap attributes enriching filters

See also

otb::AttributeMapLabelObject

otb::StatisticsAttributesLabelMapFilter

otb::ShapeAttributesLabelMapFilter

otb::RadiometricAttributesLabelMapFilter

otb::BandsStatisticsAttributesLabelMapFilter

itk::InPlaceLabelMapFilter

Definition at line 53 of file otbLabelMapFeaturesFunctorImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TImage , class TFunctor >

typedef itk::SmartPointer<const Self> otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::ConstPointer

Definition at line 60 of file otbLabelMapFeaturesFunctorImageFilter.h.

FunctorType

template<class TImage , class TFunctor >

typedef TFunctor otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::FunctorType

Definition at line 65 of file otbLabelMapFeaturesFunctorImageFilter.h.

ImageType

template<class TImage , class TFunctor >

typedef TImage otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::ImageType

Some convenient typedefs.

Definition at line 63 of file otbLabelMapFeaturesFunctorImageFilter.h.

LabelObjectType

template<class TImage , class TFunctor >

typedef ImageType::LabelObjectType otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::LabelObjectType

Definition at line 64 of file otbLabelMapFeaturesFunctorImageFilter.h.

Pointer

template<class TImage , class TFunctor >

typedef itk::SmartPointer<Self> otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::Pointer

Definition at line 59 of file otbLabelMapFeaturesFunctorImageFilter.h.

Self

template<class TImage , class TFunctor >

typedef LabelMapFeaturesFunctorImageFilter otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::Self

Standard class typedefs.

Definition at line 57 of file otbLabelMapFeaturesFunctorImageFilter.h.

Superclass

template<class TImage , class TFunctor >

typedef itk::InPlaceLabelMapFilter<TImage> otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::Superclass

Definition at line 58 of file otbLabelMapFeaturesFunctorImageFilter.h.

Constructor & Destructor Documentation

LabelMapFeaturesFunctorImageFilter() [1/2]

template<class TImage , class TFunctor >

otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::LabelMapFeaturesFunctorImageFilter ( )

inlineprotected

Constructor

Definition at line 98 of file otbLabelMapFeaturesFunctorImageFilter.h.

~LabelMapFeaturesFunctorImageFilter()

template<class TImage , class TFunctor >

otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::~LabelMapFeaturesFunctorImageFilter ( )

inlineoverrideprotected

Destructor

Definition at line 103 of file otbLabelMapFeaturesFunctorImageFilter.h.

LabelMapFeaturesFunctorImageFilter() [2/2]

template<class TImage , class TFunctor >

otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::LabelMapFeaturesFunctorImageFilter ( const Self &  )

privatedelete

The functor

Member Function Documentation

GetFunctor() [1/2]

template<class TImage , class TFunctor >

FunctorType& otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::GetFunctor ( )

inline

Get a reference to the functor (non const version)

Definition at line 91 of file otbLabelMapFeaturesFunctorImageFilter.h.

GetFunctor() [2/2]

template<class TImage , class TFunctor >

const FunctorType& otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::GetFunctor ( ) const

inline

Get the functor (const version)

Definition at line 85 of file otbLabelMapFeaturesFunctorImageFilter.h.

GetNameOfClass()

template<class TImage , class TFunctor >

virtual const char* otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::GetNameOfClass ( ) const

virtual

Runtime information support.

operator=()

template<class TImage , class TFunctor >

void otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::operator= ( const Self &  )

privatedelete

The functor

PrintSelf()

template<class TImage , class TFunctor >

void otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

inlineoverrideprotected

PrintSelf method

Definition at line 115 of file otbLabelMapFeaturesFunctorImageFilter.h.

SetFunctor()

template<class TImage , class TFunctor >

void otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::SetFunctor ( FunctorType &  functor )

inline

Set the functor

Definition at line 74 of file otbLabelMapFeaturesFunctorImageFilter.h.

ThreadedProcessLabelObject()

template<class TImage , class TFunctor >

void otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::ThreadedProcessLabelObject ( LabelObjectType *  labelObject )

inlineoverrideprotected

Threaded generate data

Definition at line 108 of file otbLabelMapFeaturesFunctorImageFilter.h.

Member Data Documentation

ImageDimension

template<class TImage , class TFunctor >

const unsigned int otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::ImageDimension = TImage::ImageDimension

static

ImageDimension constants

Definition at line 68 of file otbLabelMapFeaturesFunctorImageFilter.h.

m_Functor

template<class TImage , class TFunctor >

FunctorType otb::LabelMapFeaturesFunctorImageFilter< TImage, TFunctor >::m_Functor

private

The functor

Definition at line 126 of file otbLabelMapFeaturesFunctorImageFilter.h.

---

The documentation for this class was generated from the following file:

• otbLabelMapFeaturesFunctorImageFilter.h
