OTB  9.0.0
Orfeo Toolbox
Public Types | Public Member Functions | Static Public Member Functions | Static Public Attributes | Protected Member Functions | Private Member Functions | List of all members
otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage > Class Template Reference
Data Processing Objects » Filters » Image Filters » Image Enhancement FiltersData Processing Objects » Filters » Image Filters » Intensity Image Filters » | Mathematical Morphology Image FiltersGroup Core » | Module OTBLabelMap

#include <otbStatisticsAttributesLabelMapFilter.h>

+ Inheritance diagram for otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >:

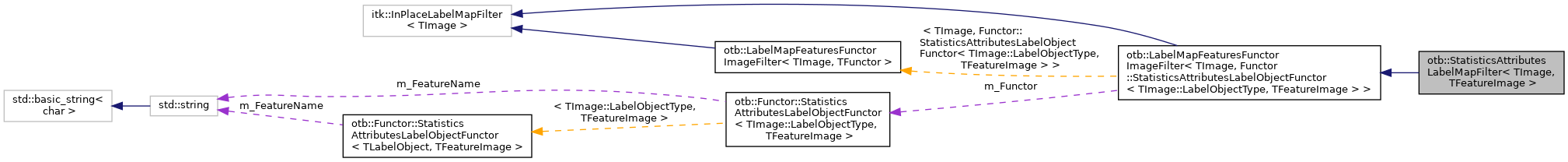

+ Collaboration diagram for otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >:

Public Types

typedef itk::SmartPointer< const Self > ConstPointer

typedef TFeatureImage FeatureImageType

typedef Functor::StatisticsAttributesLabelObjectFunctor< LabelObjectType, FeatureImageType > FunctorType

typedef TImage ImageType

typedef ImageType::LabelObjectType LabelObjectType

typedef itk::SmartPointer< Self > Pointer

typedef StatisticsAttributesLabelMapFilter Self

typedef LabelMapFeaturesFunctorImageFilter< ImageType, FunctorType > Superclass

- Public Types inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::StatisticsAttributesLabelObjectFunctor< TImage::LabelObjectType, TFeatureImage > >
typedef itk::SmartPointer< const Self > ConstPointer

typedef Functor::StatisticsAttributesLabelObjectFunctor< TImage::LabelObjectType, TFeatureImage > FunctorType

typedef TImage ImageType

typedef ImageType::LabelObjectType LabelObjectType

typedef itk::SmartPointer< Self > Pointer

typedef LabelMapFeaturesFunctorImageFilter Self

typedef itk::InPlaceLabelMapFilter< TImage > Superclass


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

const FeatureImageType * GetFeatureImage () const

const std::string & GetFeatureName () const

const TImage * GetInput1 () const

const TFeatureImage * GetInput2 () const

virtual const char * GetNameOfClass () const

bool GetReducedAttributeSet () const

virtual void ReducedAttributeSetOff ()

virtual void ReducedAttributeSetOn ()

void SetFeatureImage (const TFeatureImage *input)

void SetFeatureName (const std::string &name)

void SetInput1 (const TImage *input)

void SetInput2 (const TFeatureImage *input)

void SetReducedAttributeSet (bool flag)

- Public Member Functions inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::StatisticsAttributesLabelObjectFunctor< TImage::LabelObjectType, TFeatureImage > >
virtual const char * GetNameOfClass () const

void SetFunctor (FunctorType &functor)

const FunctorType & GetFunctor () const

FunctorType & GetFunctor ()


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const unsigned int ImageDimension = TImage::ImageDimension

- Static Public Attributes inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::StatisticsAttributesLabelObjectFunctor< TImage::LabelObjectType, TFeatureImage > >
static const unsigned int ImageDimension


Protected Member Functions

void BeforeThreadedGenerateData () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 StatisticsAttributesLabelMapFilter ()

 ~StatisticsAttributesLabelMapFilter () override

- Protected Member Functions inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::StatisticsAttributesLabelObjectFunctor< TImage::LabelObjectType, TFeatureImage > >
 LabelMapFeaturesFunctorImageFilter ()

 ~LabelMapFeaturesFunctorImageFilter () override

void ThreadedProcessLabelObject (LabelObjectType *labelObject) override

void PrintSelf (std::ostream &os, itk::Indent indent) const override


Private Member Functions

void operator= (const Self &)=delete

 StatisticsAttributesLabelMapFilter (const Self &)=delete


Detailed Description

template<class TImage, class TFeatureImage>
class otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >

This class is a fork of itk::StasticsLabelMapFilter to support AttributesMapLabelObject.

To be able to support statistics attributes for multiple features into the same AttributesMapLabelObject, a feature name can be set. The key of the statistics features in the attributes map will be "STATS::FeatureName::StatisticName".

The flag ReducedAttributesSet allows computing only non-redundant statistics and statistics useful for classification (not spatially dependent statitistics). Reduced set contains only mean, variance, skewness and kurtosis.

See also
itk::StatisticsLabelMapFilter

Definition at line 128 of file otbStatisticsAttributesLabelMapFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TImage , class TFeatureImage >
typedef itk::SmartPointer<const Self> otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ConstPointer

Definition at line 145 of file otbStatisticsAttributesLabelMapFilter.h.

◆ FeatureImageType

template<class TImage , class TFeatureImage >
typedef TFeatureImage otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FeatureImageType

Definition at line 136 of file otbStatisticsAttributesLabelMapFilter.h.

◆ FunctorType

template<class TImage , class TFeatureImage >
typedef Functor::StatisticsAttributesLabelObjectFunctor<LabelObjectType, FeatureImageType> otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FunctorType

Functor typedef

Definition at line 139 of file otbStatisticsAttributesLabelMapFilter.h.

◆ ImageType

template<class TImage , class TFeatureImage >
typedef TImage otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ImageType

Some convenient typedefs.

Definition at line 134 of file otbStatisticsAttributesLabelMapFilter.h.

◆ LabelObjectType

template<class TImage , class TFeatureImage >
typedef ImageType::LabelObjectType otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::LabelObjectType

Definition at line 135 of file otbStatisticsAttributesLabelMapFilter.h.

◆ Pointer

template<class TImage , class TFeatureImage >
typedef itk::SmartPointer<Self> otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::Pointer

Definition at line 144 of file otbStatisticsAttributesLabelMapFilter.h.

◆ Self

template<class TImage , class TFeatureImage >
typedef StatisticsAttributesLabelMapFilter otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::Self

Standard class typedefs.

Definition at line 142 of file otbStatisticsAttributesLabelMapFilter.h.

◆ Superclass

template<class TImage , class TFeatureImage >
typedef LabelMapFeaturesFunctorImageFilter<ImageType, FunctorType> otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::Superclass

Definition at line 143 of file otbStatisticsAttributesLabelMapFilter.h.

Constructor & Destructor Documentation

◆ StatisticsAttributesLabelMapFilter() [1/2]

template<class TImage , class TFeatureImage >
otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::StatisticsAttributesLabelMapFilter
protected

Constructor

Definition at line 350 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ ~StatisticsAttributesLabelMapFilter()

template<class TImage , class TFeatureImage >
otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::~StatisticsAttributesLabelMapFilter
overrideprotected

Destructor

Definition at line 355 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ StatisticsAttributesLabelMapFilter() [2/2]

template<class TImage , class TFeatureImage >
otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::StatisticsAttributesLabelMapFilter ( const Self &  )
privatedelete

Member Function Documentation

◆ BeforeThreadedGenerateData()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::BeforeThreadedGenerateData
overrideprotected

Before threaded data generation

Definition at line 444 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ CreateAnother()

template<class TImage , class TFeatureImage >
virtual::itk::LightObject::Pointer otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::CreateAnother ( void  ) const

◆ GetFeatureImage()

template<class TImage , class TFeatureImage >
const StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FeatureImageType * otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetFeatureImage

Get the feature image

Definition at line 370 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ GetFeatureName()

template<class TImage , class TFeatureImage >
const std::string & otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetFeatureName

Get the feature name

Definition at line 418 of file otbStatisticsAttributesLabelMapFilter.hxx.

References otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetFeatureName().

Referenced by otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetFeatureName().

◆ GetInput1()

template<class TImage , class TFeatureImage >
const TImage * otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetInput1

Get Input1 (for backward compatibility)

Definition at line 384 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ GetInput2()

template<class TImage , class TFeatureImage >
const TFeatureImage * otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetInput2

Get Input2 (for backward compatibility)

Definition at line 398 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ GetNameOfClass()

template<class TImage , class TFeatureImage >
virtual const char* otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetNameOfClass ( ) const
virtual

Runtime information support.

◆ GetReducedAttributeSet()

template<class TImage , class TFeatureImage >
bool otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetReducedAttributeSet

Get the reduced attribute set

Definition at line 438 of file otbStatisticsAttributesLabelMapFilter.hxx.

References otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetReducedAttributeSet().

Referenced by otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetReducedAttributeSet().

◆ New()

template<class TImage , class TFeatureImage >
static Pointer otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::New ( )
static

Standard New method.

◆ operator=()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::operator= ( const Self &  )
privatedelete

◆ PrintSelf()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

PrintSelf method

Definition at line 454 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ ReducedAttributeSetOff()

template<class TImage , class TFeatureImage >
virtual void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ReducedAttributeSetOff ( )
virtual

◆ ReducedAttributeSetOn()

template<class TImage , class TFeatureImage >
virtual void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ReducedAttributeSetOn ( )
virtual

◆ SetFeatureImage()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetFeatureImage ( const TFeatureImage *  input)

Set the feature image

Definition at line 361 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ SetFeatureName()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetFeatureName ( const std::string &  name)

Set the name of the feature

Definition at line 406 of file otbStatisticsAttributesLabelMapFilter.hxx.

References otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetFeatureName().

Referenced by otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetFeatureName().

◆ SetInput1()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetInput1 ( const TImage *  input)

Set Input1 (for backward compatibility)

Definition at line 377 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ SetInput2()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetInput2 ( const TFeatureImage *  input)

Set Input2 (for backward compatibility)

Definition at line 391 of file otbStatisticsAttributesLabelMapFilter.hxx.

◆ SetReducedAttributeSet()

template<class TImage , class TFeatureImage >
void otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetReducedAttributeSet ( bool  flag)

Set the reduced attribute set

Definition at line 426 of file otbStatisticsAttributesLabelMapFilter.hxx.

References otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetReducedAttributeSet().

Referenced by otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetReducedAttributeSet().

Member Data Documentation

◆ ImageDimension

template<class TImage , class TFeatureImage >
const unsigned int otb::StatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ImageDimension = TImage::ImageDimension
static

ImageDimension constants

Definition at line 148 of file otbStatisticsAttributesLabelMapFilter.h.

The documentation for this class was generated from the following files:
